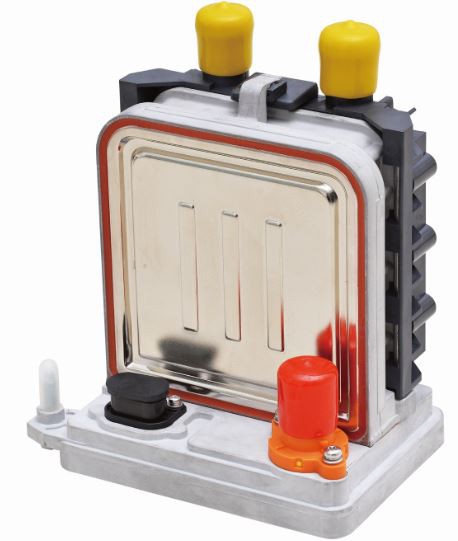

5KW PTC electric heater

Name: 5KW PTC electric heater
Brand: Nanfeng
SKU: 172455664

NF high voltage PTC coolant heaters is a good helper for battery regulation and heating comfort for special series of body manufacturers and original equipment manufacturers.

Send Inquiry

Description

Users of electric vehicles do not want the comfortable heating method used by internal combustion engines. This is why a proper heating system is as important as battery conditioning, which helps to prolong service life, shorten charging time and increase mileage.

NF high voltage PTC coolant heaters is a good helper for battery regulation and heating comfort for special series of body manufacturers and original equipment manufacturers.

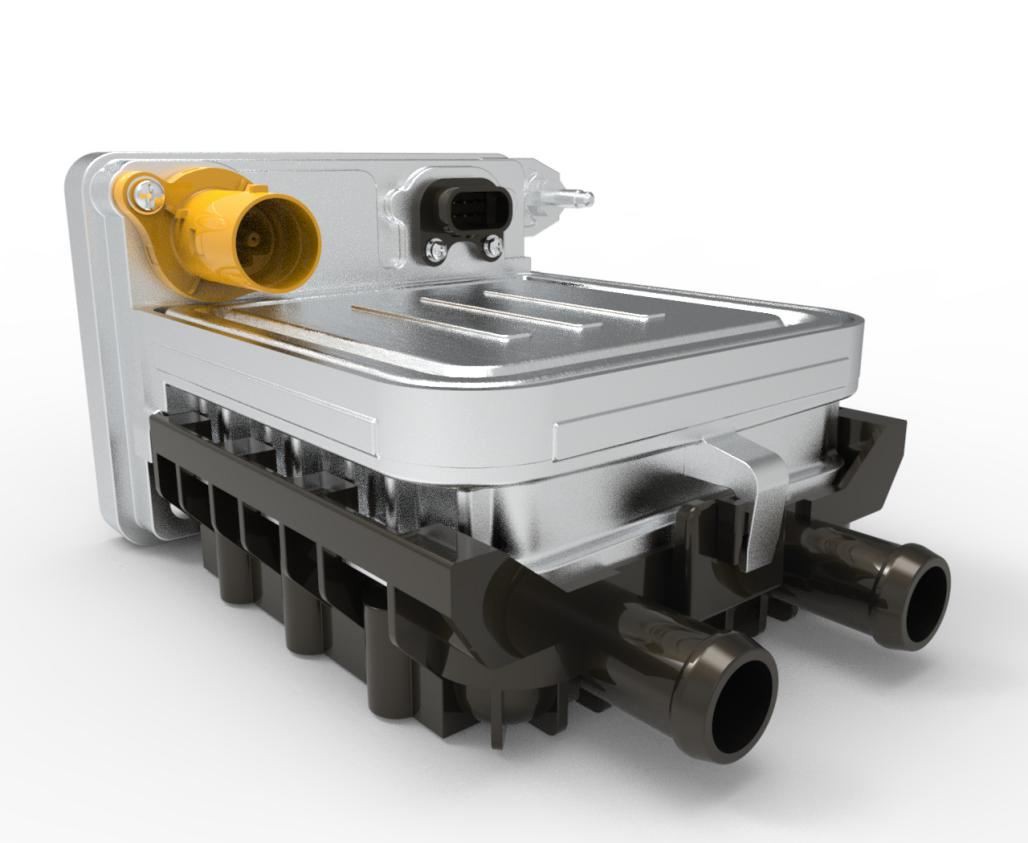

PTC electrical heater

The main technical parameters

Medium temperature	-40℃~90℃
Medium type	Water: ethylene glycol /50：50
Power/kw	5kw@60℃，10L/min
Brust pressure	5bar
Insulation resistance MΩ	≥50 @ DC1000V
Communication protocol	CAN
Connector IP ratng（nigh and low votage）	IP67
High voltage working voltage/V （DC）	450-750
Low voltage operating voltage/V（DC）	9-32
Low voltage quiescent current	< 0.1mA

The main performance features are as follows:

With compact structure and high power density, it can flexibly adapt to the installation space of the whole vehicle.

The use of plastic shell can realize the thermal isolation between the shell and the frame, so as to reduce the heat dissipation and improve the efficiency. Redundant sealing design can improve the reliability of the system.

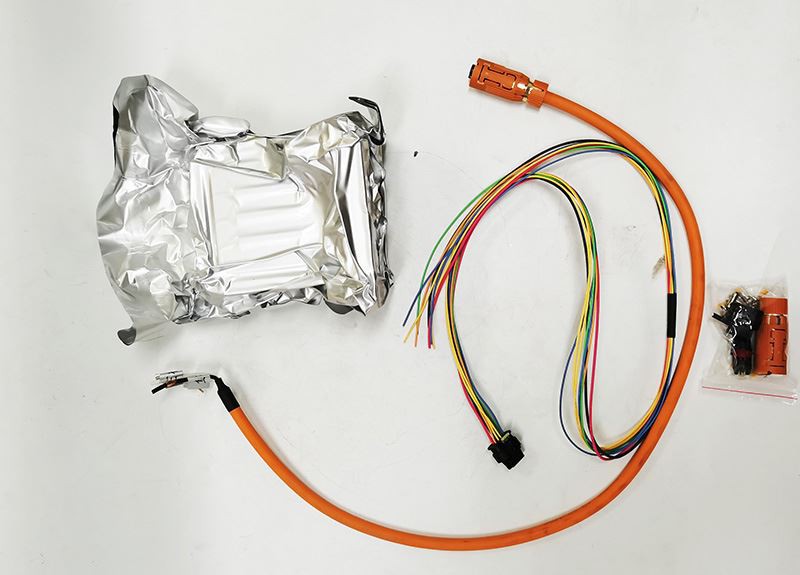

Accessories list

high voltage coolant heaters
