PTC 8KW Liquid Heater

1.Function
PTC water heating heater can provide heat for the new energy vehicle cockpit and meet the standards of safe defrosting and defogging. At the same time, it provides heat to other vehicles that require temperature adjustment (such as batteries).
2.Features
Electricity is used to heat the antifreeze, and the heater is used to heat the interior of the car. Installed in the water cooling circulation system
Warm air and temperature controllable
Use PWM to adjust the drive IGBT to adjust the power with short-term heat storage function
Whole vehicle cycle, supporting battery thermal management and environmental protection

Send Inquiry

Download

Description

Product Display

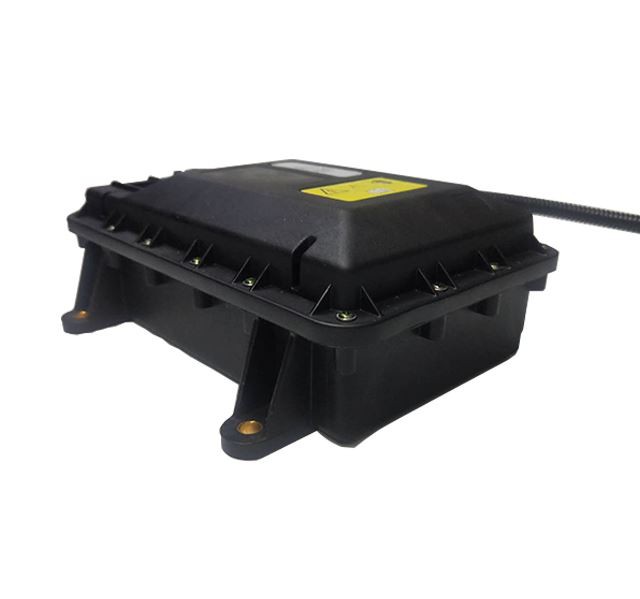

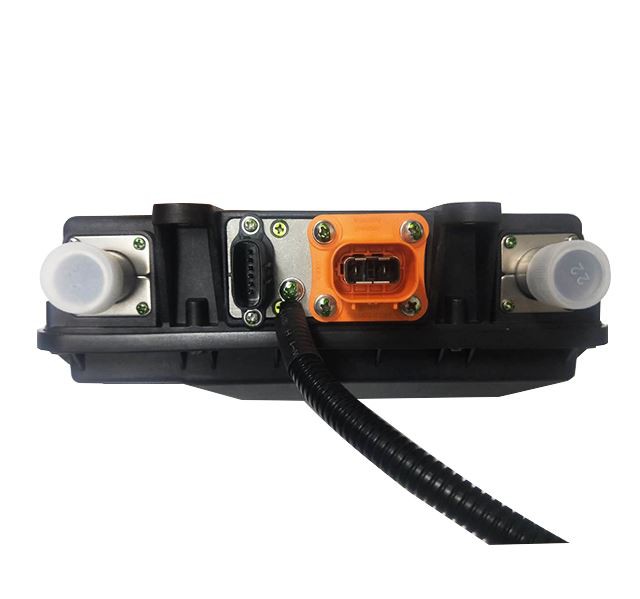

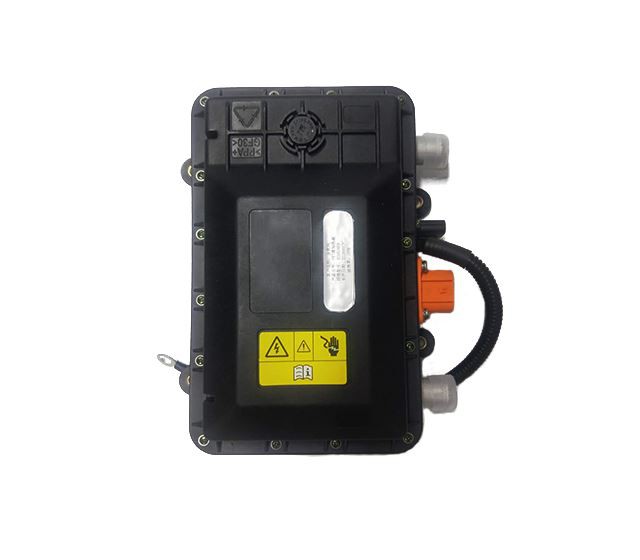

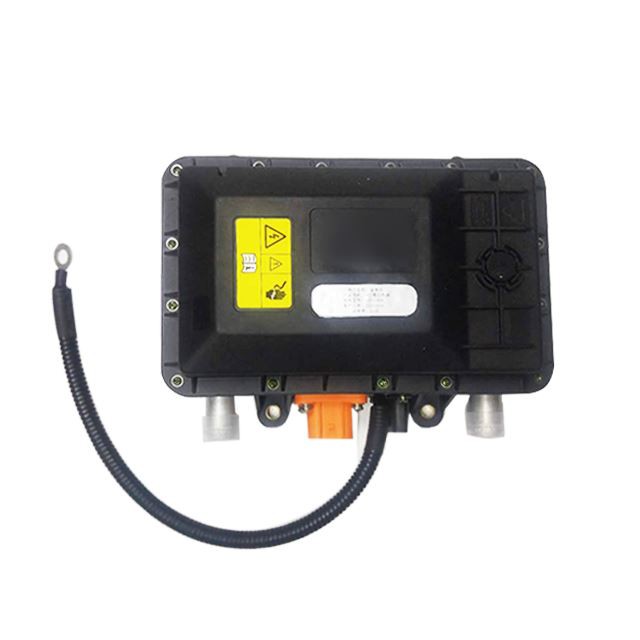

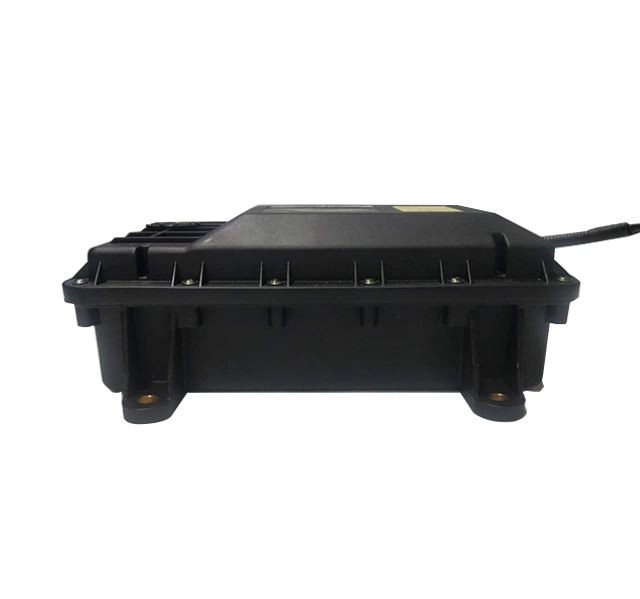

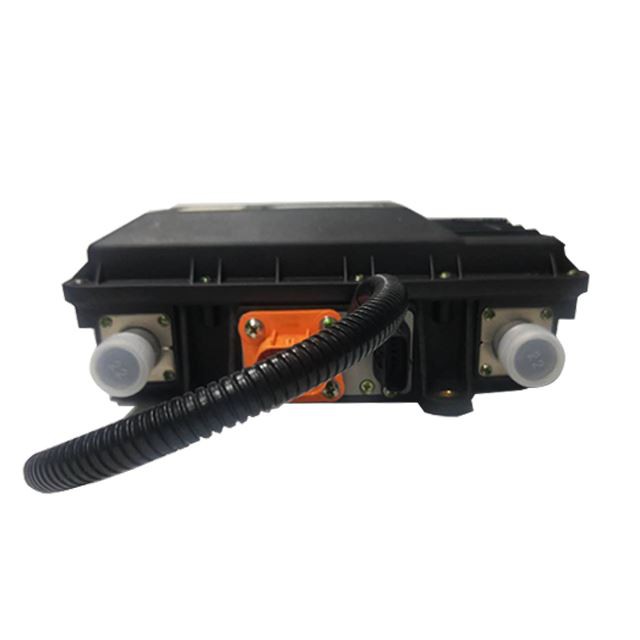

PTC 8kw liquid heater

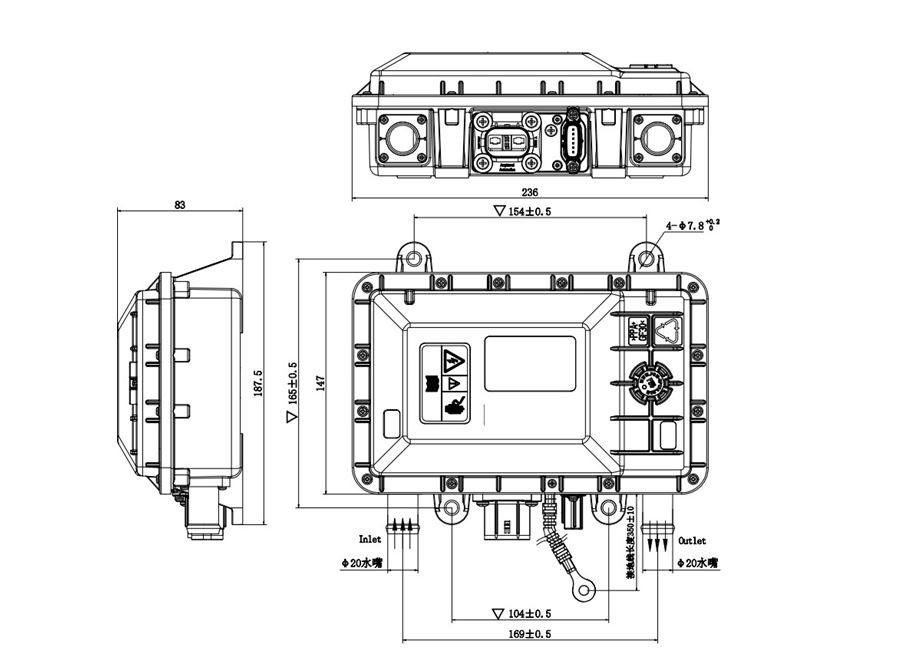

Product size

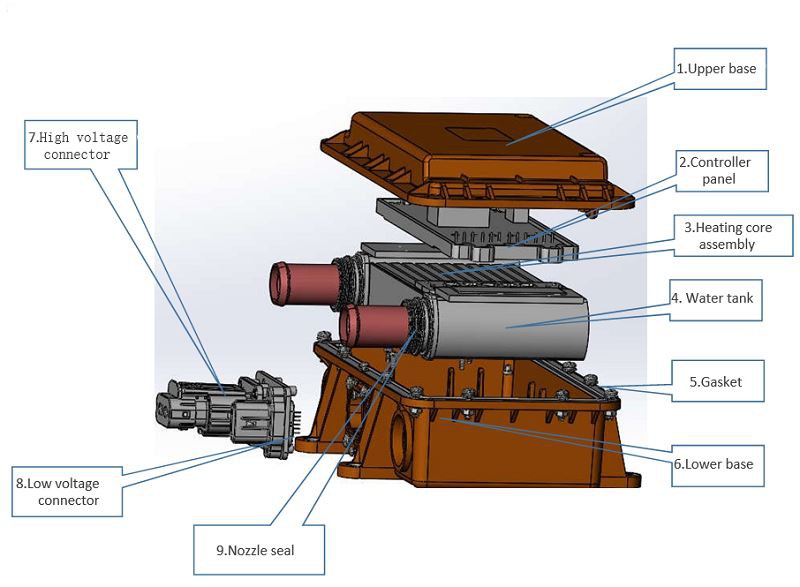

Product exploded view

Basic electrical parameters

Description	Condition	Minimum	typical	maximum	unit
power	a) Test voltage: control voltage: DC24V; load voltage: 600VDC b) ambient temperature: 20℃±2℃; water inlet temperature: 0℃±2℃; flow rate: 10L/min c) Air pressure: 70kPa~106ka No coolant, no connecting wire		8000		W
weight	No coolant, no connecting wire		2.7		KG
Antifreeze volume			170		mL

Temperature

Description	Condition	Minimum	typical	maximum	unit
Storage temperature		-40		105	℃
Working temperature		-40		105	℃
environment humidity		5%		95%	RH

Low pressure

Description	Condition	Minimum	typical	maximum	unit
Control voltage VCC		18	24	32	V
Ground			0		V
Supply current	Steady state current	90	120	160	mA
Starting current				1	A

High pressure

Description	Condition	Minimum	typical	maximum	unit
Supply voltage	Turn on heating	480	600	720	V
Supply current	Nominal condition		13.3		A
Inrush current	Nominal condition			17.3	A
stand-by current	Nominal condition			1.6	mA

High voltage safety

1	High voltage warning label	have
2	Flame-retardant plastic insulation shell protection to prevent access to high-voltage live parts	have
3	Basic insulation of high voltage live parts	have
4	Provide potential equalization grounding point	have
5	Insulation resistance>50MÙ	have
6	Passive discharge	have
7	High voltage interlock	have
8	High voltage terminals comply with IPXXB protection	have
9	Meets IP67 protection	have
10	Comply with 2U+1000V withstand voltage test	have
11	High pressure and overpressure turn off heating	have
12	PTC over temperature protection	have
13	PCB over temperature protection	have
14	IGBT over temperature protection	have
15	PTC overcurrent protection	have
16	PTC short circuit protection	have
17	IGBT breakdown feedback	have
18	PTC temperature sensor failure detection, no heating when failure	have
19	IGBT temperature sensor failure detection, no heating when failure	have
20	PCB temperature sensor failure detection, no heating when failure	have
21	Even if the IGBT control fails, the heater temperature does not exceed 200+℃ due to PTC's own characteristics	have
22	Low voltage anti-reverse connection	have
23	High voltage reverse connection feedback (reverse connection will cause uncontrolled heating and cause PTC damage)	have
24	Controller power on and self-check, no heating if there is a fault	have
25	Communication is interrupted and heating is stopped	have
26	High voltage acquisition real-time feedback	have
