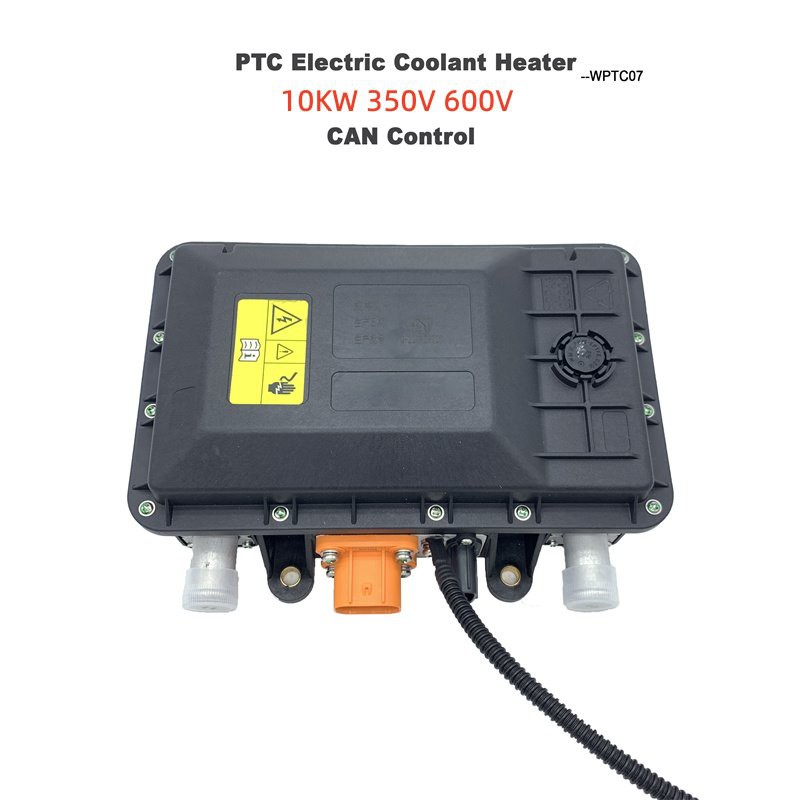

10kw PTC Coolant Heater
Hebei Nanfeng Group has been producing heaters for more than 30 years, and our company is the largest manufacturer of automobile heating and cooling equipment in China and the designated supplier of military vehicles in China.10KW PTC coolant heater is specially designed for electric vehicles and has the advantages of fast heating and environmental protection.
Description
10kw PTC Coolant Heater
1、Product Introduction
PTC water heating heater can provide heat for the new energy vehicle cockpit and meet the standards of safe defrosting and defogging. At the same time, it provides heat to other vehicles that require temperature adjustment (such as batteries).
Features:
(1)Electricity is used to heat the antifreeze, and the heater is used to heat the interior of the car. Installed in the water cooling circulation system.
(2)Warm air and temperature controllable.
(3)Use PWM to adjust the drive IGBT to adjust the power with short-term heat storage function.
(4)Whole vehicle cycle, supporting battery thermal management and environmental protection.
2、Product Parameter
| Model | WPTC07-1 | WPTC07-2 |
| Rated power (kw) | 10KW±10%@20L/min，Tin=0℃ | |
| OEM Power(kw) | 6KW/7KW/8KW/9KW/10KW | |
| Rated Voltage(VDC) | 350v | 600v |
| Working Voltage | 250~450v | 450~750v |
| Controller low voltage (V) | 9-16 or 18-32 | |
| Communication protocol | CAN | |
| Power adjust method | Gear Control | |
| Connector IP ratng | IP67 | |
| Medium type | Water: ethylene glycol /50：50 | |
| Overall dimension (L*W*H) | 236*147*83mm | |
| Installation dimension | 154 (104)*165mm | |
| Joint dimension | φ20mm | |
| High voltage connector model | HVC2P28MV102, HVC2P28MV104 (Amphenol) | |
| Low voltage connector model | A02-ECC320Q60A1-LVC-4(A) (Sumitomo adaptive drive module) | |

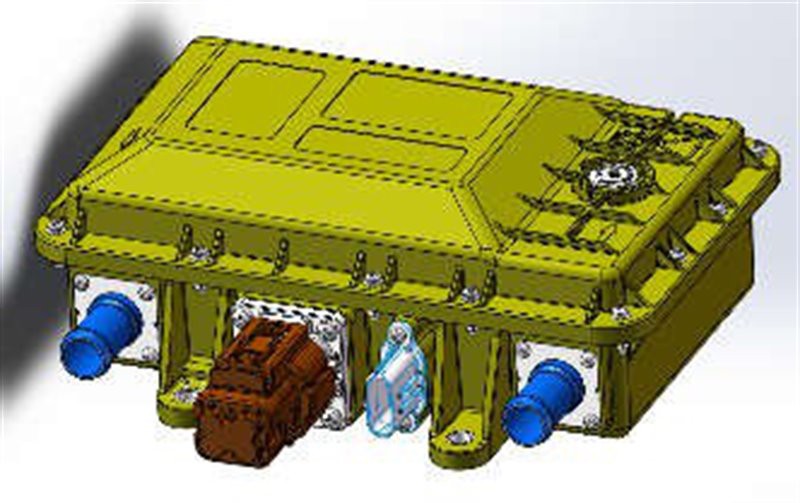

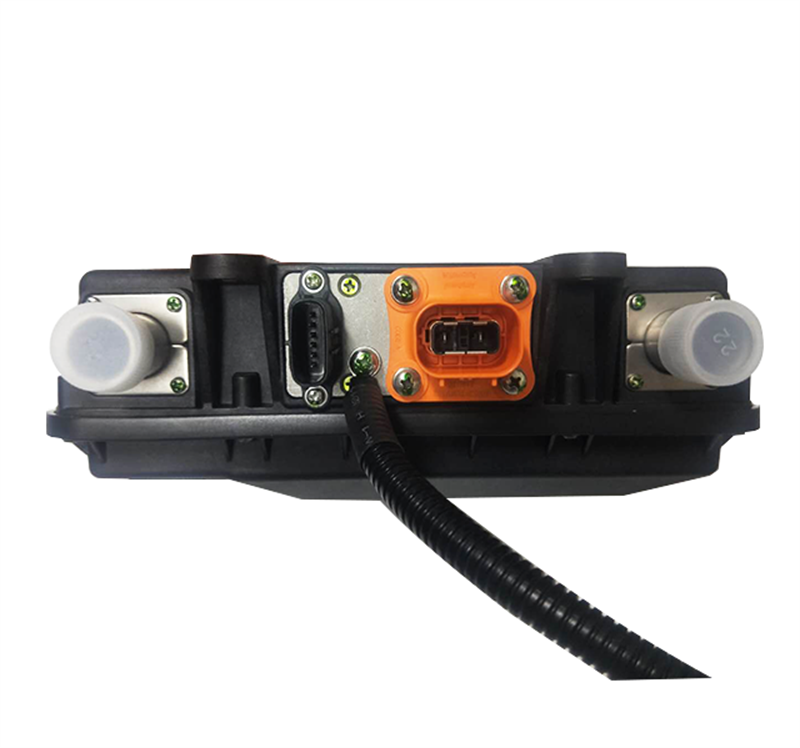

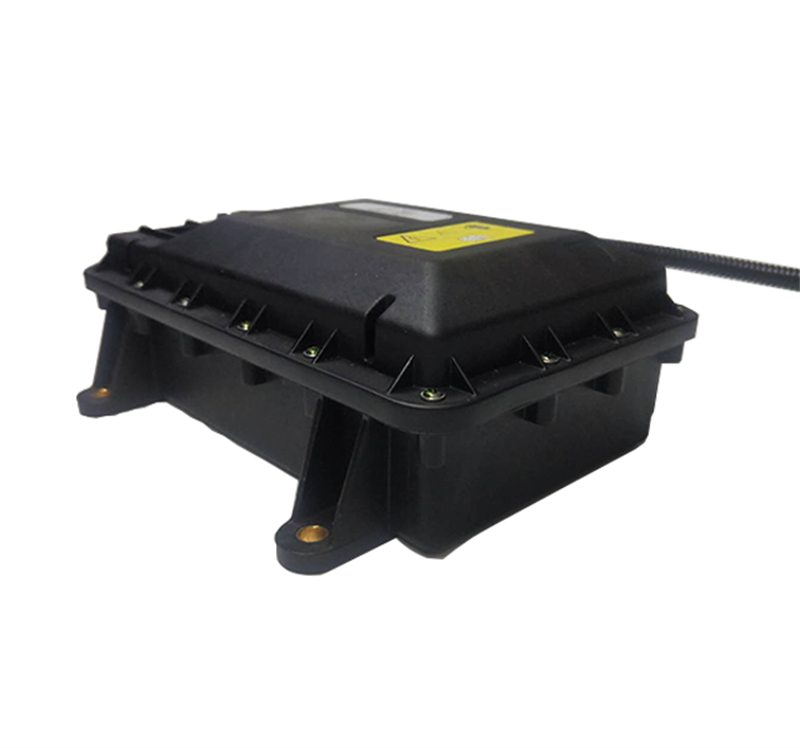

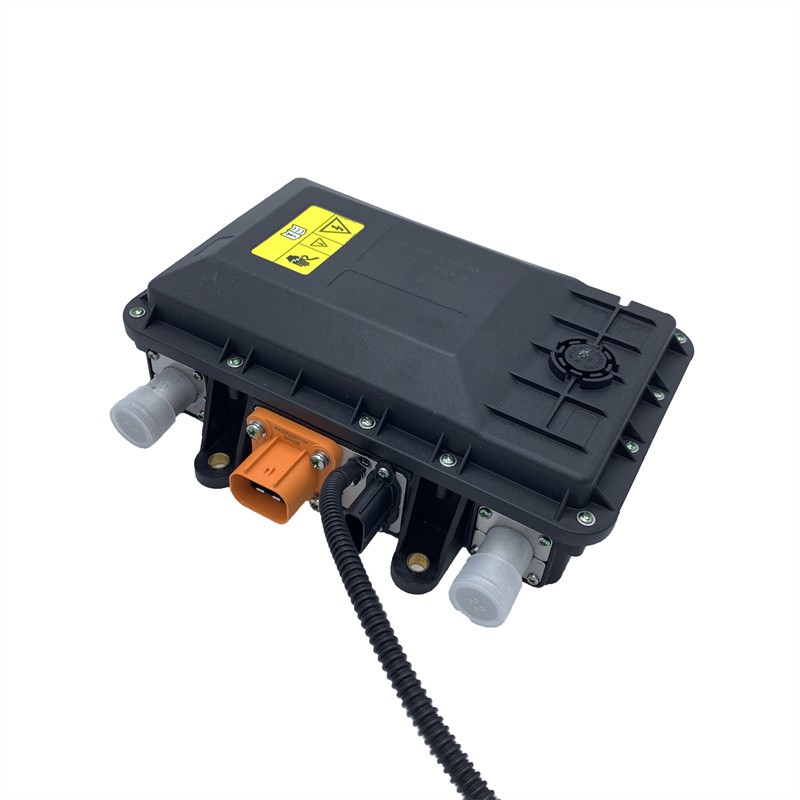

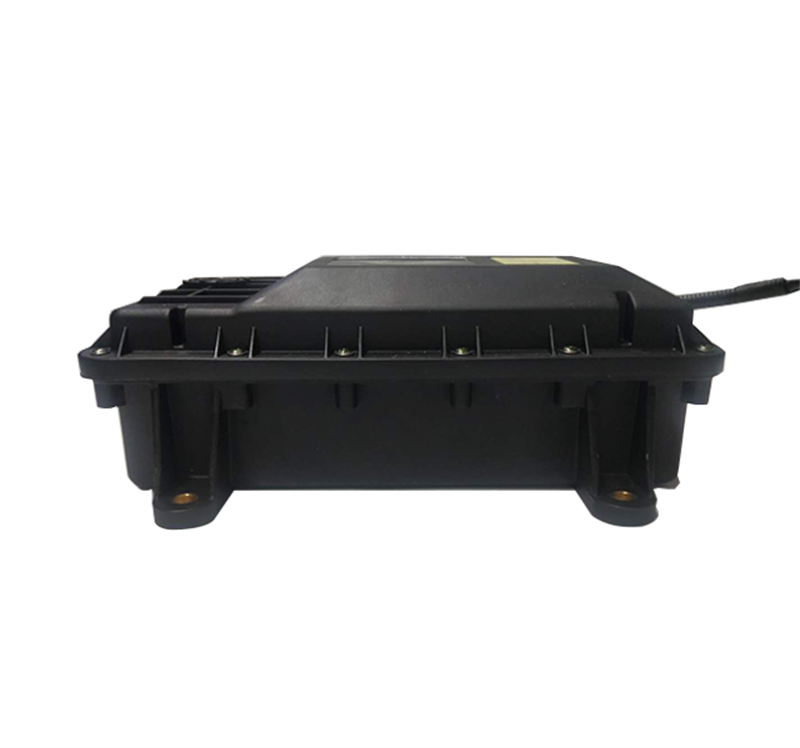

Product appearance:
3、Product Details
4、Product Structure
The product meets the voltage requirement of 600V. The PTC sheet adopts 3.5mm thickness and Tc210℃ to ensure good withstand voltage and durability. The internal heating core components of the product are divided into 4 groups, which are controlled by 4 IGBTs.

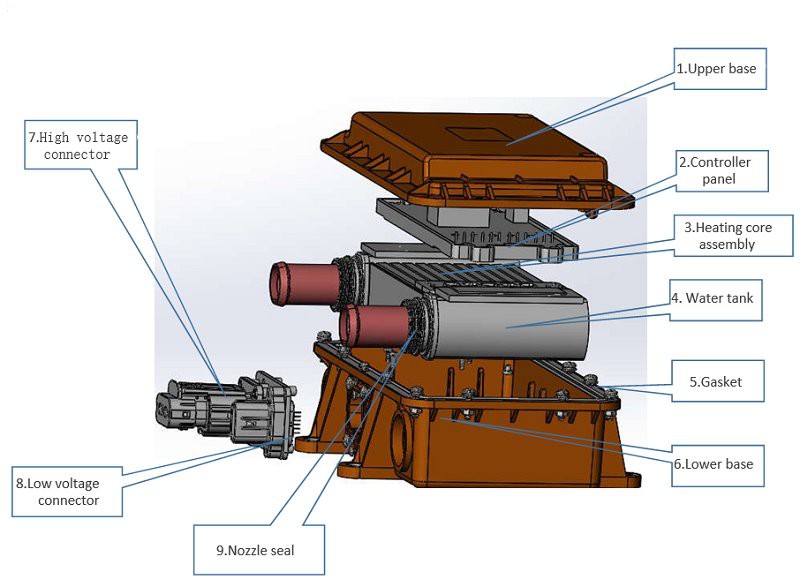

In order to ensure the protection grade of the product IP67, insert the heating core component of the product into the lower base obliquely, put on (No. 9) the nozzle sealing ring, press the rear exterior with a pressure plate, and then use potting in the lower base (No. 6). Adhesive seal, potted to the top surface of the D-tube. After assembling other parts, use a gasket (No. 5) to press and seal between the upper and lower bases to ensure good waterproof performance of the product.
5、Product Design Advantages
(1)Using 4-way PWM control mode, the busbar inrush current is small, and the requirements for relays in the vehicle circuit are low.
(2)PWM mode control enables continuous adjustment of power.
(3)CAN communication mode can report the working status of the controller, which is convenient for vehicle control and monitoring.
6、Application

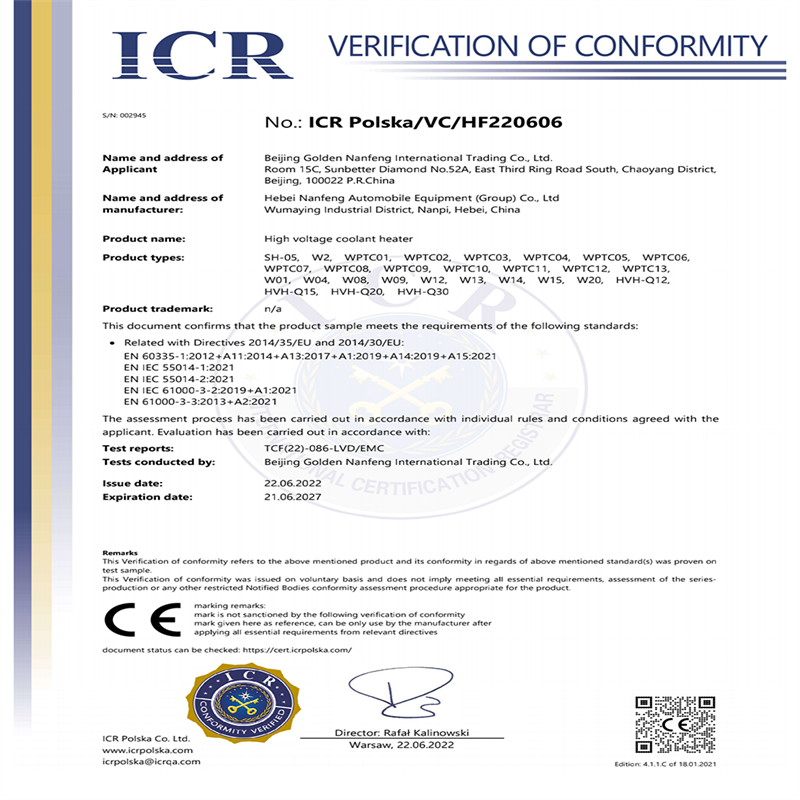

7、Certification
8、Why Choose Us？
(1)Our company is the largest manufacturer of automobile heating and cooling equipment in China, and the designated supplier of military vehicles in China.
(2)Quality Control through the whole Manufacturing process.
(3)General Inspection on fixing before Packing.
(4)In 2006, our company has passed ISO/TS16949:2002 quality management system certification.
(5)After you make order, we will Follow up the whole process and Update it to you. Collecting goods, Loading containers and Tracking goods transport information for you.
(6)Any of our products you are interested, or any customized orders you wish to place, any items you want to buy, Please let us know your requirements. Our team will do our best to Help you .
