New High-Voltage Coolant Heaters
2.5KW WPTC-10 New High-Voltage Coolant Heaters are capable of providing heat to the cockpit for safe defrosting and defogging, or to other mechanisms that require temperature regulation.Nanfeng Group has a keen sense of smell for the development of new energy vehicles, and launched WPTC-10 series of coolant heater of high voltage to escort your electric vehicles.
Description

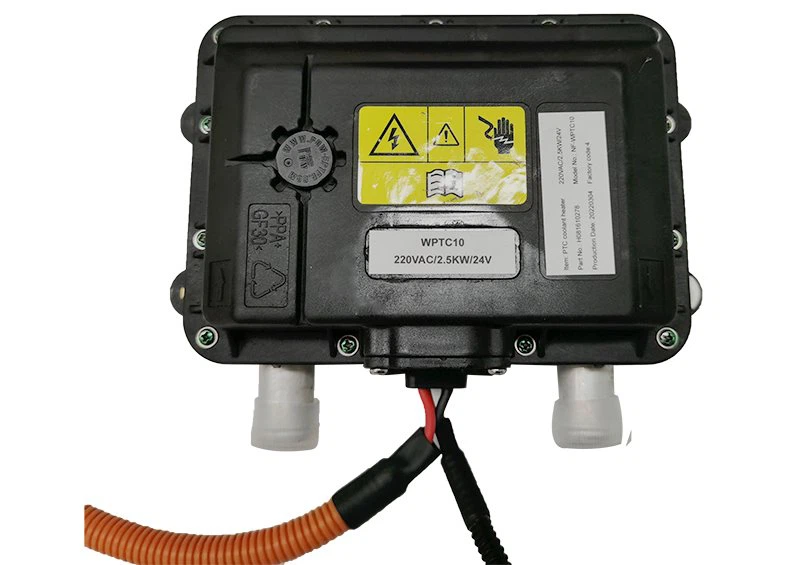

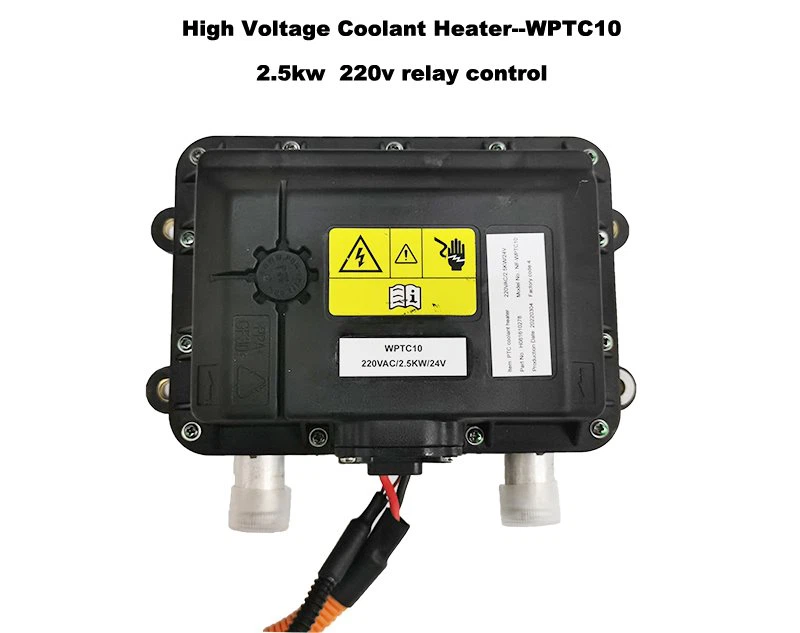

New High-Voltage Coolant Heaters WPTC-10
Product Description
The function of new high-voltage coolant heaters is to heat up the resistance and work through the blower after the power is turned on, so that the air passes through the element to achieve the effect of heating the air. It is generally installed in the position of the traditional fuel vehicle heater. The PTC thermistor element has the characteristics of increasing or decreasing its electric positive value with the change of the ambient temperature, so the PTC heater has the characteristics of energy saving, temperature resistance, safety and long service life.
Features
Electric heating antifreeze
Installed in water cooling circulation system
With short-term heat storage function
Environmental friendly
Product Parameters
| Item | WPTC-10 |
| Heating output | 2500±10%@25L/min, Tin=40℃ |
| Rated voltage(VDC) | 220V |
| Working voltage(VDC) | 175-276V |
| Controller low voltage | 9-16 or 18-32V |
| Control signal | Relay control |
| Heater dimension | 209.6*123.4*80.7mm |
| Installation dimension | 189.6*70mm |
| Joint dimension | φ20mm |
| High voltage connector | ATP06-2S-NFK |
| Low voltage connectors | 282080-1 (TE) |
| Heater weight | 1.95±0.1kg |
Other unmarked requirements shall be implemented according to Q/321191 AAM007.
The unmarked dimensional tolerance shall be implemented according to the C level in the limit deviation value of the linear dimension.
The overall protection level is IP67; 9. Appearance: The surface must not have scratches, burrs, and residual oil marks and other appearance defects.
Flame retardant requirements: should comply with GB/T2408-2008, meet the level of HB for horizontal combustion and V-0 for vertical combustio.
All materials meet the requirements of "Automobile Prohibited Substances" GB/T30512.
Certification
Application
Shipping
FAQ
Q: What’s your tem of the delivery?
A: Our ordinary delivery term is FOB Beijing. We also accept EXW, CFR, CIF, DDP, DDU etc. We’ll offer you the shipping charges and you can choose the one which is the most convenient and effective for you.
Q: What is your term of payment?
A: 100% T/T payment before shipping.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q.How your quality guarantee?
A.We have 100% quality guarantee to customers. We will be responsible for any quality problem. The redundant sealing design can improve system reliability.
