High Voltage Coolant Heater 8kw video

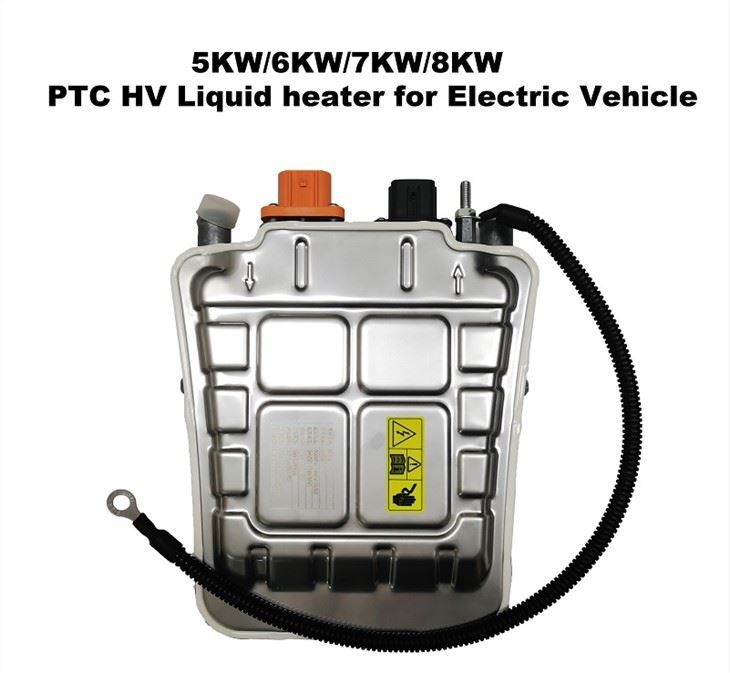

High Voltage Coolant Heater 8kw

The future of mobility is electric. Renewable energy sources allow for carbon-reduced mobility. Anew generation of vehicles is emerging--E-cars and hybrid.

Increased electric vehicle rang results in less engine heat and thus to higher heating requirements.

The 7kw high voltage coolant heater is mainly used for heating the passenger compartment ,defrosting and removing fog on the window,or preheating battery thermal management system battery ,to meet the corresponding regulations, functional requirements.

Description

High Voltage Coolant Heater 8kw


1.Product description

high voltage coolant heater--W09

8

As the automotive industry continues to explore a variety of propulsion technologies, electric vehicles (EVs) and hybrid electric vehicles (HEVs) are becoming more popular than ever. NF Company, a global leader in propulsion systems for combustion, hybrid and electric vehicles, is announcing its innovative High Voltage Coolant Heater as part of the company's Battery and Cabin Heater families. The technology improves battery performance by keeping the battery's operating temperature within an optimal operating range and providing a consistent temperature distribution inside the battery pack and its cells. With its high thermal power density and fast response times due to its low thermal mass, the efficient technology also extends pure electric driving range by using less power from the battery. In addition it allows comfortable cabin temperatures to be generated in a short time.


2.Specification

2

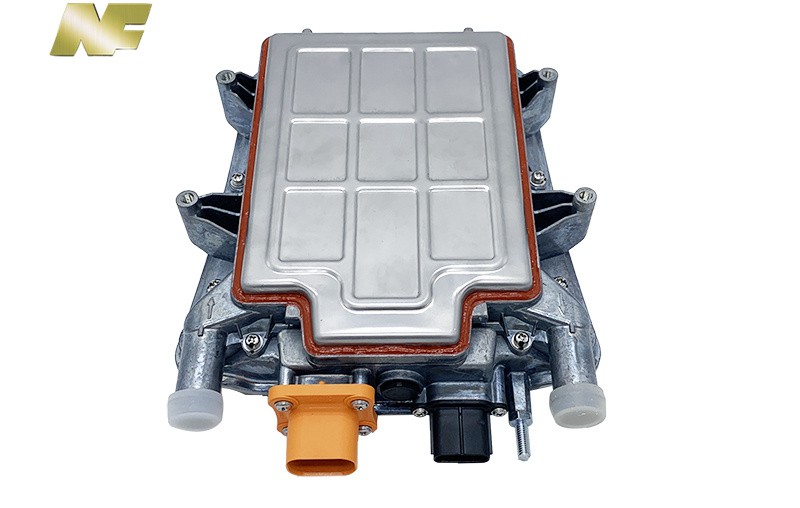

PTC coolant heater 5kw

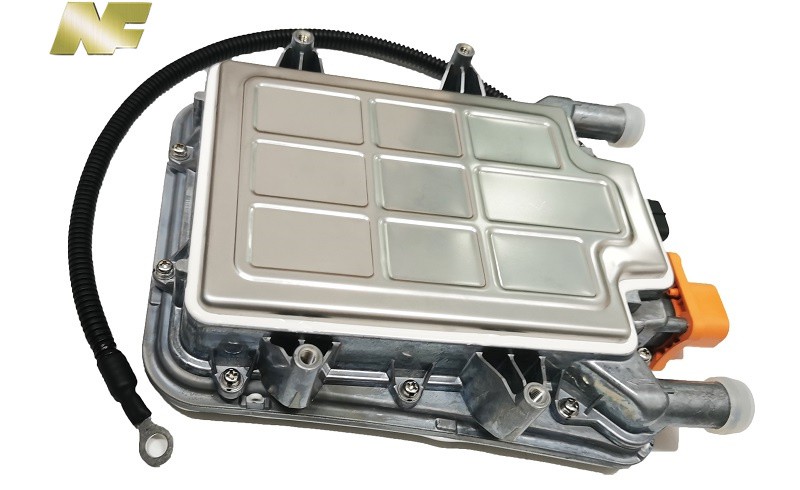

electric parking heater





ItemW09-1W09-2
Heating output
5kw, 6kw, 7kw, 8kw @10L/min,T_in=60℃
Rated voltage(VDC)350V600V
Working voltage(VDC)

250-450

450-750
Impulse current(A)≤40@450V≤25@750V
Controller low voltage(VDC)9-16 or 16-329-16 or 16-32
Control signal

CAN2.0B、LIN2.1

CAN2.0B、LIN2.1

Control modelGear (5th gear) or PWMGear (5th gear) or PWM
Heater dimension 258.6*200*56mm
Heater weight<2.7kg
High voltage connector in heaterAmphenol HVC2P28MV104
High voltage connector in carAmphenol HVC2P28FS104
Low voltage connectors320Q60A1-LVC-4 (Haichen A02-ECC), & Sumitomo 6189-1083

PTC coolant heater

(800)


3.Technical advantages

(800)

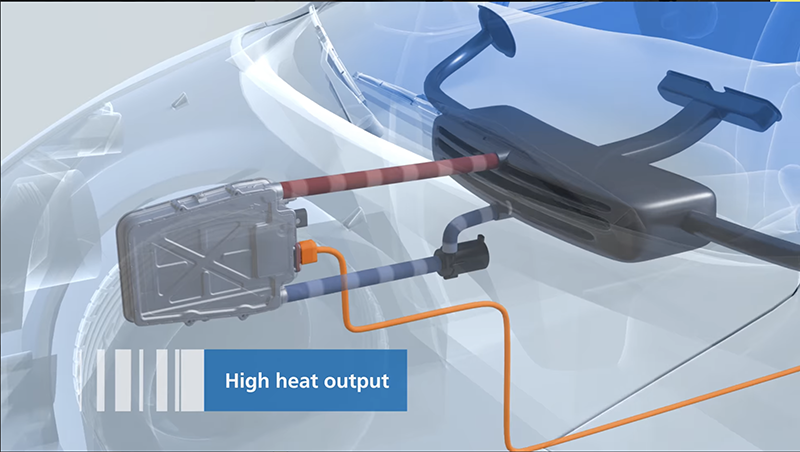

electric bus ptc heater application

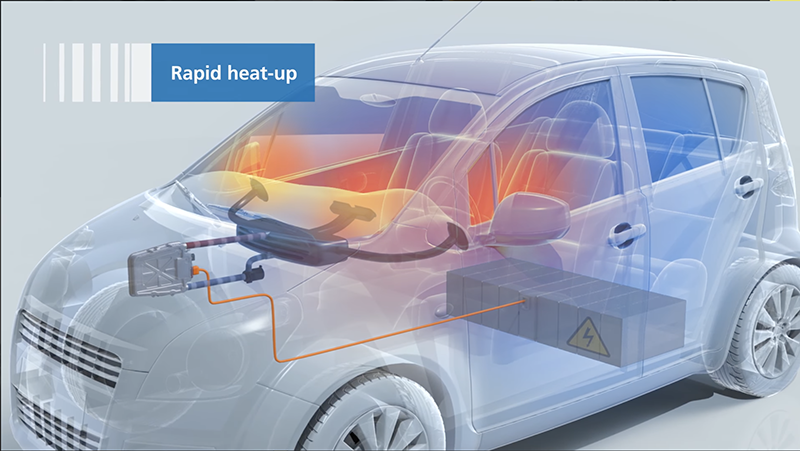

Electric Heater PTC Heater application



4.Application

HVH Application2_

HVH Application electric Car

HVH Application4_

HVH Application electric Truck

HVH Application3_

HVH Application electric transportation

HVH Application1_

HVH Application electric Bus


5.Company Profile

By 2030, electric cars will account for 64 percent of the world's new vehicle sales. As a greener and cheaper alternative to vehicles using fossil fuels, electric vehicles will soon be integrated into our everyday lives. That's why our most important new products in recent years are electric vehicle parts, especially high-pressure cooling water heaters. 2.6 kW to 30 kW heaters meet all your needs.


6.CE certificate

Certificate_800

7、Our Advantage

1.Easy to installation

2.Smooth operating with no noise

3.Strict quality management system

4.Superior equipment

5.Professional services

6.OEM/ODM services

7.Offer sample

8.High quality products

1) Variety types for selection

2) Competitive price

3) Prompt delivery


1、Customized--We are the manufacturer! sample &OEM&ODM are available!

2、Safety--We have own test chart, all of our products have been rigorously tested in the factory.

3、Certification--We have CE and quality management system certification.

4、High Quality --Our company uses the most advanced equipment to make the best quality products.
