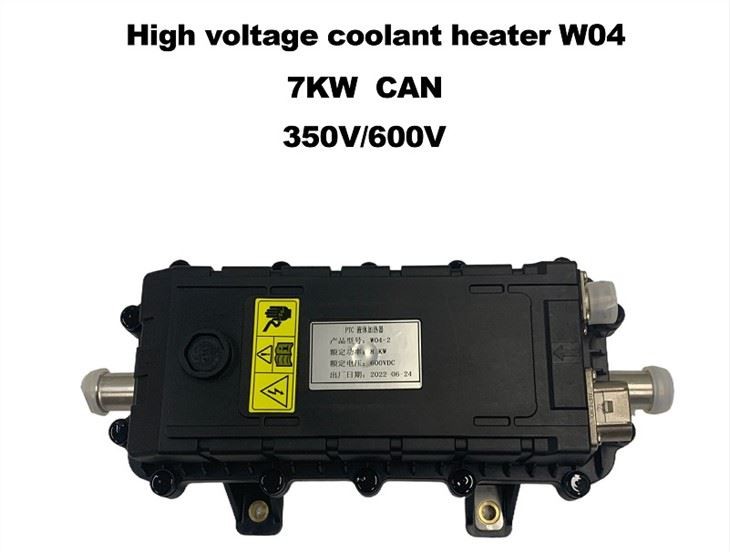

7kw PTC Electric Heater
The future of mobility is electric. Renewable energy sources allow for carbon-reduced mobility. Anew generation of vehicles is emerging--E-cars and hybrid.
Increased electric vehicle rang results in less engine heat and thus to higher heating requirements.
The 7kw high voltage coolant heater is mainly used for heating the passenger compartment ,defrosting and removing fog on the window,or preheating battery thermal management system battery ,to meet the corresponding regulations, functional requirements.
Description
1.Product description
high voltage coolant heater--W04
The high voltage electric heater (HVH) is the ideal heating system for plug-in hybrid vehicles (PHEV) and battery electric vehicles (BEV). It is a custom OEM product, the rated voltage can be 600V or 350V or other according to your requirements, the power can be from 5kW to 9kW, and it can be applied to various models of pure electric or hybrid buses. The heating output is large, provides sufficient and sufficient heat, creating a comfortable environment for drivers and passengers, and can also be used as a heat source to heat the battery.
2.Specification
| Item | W04-1 | W04-2(Without controller) | W04-3 |
| Heating output | 5kw, 6kw, 7kw, 8kw @10L/min，T_in 40℃ | ||
| Rated voltage(VDC) | 600V | 600V | 350V |
| Working voltage(VDC) | 450-750 | 450-750 | 250-450 |
| Impulse current(A) | ≤30@750V | ≤30@750V | ≤45@450V |
| Controller low voltage | 9-16 or 16-32V | -- | 9-16 or 16-32V |
| Control signal | CAN2.0B | NTC + temperature control switch | CAN2.0B |
| Control model | Gear (3th gear) or PWM | -- | Gear (3th gear) or PWM |
| Heater dimension | 310*144*107.5mm | ||
| Installation dimension | 144*128*119 | ||
| Joint dimension | D20*22 (waterproof ring) mm | ||
| Heater weight | ＜2.1kg | ||
| High voltage connector | JonHon C10514N1-02-3-1 | ||
| Low voltage connectors | 320Q60A1-LVC-4 (Haichen A02-ECC) | ||
3.Technical advantages
4.Application
HVH Application electric Car
HVH Application electric Truck
HVH Application electric transportation
HVH Application electric Bus
5.Advantage
6.Company Profile
7.CE certificate
8、FAQ
1、Our company has been producing heaters for more than 30 years, and is the only designated supplier of Chinese military vehicles.
2、We provide the best service according to your needs；
3、Our products are of high quality at cheap price, and delivered on time.
4、We have a professional sales team to provide you quick and warm service throughout the whole process.
5、Small quantity is acceptable.
6、Competitive Price (Factory direct price) with our good service.
7、Other special technical service according to client’s requirements.
