Electric Bus PTC Heater video

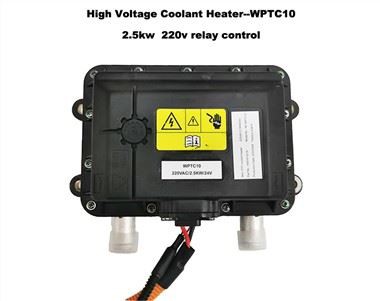

Electric Bus PTC Heater

High Voltage Water Heater are capable of providing heat to the cockpit for safe defrosting and defogging, or to other mechanisms that require temperature regulation.

Description

Electric Bus PTC Heater


Product Description

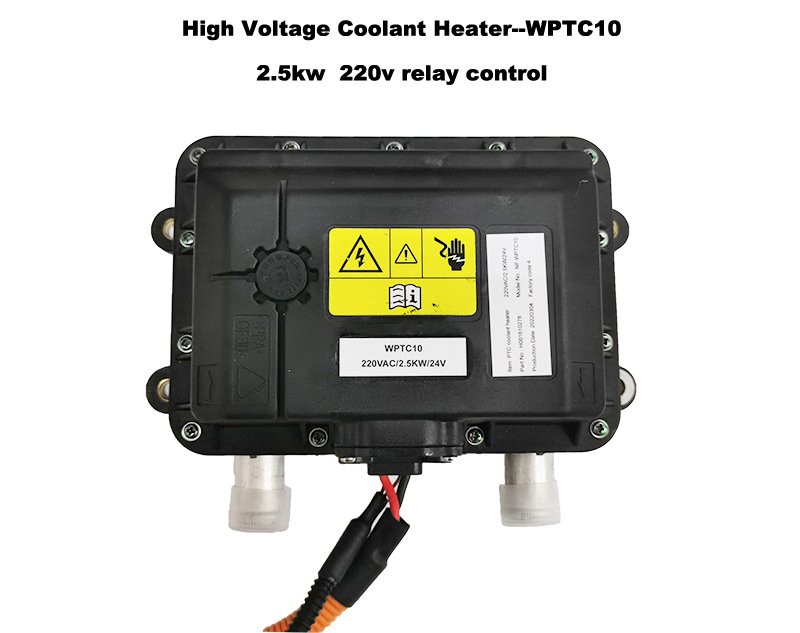

PTC heater.jpg

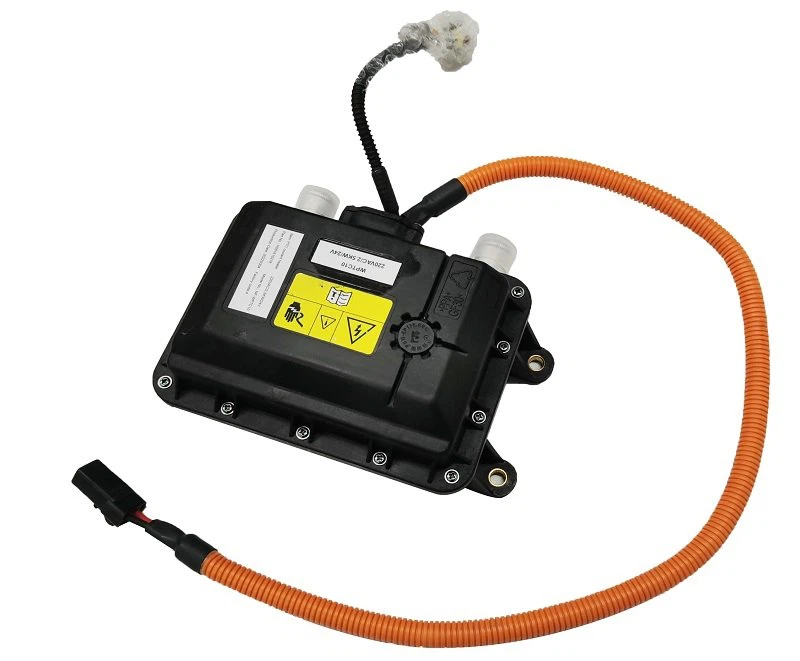

high voltage heater.jpg


This PTC electric heater is suitable for electric / hybrid / fuel cell vehicles and is mainly used as the main heat source for temperature regulation in the vehicle. The PTC electric heater is applicable to both vehicle driving mode and parking mode. In the heating process, electric energy is effectively converted into heat energy by PTC components.

Features:

Electric heating antifreeze

Installed in water cooling circulation system

With short-term heat storage function

Environmental friendly

Product Parameters

Item
WPTC-10
Heating output
2500±10%@25L/min, Tin=40℃
Rated voltage(VDC)
220V
Working voltage(VDC)
175-276V
Controller low voltage
9-16 or 18-32V
Control signal
Relay control
Heater dimension
209.6*123.4*80.7mm
Installation dimension
189.6*70mm
Joint dimension
φ20mm
High voltage connector
ATP06-2S-NFK
Low voltage connectors
282080-1 (TE)
Overall protection level IP67
Heater weight
1.95±0.1kg

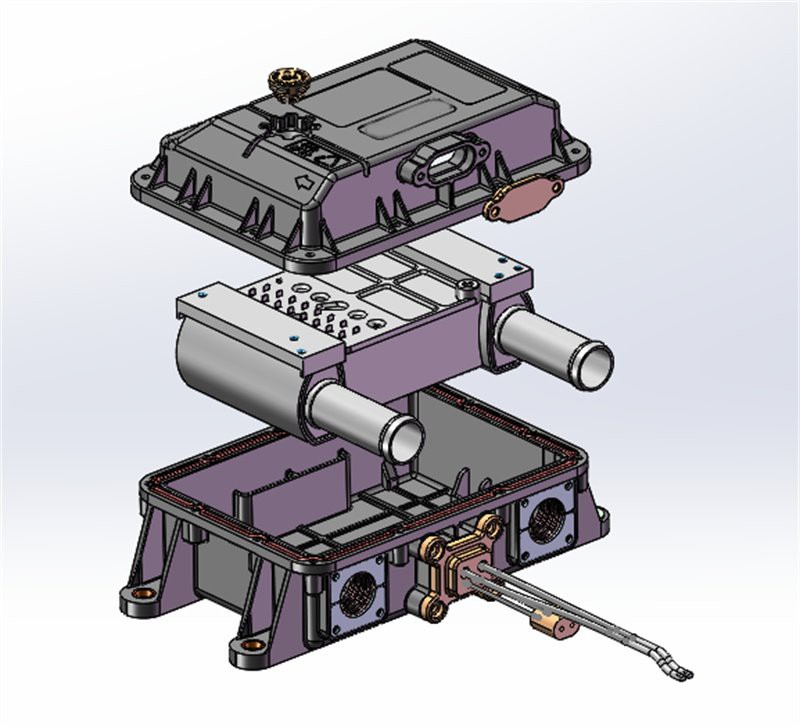

In order to ensure the protection level of the product IP67, insert the heating core component of the product into the lower base at an angle, cover the nozzle sealing ring, press the rear exterior with a pressure plate, and then seal it with potting glue in the lower base, and seal it to the D type. upper surface of the tube. After assembling other parts, use a gasket to press and seal between the upper and lower bases to ensure good waterproof performance of the product.


ptc heater

Product details


high voltage heater.jpg

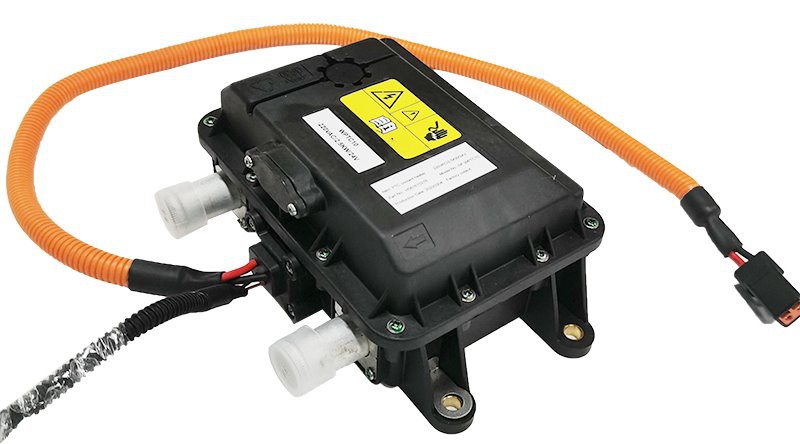

coolant heater.jpg

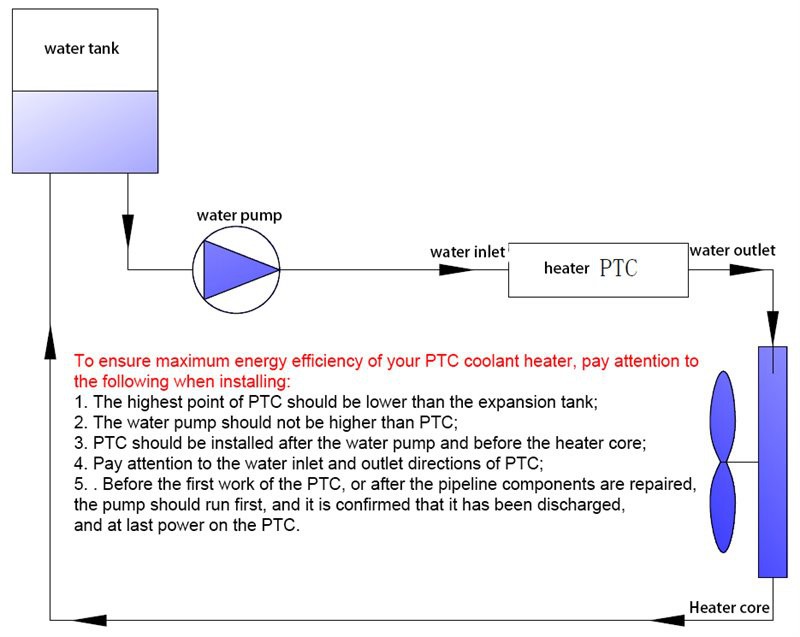

Installation Precautions


installation of heater


Certification


Certificate_800

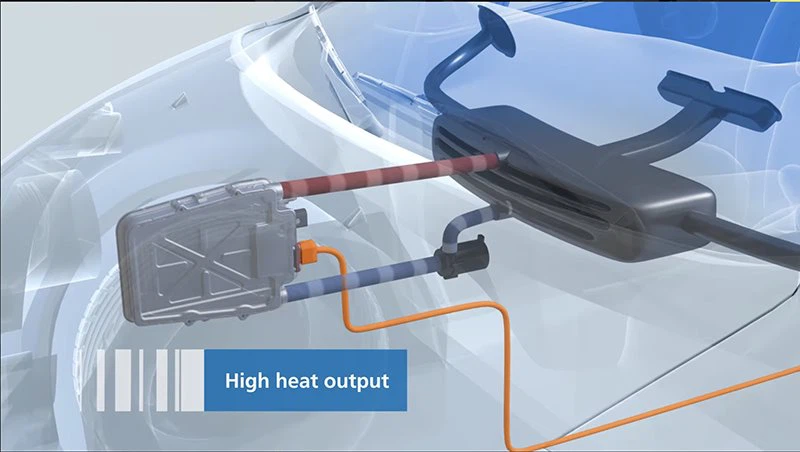

Application


 Application of heater


heater application


Shipping

shipping picture04
