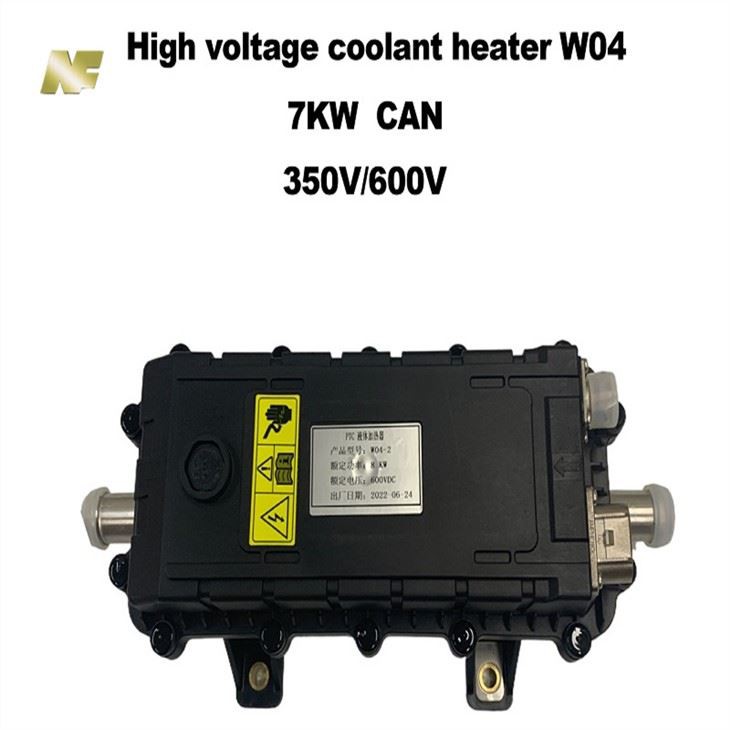

High Voltage Electric Parking Heater
New energy electric vehicles have become the trend of future development.The high voltage electric parking heater developed by Hebei Nanfeng Group not only has a history of more than 30 years, but also is the only designated supplier of Chinese military vehicles. This heater can be used to heat the cabin and also to defrost the windows.
Description
High Voltage Electric Parking Heater
1、Product Introduction
New energy electric vehicles have become the trend of future development. This electric heater is specially designed for electric vehicles. It can be used to heat the cabin, defrost and defog the windows, or preheat the power battery thermal management battery.At the same time, the heater can be used in driving mode or parking mode.
The main functions of the integrated circuit water heating electric heater are:
（1）Control function: The heater control mode is power control and temperature control;
（2）Heating function: Electrical energy conversion to thermal energy;
(3) Interface function: Heating module and control module energy input, signal module input, grounding,water inlet and water outlet .
2、Product Parameter
| Item | W04-1 | W04-2 (Without controller) | W04-3 |
| Heating output | 5kw, 6kw, 7kw, 8kw @10L/min，T_in 40℃ | ||
| Rated voltage(VDC) | 600V | 600V | 350V |
| Working voltage(VDC) | 450-750 | 450-750 | 250-450 |
| Impulse current(A) | ≤30@750V | ≤30@750V | ≤45@450V |
| Controller low voltage | 9-16 or 16-32V | -- | 9-16 or 16-32V |
| Control signal | CAN2.0B | NTC + temperature control switch | CAN2.0B |
| Control model | Gear(3th gear) or PWM | -- | Gear(3th gear) or PWM |

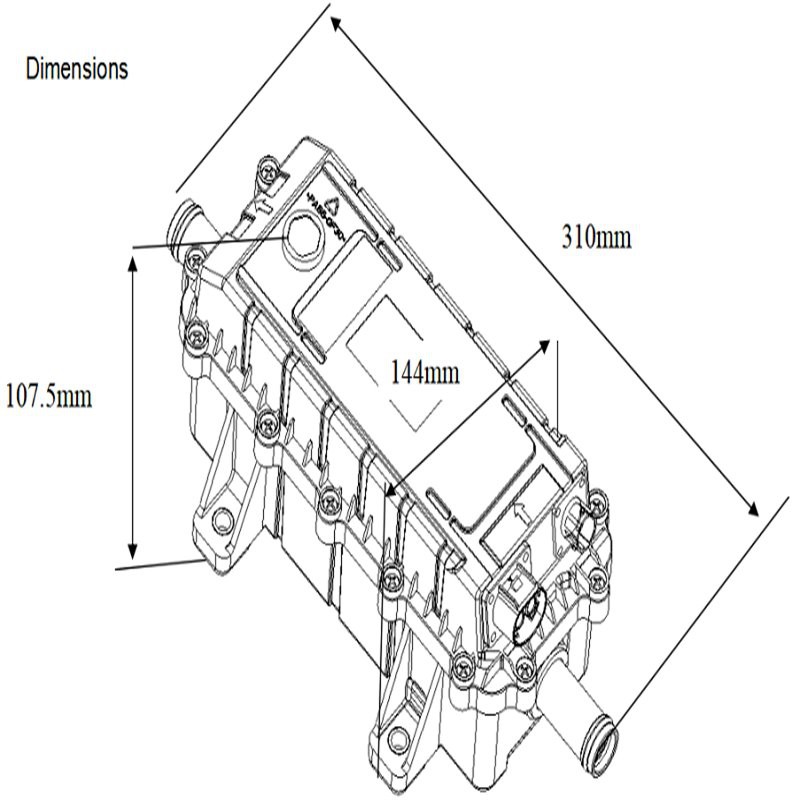

| Heater dimension | 310*144*107.5mm | ||
| Installation dimension | 144*128*119 | ||
| Joint dimension | D20*22 (waterproof ring) mm | ||
| Heater weight | ＜2.1kg | ||
| High voltage connector | JonHon C10514N1-02-3-1 | ||
| Low voltage connectors | 320Q60A1-LVC-4 (Haichen A02-ECC) | ||
3、Product Feature
(1) Life cycle of 8 years or 200,000 kilometers;
(2) The accumulated heating time in the life cycle can reach up to 8000 hours;
(3) In the power-on state, the working time of the heater can reach up to 10,000 hours (Communication is the working state);
(4) Up to 50,000 power cycles;
(5) The heater can be connected to constant electricity at low voltage during the whole life cycle. (Usually ,when the battery is not depleted; the heater will go into sleep mode after the car is turned off);
(6) Provide high-voltage power to the heater when starting the vehicle heating mode;
(7) The heater can be arranged in the cabin, but it cannot be placed within 75mm of the parts that continuously generate heat and the temperature exceeds 120℃.

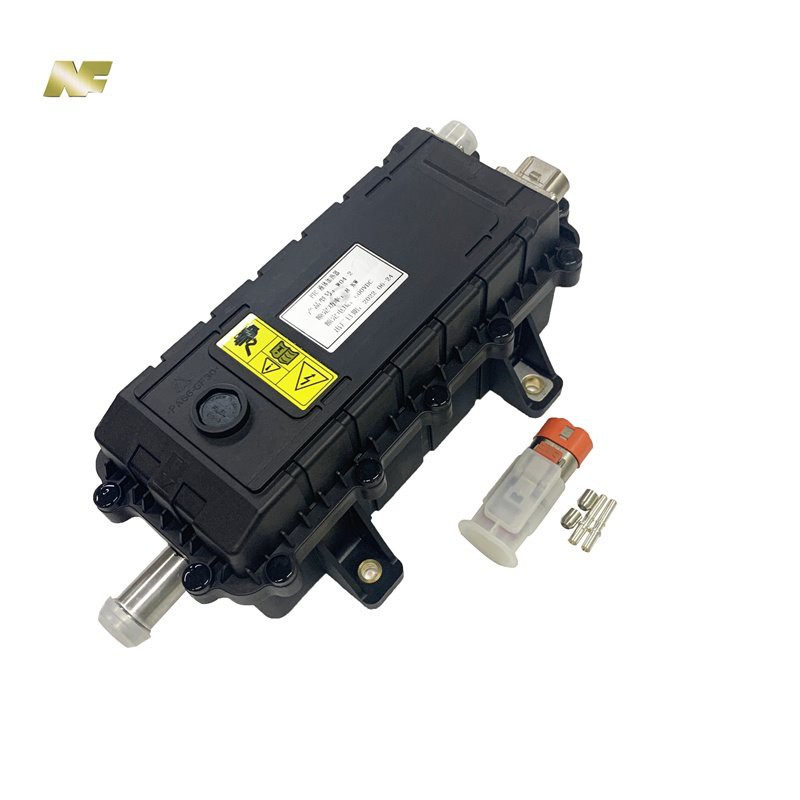

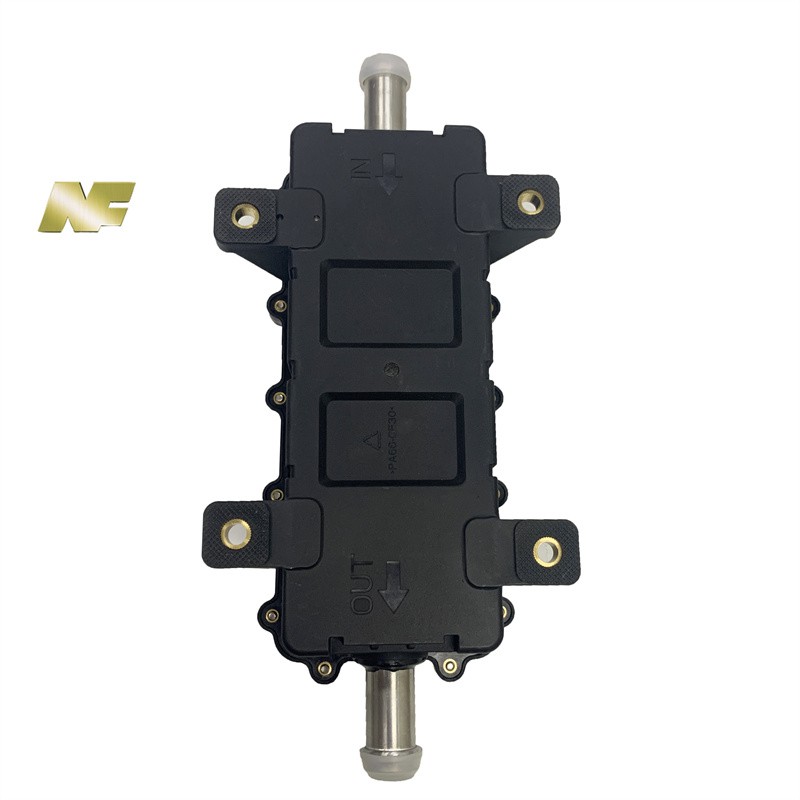

4、Product Detail

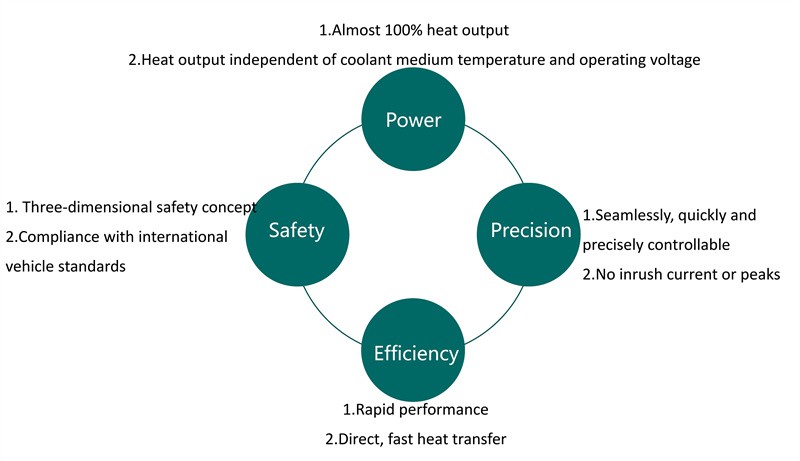

5、Product Advantage

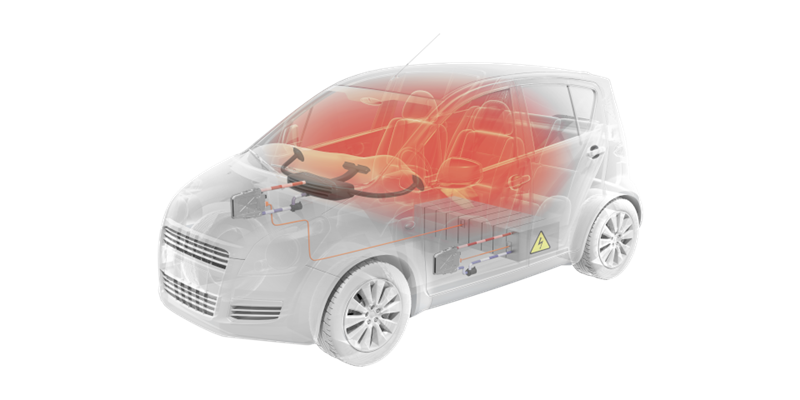

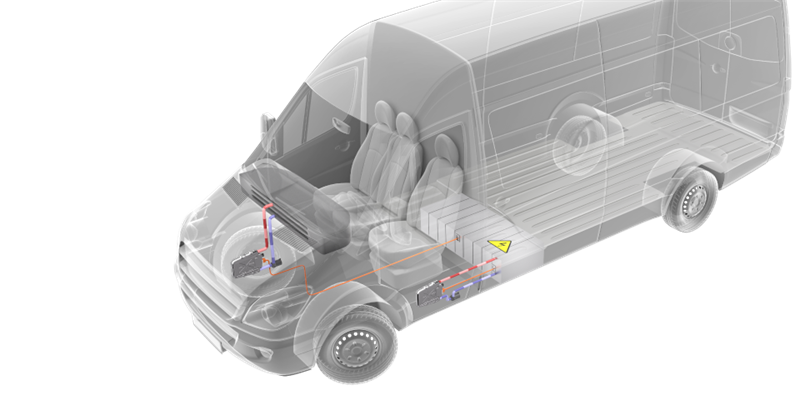

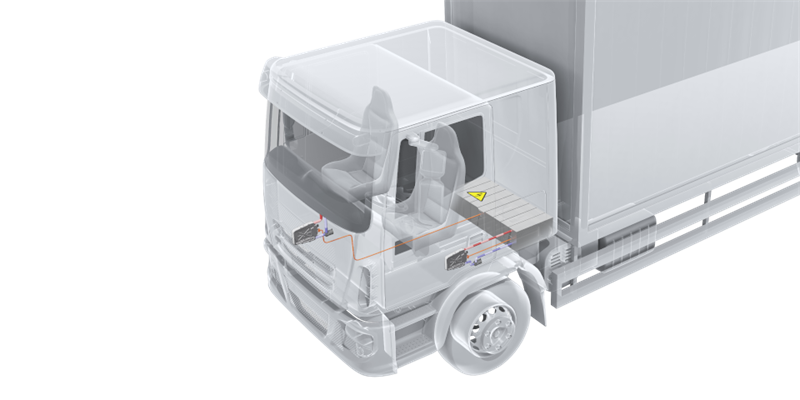

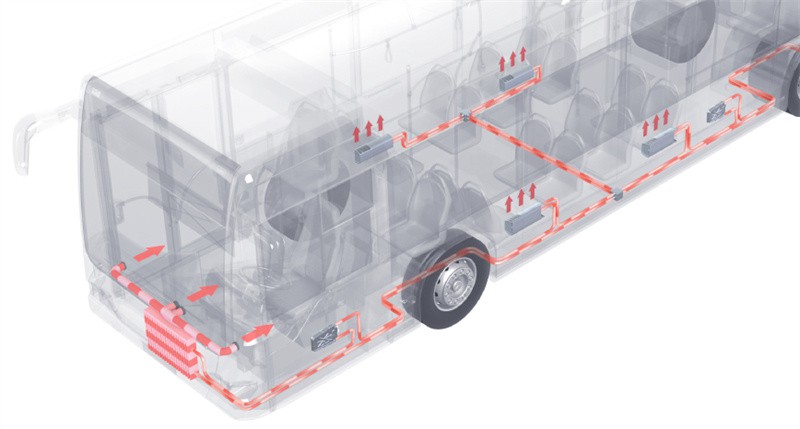

6、Product Application

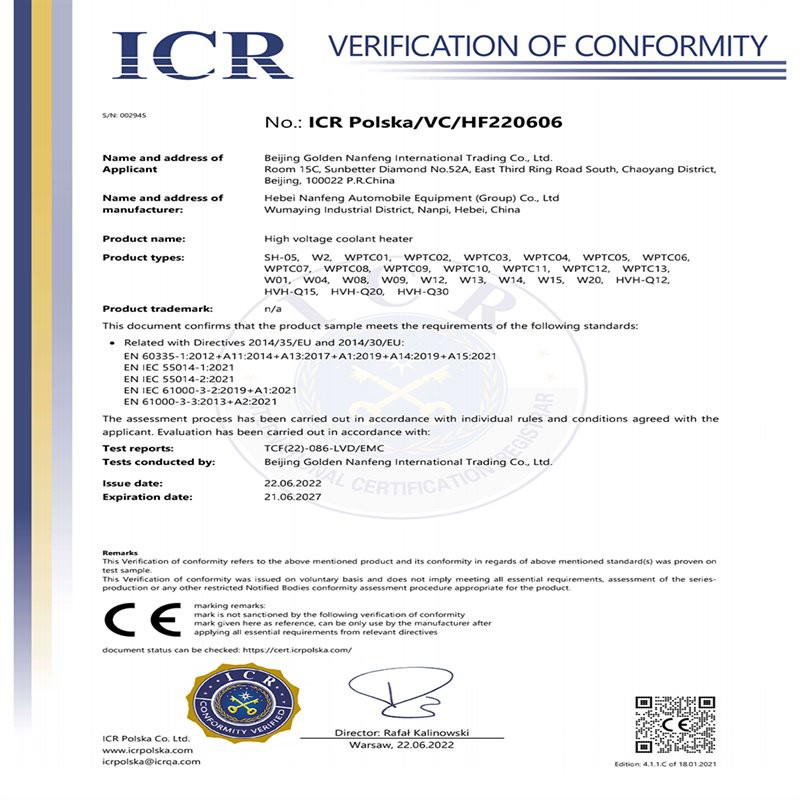

7、Product Qualification
8、FAQ
(1)Q:What’s the MOQ for your products?
A:1pc is OK.
(2)Q:How can I get a sample to check your quality?
A:After price confirmation, you can require for samples to check our quality. If you need the samples, we would like to send samples.
(3)Q:What is your terms of delivery?
A:EXW, FOB, CIF, etc.
(4)Q:Where is your factory located?
A:It lies in the industrial area of Wumaying of Nanpi county of province Hebei, covers an area of 80,000㎡.
(5)Q:How can i get to your company?
A:Our company is in Beijing, we can pick you up at the airport.
