Battery Thermal Management Unit
We are one of the biggest suppliers of Chinese bus heater . With more than 30 years’ experience in manufacturing and selling heater,moreover we are the only designated parking heater supplier for Chinese military vehicle
Description

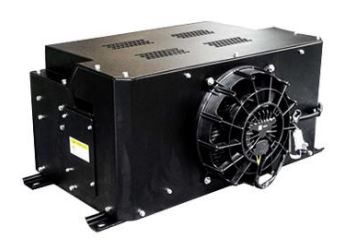

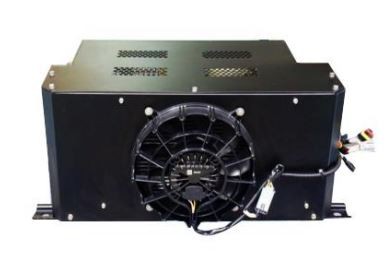

Battery thermal management unit

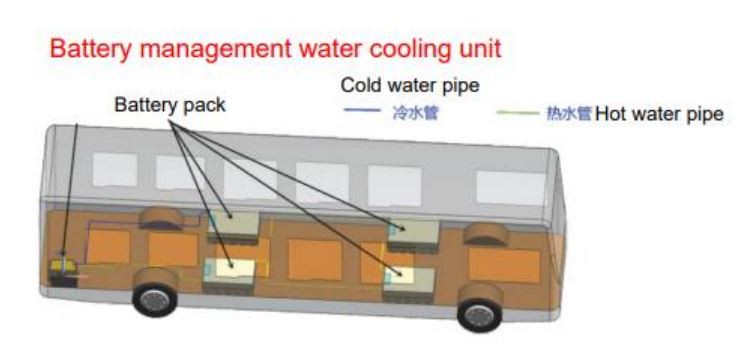

Product shows
Applicable electric logistics model and parameter
| Function description parameter | parameter | |
| Voltage | Rated voltage | 540V |
| control voltage | 24V | |
Power and heat exchange | Rated heat exchanger | 6Kw |
| Maximum heat exchange | 11.6kw | |
Maximum compressor power | 2.5Kw | |
| Coolant flow | Maximum flow of water pump | 50L/min |
| Condensing air volume | Maximum air volume of fan | 2200m³/h |
| Applicable models | 4.5-10 ton electric logistics vehicle | |
| Refrigerant | R134a | |

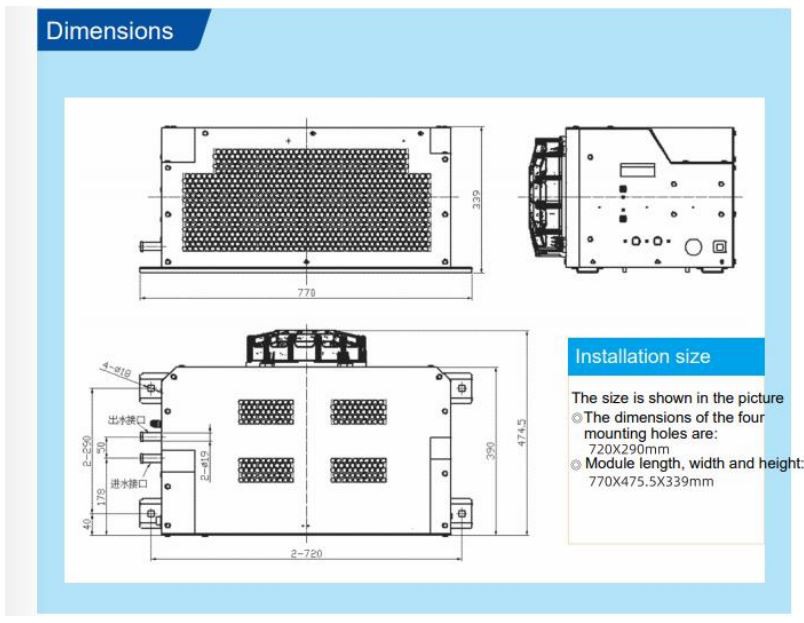

Dimensions
