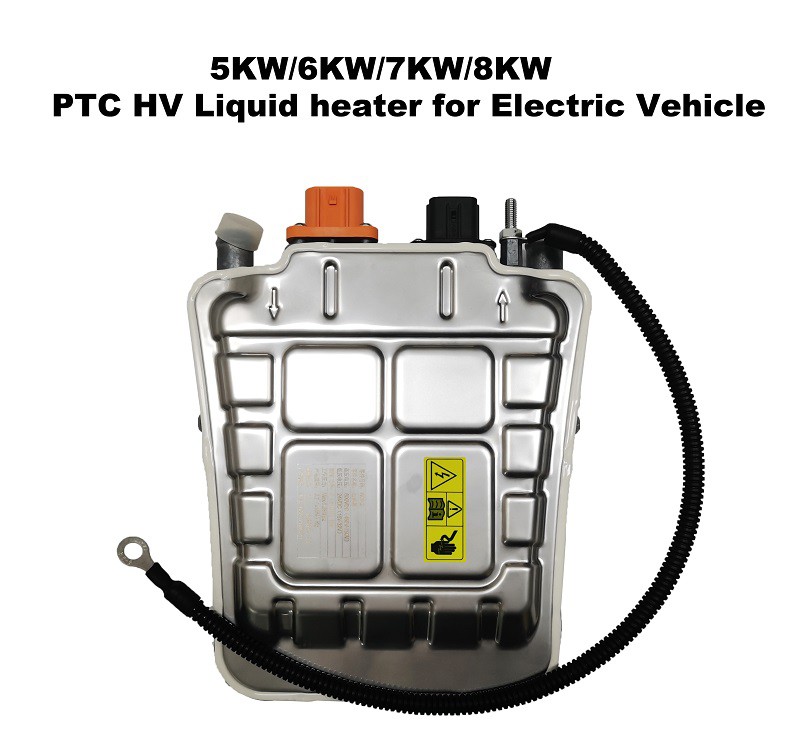

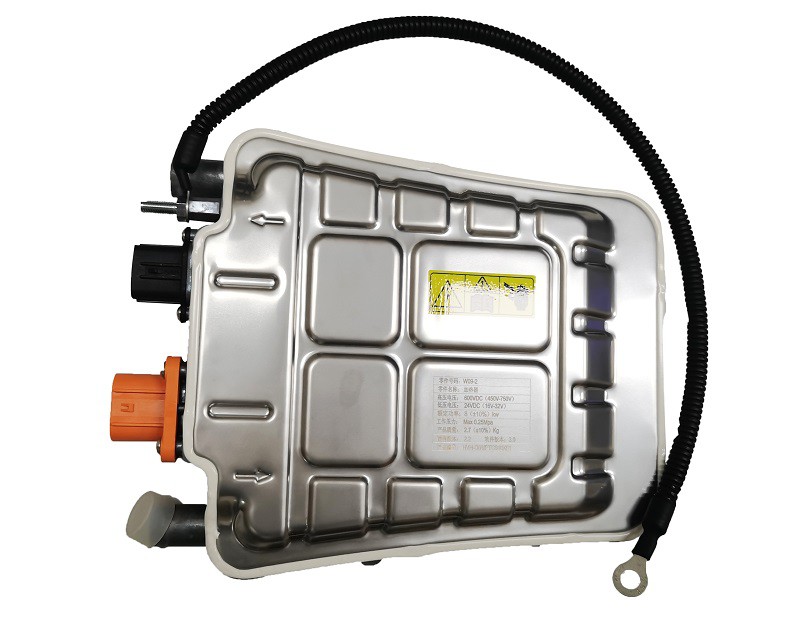

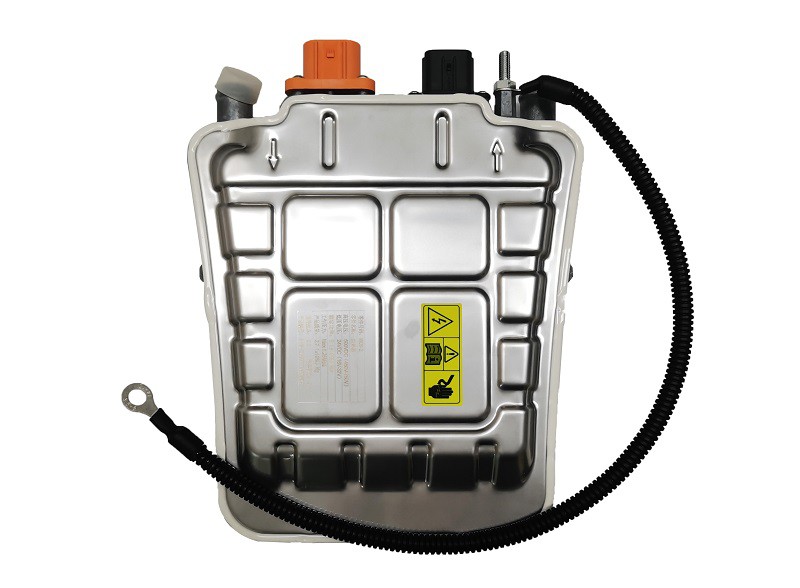

Battery Cabin Coolant Heater
The battery & cabin coolant heater is mainly used for heating the passenger compartment ,defrosting and removing fog on the window,or preheating battery thermal management system battery ,to meet the corresponding regulations, functional requirements.
Description
1.Product description
The battery & cabin coolant heater is mainly used for heating the passenger compartment ,defrosting and removing fog on the window,or preheating battery thermal management system battery ,to meet the corresponding regulations, functional requirements.
2.Product Features
The main functions of the integrated circuit water heating heater are:
- Control function: The heater control mode is power control and temperature control;
- Heating function: Electrical energy conversion to thermal energy;
-Interface function: Heating module and control module energy input, signal module input, grounding,water inlet and water outlet .
3.Product parameters
| Item | W09-1 | W09-2 |
| Rated voltage(VDC) | 350 | 600 |
| Working voltage(VDC) | 250-450 | 450-750 |
Rated power(kW) | 7(1±10%)@10L/min，T_in=60℃，350V | 7(1±10%)@10L/min，T_in=60℃，600V |
| Impulse current(A) | ≤40@450V | ≤25@750V |
| Controller low voltage(VDC) | 9-16 or 16-32 | 9-16 or 16-32 |
| Control signal | CAN2.0B、LIN2.1 | CAN2.0B、LIN2.1 |
| Control model | Gear (5th gear) or PWM | Gear (5th gear) or PWM |
Overall dimension: 258.6*200*56mm
Installation dimension: 185.5*80 four screw mounting holes
Joint dimension: D19*21 (waterproof ring)
Electrical interface : Holder connector
High voltage connector : Amphenol HVC2P28MV104 Wire harness connector: Amphenol HVC2P28FS104
Electrical interface : Holder connector
Low voltage connector : 320Q60A1-LVC-4 (Haichen A02-ECC), Wire harness connector: Sumitomo 6189-1083
4.Technical advantages
（1）Efficient and rapid performance: longer driving experience without wasting energy
（2）Powerful and reliable heat output: fast and constant comfort for the driver, passengers and battery systems
（3）Fast and easy integration: easy control via LIN or CAN
（4）Precise and stepless controllability: better performance and optimized power management
5.Application
