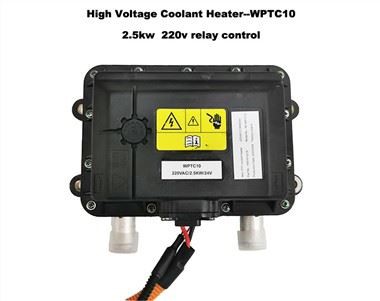

High Voltage Coolant Heater For Electric Vehicle
High Voltage Water Heater are capable of providing heat to the cockpit for safe defrosting and defogging, or to other mechanisms that require temperature regulation.
Description

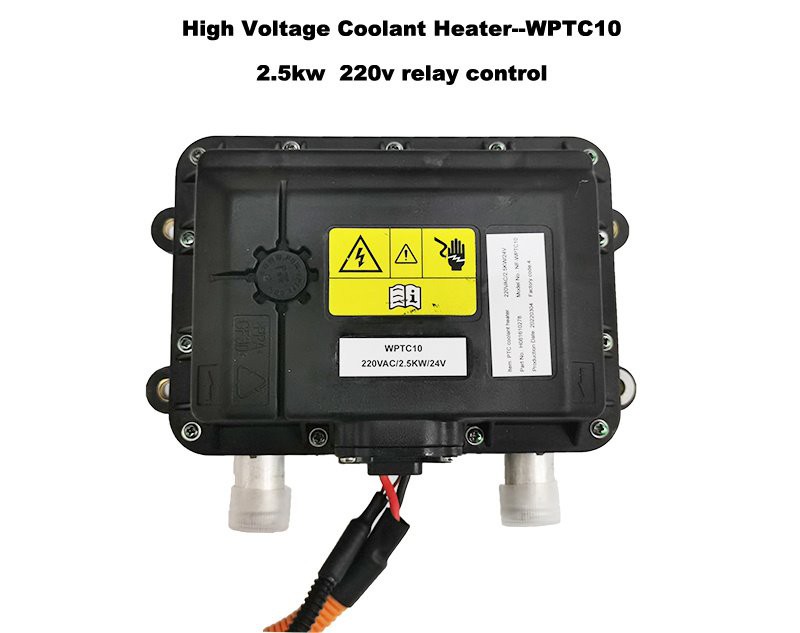

High Voltage Coolant Heater for Electric Vehicle
Product Description
High Voltage Water Heaters provide heat to the cockpit, and meet the standard of safe defrosting and defogging, or provide heat for other institutions that require temperature regulation. The PTC heater has the characteristics of energy saving, temperature resistance, safety and long service.
Features
Using electric heating antifreeze
Installed in the water cooling circulation system
The utility model has the function of short-time heat storage
Environmental Protection
Product Parameters
| Item | WPTC-10 |
| Heating output | 2500±10%@25L/min, Tin=40℃ |
| Rated voltage(VDC) | 220V |
| Working voltage(VDC) | 175-276V |
| Controller low voltage | 9-16 or 18-32V |
| Control signal | Relay control |
| Heater dimension | 209.6*123.4*80.7mm |
| Installation dimension | 189.6*70mm |
| Joint dimension | φ20mm |
| High voltage connector | ATP06-2S-NFK |
| Low voltage connectors | 282080-1 (TE) |
| Overall protection level | IP67 |
| Heater weight | 1.95±0.1kg |
According to the voltage requirement of 170 ~ 275V, PTC chip adopts 2.4 mm thickness, Tc245 ° C, which ensures good voltage endurance and durability. The inner heating core group of the product is integrated into one group.
In order to guarantee the protection grade IP67, the heating core assembly of the product is inserted into the lower base obliquely, the tube mouth sealing ring is sleeved, the back exterior is pressed by the pressing plate, and the latter is sealed in the lower base by filling sealant, seal to upper surface of D-tube. After the assembly of other parts, the upper and lower base between the use of gasket pressure seal, to ensure good product waterproof performance.
Installation Precautions
Certification
Application
Shipping
