HVH High Voltage Coolant Heater
Hebei Nanfeng Company is the largest manufacturer of heating and cooling equipment in China, as well as the designated supplier of Chinese military vehicles.Electric vehicles have become a major trend in future development, and the use of electric heaters is indispensable.
Description
HVH High Voltage Coolant Heater
1、Product Introduction
The electric High Voltage Heater (HVH) is the ideal heating system for plug-in hybrids (PHEV) and battery electric vehicles (BEV). It converts DC electric power into heat with practically no losses.
Powerful similar to its namesake, this high-voltage heater is specialized for electric vehicles. By converting electrical energy of battery with DC voltage, ranging from 300 to 750v, into abundant heat, this device provides efficient, zero-emission warming-all throughout the interior of the vehicle.
2、Product Parameter
| Item | W09-1 | W09-2 |
| Rated voltage(VDC) | 350 | 600 |
| Working voltage(VDC) | 250-450 | 450-750 |
| Rated power(kW) | 7(1±10%)@10L/min T_in=60℃，350V | 7(1±10%)@10L/min，T_in=60℃，600V |
| Impulse current(A) | ≤40@450V | ≤25@750V |
| Controller low voltage(VDC) | 9-16 or 16-32 | 9-16 or 16-32 |
| Control signal | CAN2.0B、LIN2.1 | CAN2.0B、LIN2.1 |
| Control model | Gear (5th gear) or PWM | Gear (5th gear) or PWM |
Overall dimension: 258.6*200*56mm
Installation dimension: 185.5*80 four screw mounting holes
Joint dimension: D19*21 (waterproof ring)
Electrical interface : Holder connector
High voltage connector : Amphenol HVC2P28MV104, Wire harness connector: Amphenol HVC2P28FS104
Electrical interface : Holder connector
Low voltage connector : 320Q60A1-LVC-4 (Haichen A02-ECC), Wire harness connector: Sumitomo 6189-1083

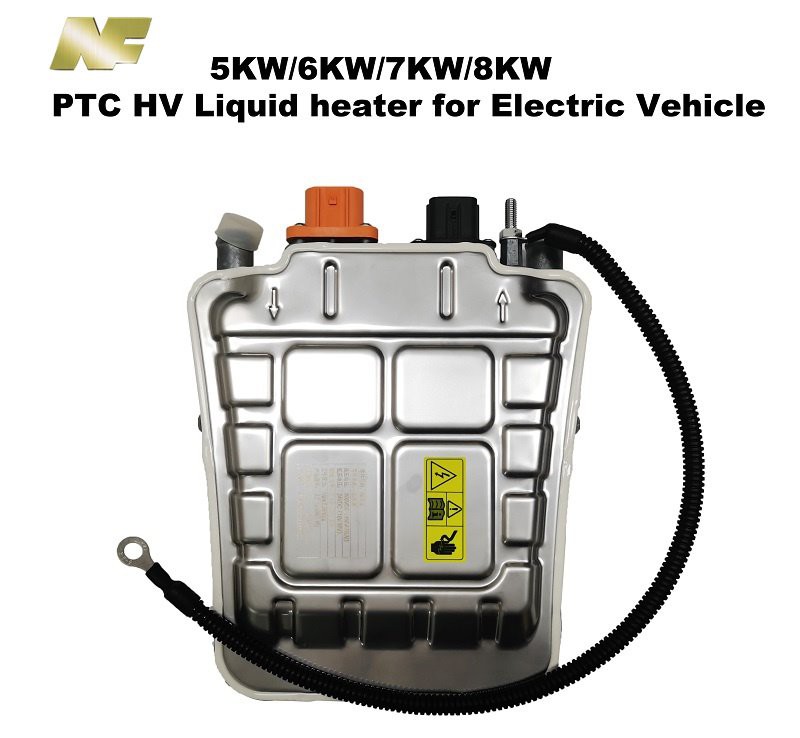

3、Product Detail
4、Application

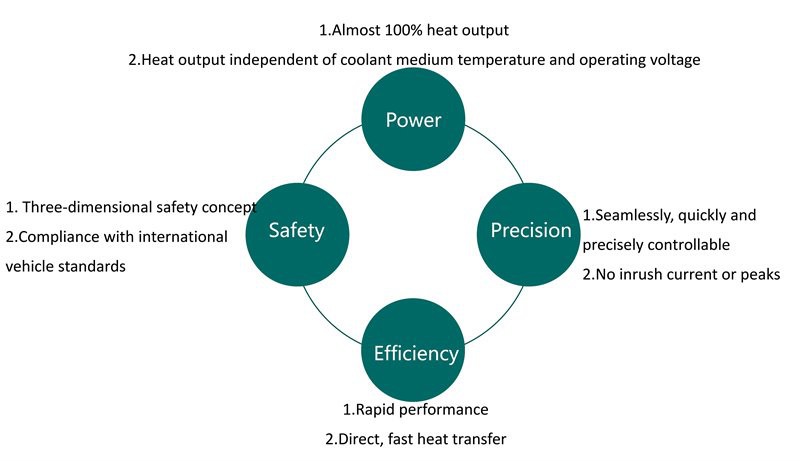

5、Product Advantage
1.Efficient and rapid performance: longer driving experience without wasting energy
2.Powerful and reliable heat output: fast and constant comfort for the driver, passengers and battery systems
3.Fast and easy integration: easy control via LIN or CAN
4.Precise and stepless controllability: better performance and optimized power management
6、FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
