High Voltage PTC Coolant Heater For Electric Vehicle
Electric Vehicle High Voltage PTC Heater can provide heat for the cockpit of new energy vehicles and meet the standard of safe defrosting and defogging. It also provides heat to other parts of the vehicle that require temperature regulation, such as the battery.
Description
High Voltage PTC Coolant Heater for EV
Product Description
High Voltage PTC Coolant Heater can provide heat for the cockpit of new energy vehicles and meet the standard of safe defrosting and defogging. It also provides heat to other parts of the vehicle that require temperature regulation, such as the battery.
Product Parameter
| Item | WPTC01-1 | WPTC01-2 |
| Heating output | 6kw@10L/min，T_in 40℃ | 6kw@10L/min，T_in 40℃ |
| Rated voltage(VDC) | 350V | 600V |
| Working voltage(VDC) | 250-450 | 450-750 |
| Controller low voltage | 9-16 or 18-32V | 9-16 or 18-32V |
| Control signal | CAN | |
| Heater dimension | 232.3 * 98.3 * 97mm | 232.3 * 98.3 * 97mm |
| Installation dimension | 144*128*119 | 144*128*119 |
| Joint dimension | φ25, φ20mm | φ25, φ20mm |
| High voltage connector | PL082X-6.1-2.5, PL082X-6.1-4 (Amphenol): C10514N1-04-1-2 (JonHon) | |
| Low voltage connectors | A02-ECC320Q60A1-LVC-4 (a)(Sumitomo adaptive drive module) | |
| Heater weight | ＜2.4kg | ＜2.4kg |

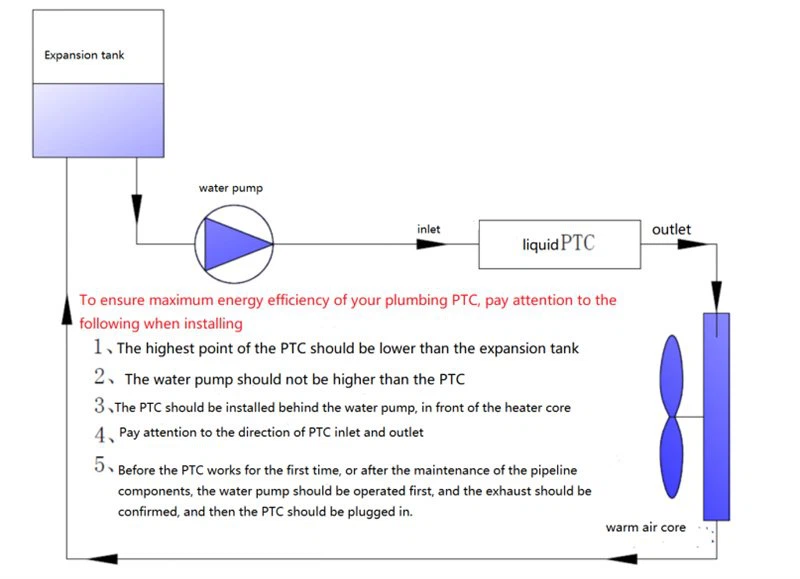

Product Installation Precautions
To ensure maximum energy efficiency of your plumbing PTC, pay attention to the following when installing.
1、The highest point of the PTC should be lower than the expansion tank.
2、The water pump should not be higher than the PTC.
3、The PTC should be installed behind the water pump, in front of the heater core.
4、Pay attention to the direction of PTC inlet and outlet.
5、Before the PTC works for the first time,or after the maintenance of the pipeline components, the water pump should be operated first, and the exhaust should be confirmed, and then the PTC should be plugged in.
Product details
Advantage
Certification
Application
