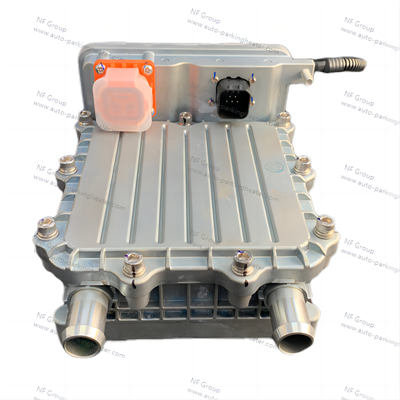

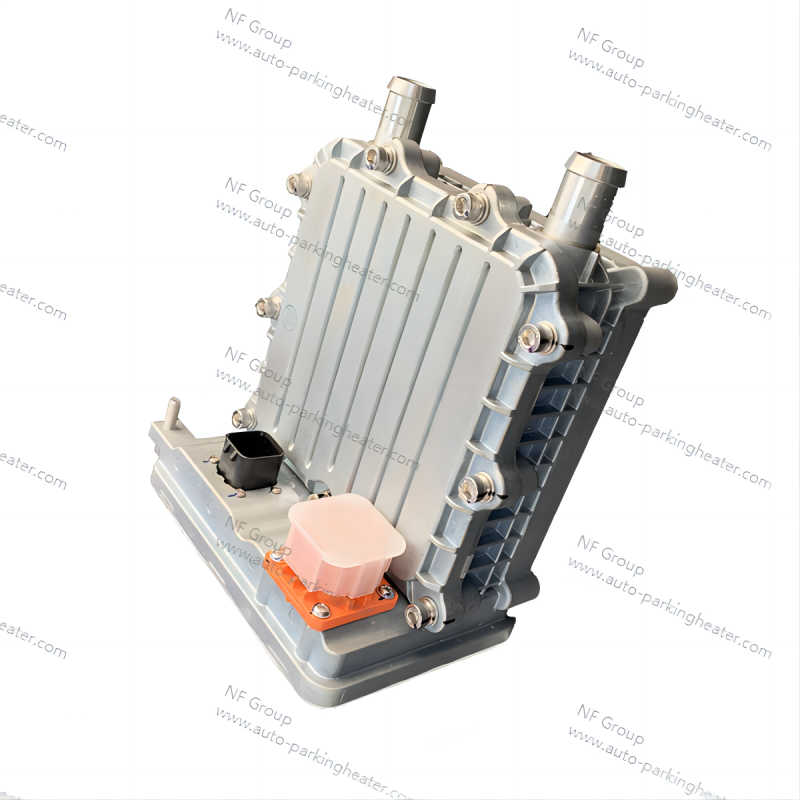

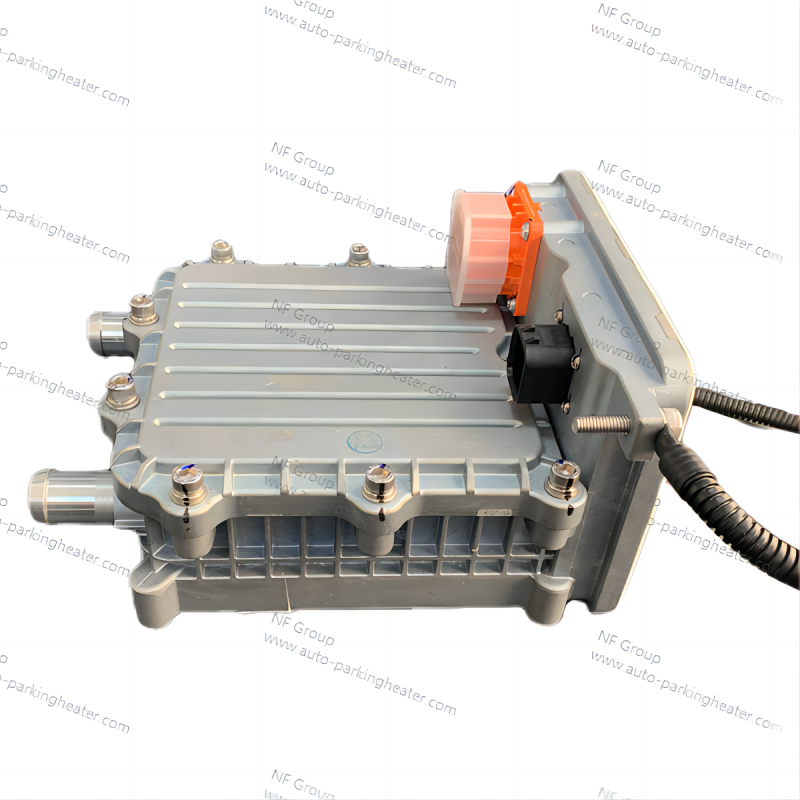

600V PTC Coolant Heater

600V PTC Coolant Heater





Features

1. PTC heating element with self-regulating temperature, separation of water and electricity, safe and reliable.
2. Simple design, high thermal efficiency, IP67 sealing.
3. Low capacity ageing and long life.
4. Technical parameters include resistance to high temperatures, resistance to cold, resistance to corrosion, resistance to vibration and resistance to electromagnetic interference;
5. The parts must bear the recycling and reuse logo and comply with the "Q/LQB C-139 Automobile Parts Recycling Logo" and the materials used must comply with the "Q/LQB C-140 Automobile Prohibited Substances Requirements (Automotive)";





Power	8KW±10%（600VDC, T_In=60℃±5℃, flow=10L/min±0.5L/min)
Flow resistance	4.6 ( Refrigerant T = 25 ℃, flow rate = 10L/min) KPa
Burst pressure	0.6 MPa
Voltage range (high voltage)	600V (450~750V) / 350V (250~450V) optional
Voltage range (low voltage)	12V(9~16V) / 24V (16~32V) optional
Relative humidity	5~95%
Supply current	0~14.5 A
Inrush current	≤25 A
Dark current	≤0.1 mA
Insulation withstand voltage	3500VDC/5mA/60s, no breakdown, flashover and other phenomena
Insulation resistance	1000VDC/200MΩ/5s
IP protection (PTC assembly)	IP67
Communication	CAN2.0 / Lin2.1

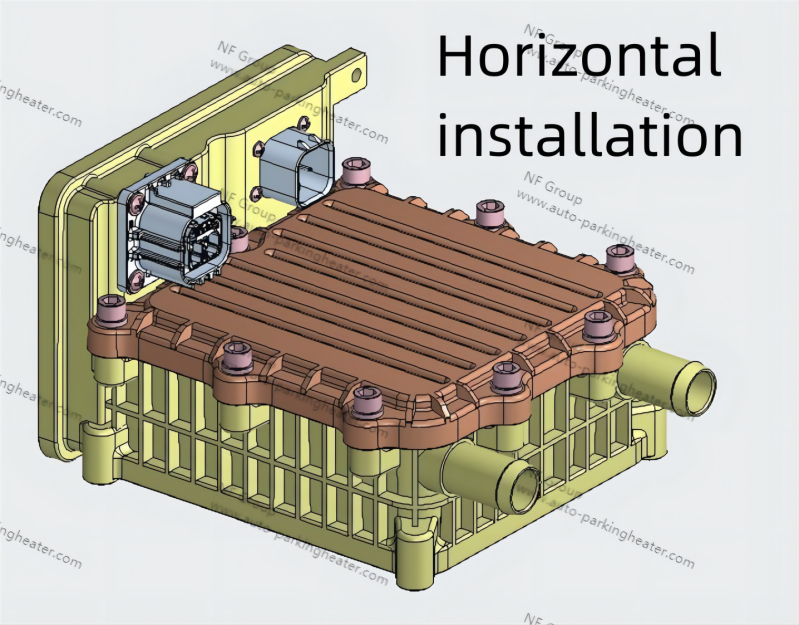

1.Easy to installation
2.Smooth operating with no noise
3.Strict quality management system
4.Superior equipment
5.Professional services
6.OEM/ODM services
7.Offer sample
8.High quality products
1) Variety types for selection
2) Competitive price
3) Prompt delivery



1、Customized--We are the manufacturer! sample &OEM&ODM are available!
2、Safety--We have own test chart, all of our products have been rigorously tested in the factory.

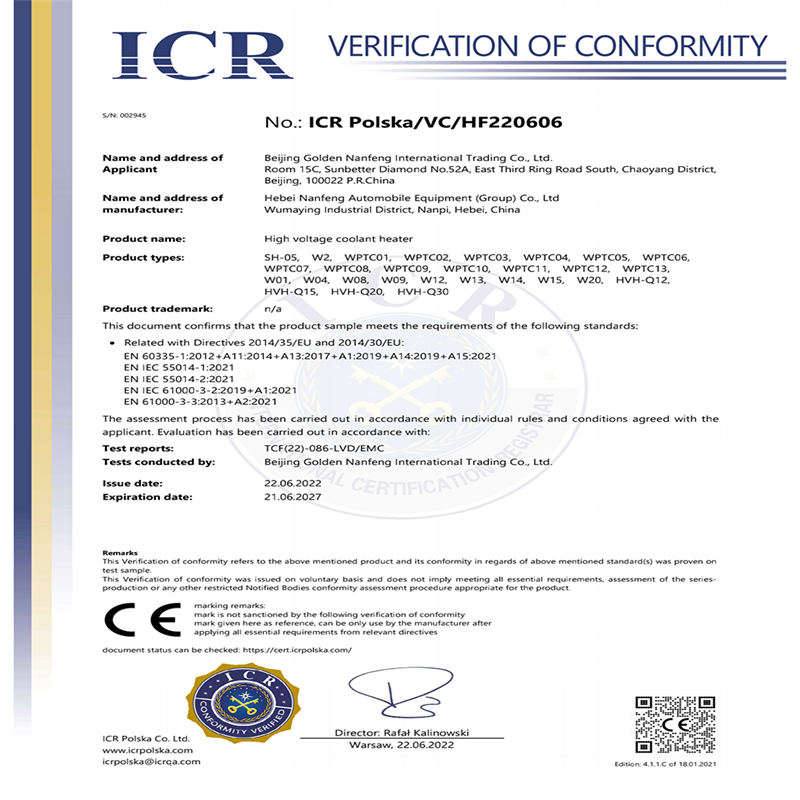

3、Certification--We have CE and quality management system certification.
4、High Quality --Our company uses the most advanced equipment to make the best quality products.

If you're looking for the 600v ptc coolant heater, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
