EV Coolant Heater For New Energy Vehicles

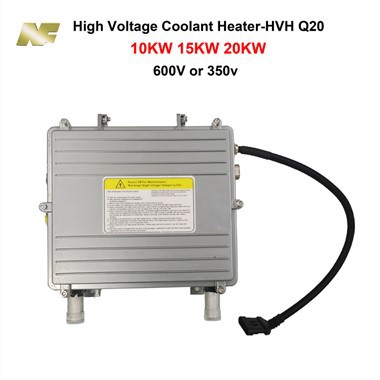

20KW HV Heater For Electric Bus is suitable for electric / hybrid / fuel cell vehicles and is mainly used as the main heat source for temperature regulation in the vehicle. The PTC electric heater is applicable to both vehicle driving mode and parking mode. In the heating process, electric energy is effectively converted into heat energy by PTC components.
Description

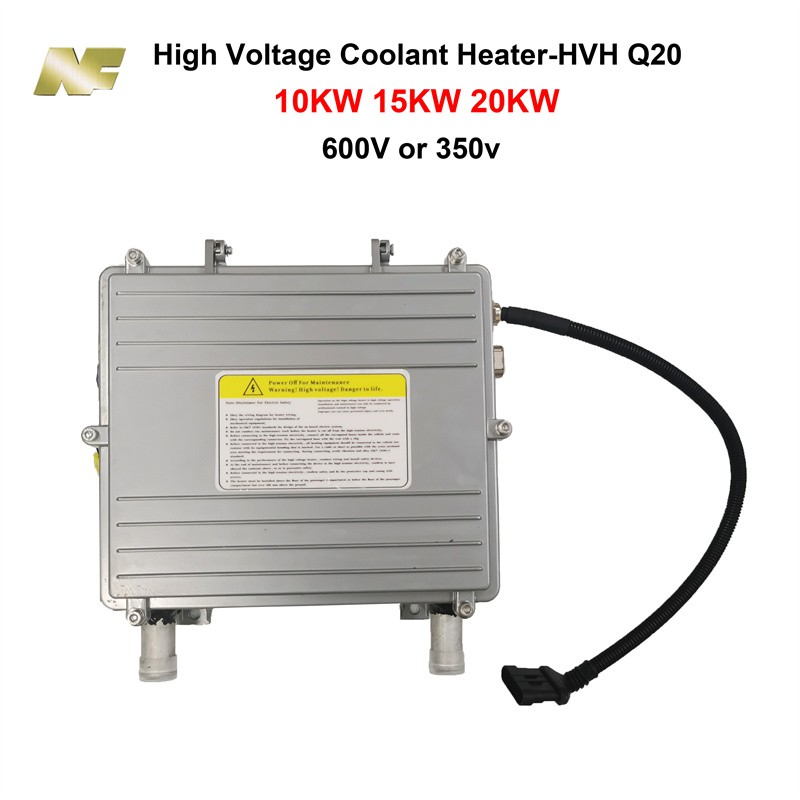

EV Coolant Heater For New Energy Vehicles
Products Description
The PTC water heater uses the vehicle's electrical system only as a heat source for electric buses. With a nominal voltage of 600 V and a power of 20 kW, it is suitable for all types of purely electric buses. The strong heating power provides enough heat to create a comfortable driving environment for the driver and front passenger, and it can also be used as a heat source for the battery heater.
The product can be used alone to replace traditional liquid fuel heaters, achieving comprehensive energy savings and cost savings. In very cold regions, due to the lack of electricity, it can be used in addition to a traditional liquid fuel heater. The mode of operation is to connect a clean electric stove in series with a fuel oil heater, which confirms the need for an additional pump according to the actual needs to improve the circulation power.
Products Parameter
| Power (KW) | 10KW | 15KW | 20KW |
| Rated voltage（V） | 600V |
600V |
600V |
| Supply voltage (V) | 450-750V | 450-750V | 450-750V |
| Current consumption (A) | ≈17A | ≈25A |
≈33A |
| Flow (L/h) | ＞1800 | ＞1800 | ＞1800 |
| Weight (kg) | 8kg | 9kg |
10kg |
| Installation size | 179x273 | 179x273 | 179x273 |
| Control signal |
Rocker switch hardwire control |
Rocker switch hardwire control |
Rocker switch hardwire control |

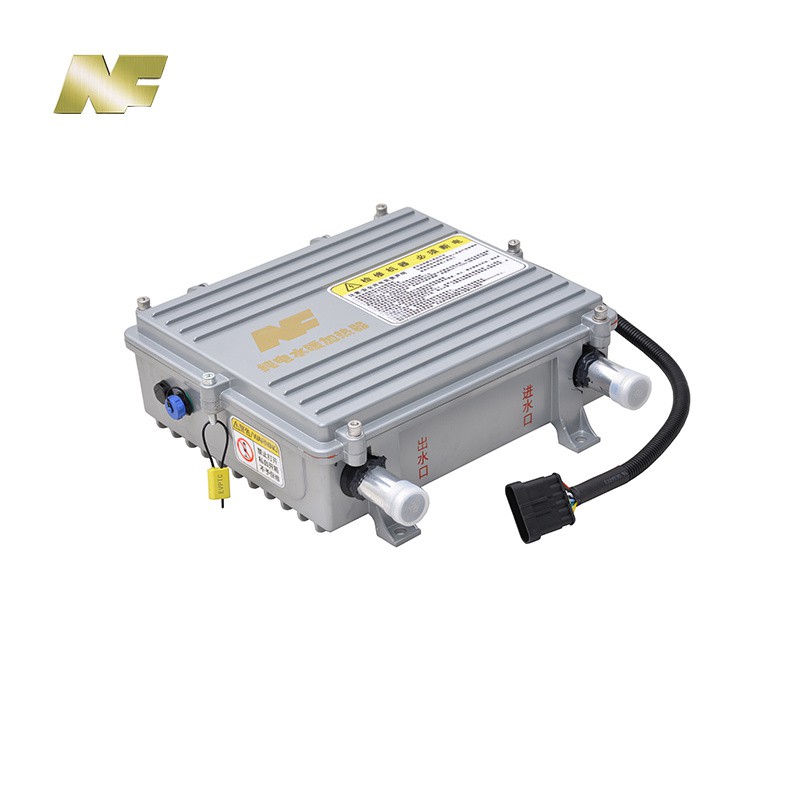

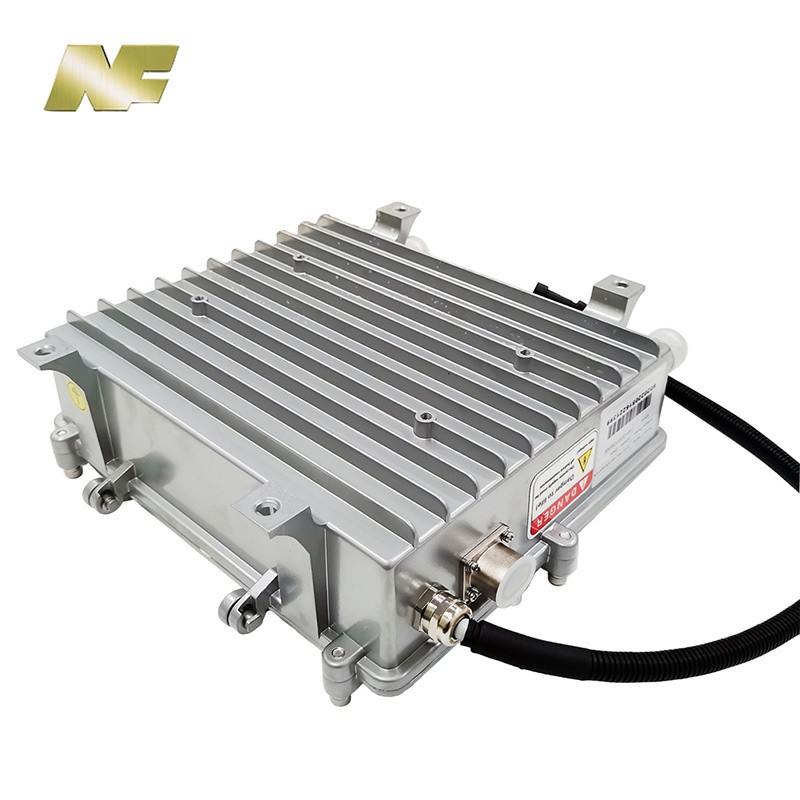

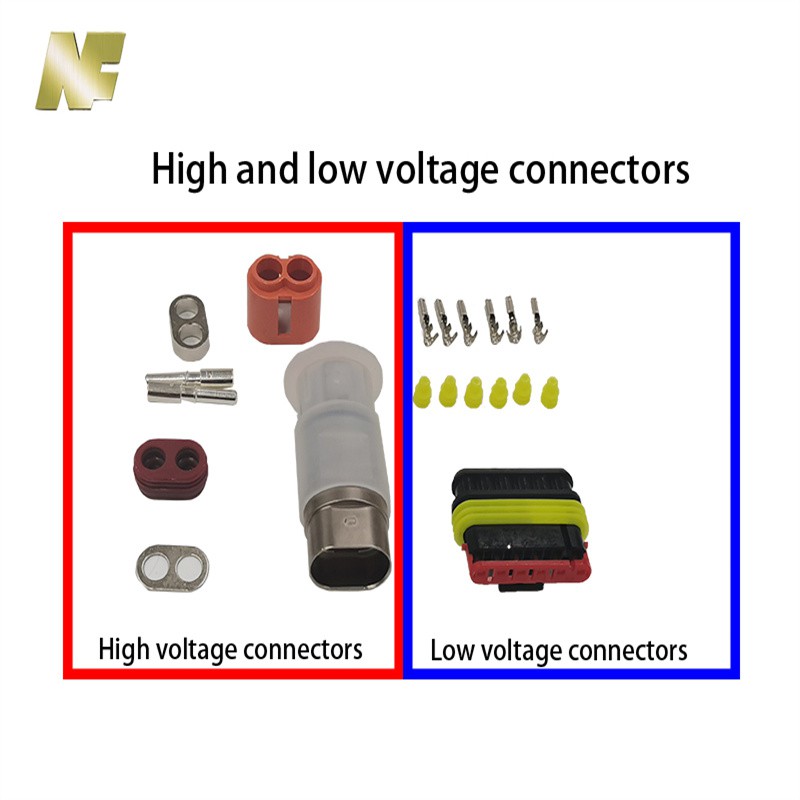

Products Details
Products Application
Products Advantages

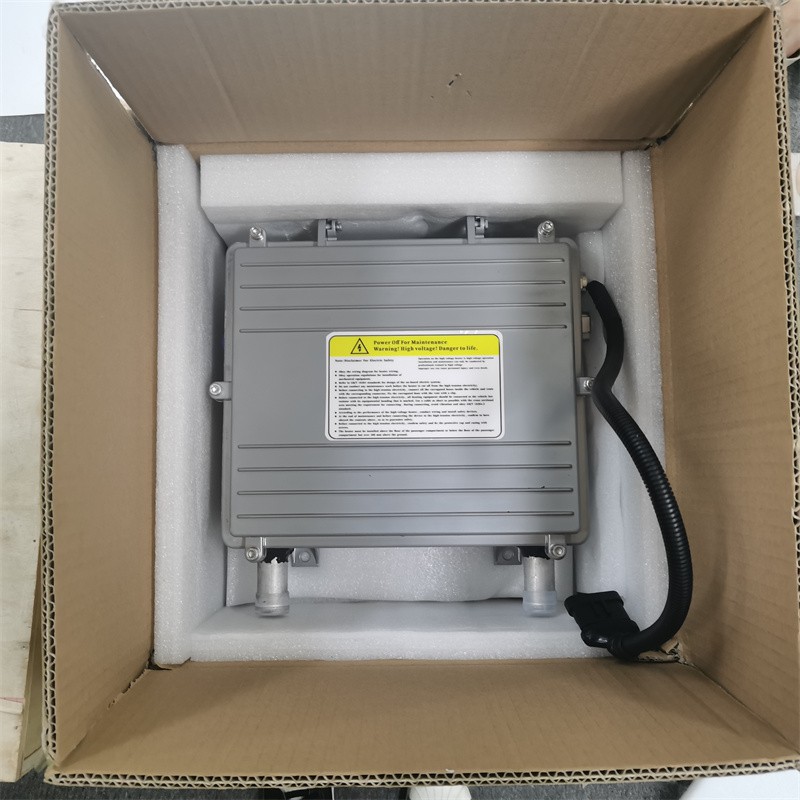

Products Packing

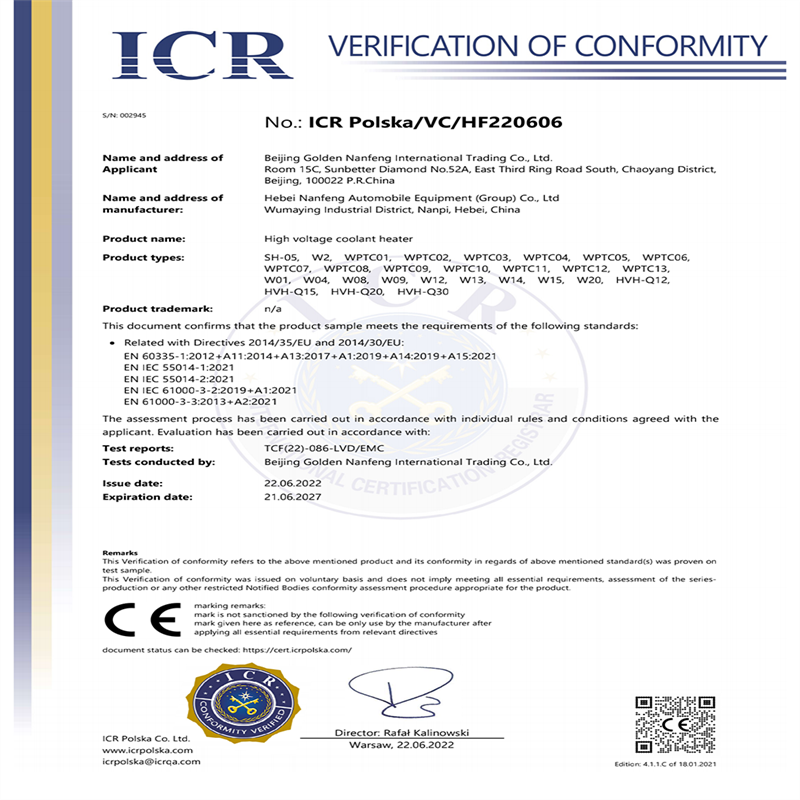

Products Certification
Our Advantage
1、Our company has been producing heaters for more than 30 years, and is the only designated supplier of Chinese military vehicles.
2、We provide the best service according to your needs；
3、Our products are of high quality at cheap price, and delivered on time.
4、We have a professional sales team to provide you quick and warm service throughout the whole process.
5、Small quantity is acceptable.
6、 Easy to installation
7、Smooth operating with no noise
8、Strict quality management system
9、Superior equipment
10、Professional services
