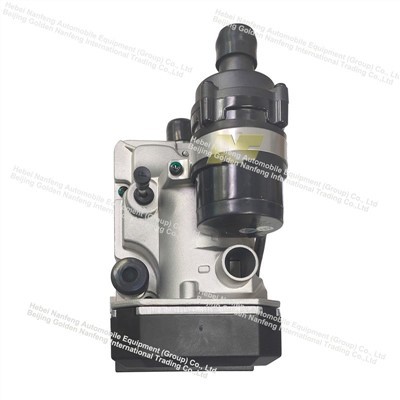

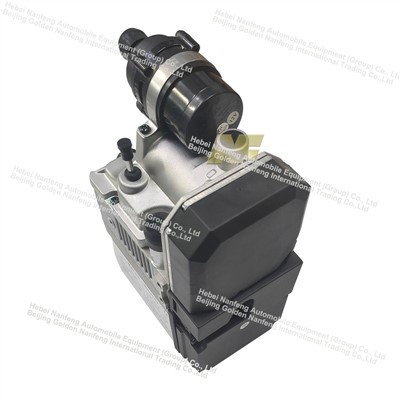

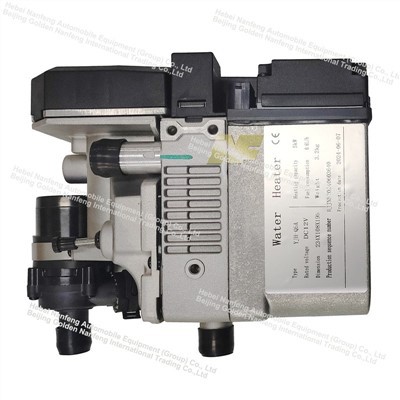

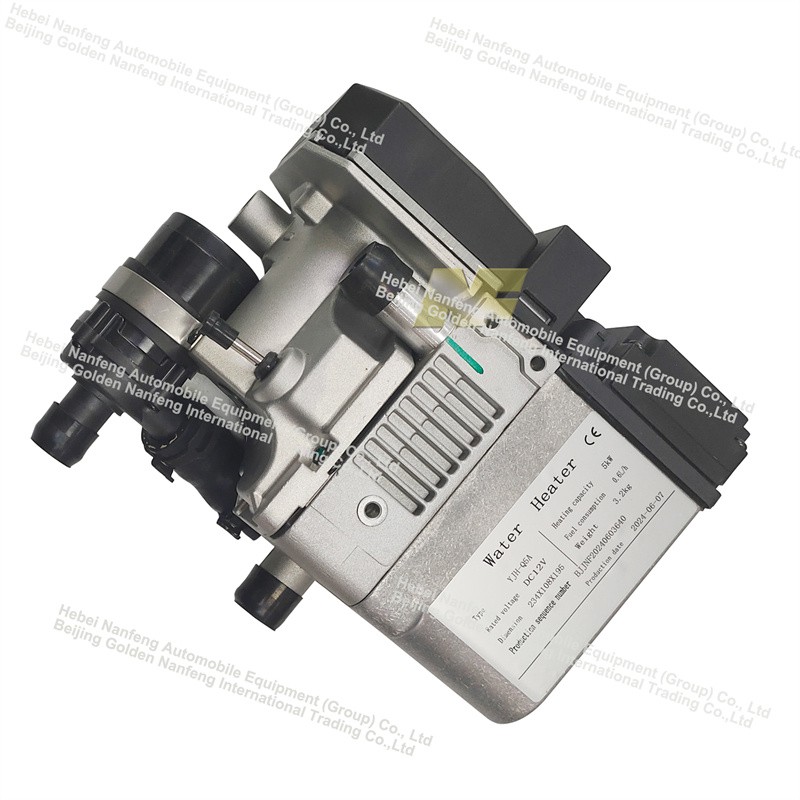

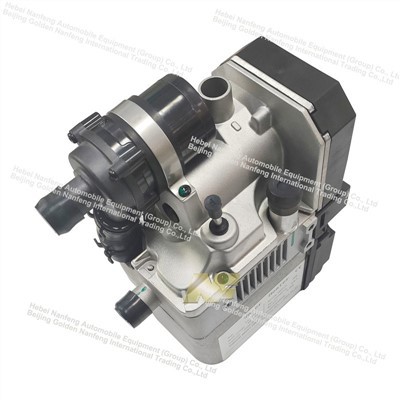

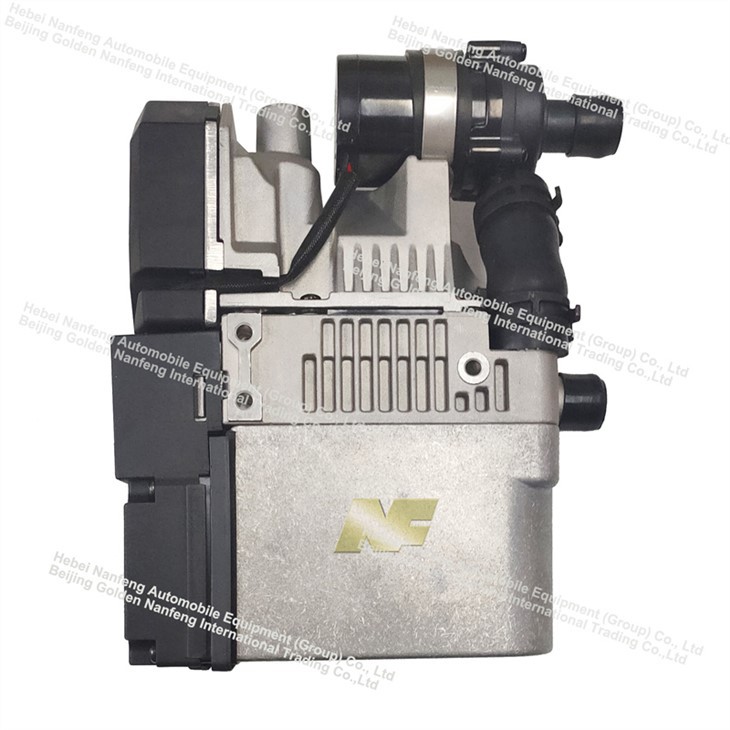

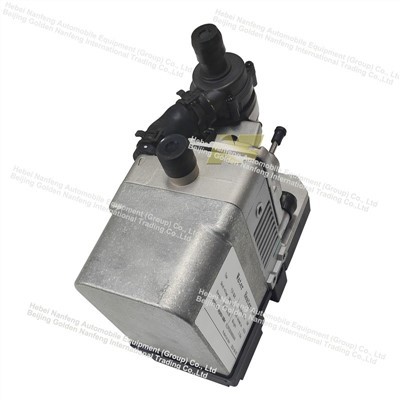

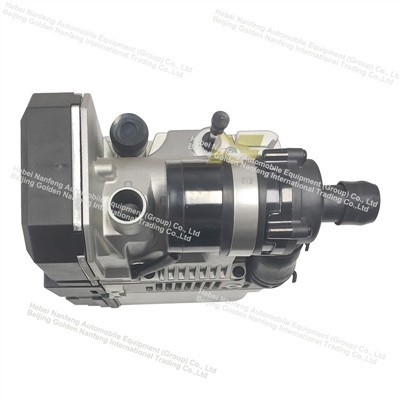

5KW Fuel Liquid Heater
We are a heating and cooling factory in China with more than 30 years of experience.In China we provide it to Chinese army vehicle, it can represent the highest level of quality in Chinese water parking heaters.
Description

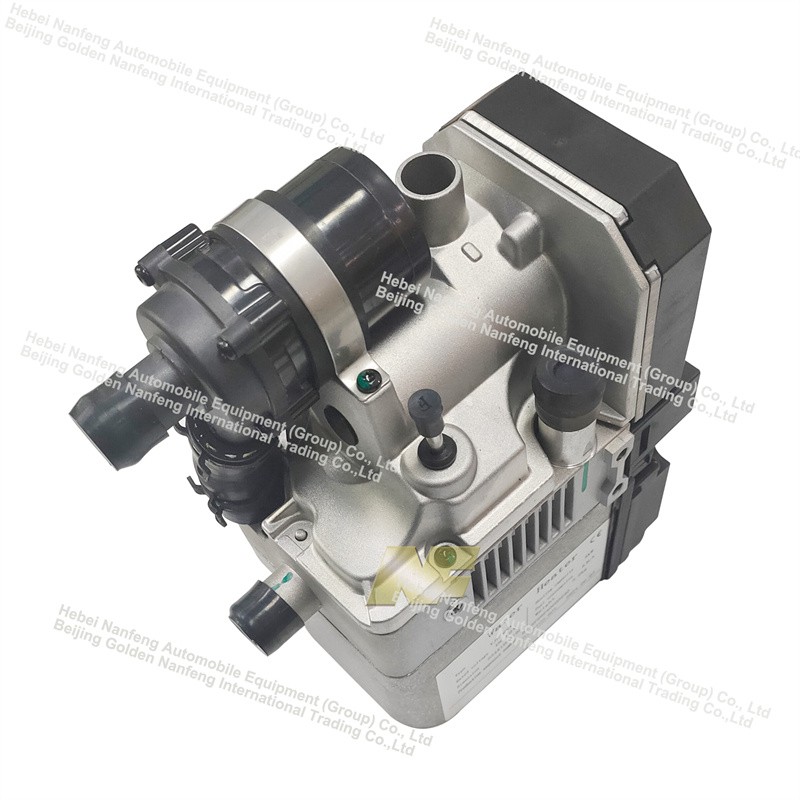

5KW fuel liquid heater
Products Descriptio
The liquid parking heater is only allowed to be installed outside the car. The heater is preferably installed in the engine compartment, the splash guard area of the front mudguard, or the front mudguard. To ensure that the heater and the water pump can be automatically vented, the heaters should be installed as low as possible, especially for the water pump, which cannot be pumped independently.
| Item Name | 5 kW water parking heater | Voltage | DC 12V/24V |
| Heat output (W) | 5000 | Heating medium | Coolant |
| Fuel | Diesel | Fuel consumption | 1.1KG/H |
| Weight | 2.3KG±0.5 | Power consumption(W) | ≤39W |
| Size(mm) | 230*100*110 | Model number | YJH-5 |

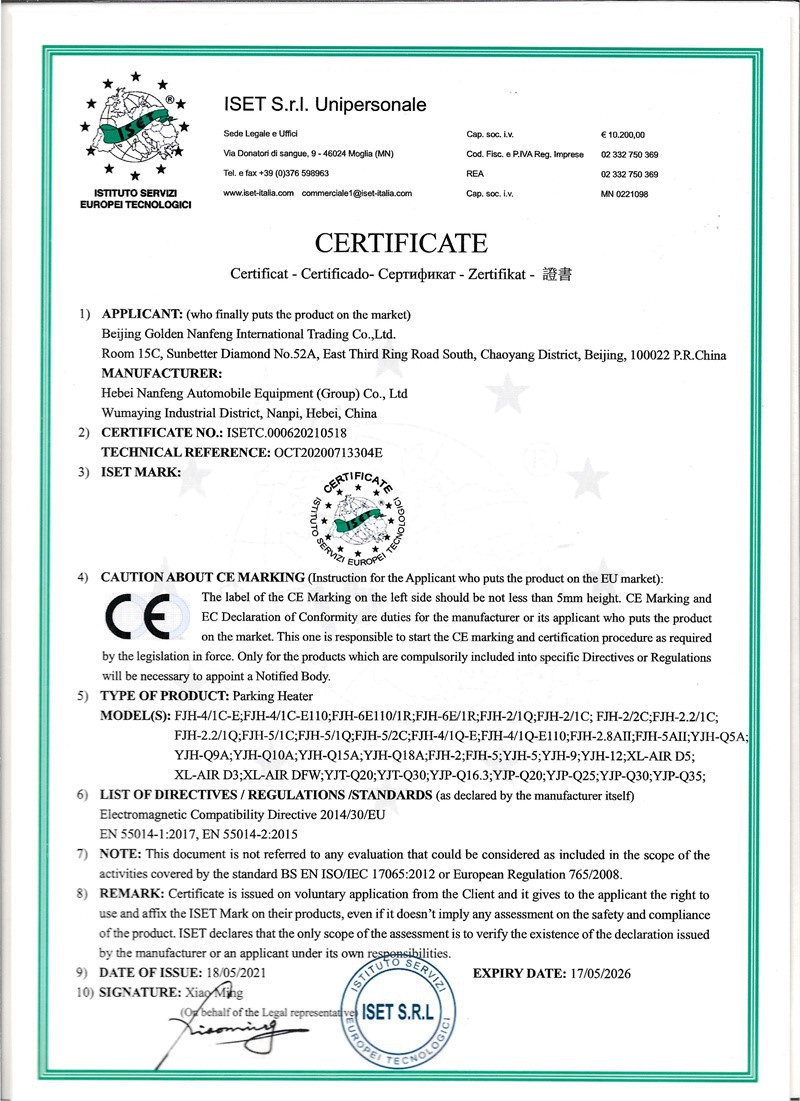

| Certification | CE | Working life | 5 years |
| Warranty | 1 Year | Color | Silver |
| Special vehicles | The water-cycling system of mid-size cars, SUVs, trailers, wagons, vans, etc | ||

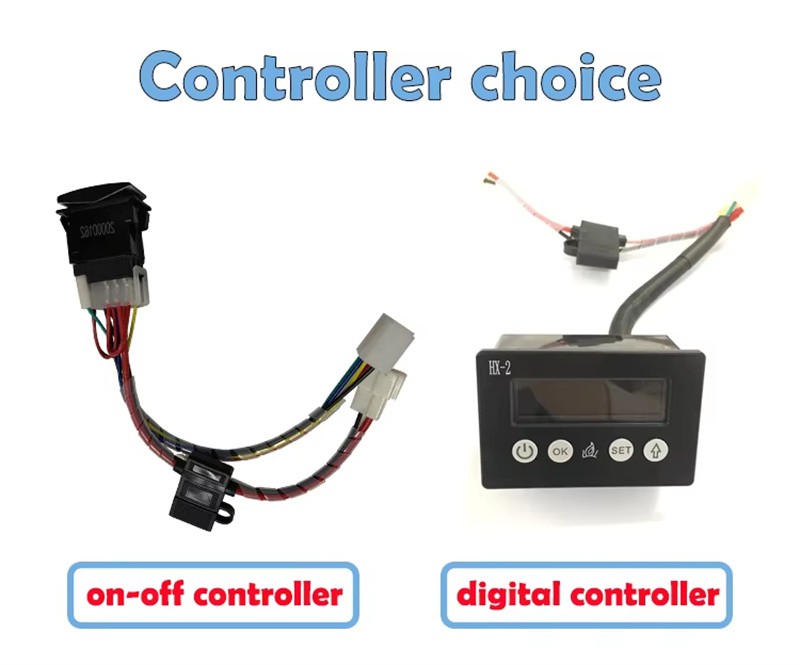

Products controller choice
There are two control modes for this product: an on-off switch and an LCD switch, but we mainly recommend the LCD switch. Both switches are configured for you free of charge. You can choose a control mode that suits you.

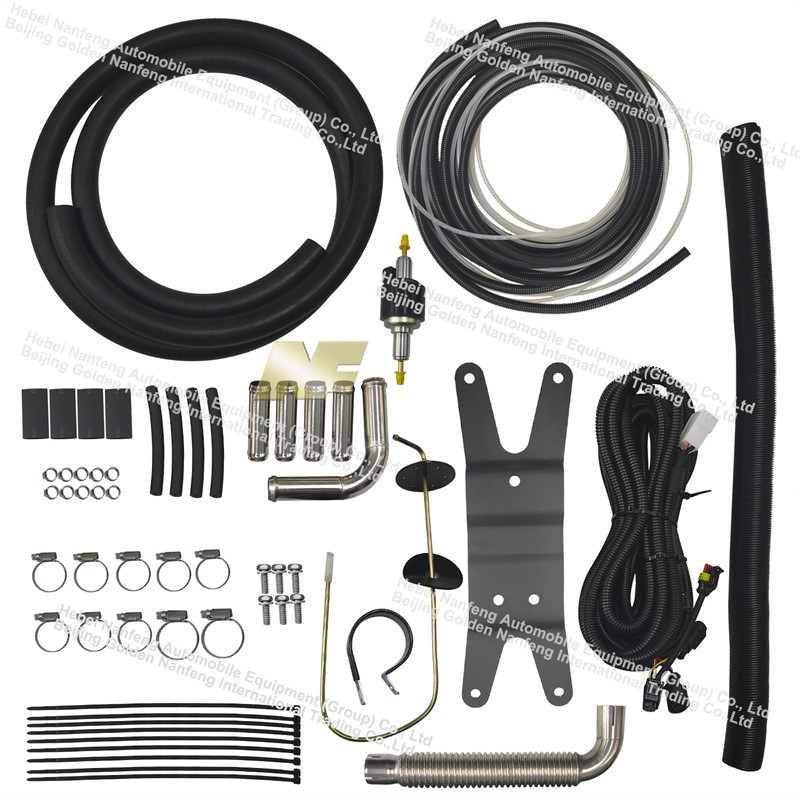

Products installation

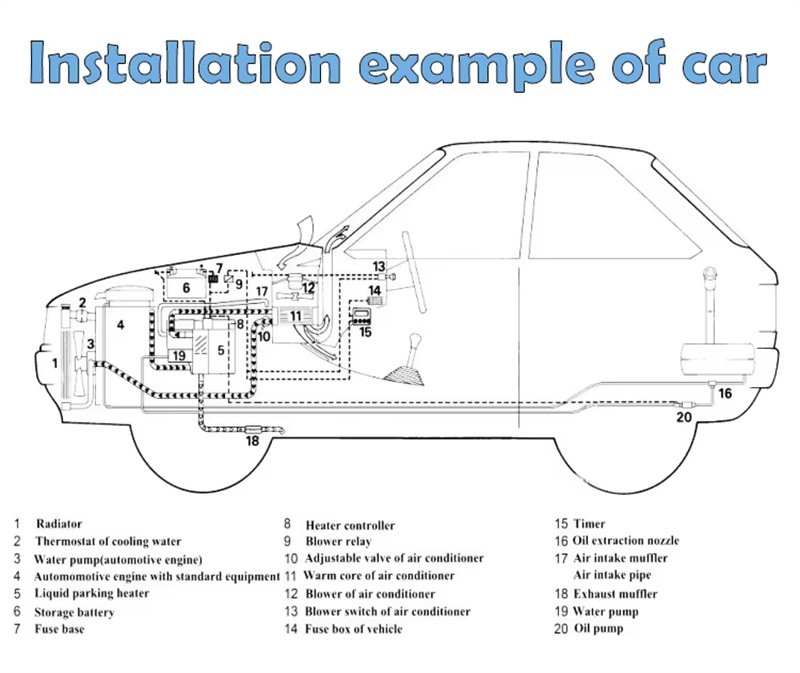

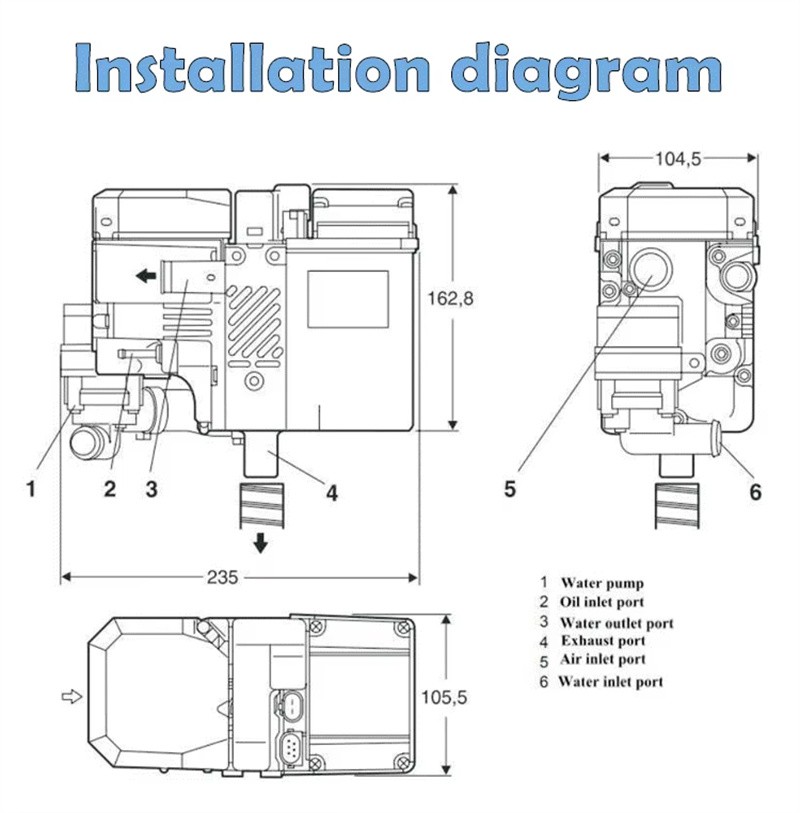

The installation location of the liquid parking heater
1. It is necessary to protect components near the body and the parking heater from excessive heat radiation and pollution by fuel or oil.
2. Fire-fighting heaters do not allow fire risks even when they are overheated. This requirement can be met if attention is paid to installing the heater with sufficient space for all parts, taking appropriate ventilation measures, and using fireproof material or insulation board.
3. The parking heater can not be installed in the passenger compartment. However, it is possible to install in a well-sealed shell structure that meets the conditions described in Section 2
4. In order to minimize the risk of personal injury or damage to carry-on items, all necessary precautions must be taken when installing the heater.
Fuel supply
1 The fuel filler can not be arranged in the passenger compartment and must be tightly closed with a lid to avoid fuel spillage.
2. For the parking heaters that use liquid fuel,l and the liquid fuel delivery line is separate from the fuel delivery line of the vehicle, and the type of fuel and the filler port must be marked.
3. A reminder sign must be placed on the fuel filler to mark that the parking heater must be turned off before refueling.
Common fault
1. Fault locking due to the parking heater failureIfno no flame is formed, the maximum oil supply time is 180 seconds. If the flame is extinguished during operation, the oil supply time is up to 85 seconds.If overheating occurs (the thermostat is triggered), the oil supply stops immediately. In each condition, the parking heater will continue to run for 120 seconds after the fault is locked. In addition, affected by the software version in the control device, the time will be different.
Attention:
There is no information is displayed in the condition of a fault shutdown due to the overheating parking heater.
2. Fault unlocking of parking heater after the fault locking
Please unlock the fault according to the operation and maintenance instructions.
Products Application
Water-heated parking heaters are mainly divided into diesel and gasoline types, which are suitable for engine preheating and in-car heating of various vehicles, and can provide domestic water to RVs through a heat exchanger. The working principle of the heater is mainly: the engine coolant is circulated and heated through the heater furnace cavity, to increase the temperature of the car engine, heater, and cab. The product can be preheated in advance without starting the engine, which can effectively avoid the wear and tear of the engine caused by low-temperature starting. The product has the characteristics of compact structure, small size, easy installation, high efficiency and fuel saving, emission reduction, and environmental protection.
Our Company
Hebei Nanfeng Automobile Equipment (Group) Co.., Ltd is a group company with 6 factories, that specializes in heaters and heater parts for more than 30 years. We are the leading parking heater manufacturers in China, and currently the only designated parking heater suppliers for Chinese military vehicles.
