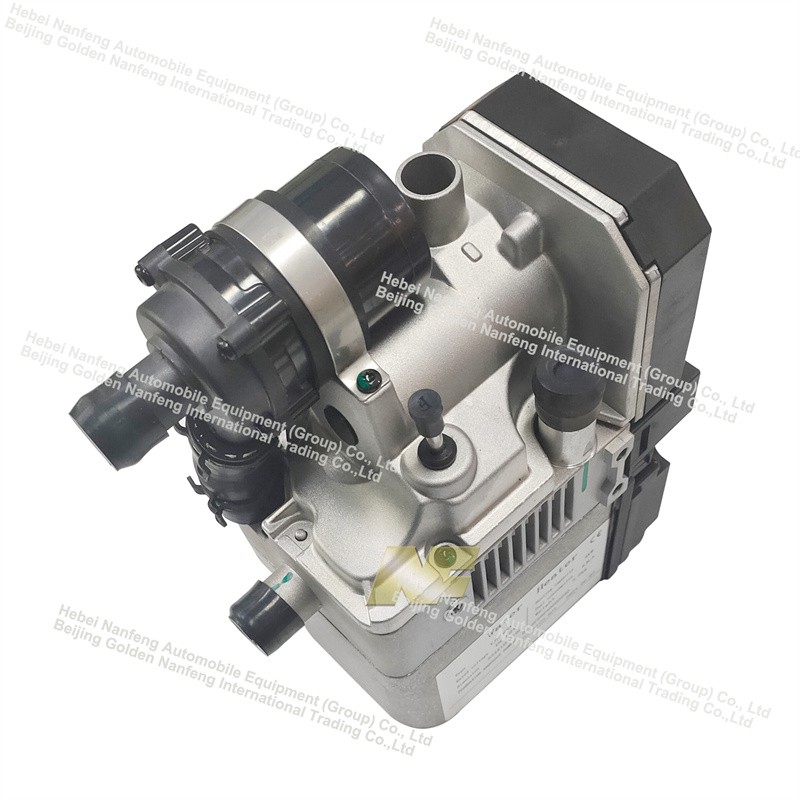

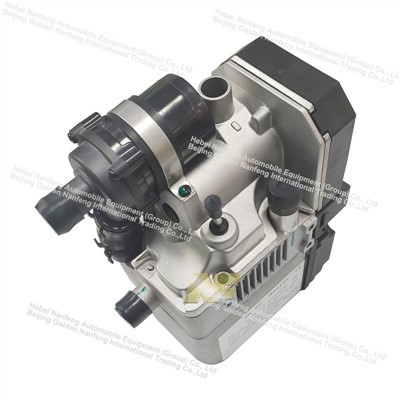

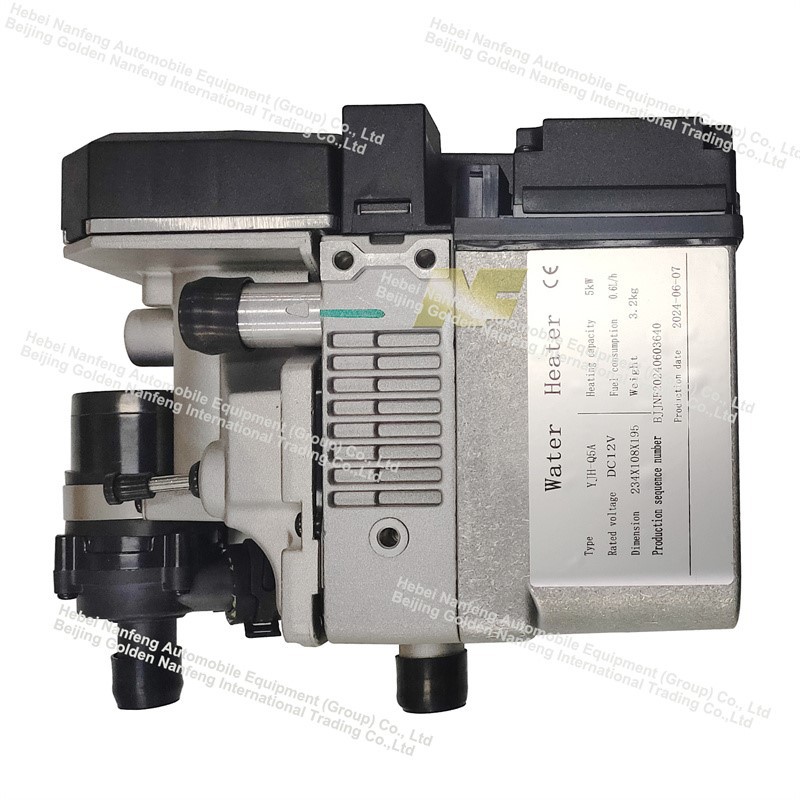

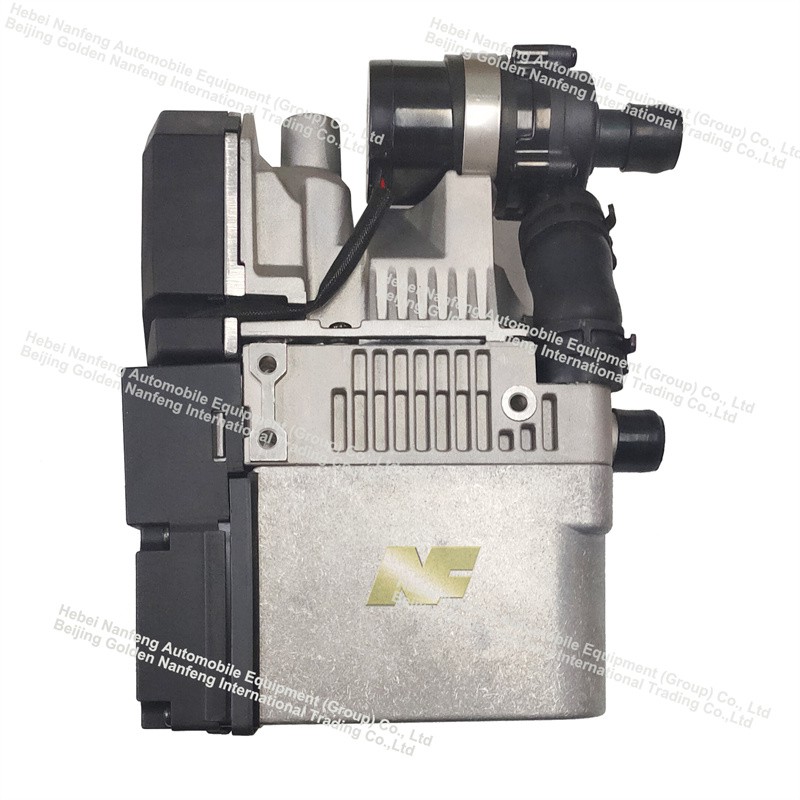

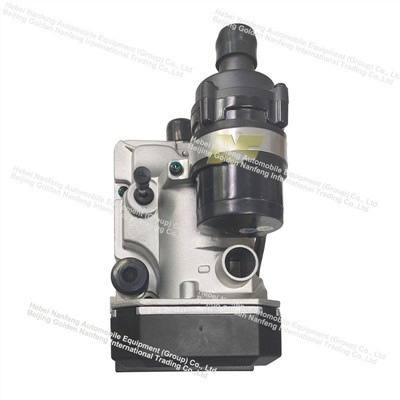

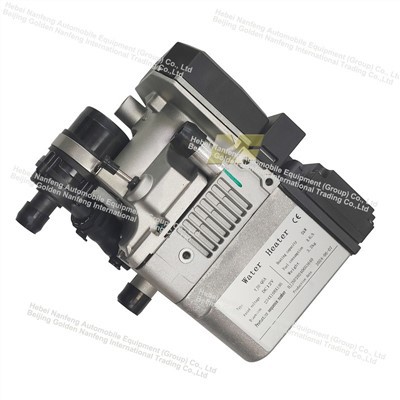

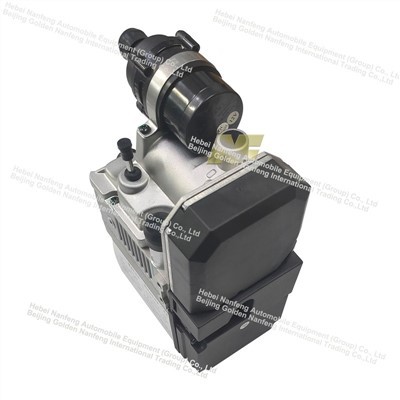

Fuel Car Water Parking Heater



Fuel car water parking heater





Item Name	5kw water parking heater	Voltage	DC 12V/24V
Heat output (W)	5000	Heating medium	Coolant
Fuel	Diesel	Fuel consumption	1.1KG/H
Weight	2.3KG±0.5	Power consumption(W)	≤39W
Size(mm)	230*100*110	Model number	YJH-5

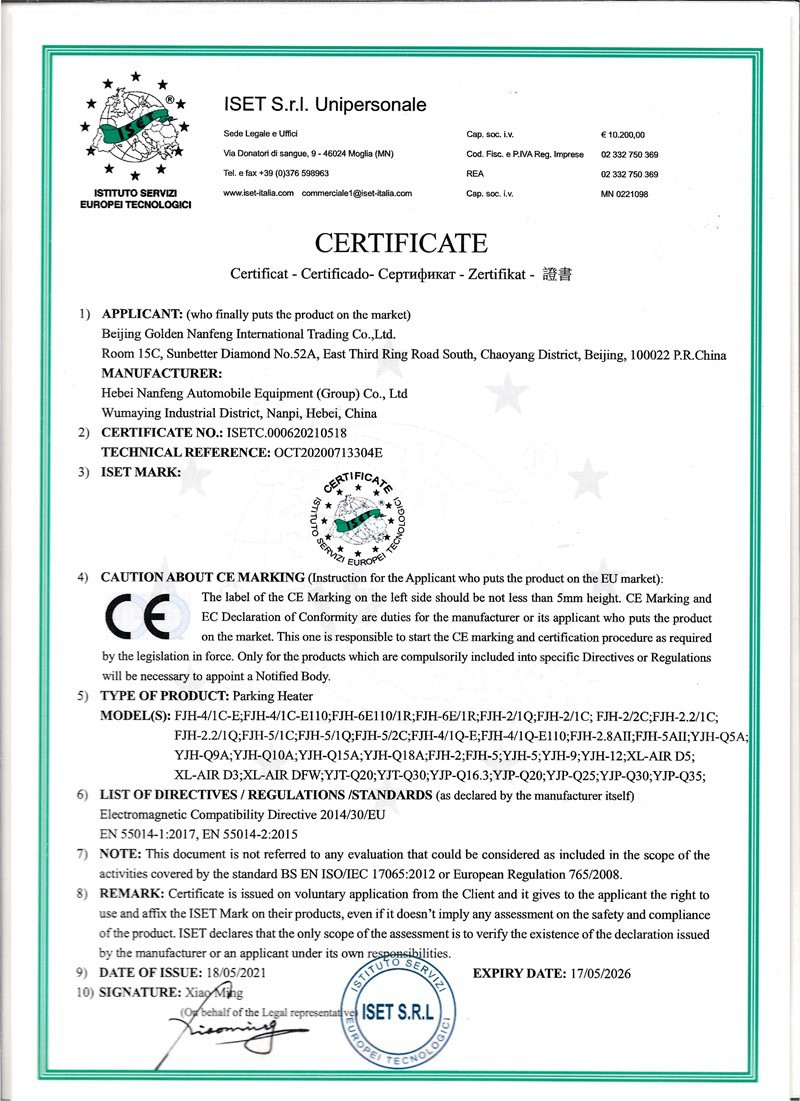

Certification	CE	Working life	5 years
Warranty	1 Year	Color	Silver
Special vehicles	The water-cycling system of mid-size cars, SUV, trailer,wagons, vans,etc





Working principle of the full process

Startup phase

After the user sets the target temperature, the system self-checks (fuel, water level, circuit).
The water pump pre-starts to establish a water circuit circulation.
The ignition device ignites the atomized fuel, and the combustion chamber begins to heat up (reaching the operating temperature in about 30 seconds).

Heat transfer phase

The high-temperature flue gas generated by combustion transfers heat to the coolant in the water circuit through the heat exchanger tube wall.
The hot water circulates to the radiator in the car through the water pump, and the hot air is blown out by the fan (or directly radiated heat).

Thermostatic adjustment

The temperature sensor feeds back the in-car/water temperature in real time, and the ECU dynamically adjusts the fuel injection amount and the water pump speed.
Low power mode: Reduce fuel consumption while maintaining temperature (the minimum power of some models can be as low as 0.2kW).



















 Installation location

The liquid parking heater is only allowed to be installed outside the car. The heater is preferably installed in the engine compartment, the splash guard area of the front mudguard, or the front mudguard. In order to ensure that the heater and the water pump can be automatically vented, the heater should be installed at a position as low as possible. Especially for the water pump that cannot be pumped independently.


Attention:

The nozzle of the water pipe can not face down in any possible installation position.



The parking heater can not be installed on



-Near or above the high-temperature parts in the vehicle,

-The direct splash area of the wheel.

-Lower than the wading line of the vehicle



The application range of the  Liquid parking heater



If the liquid parking heater YIH-Q5A is installed in your vehicle, it can be used to Stay Warm and heat the driver's cab, defrost the front windshield, and preheat the water-cooled engine. Liquid parking heaters are not affected by the vehicle's engine during operation. Meanwhile, the heaters are connected to the vehicle's cooling system, fuel system, and electrical system.



Extreme environment adaptation



Alpine areas (such as -30℃ Siberia): preheat the water tank to avoid engine cold start wear.

High altitude: some models support combustion optimization in oxygen-deficient environments (such as pressurized intake design).



Special vehicle requirements

Cold chain transport vehicles: prevent cargo from freezing due to low cargo compartment temperature (reverse heating).

Military vehicles: concealed heating (low infrared radiation models reduce heat signal exposure).



Energy-saving scenarios

Parking heating: When truck drivers rest at night, only 0.5L/h of fuel is needed to maintain 8 hours of heating, saving 80% of fuel compared to idling heating.
