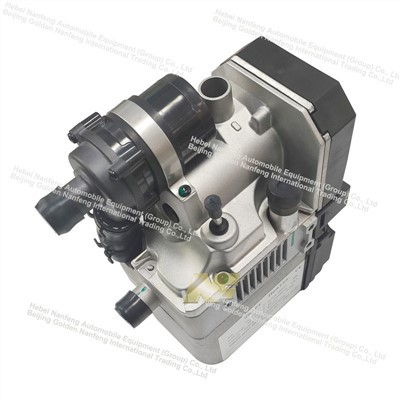

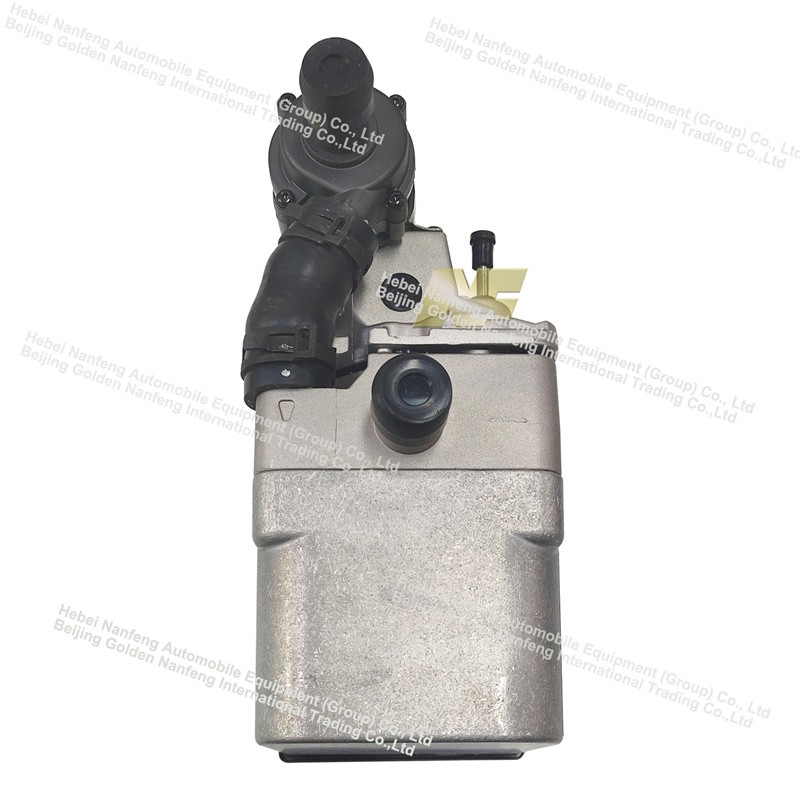

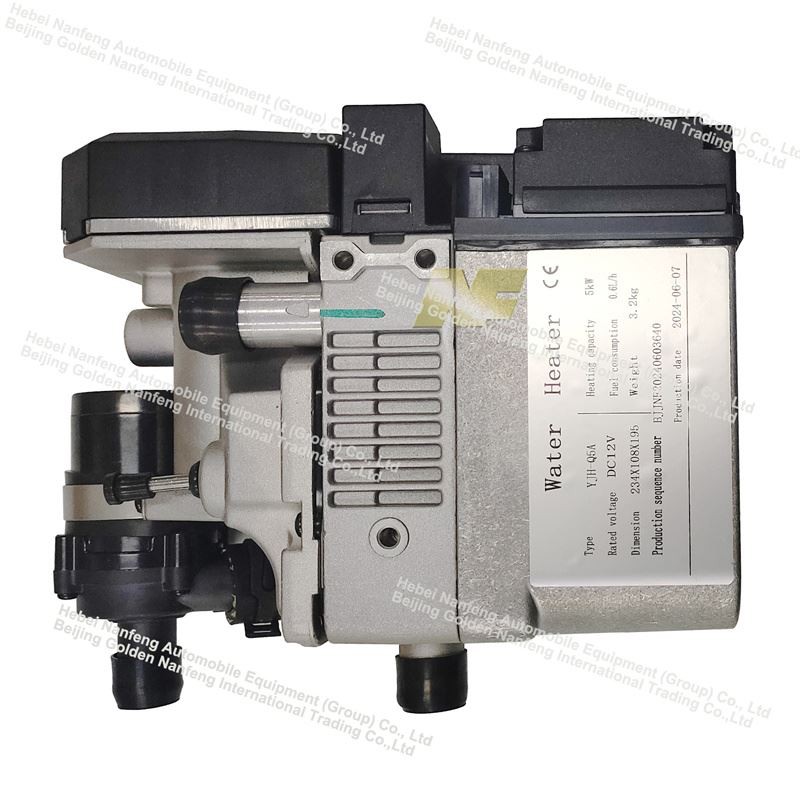

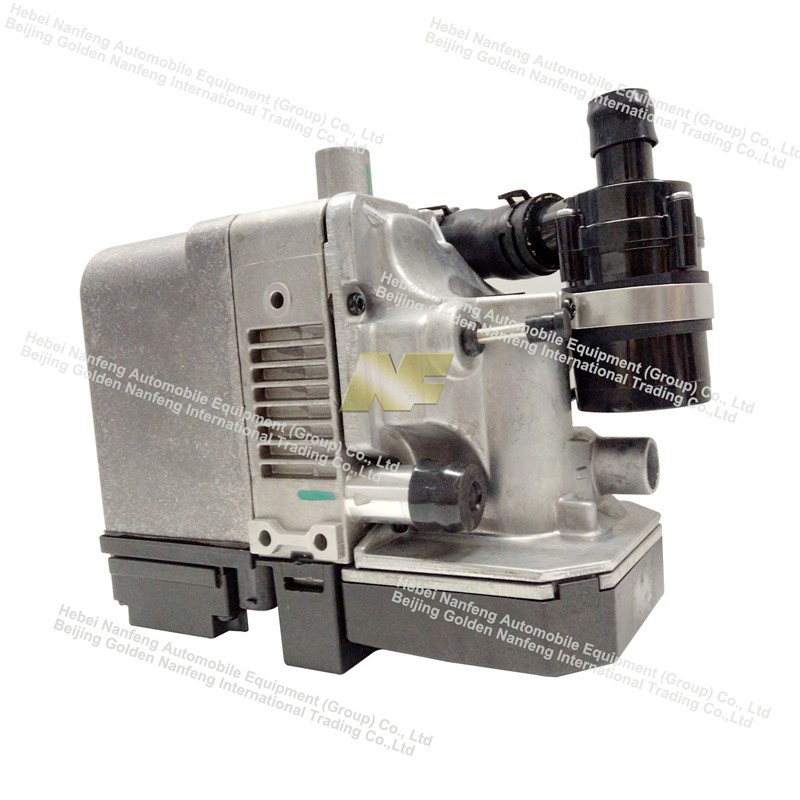

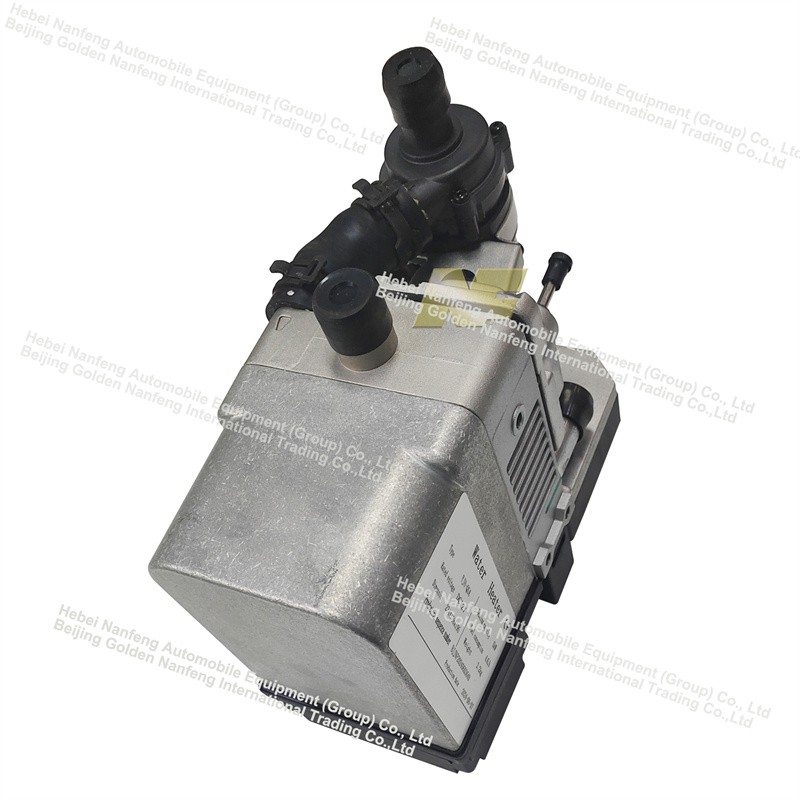

5KW 12V 24V Diesel Water Parking Heater

5KW 12V 24V Diesel Water Parking Heater



Working principle of parking heater:
As the name implies, a parking heater is a heating device that can provide warm air even when the vehicle is stationary. It operates independently of the car engine, generates heat by burning fuel, heats the coolant, and then transfers the heat to the cabin to achieve the purpose of heating.



The working process of the parking heater can be summarized as the following steps:
1. Start: Start the parking heater through an independent switch.
2. Fuel supply: A small amount of fuel is drawn from the parking heater tank.
3. Combustion: The fuel is mixed with air in the combustion chamber and ignited to generate heat.
4. Heat exchange: The heat generated by combustion is transferred to the coolant, and the coolant temperature rises.
5. Circulation: The high-temperature coolant is pumped to the warm air radiator in the car, and the heat is dissipated into the car through the radiator.
6. Emission: The exhaust gas generated by combustion is discharged outside the car through the exhaust pipe.





Item Name	5kw water parking heater	Voltage	DC 12V/24V
Heat output (W)	5000	Heating medium	Coolant
Fuel	Diesel	Fuel consumption	1.1KG/H
Weight	2.3KG±0.5	Power consumption(W)	≤39W

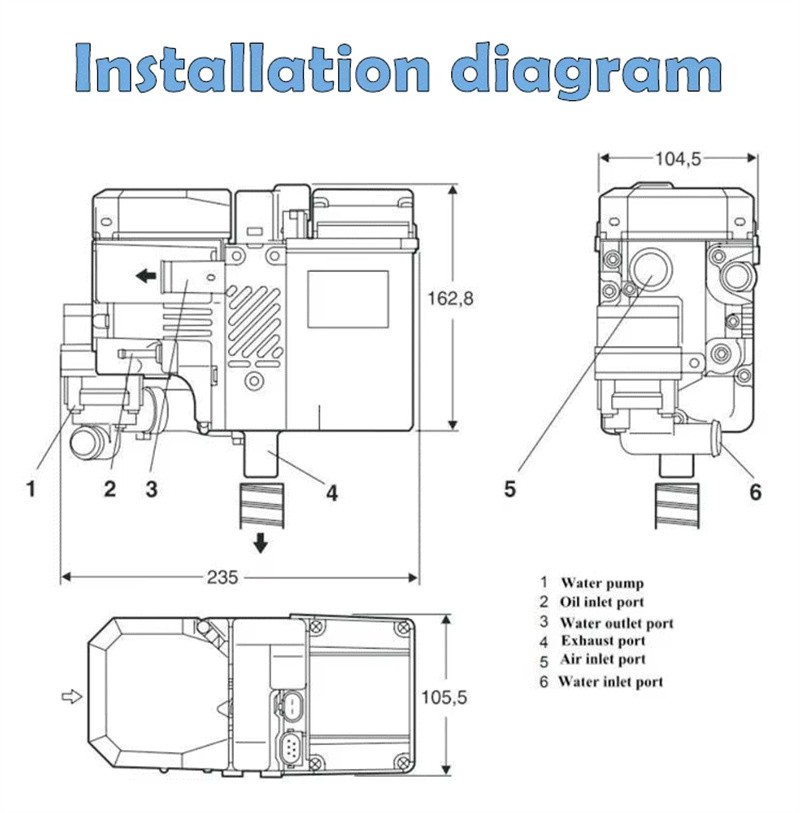

Size(mm)	230*100*110	Model number	YJH-5
Certification	CE	Working life	5 years
Warranty	1 Year	Color	Silver
Special vehicles	The water-cycling system of mid-size cars, SUVs, trailers, wagons, vans, etc

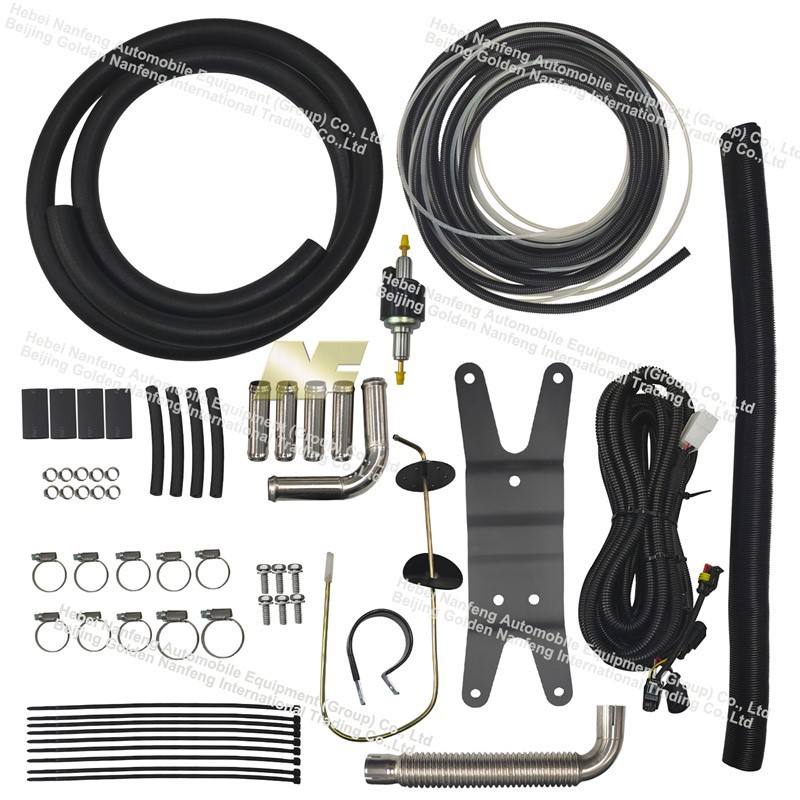

Complete product accessories picture:

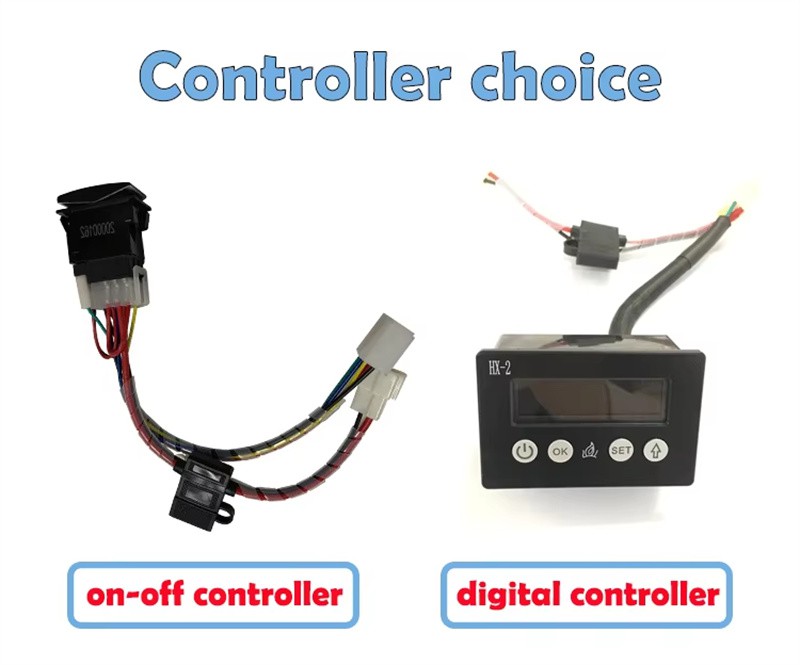

There are two control methods to choose from:











1. Easy to installation
2. Smooth operating with no noise
3. Strict quality management system
4. Superior equipment
5. Professional services
6.OEM/ODM services
7. Offer sample
8. High quality products
1) Variety types for selection
2) Competitive price
3) Prompt delivery

If you're looking for the 5kw 12v 24v diesel water parking heater, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
