Camping parking Heater For Tent

Camping parking Heater For Tent







Portable tent heaters have become a revolutionary solution for outdoor heating through compact design, intelligent safety control and efficient energy utilization. Gas catalytic types have become the mainstream choice due to safety and portability, while fuel radiant types are irreplaceable in extreme environments. When using, be sure to follow ventilation and fire prevention regulations, and choose the power and fuel type reasonably according to the size of the tent, ambient temperature, and length of the trip. Future trends will focus on hydrogen fuel integration and solar energy storage optimization to further enhance the green outdoor experience.



Camping RV Heater Use Operation:
Press the main power button to turn ON the power, and the back of the LCD panel will brighten up. Press the switch button (ON/OFF) within 3 seconds after pressing the power button to start the heater, and the LCD icon ON will blink, and the heater will start to run. When the heater starts, the default operation is seven gears. The user can adjust the burning power of the heater by pressing the shif or shift button according to actual needs. The minimum first gear and a maximum of nine gears are used. After use, press the switch button to turn OFF the heater, and the LCD icon flashes off. At this time, the inside of the heater is in a high temperature state. After 3-5 minutes of heat dissipation, the fan stops working, the LCD backlight turns off, and the heater can be closed for storage.

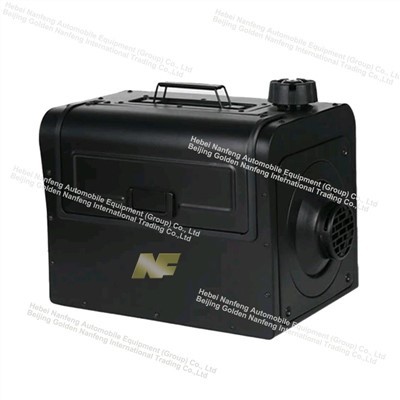

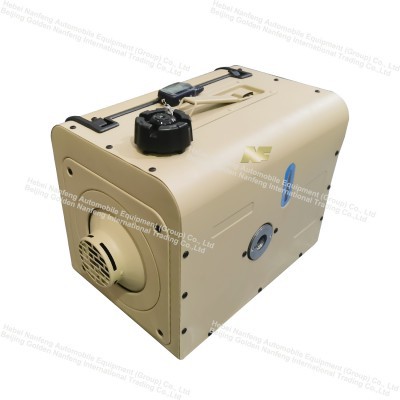

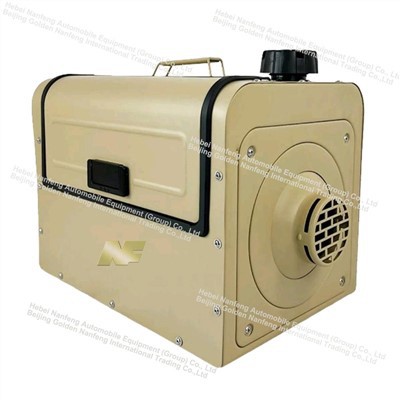

Item Name	air parking heater	Rated Voltage(Max)	16.8V
Heating medium	Air	Heat Level	1-9
Fuel	Diesel	Heat rating	1KW-4KW
Weight	13KG	Fuel consumption	0.1L/h-0.4L/h
Size(mm)	410*265*280mm	Power consumption	＜40W
Certification	CE	Brand	NF
Special vehicles	The water-cycling system of mid-size cars, SUVs, trailers,wagons, vans, etc







This machine can generate electricity only after the machine is ignited and running stably, so the battery must be installed when using the machine. After pressing the power button to turn on the power, observe whether the battery voltage is greater than 15.0V. If the voltage is lower than 15.0V, you need to use the charger to charge the battery to 15.0V- 16.8V before use. If it is inconvenient to charge with a charger, you can use the cigarette lighter line to plug into the DC input interface. The cigarette lighter end uses the car cigarette lighter port or the outdoor power cigarette lighter port to power the machine before turning it on. After the machine is ignited and running stably for at least 5 minutes, you can unplug the cigarette lighter line. The machine can spontaneously supply its own power and operate without an external power source.





Other precautions:

Before use, make sure the battery has enough power to ensure the normal start of the heater. Remove the battery when not in use for a long time and charge it regularly.

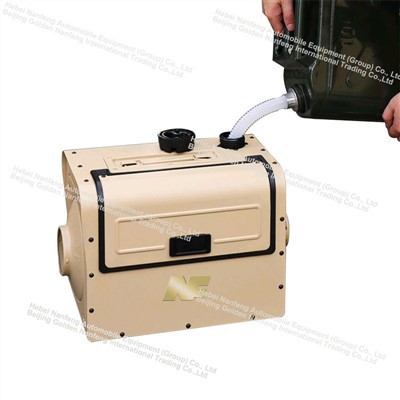

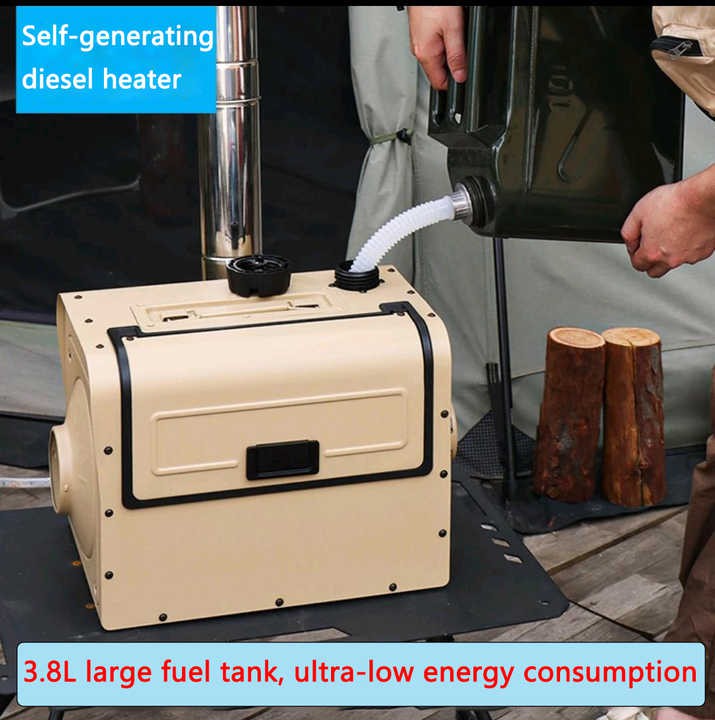

Check the fuel level in the fuel tank to ensure the continuous operation of the heater. This product only uses diesel, and the quality of the diesel should be guaranteed.

When there are children near the use environment, pay attention to supervision to prevent children from accidental injuries.









1 Before using this device, first install the battery correctly according to the + and- marks on the battery compartment to ensure the normal ignition of the heater.

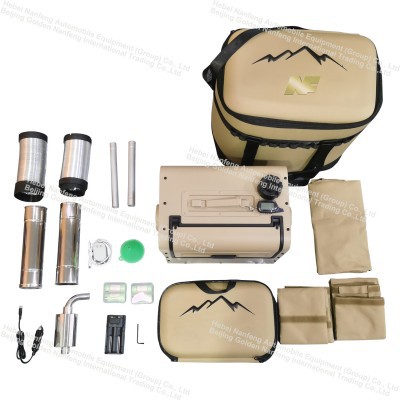

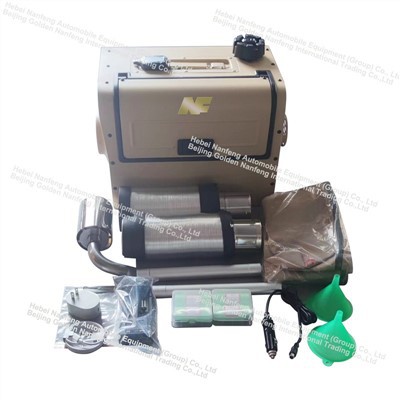

2. Install the exhaust pipe correctly on the heater. First, insert the end of the exhaust pipe connecting elbow with a convex point into the exhaust pipe interface of the heater. After rotating 90 degrees clockwise to fix it, install the muffler and two sections of the exhaust pipe in turn, and put the two sections of the protective cover on the muffler. If used in a closed passenger cabin, the optional accessory tent wall connector is required to discharge the exhaust gas to the outside of the cabin.

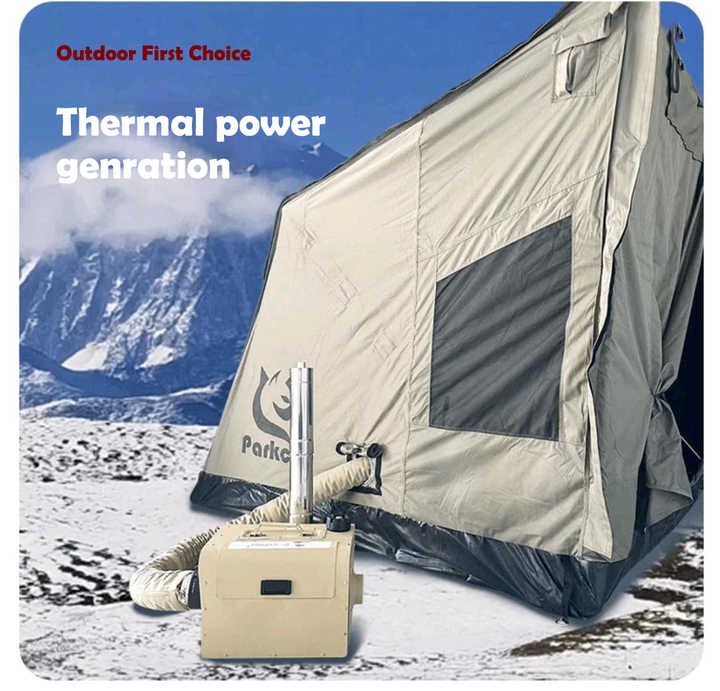

3 If the heater is placed outside the space to be heated, the air inlet and outlet pipes must be installed, and the inlet and outlet pipe connectors are respectively inserted into the air inlet and outlet of the heater. Rotate the air duct clockwise to lock the air duct. To prevent heat loss, the outlet pipe insulation sleeve must be put on the outlet pipe.
