5kw Diesel Water Heater
We are a heating and cooling factory in China with more than 30 years of experience.In China we provide it to Chinese army vehicle, it can represent the highest level of quality in Chinese water parking heaters.
Description

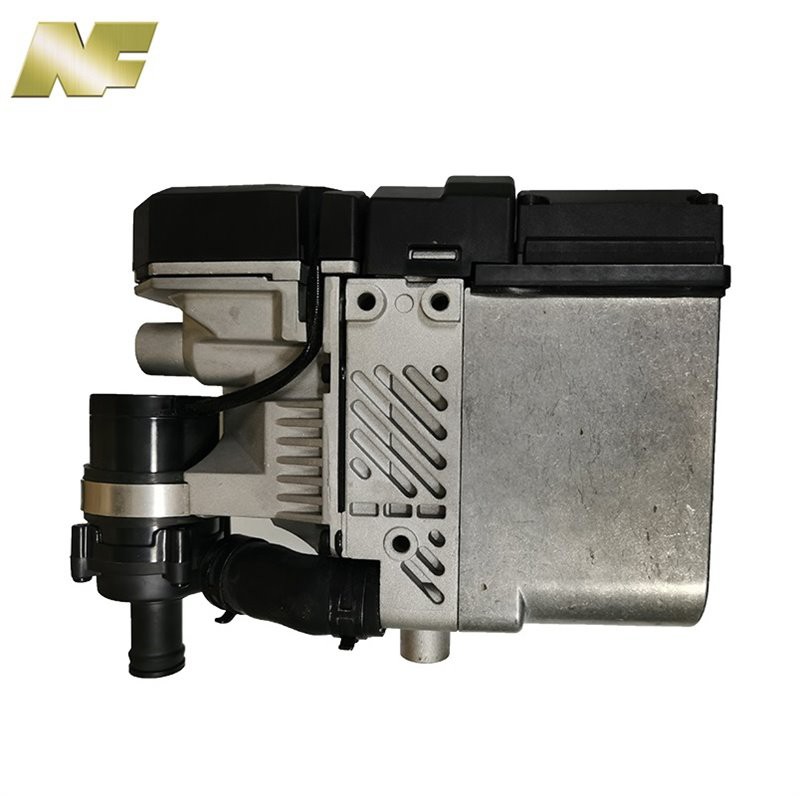

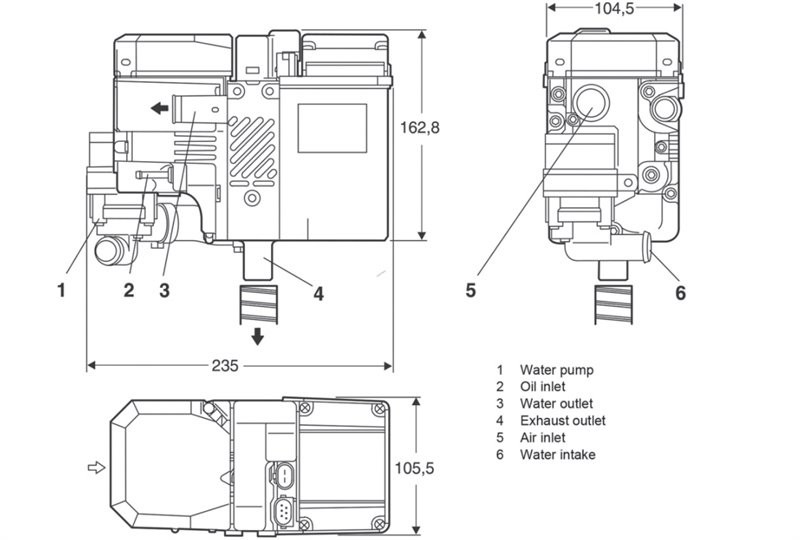

5KW Diesel water Heater
Product Description
working principle
You can set its running time in the range 10-120 min.When it is adjusted to 120min, press the right button again to set it to run for unlimited ∞ time.
①for example, when you set its running time to 30 min, heater will stop when it ran 30 min.
②If you set it to run for unlimited ∞ time, It automatically＞80℃ Off, and ＜60℃ On, until you turn off it by yourself. It means keep the water temperature between 60℃ to 80℃.
Products Specifications
| Item Name | water parking heater | Voltage | DC12V/24V |
| Heat output (W) | 5000 | Heat output (W) | Coolant |
| Fuel | Diesel | Working voltage | 10.5~15v |
| Weight | 2.3KG±0.5 | Allowable operating pressure | 0.4~2.5 bar |
| Size(mm) | 230*100*110 | Capacity of heat exchanger | 0.15L |
| Certification | CE | Minimum amount of cooling water in the waterway | 4.00L |
| Special vehicles | The water-cycling system of mid-size cars, SUV, trailer,wagons, vans,etc | ||

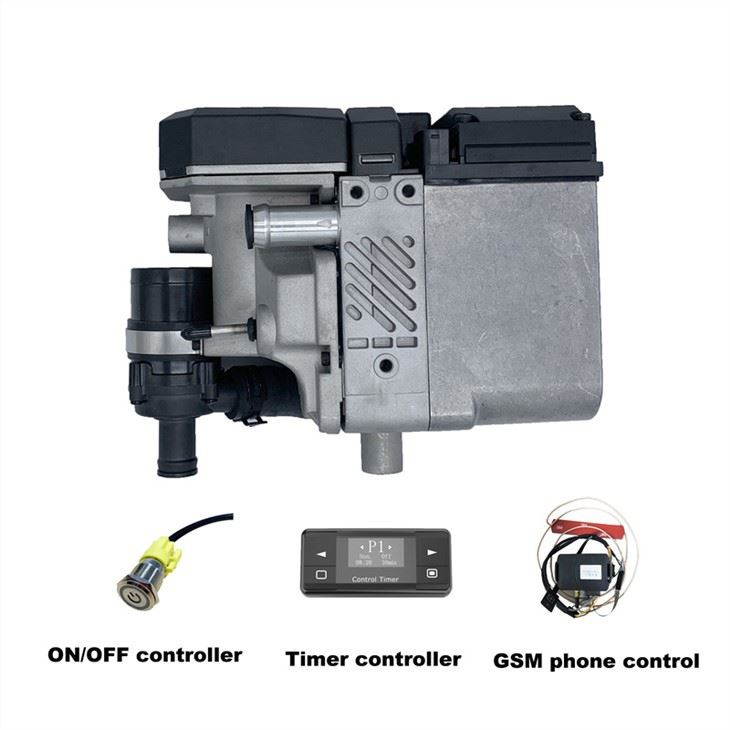

Controllers
We have 3 kinds of controllers:
on/off controller, digital timer controller and GSM phone control.

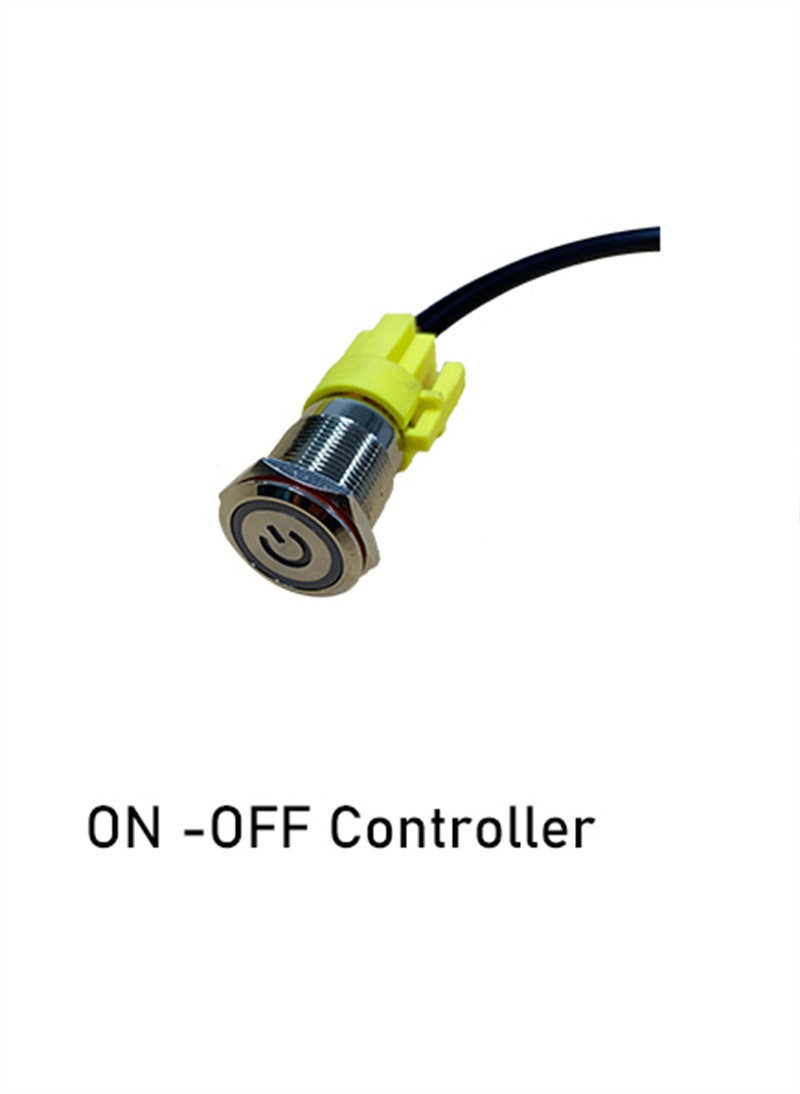

 ON-OFF Controller Electrical life：50,000 times LED light color: Red and blue two colors, blue when powered on, red when turned on Wiring form: Insert the matching connector; Solder the wire, pay attention to the soldering time and temperature |

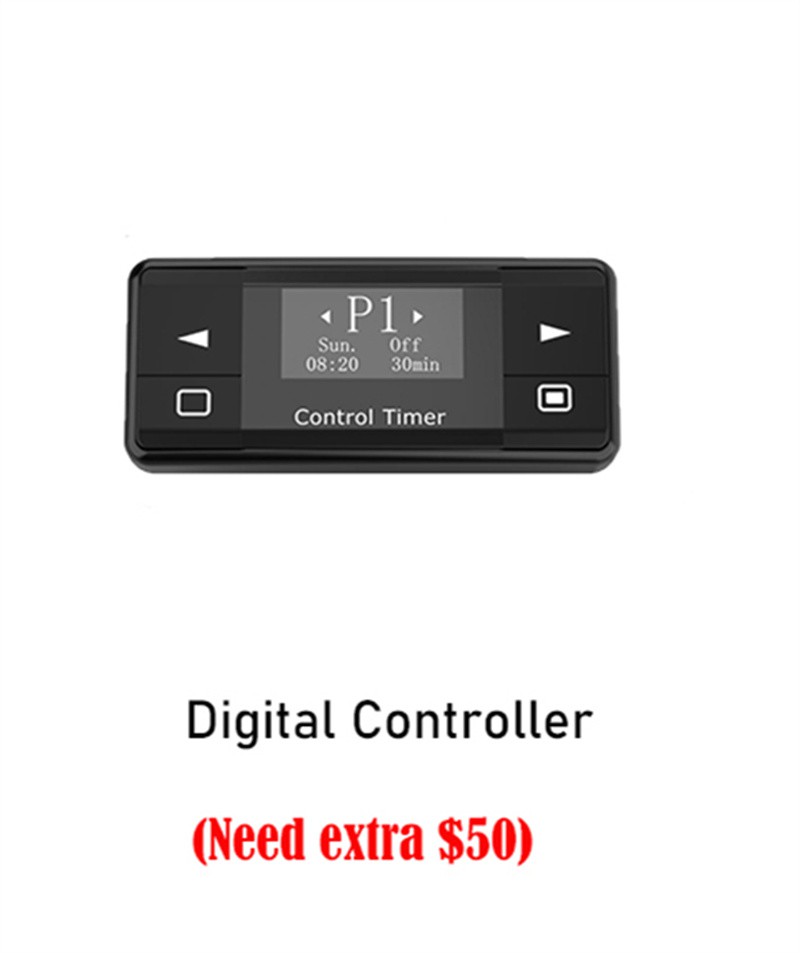

Digital Controller The timer is used to turn on and off the heater equipment installed in the car, as well as to select the operating mode, set the operating time and pre-select the starting time. The operation structure of the timer is simple. All functions can be set with 4 keys and can be changed when needed. If the car is powered off (the battery is disconnected) and then the power supply is restored, the time and day of the week must be reset. |

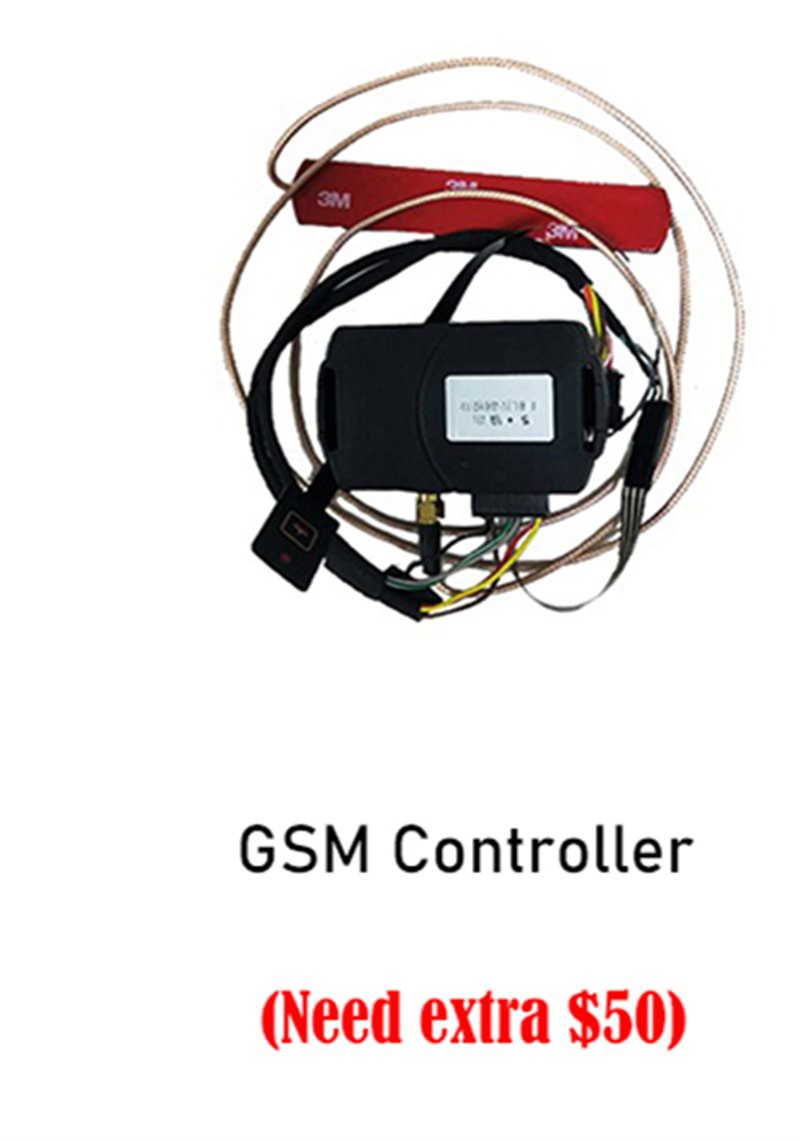

 GSM Controller The GSM mobile phone controller can not only start and set the water parking heater by sending text messages, but also set it by using Webasto TC3 APP. You can set the heater through your mobile phone anytime and anywhere, making your life more convenient! |

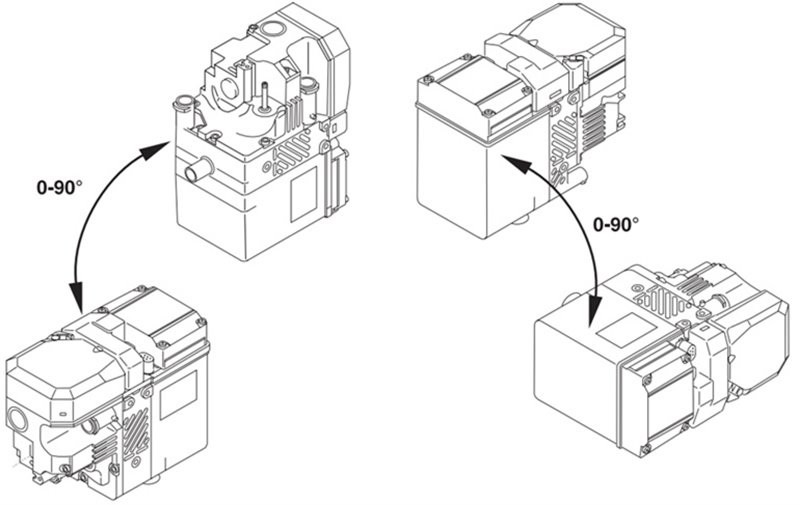

Installation
Note:
In any possible installation position the nozzle of the water pipe should not face downwards.
The heater must not be installed in:
-Places close to or higher than high temperature parts in the car;
-The direct splash area of the wheel;
-Below the car's wading line.
Application
The application range of liquid parking heaters
After the liquid parking heater TT-C5 is connected to the heating system of the car, it can be used for:
- Preheat engine coolant in Winter for Car/Boat/Caravan
- Provide hot water for bathing and domestic hot water in Caravan
- work together with radiator to heat the car compartment
- Defrost the front windshield
The liquid parking heater is not affected by the vehicle engine when it works, and is connected to the vehicle's cooling system, fuel system and electrical system.
Packing & Delivery
