12v Diesel Water Heater
Hebei Nanfeng Group is is one of the largest heating and cooling factories in China.And it's been more than thirty years since we produced heaters. designated supplier of military vehicles in China.
Description

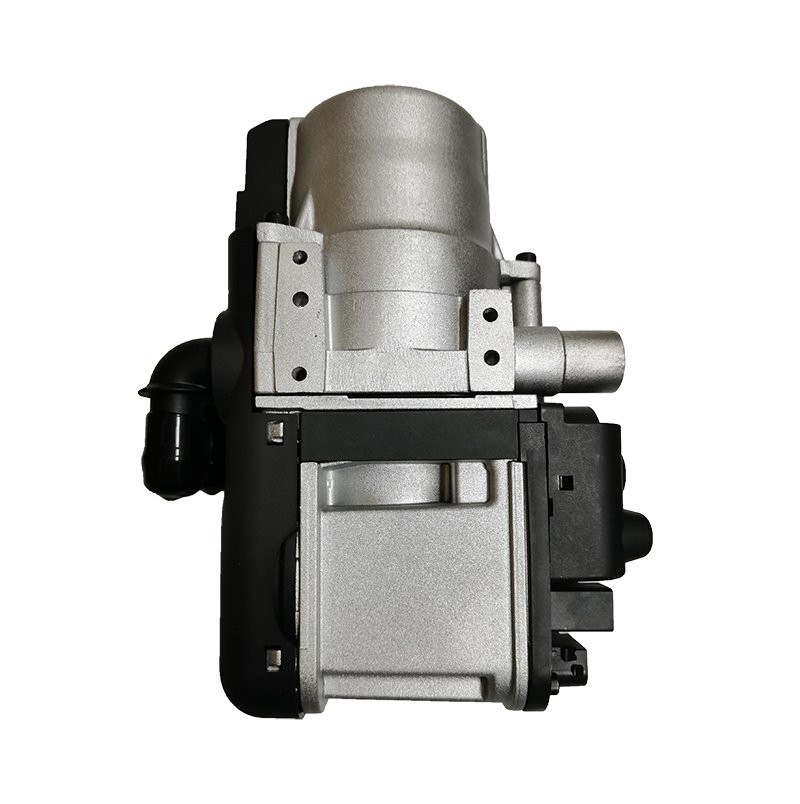

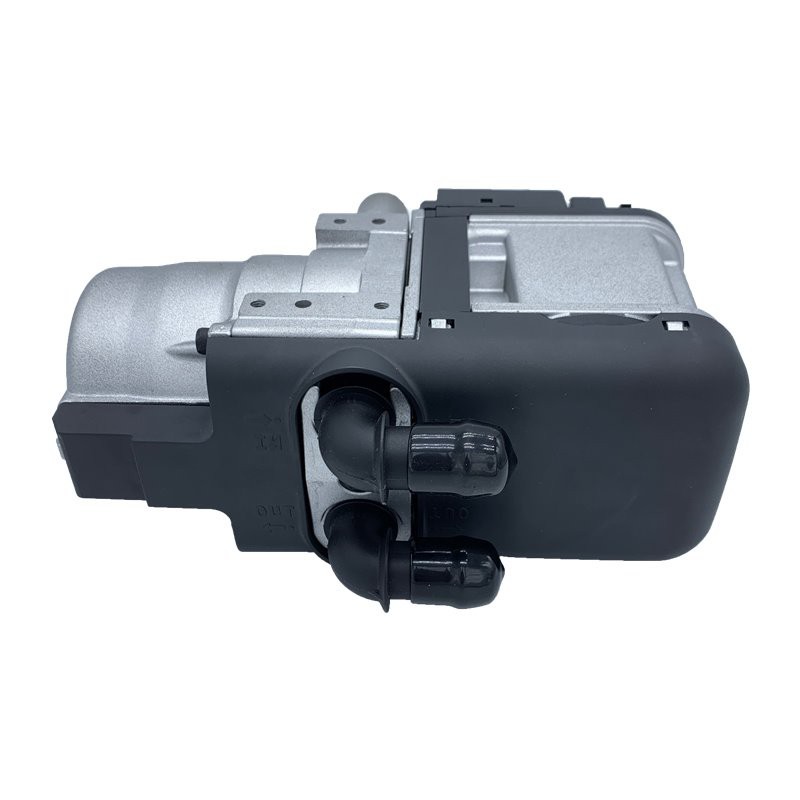

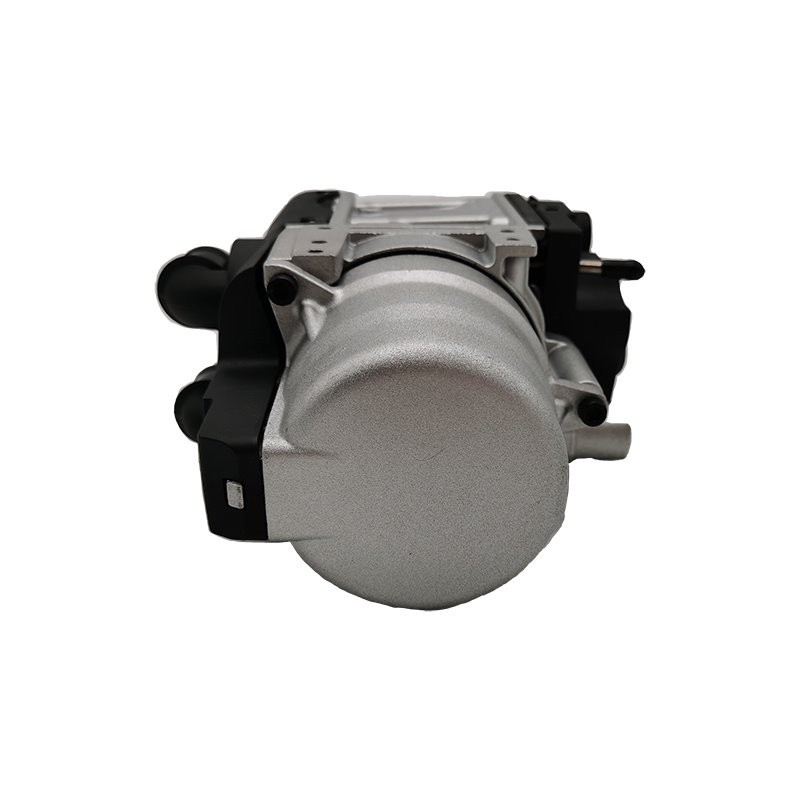

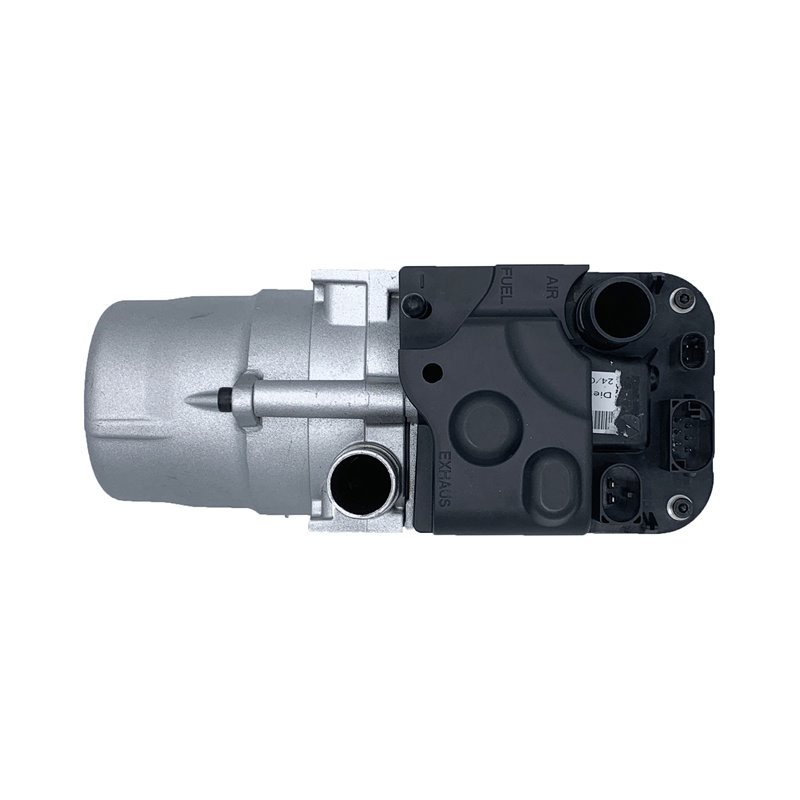

12v diesel water heater

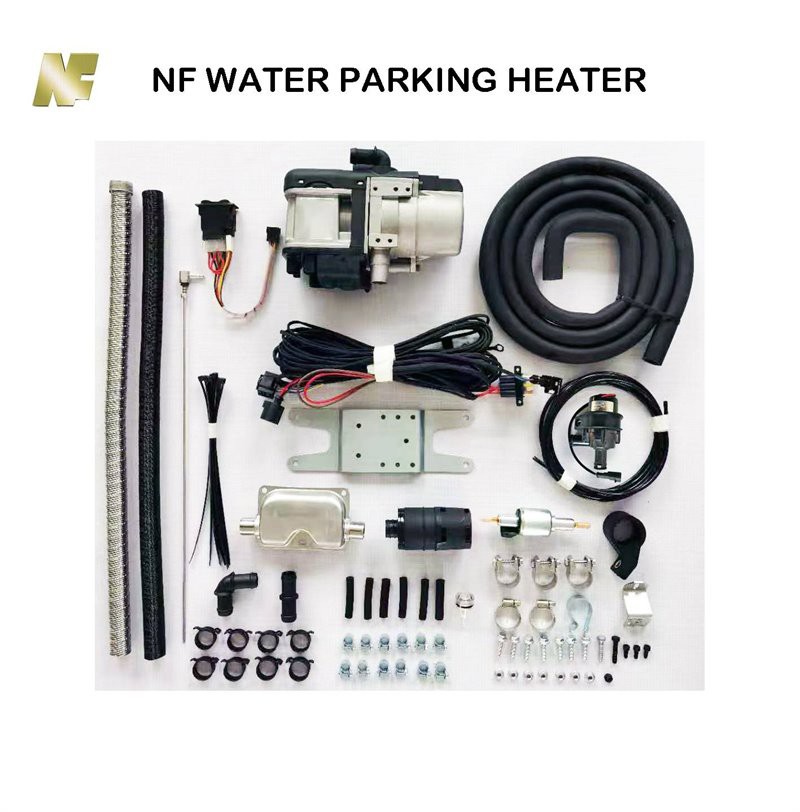

Product Details
The Controller

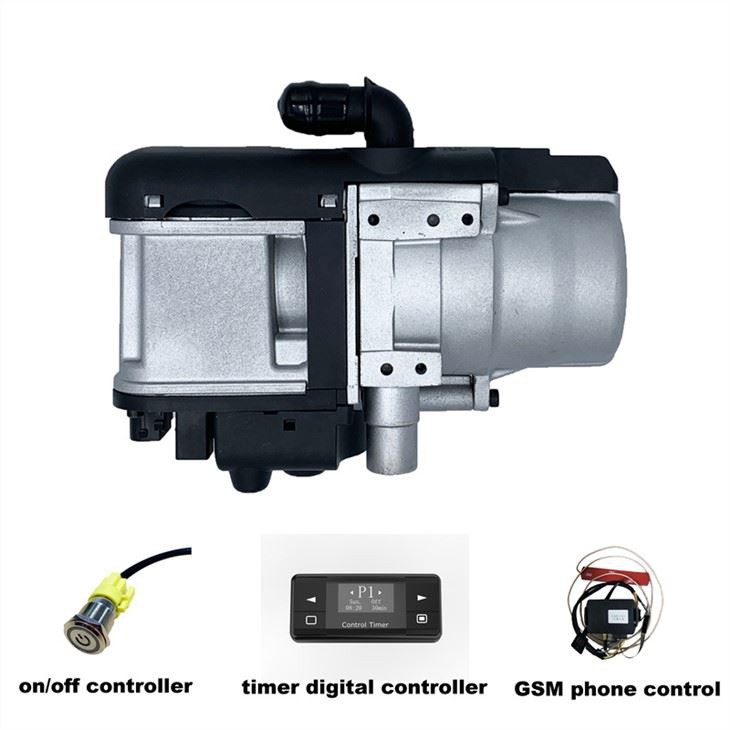

There are three controller you can choose as show below:

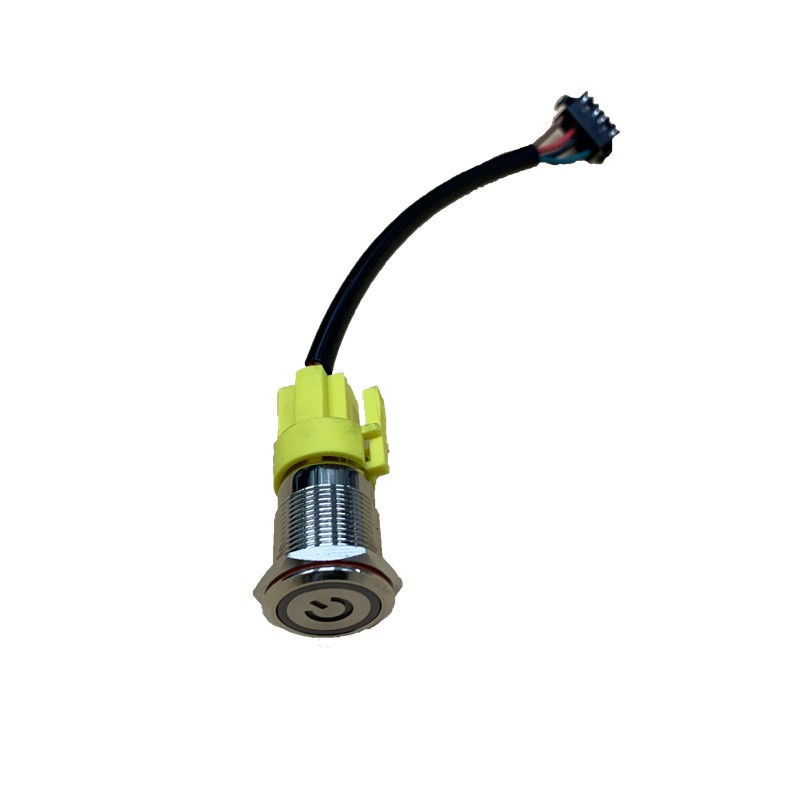

 ON-OFF Controller Red and blue two colors, blue when powered on, red when turned on. Clean surface with uniform gloss The input terminal and the shell are connected to 0, and the shell and the NO switch terminal are greater than 1000V/10s. |
The timer is used to turn on and off the heater equipment installed in the car, as well as to select the operating mode, set the operating time and pre-select the starting time. The operation structure of the timer is simple. All functions can be set with 4 keys and can be changed when needed. If the car is powered off (the battery is disconnected) and then the power supply is restored, the time and day of the week must be reset. |

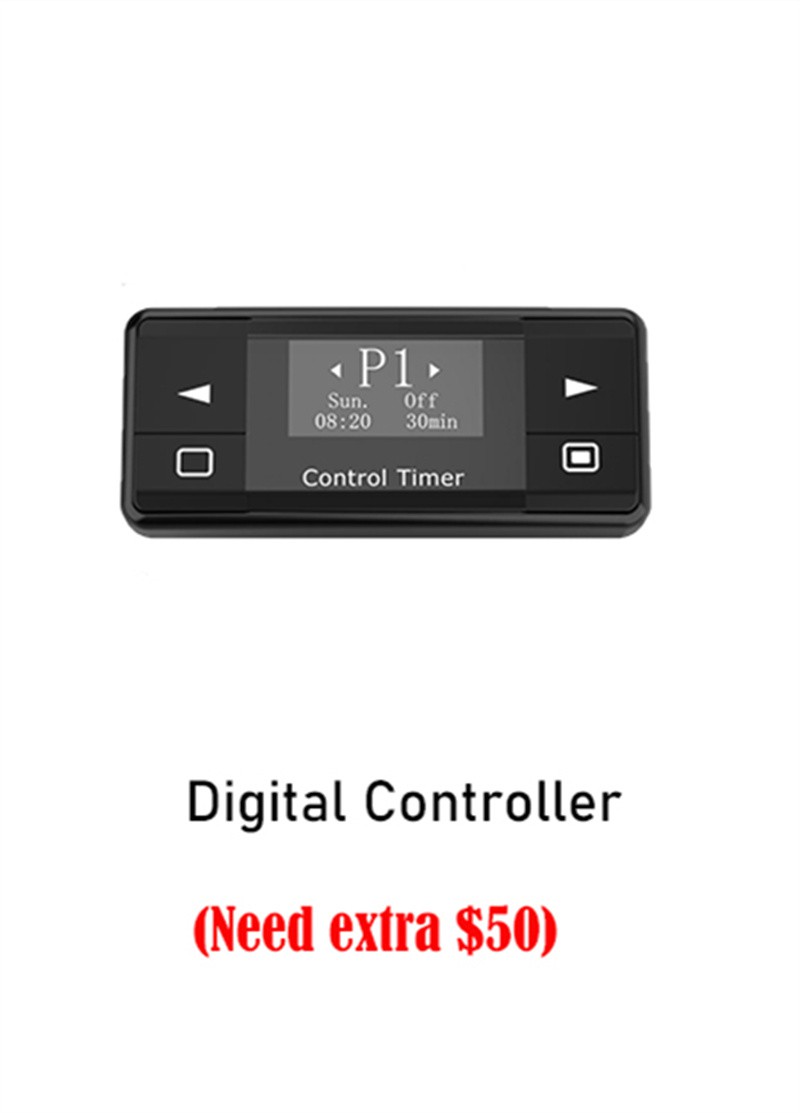

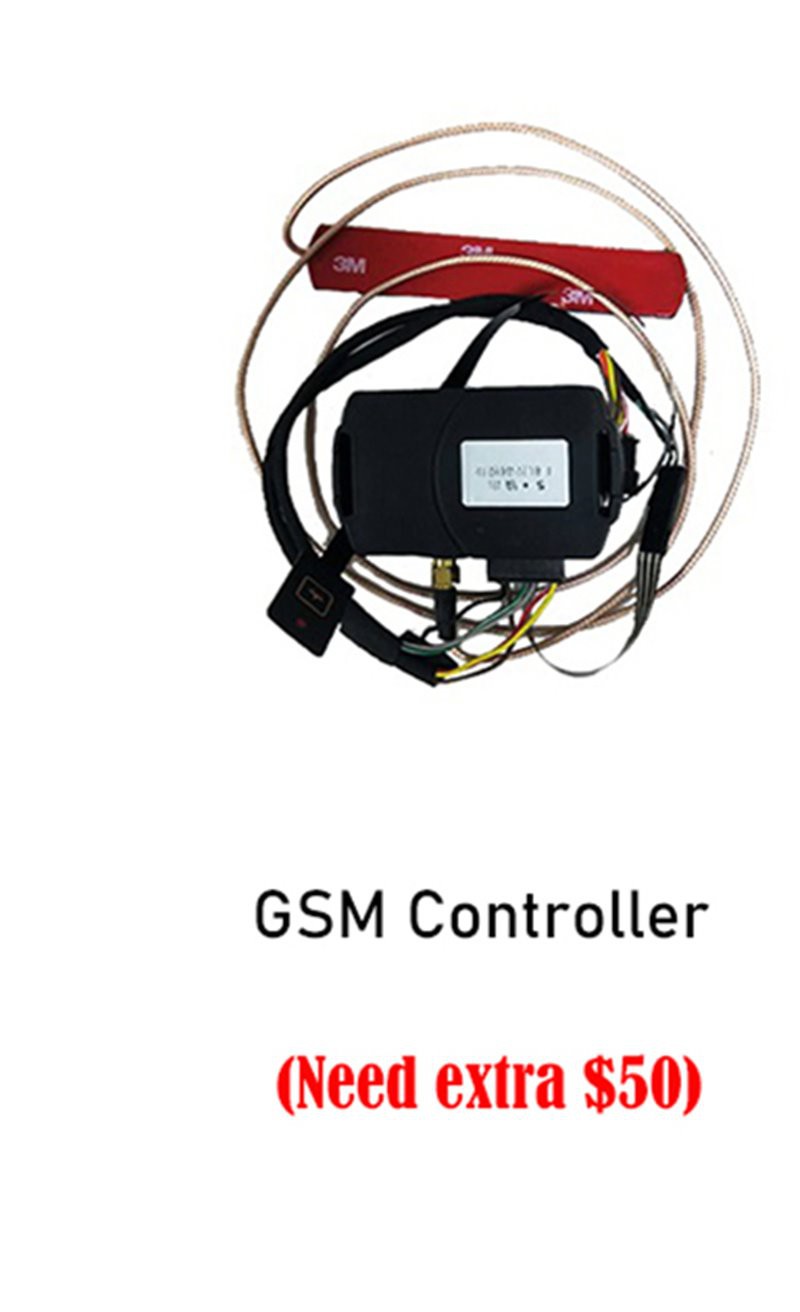

Digital Controller  GSM Controller In order to use the phone to start, you need a SIM card "(This mobile phone module does not support telecommunications SIM card)" The SIM card does not belong to the scope of GSM mobile phone module products. Please consult the network operator to which the SIM card belongs for the tariff information for calling or SMS. |
Product Parameter
Heater | Run | Hydronic Evo V5 - B | Hydronic Evo V5 - D |
| Stucture type | Water parking heater with evaporative burner | ||
| Heat flow | Full load Half load | Full load Half load | 5.0 kW 2.5 kW |
| Fuel | Gasoline | Diesel | |
| Fuel consumption +/- 10% | Full load Half load | 0.71l/h 0.40l/h | 0.65l/h 0.32l/h |
| Rated voltage | 12V | ||
| Operating voltage range | 10.5 ~ 16.5 V | ||
| Rated power consumption without circulating pump +/- 10% (without car fan) | 33w 15w | 33w 12w | |
| Allowable ambient temperature: Heater: -Run -Storage Oil pump: -Run -Storage | -40 ~ +60 °C -40 ~ +120 °C -40 ~ +20 °C -40 ~ +10 °C -40 ~ +90 °C | -40 ~ +80 °C -40 ~+120 °C -40 ~+30 °C -40 ~ +90 °C | |
| Allowed work overpressure | 2.5bar | ||
| Filling capacity of heat exchanger | 0.07l | ||
| Minimum volume flow of heater | 200l/h | ||
| The dimensions of the heater without additional parts are also shown in Figure 2. (Tolerance 3 mm) | L = Length: 218 mm B = width: 91 mm H = high: 147 mm without water pipe connection | ||
| Weight | 2.2kg | ||

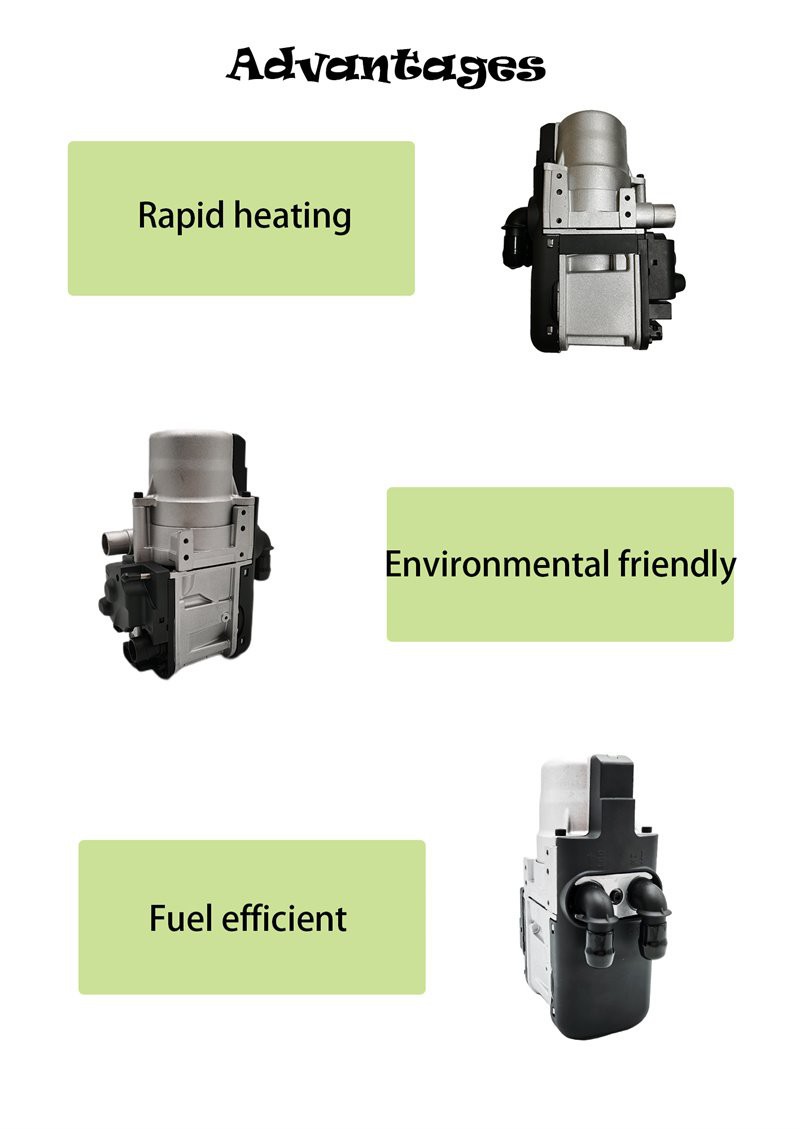

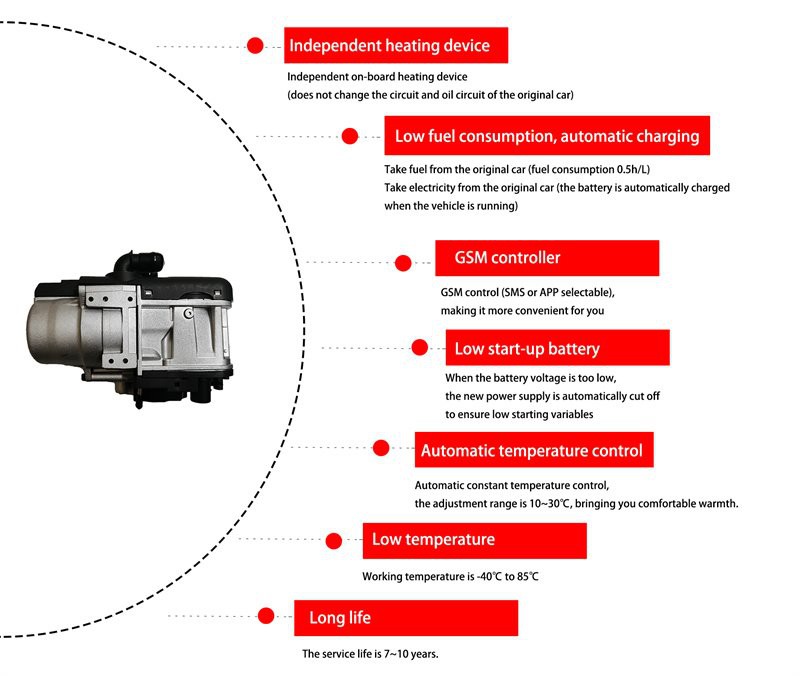

Advantages

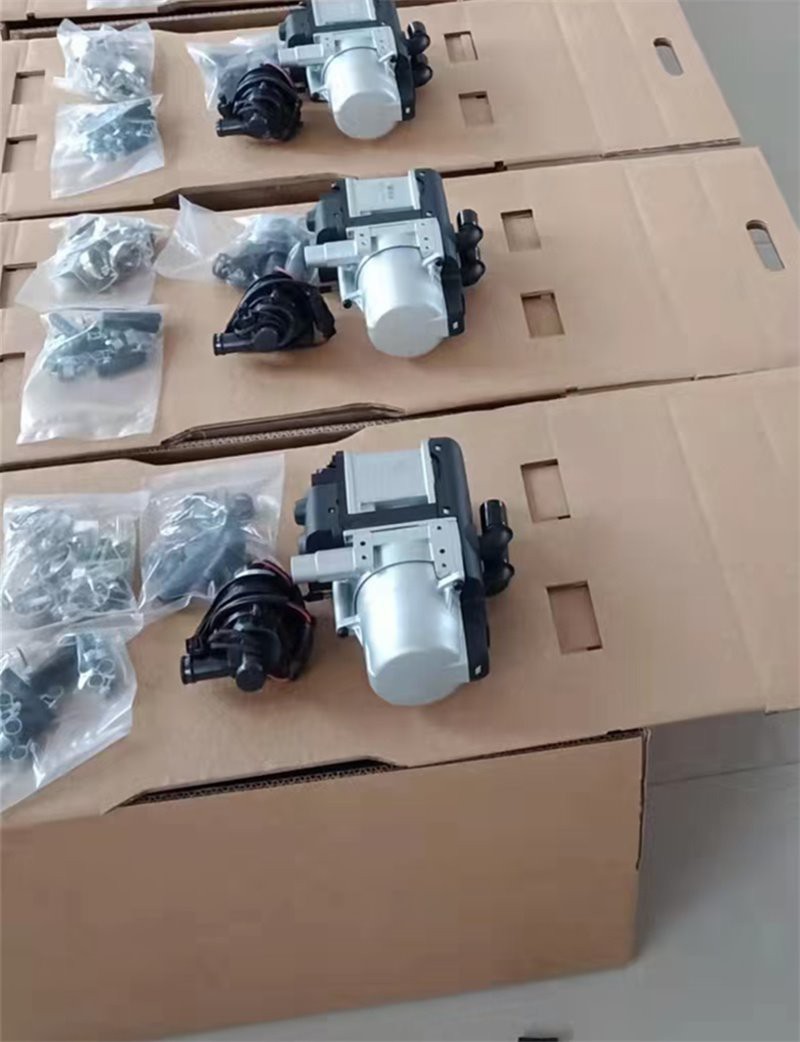

Packing and Shipping
Product Application
The application range of liquid parking heaters
After the liquid parking heater is connected to the heating system of the car, it can be used for:
- Preheat engine coolant in Winter for Car/Boat/Caravan
- Provide hot water for bathing and domestic hot water in Caravan
- work together with radiator to heat the car compartment
- Defrost the front windshield
The liquid parking heater is not affected by the vehicle engine when it works, and is connected to the vehicle's cooling system, fuel system and electrical system.
