5KW Diesel Liquid Parking Heater video

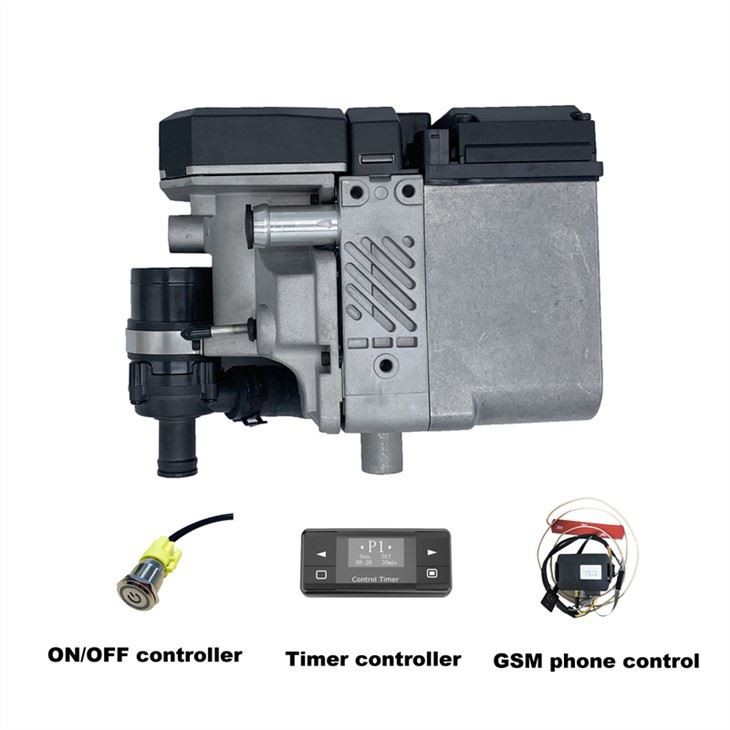

5KW Diesel Liquid Parking Heater

In China we provide it to Chinese army vehicle, it can represent the highest level of quality in Chinese water parking heaters.

Description

5KW Diesel Liquid Parking Heater


Product Description

parking heater - .jpg
kits of heater.jpg


The liquid parking heater is not affected by the vehicle engine when it works, and is connected to the vehicle's cooling system, fuel system and electrical system.


Product Advantages

1. It has all mounting kits, such as fuel pump, water pipe, fuel line, hose clamp and so on.

2. Lower fuel consumption and instant heating.

3. Compact structure and easy installation.

4. Low noise operation to ensure comfortable driving.

5. Continuous functional monitoring to reduce diagnosing time.

6. Application Scope: Various vehicles with diesel as the fuel. The liquid parking heater is not affected by the vehicle engine when it works, and is connected to the vehicle's cooling system, fuel system and electrical system.

Products Specifications


Item Namewater parking heaterVoltageDC12V/24V
Heat output (W)5000Heat output (W)Coolant
Fuel DieselWorking voltage10.5~15v
Weight2.3KG±0.5Allowable operating pressure 0.4~2.5 bar
Size(mm)230*100*110 Capacity of heat exchanger0.15L
CertificationCEMinimum amount of cooling water in the waterway  4.00L
Special vehiclesThe water-cycling system of mid-size cars, SUV, trailer,wagons, vans,etc

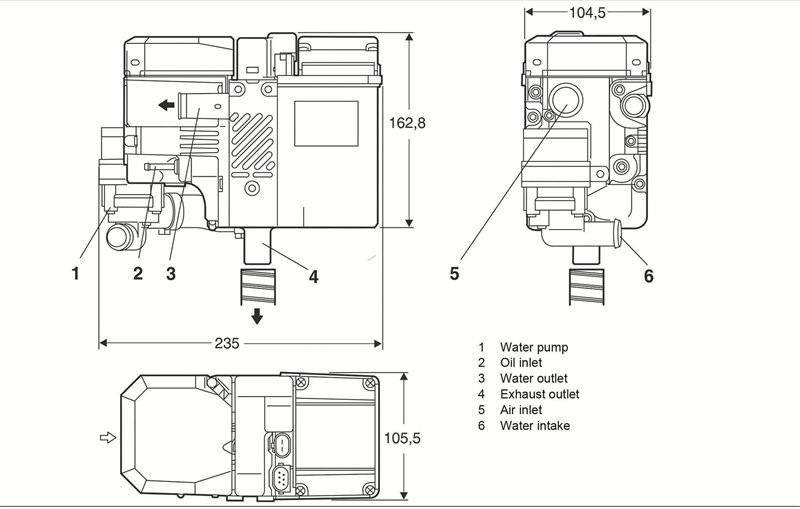

demension of water heater

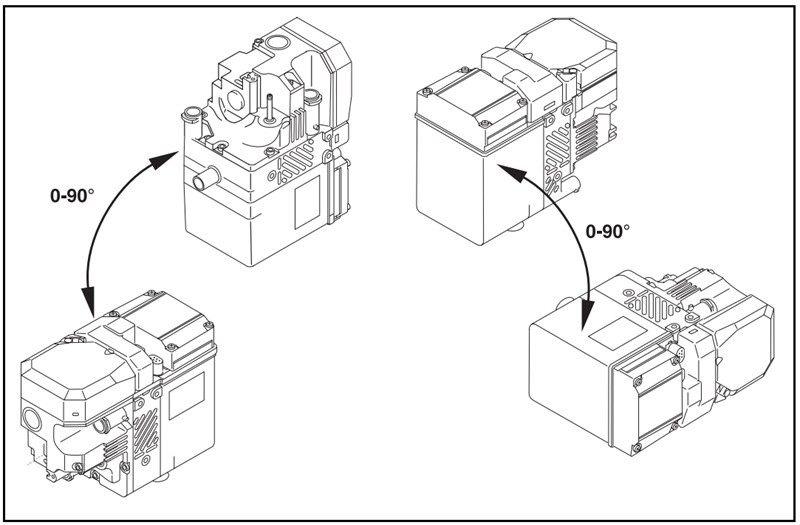

installation of heater

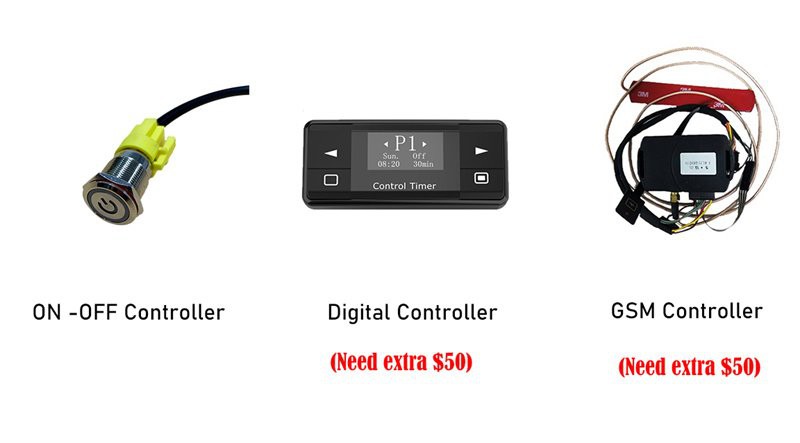

Controllers

We have 3 kinds of controllers: on/off controller, digital timer controller and GSM phone control.

Three controllers of heater

ON-OFF Controller

This switch is more convenient and portable, and the operation is simpler Red and blue two colors, blue when powered on, red when turned on.

Digital Controller

In the On state, press any key to wake up the screen, press the Left and Right key at the same time for 3 seconds to enter the function query interface, from top to bottom. Data arrangement: fan speed, voltage,oil pump frequency, water temperature, press the Return key to return to the main menu interface.

GSM Controller

The GSM mobile phone controller can not only start and set the water parking heater by sending text messages, but also set it by using Webasto TC3 APP. You can set the heater through your mobile phone anytime and anywhere, making your life more convenient!

Application

application of water parking heater

Packing & Delivery

packing and delivery.png

FAQ

Q1. How long is each item’s warranty period?

A:Warranty is 1 year. We solve the warranty by sending out the free repair parts with the order.

Q2. What is your terms of packing?

A:One set in one carton. If the equipment you buy less than 20 sets, we will pack your goods in cartons. If you buy more than 20 sets, we will pack your goods in wooden boxes.

Q3. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q4. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?

 A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?

 A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
