5KW 12V Diesel Water Parking Heater
Hebei Nanfeng Group is the largest production plant of heating and refrigeration equipment in China and the designated supplier of military vehicles in China. And it's been more than thirty years since we produced heaters.5KW 12V Diesel Water Parking Heater has three control modes, including mobile phone control, low fuel consumption, long service life and other advantages.
Description
5KW 12V Diesel Water Parking Heater
1、Product Introduction
The structure of the water parking heater is designed for installation on M1 class models.
It is not allowed to install on N2 N3 class vehicles and dangerous goods transport vehicles. The corresponding regulations must be observed when installing on special vehicles.Approved bythe company, it can be applied to other vehicles.
After the water parking heater is connected to the heating system of the car. it can be used for:
-Heating in the car;
-Defrost the car window glass
-Preheated water-cooled engine(when technically possible)
This kind of water heating heater does not depend on thevehicle engine when working, and is integrated in the vehicle's cooling system fuel system and electrical system.
Specifications:
Hydronic Evo V5-D
A water parking heater using "diesel" fuel.
Hydronic Evo V5-B
A water parking heater using"gasoline"fuel.
The water parking heater uses 12 volts.For technical parameterssee,"Technical Parameters".
The 5KW heater version shall not be installed on the island-shaped coolant circulation circuit.
The Controller:
There are three controller you can choose as show below:
2、Product Parameter
Heater | Run | Hydronic Evo V5 - B | Hydronic Evo V5 - D |
| Stucture type | Water parking heater with evaporative burner | ||
| Heat flow | Full load Half load | Full load Half load | 5.0 kW 2.5 kW |
| Fuel | Gasoline | Diesel | |
| Fuel consumption +/- 10% | Full load Half load | 0.71l/h 0.40l/h | 0.65l/h 0.32l/h |
| Rated voltage | 12V | ||
| Operating voltage range | 10.5 ~ 16.5 V | ||
| Rated power consumption without circulating pump +/- 10% (without car fan) | 33w 15w | 33w 12w | |
| Allowable ambient temperature: Heater: -Run -Storage Oil pump: -Run -Storage | -40 ~ +60 °C -40 ~ +120 °C -40 ~ +20 °C -40 ~ +10 °C -40 ~ +90 °C | -40 ~ +80 °C -40 ~+120 °C -40 ~+30 °C -40 ~ +90 °C | |
| Allowed work overpressure | 2.5bar | ||
| Filling capacity of heat exchanger | 0.07l | ||
| Minimum volume flow of heater | 200l/h | ||
| The dimensions of the heater without additional parts are also shown in Figure 2. (Tolerance 3 mm) | L = Length: 218 mm B = width: 91 mm H = high: 147 mm without water pipe connection | ||
| Weight | 2.2kg | ||
3、Advantages
(1)Start the vehicle faster and safer in winter.
(2)TT- Evo can help the vehicle start quickly and safely, quickly melt the frost on the windows, and quickly heat the cab. In the cargo compartment of a small transport truck, the heater can quickly create the most suitable temperature for low-temperature sensitive cargo, even in low-temperature weather.
(3)The compact design of the TT- Evo heater allows it to be installed in vehicles with limited space. The lightweight structure of the heater helps keep the weight of the vehicle at a low level, while also helping to reduce pollutant emissions.
4、Product Details

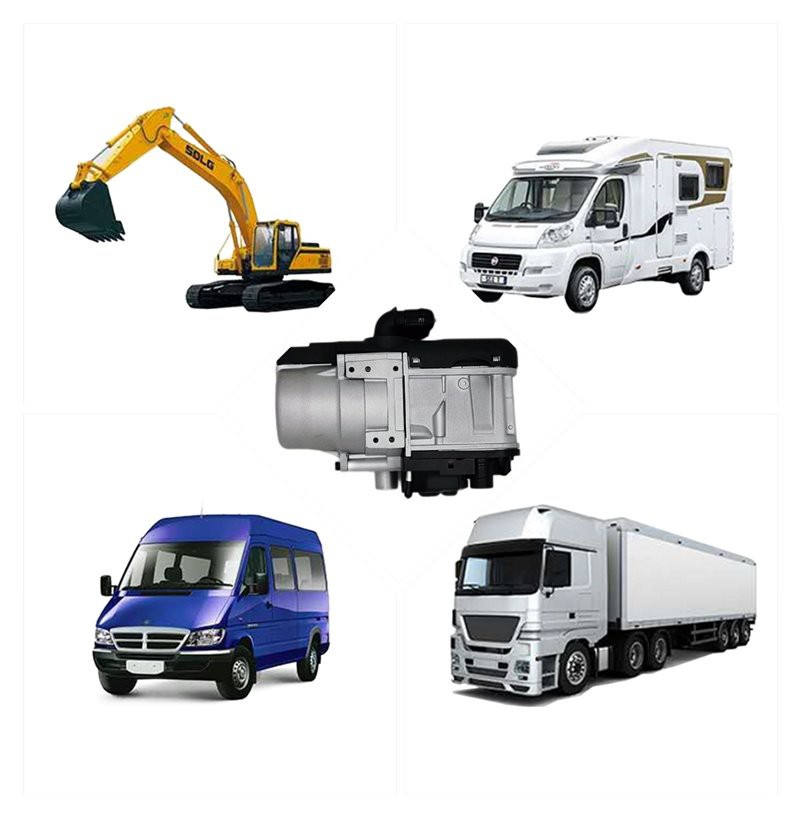

5、Product Application
The structure of the water parking heater is designed for installation on M1 class models.
It is not allowed to install on N2 N3 class vehicles and dangerous goods transport vehicles. The corresponding regulations must be observed when installing on special vehicles.Approved bythe company, it can be applied to other vehicles.
After the water parking heater is connected to the heating system of the car. it can be used for:
-Heating in the car;
-Defrost the car window glass
-Preheated water-cooled engine(when technically possible)
This kind of water heating heater does not depend on thevehicle engine when working, and is integrated in the vehicle's cooling system fuel system and electrical system.
6、FAQ
(1)Q:Are you trading company or manufacturer?
A:We are professional manufacturer specialized in parking heaters、high voltage coolant heater、electric bus parts、RV air conditioners and ao on products. And we trade our products with our clients directly.
(2)Q: What’s your tem of the delivery?
A: Our ordinary delivery term is FOB Beijing. We also accept EXW, CFR, CIF, DDP, DDU etc. We’ll offer you the shipping charges and you can choose the one which is the most convenient and effective for you.
(3)Q:How can I get a sample to check your quality?
A:After price confirmation, you can require for samples to check our quality. If you need the samples, we would like to send samples.
(4)Q:What is your advantage compared with your competitors?
A:a. Qualified Manufacturer
b.Reliable Quality Control
c. Competitive Price
d. High Efficiency working (24*7hours)
e. One-Stop Service
(5)Q:Can l visit your factory?
A:By all means, we warmly welcome your arrival, Before you take off from your country, please let us know. We will show you the way and arrange time to pick you up if possible.
