Gas Air Heater

Gas Air Heater



Item	FJH-4/2R	FJH-4/2YT
Heat power	4000W
Used fuel	LPG (Liquefied Petroleum Gas)	LNG (Liquefied Natural Gas)
Rated voltage	24V
Gas pressure	30mbar
Rated power consumption (W)	5～30
Working (ambient) temperature	-40℃～+80℃
Working altitude	≤5000m
Main unit weight (kg)	5.9
Dimensions (mm)	425×148×162
Mobile phone remote control function (optional)	IoT coverage is not limited by distance or obstacles

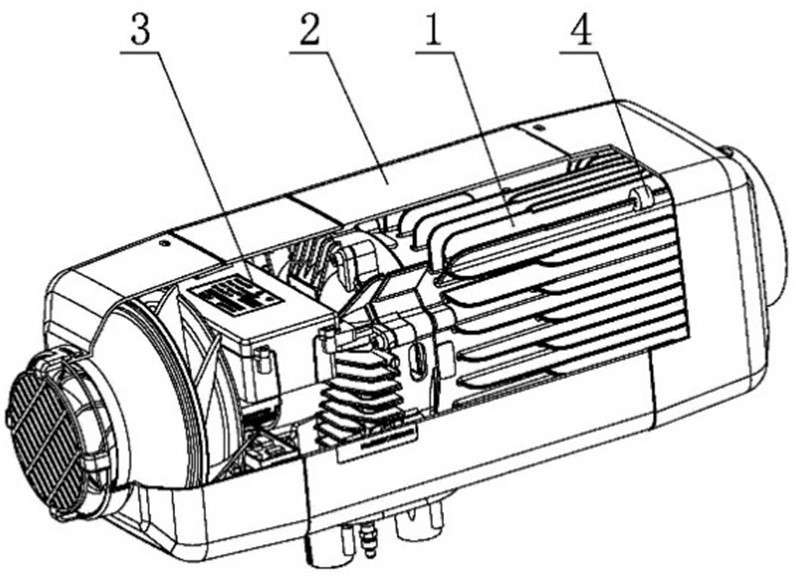

1-machine body
2-hood-shaped shell
3-controller
4-insulation pad

Body

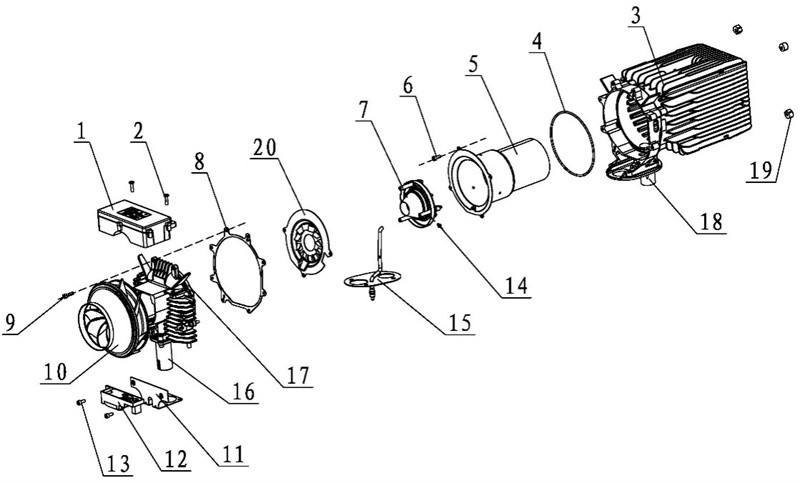

The furnace body (heat exchanger 3) is made of die-cast aluminum, and its surroundings and rear end are heat sinks. A combustion tube 5 is installed in the cavity, and the gas is sent to the igniter 7 from the gas pipe 15, ignited by the ignition electrode, and the flame passes through the combustion tube and enters the gap between the inner wall of the furnace body. The exhaust gas after combustion is discharged through the exhaust pipe port 18. Fresh air for combustion enters from the combustion air inlet 16 and is sent into the combustion tube by the combustion fan wheel 17 on the fan motor.

1-controller; 2-screw; 3-heat exchanger;4-O-ring; 5-combustion tube; 6-screw;7-igniter; 8-heat exchanger gasket;9-screw; 10-fan motor assembly (including heating fan wheel, fan motor bracket, and combustion fan wheel);11-high-pressure package bracket; 12-high-pressure package; 13-screw;14-screw; 15-gas pipe; 16-combustion air inlet;17-combustion fan wheel; 18-exhaust pipe outlet;19-insulation pad; 20-wind plate;
