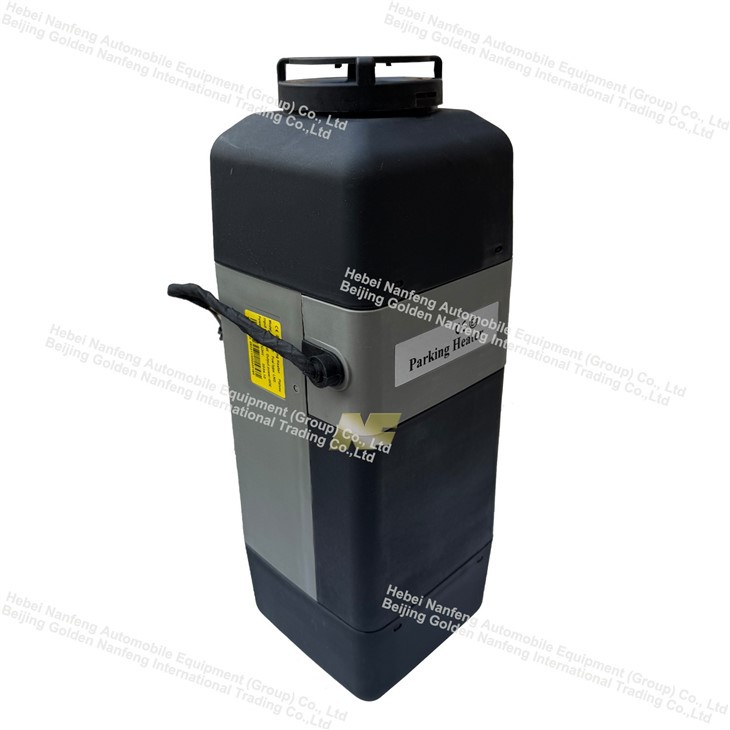

LPG Air Parking Heater
We are a heating and cooling factory in China with more than 30 years of experience.In China we provide it to Chinese army vehicle, it can represent the highest level of quality in Chinese water parking heaters.
Description

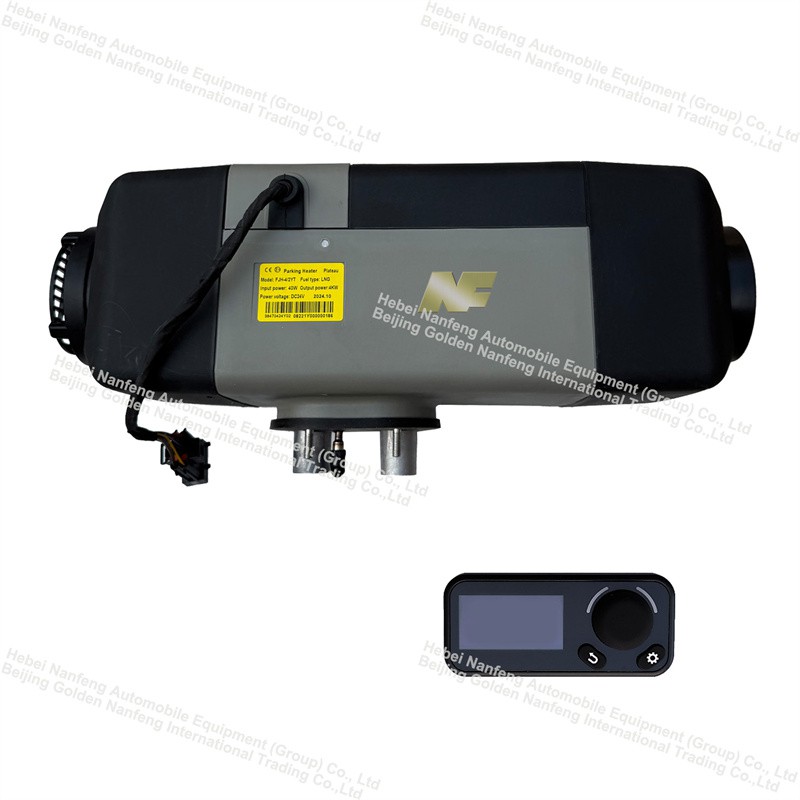

LPG Air Parking Heater
Products Description
Our Products
1. Heaters are not allowed to be used in flammable and explosive places with flammable gases and combustible dust.
2. Heaters are not allowed to be used in closed spaces (such as garages, repair shops without ventilation equipment, etc.) to prevent the risk of poisoning caused by exhaust gas produced by combustion.
3. For vehicles with special purposes (such as transporting dangerous goods), relevant specific rules must be followed when installing heaters.
4. Fuel tanks, compressed tanks, fire extinguishers, clothing, paper, etc. should be avoided near the heater or facing the hot air outlet.
Structure and working principle
| Item | FJH-4/2R | FJH-4/2YT |
| Heat power | 4000W | |
| Used fuel | LPG (Liquefied Petroleum Gas) | LNG (Liquefied Natural Gas) |
| Rated voltage | 24V | |
| Gas pressure |
30mbar |
|
| Rated power consumption (W) |
5～30 |
|
| Working (ambient) temperature |
-40℃～+80℃ |
|
| Working altitude |
≤5000m |
|
| Main unit weight (kg) |
5.9 |
|
| Dimensions (mm) |
425×148×162 |
|
| Mobile phone remote control function (optional) | IoT coverage is not limited by distance or obstacles | |
1-machine body
2-hood-shaped shell
3-controller
4-insulation pad
1-controller; 2-screw; 3-heat exchanger;4-O-ring; 5-combustion tube; 6-screw;7-igniter; 8-heat exchanger gasket;9-screw; 10-fan motor assembly (including heating fan wheel, fan motor bracket, and combustion fan wheel);11-high-pressure package bracket; 12-high-pressure package; 13-screw;14-screw; 15-gas pipe; 16-combustion air inlet;17-combustion fan wheel; 18-exhaust pipe outlet;19-insulation pad; 20-wind plate;
Products Precautions
Precautions
●First installation
– Before using the heater, a test run must be carried out. During the test run, carefully check all connections for leaks and safety. If there is heavy smoke emission, abnormal combustion noise or gas smell, the heater should be turned off and the fuse should be unplugged to prevent it from running. It can only be used after inspection by a professional.
– When the heater is used for the first time, an odor may be emitted for a short time. This is normal in the first few minutes of operation and does not mean that the heater is malfunctioning.
●Quarterly maintenance
– Before each heating season, a professional must conduct an inspection and perform the following maintenance work:
Check the air inlet and outlet for contamination and foreign matter.
Clean the outside of the heater.
Check the circuit joints for rust and looseness.
Check the air inlet and outlet pipes for obstruction or damage.
Check the gas pipeline for leaks.

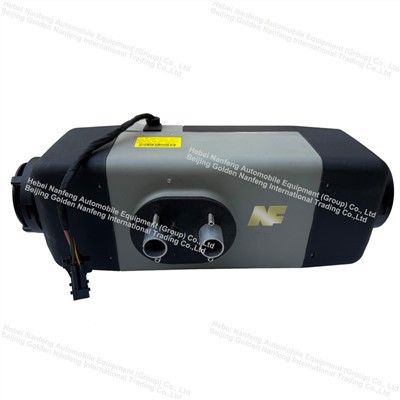

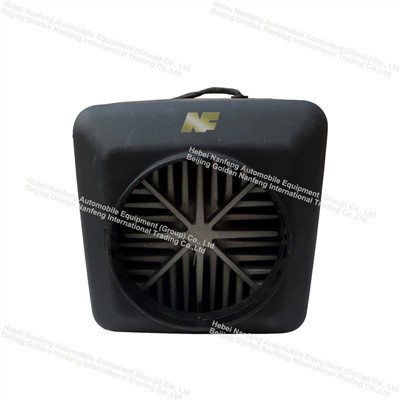

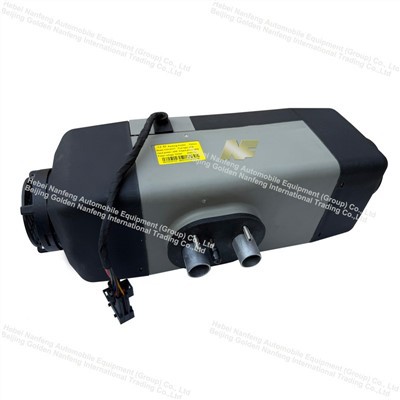

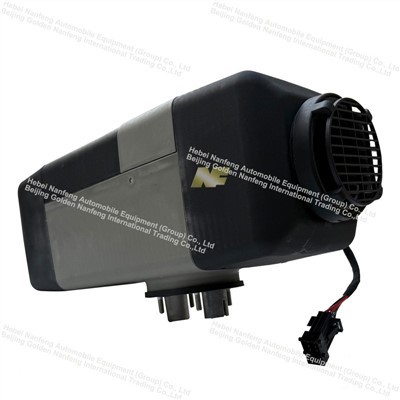

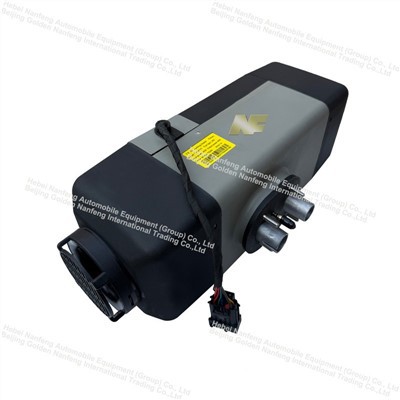

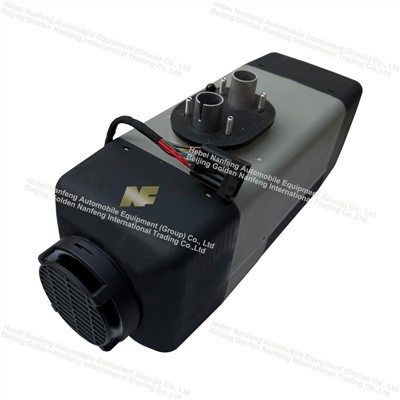

Products Detail
transportation and Application
FAQ
FAQ
Q: 1. What is a gas air heater, and how does it work?
A: A gas air heater is a heating device that uses liquefied petroleum gas (LPG) or natural gas as fuel. It works by:
Burning gas to generate heat.
Using a fan to blow heated air into the cabin or other areas.
Operating independently of the vehicle engine, making it fuel-efficient.
Q: 2. What are the advantages of a gas air heater over diesel and gasoline heaters?
A:
Clean combustion: Gas heaters produce fewer emissions compared to diesel heaters.
Lower fuel cost: LPG is often cheaper than diesel or gasoline.
Quieter operation: Gas heaters are generally quieter than diesel models.
Less maintenance: No risk of fuel clogging or carbon buildup.
Multi-purpose use: Can be used for both vehicle heating and cooking in RVs.
Q: 3. What fuel types do gas air heaters use?
A:
LPG (Liquefied Petroleum Gas): Propane, butane, or a mixture.
Natural Gas: Usually available in piped form (mainly for stationary use).
Most vehicle-mounted gas heaters use LPG, as it's easy to store in tanks.
