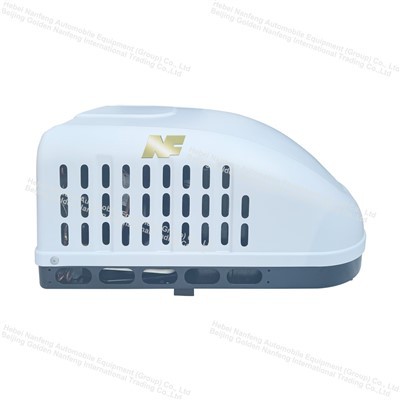

15000BTU Air Conditioning For RV

15000BTU Air Conditioning for RV







product parameters Products Item NFEAC002.07 R410a refrigerant loading 0.43KG Voltage 115V/220V Product Size (L*W*H) 750*700*360mm Rated Cooling Capacity 15000BTU Refrigerant R410A Cooling power input 1668W Rated current 20A Air flow 550m³/h MOQ 1pc Color White  Sound pressure 65dB Brand  NF  Quality Good









INSTALLATION INSTRUCTIONS This product is designed for installation on the roof of an RV. When determining your cooling requirements, the following points should also be considered: ● RV size; ● window area (increase heat gain); ● Insulation of walls and roofs; ● the geographic location of the RV; ● Personal comfort requirements. Installation location preparation:   A. NORMAL POSITION - This product is designed to be installed over existing roof vents.   B. Other Locations - When roof vents are not available or need to be installed in other locations, the following are recommended: ● When only one set is installed, it is recommended to install it in the center and front position ● When two sets need to be installed, it is recommended to install the first set at the center and front third of the RV roof, and the second set on the center and front two-thirds of the RV roof.   C. It is best to park the product in a relatively flat place for installation, and the installed roof part should also be relatively flat, and the maximum inclination angle should not exceed 8°.   D. Please ensure the stability of the structure to prevent damage to the air conditioner and car When the RV is in motion, the roof must be designed to support the weight of 59 KGS. Usually 90 KGS static load design can meet this requirement.   E. Check the interior of the RV for air distribution box ("ADB") obstructions (ie, door openings, room dividers, curtains, ceiling fixtures, etc.).     Products Application



European scenario applications

Family camping: Night silent mode (<45 dB) ensures sleep, suitable for parent-child camping scenarios.



Electric RV: Low-power models (such as Dometic B2200) are matched with lithium battery systems, and the battery life is increased by 30%.



Winter travel: Heat pump models (-10℃ effective heating) replace gas heating to avoid the ban on open flames in German camping sites.











Core advantages

Efficient use of space: the integrated design is embedded in the roof, does not occupy the space inside the car, and retains the integrity of the living area.



Low wind resistance and compliance: the concealed installation avoids the protrusion of the external machine and complies with the EU vehicle height restriction regulations (such as ECE R66).



Flexible energy adaptation:



Supports 12V/24V vehicle battery power supply, compatible with solar energy system (such as 200W photovoltaic panels can extend the battery life by 50%.



Some models (such as Truma Aventa) support a hybrid power supply (mains + battery), solving the pain point of insufficient power in camping sites.



All-weather adaptability: frequency conversion technology ensures stable operation of -15℃ heating/45℃ cooling, suitable for climates from Northern Europe to Southern Europe.
