NF Overhead Air Conditioner

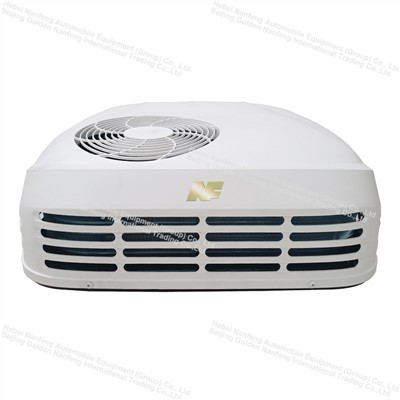

Rooftop mounted Motorhome air conditioner 1.The style design is low-profile & modish design, fashionable and dynamic. 2.NFRTN2 220v roof top trailer air conditioner is Ultra-thin, and it is only 252mm in height after installation, reducing vehicle height. 3. The shell is injection-molded with exquisite workmanship 4. Using dual motors and horizontal compressors, NFRTN2 220v roof top trailer air conditioner provides high air flow with low noise inside. 5. Low power consumption
Description
Products Description
RV rooftop air conditioner is a vehicle air conditioning system designed specifically for RVs. Its core components (compressor, condenser, evaporator, etc.) are integrated and installed on the roof. Optimizing the space layout and improving energy efficiency provide a comfortable in-vehicle environment for RV travelers. As an important supporting facility for RV life, it is significantly different from traditional household air conditioners in terms of design concept, function realization, and user experience.
Structure and working principle
The roof-mounted air conditioner of the RV adopts an integrated compact design. The main unit is highly integrated in the roof cabin and connected to the air duct in the car through the roof opening. Its working principle follows the compression refrigeration cycle: the compressor drives the refrigerant to circulate, and after the condenser dissipates heat and liquefies, it is throttled and reduced in pressure through the expansion valve, and the heat in the car is absorbed in the evaporator to achieve cooling. The cold air is evenly delivered to the car through the roof air duct, and some high-end models also support a heating function. The control system is usually integrated into the car panel or supports remote control by mobile phone APP to achieve multi-speed wind speed and temperature adjustment.
Products Parameter
| Model |
NFRTN2-100HP |
NFRTN2-135HP |
|
Rated Cooling Capacity |
9000BTU | 12000BTU |
|
Rated Heat Pump Capacity |
9500BTU | 12500BTU(but 115V/60Hz version has no HP) |
|
Power consumption(cooling/heating) |
1000W/800W |
1340W/1110W |
|
electric current(cooling/heating) |
4.6A/3.7A |
6.3A/5.3A |
|
Compressor stall current |
22.5A |
28A |
|
Power Supply |
220-240V/50Hz, 220V/60Hz |
220-240V/50Hz, 220V/60Hz, 115V/60Hz |
|
Upper Unit Sizes (L*W*H) |
1054*736*253 mm |
1054*736*253 mm |
|
Indoor panel net size |
540*490*65mm |
540*490*65mm |
|
Net weight of roof host |
41KG | 45KG |
Dimensions of RV rooftop air conditioner:
This air conditioner is equipped with a remote control, which is easy to operate. The structure of the remote control can be seen in the figure below:
Products Details
Products Core advantages and features
1. Maximize space utilization
The top design completely releases the space inside the car, avoiding occupying valuable storage areas or activity areas, and is especially suitable for compact models such as B-type RVs. Roof installation can also reduce the length of the refrigeration pipeline and improve the energy efficiency ratio.
2. High-efficiency environmental adaptability
The weather-resistant materials and IP54 and above protection levels can resist ultraviolet rays, rain, and dust erosion. Special anti-vibration brackets ensure stable operation during vehicle driving, and some products can work in extreme temperatures of -20℃ to 50℃.
3. Low power consumption and energy compatibility
The minimum power consumption of the DC inverter model can be controlled within 300W, supporting the RV 12V/24V battery system, and can be used off-grid with a solar power supply. Some models are equipped with an energy-saving mode, and the operating noise at night is less than 50 decibels.
4. Modular maintenance design
The overall detachable structure is convenient for fault repair, and the filter cleaning does not require the disassembly of the roof components.
Products Application
Products Certification
The RV air conditioner has passed CE certification, and the certificate can be found in the figure below:
Our Company
FAQ
1. Q: Why won't my RV rooftop air conditioner turn on?
A: Common causes include:
(1)No power supply (check the RV's battery or shore power connection).
(2)Faulty thermostat settings (ensure it's set to "Cool" and the temperature is below ambient).
(3)Tripped circuit breaker (reset it at the electrical panel).
(4)Internal motor or capacitor failure (professional repair may be needed).
2. Q: Why is my AC blowing warm air?
A: (1) Dirty or clogged air filtersare blocking airflow.
(2)Low refrigerant levels (indicates a leak; contact a technician).
(3)Condenser coils are dirty or obstructed (clean them).
(4)Compressor malfunction (requires professional diagnosis).
3. Q: Why is my rooftop AC excessively noisy?
A: (1) Loose mounting bolts or vibrations (tighten hardware).
(2)Debris in the fan blades (clean the unit).
(3)Worn-out bearings or failing motor (schedule maintenance).
4. Q: Why is water leaking from my AC into the RV?
A: (1) Clogged condensate drain line (clear blockages).
(2)Improper installation tilt (ensure the unit is level).
(3)Cracked drain pan (replace the pan if damaged).
5 .Q: How do I eliminate bad odors from my AC?
A: (1) Cleaning or replacing air filters monthly.
(2) Use a UV air purifier or an HVAC-safe disinfectant spray.
(3) Run the fan to dry the unit after shutdown.
