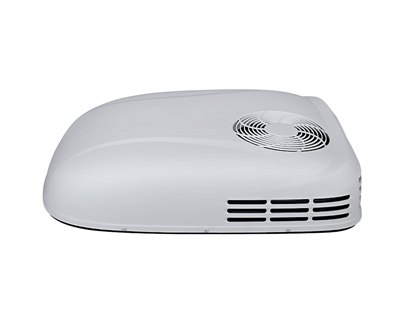

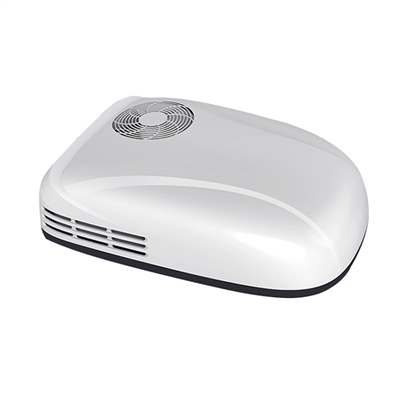

Roof Air Conditioner For Camper
Rooftop mounted Motorhome air conditioner
1.The style design is low-profile & modish design, fashionable and dynamic.
2.NFRTN2 220v roof top trailer air conditioner is Ultra-thin, and it is only 252mm in height after installation, reducing vehicle height.
3. The shell is injection-molded with exquisite workmanship
4. Using dual motors and horizontal compressors, NFRTN2 220v roof top trailer air conditioner provides high air flow with low noise inside.
5. Low power consumption
Description
Roof Air Conditioner for Camper
Products Description
Split air conditioner: A split air conditioner consists of an indoor unit and an outdoor unit. The indoor unit is installed inside the RV, while the outdoor unit is installed outside the RV, usually on the roof or side of the car. This type of air conditioner is generally more powerful and is suitable for large RVs or situations that require stronger cooling and heating effects.
Portable air conditioners: Portable air conditioners are more flexible and can be moved as needed. They are usually installed in corners or fixed mounting points inside the RV. This type of air conditioner is suitable for small RVs or situations where the location needs to be changed frequently.
Vehicle air conditioner: Vehicle air conditioner is an air conditioning system specially designed for cars or RVs. It is generally installed in the cab of the vehicle or the cockpit of the RV and is powered by the vehicle's battery or engine.
Products Parameters
|
Model |
NFRTN2-100HP |
NFRTN2-135HP |
|
Rated Cooling Capacity |
9000BTU |
12000BTU |
|
Rated Heat Pump Capacity |
9500BTU |
12500BTU(but 115V/60Hz version has no HP) |
|
Power Supply |
220-240V/50Hz, 220V/60Hz |
220-240V/50Hz, 220V/60Hz, 115V/60Hz |
|
Refrigerant |
R410A |
|
|
Compressor |
horizontal type, Gree or others |
|
|
Upper Unit Sizes (L*W*H) |
1056*736*253 mm |
1054*736*253 mm |
|
Net Weight |
41KG |
45KG |
|
Dual motors + dual fans system |
PP Plastic Injection cover, metal base |
Inner frame material: EPP |
Ultra-thin, only 252mm in height after installation
Remote control
Using dual motors and horizontal compressors,
low noise
anti-vibration & anti-leakage
Installation and application
Precautions
Before installation, you need to carefully measure the space at the bottom of the RV to ensure that the installation position and size of the air conditioner meet the requirements.
When installing, you need to consider the weight of the air conditioning system and the structure of the vehicle to ensure that the installation is firm and stable.
Before use, ensure that the air conditioning system is operating normally and check whether the cooling effect, heating effect, air circulation and other functions are normal.
