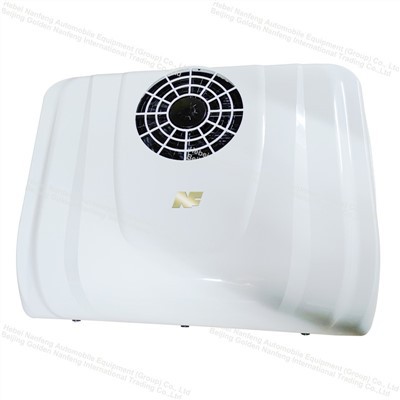

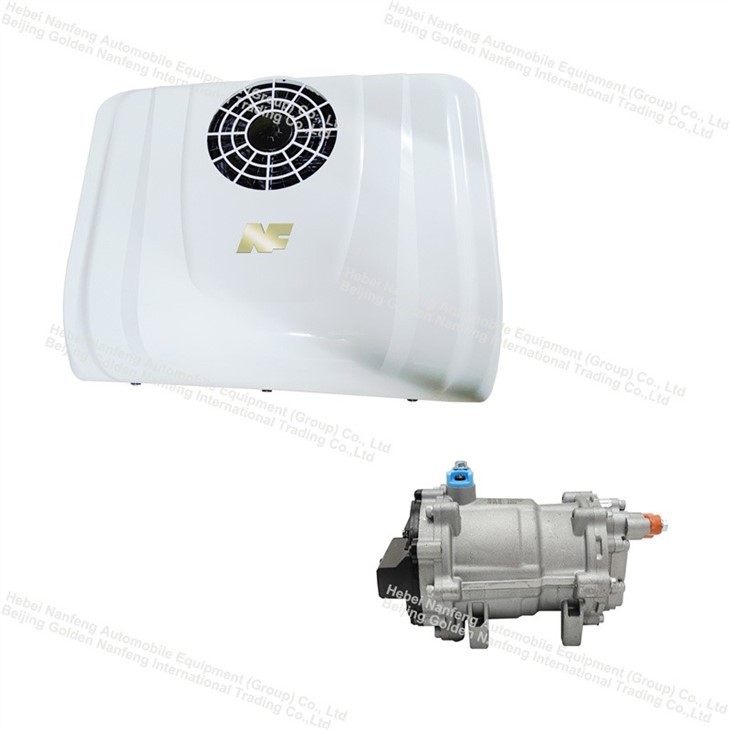

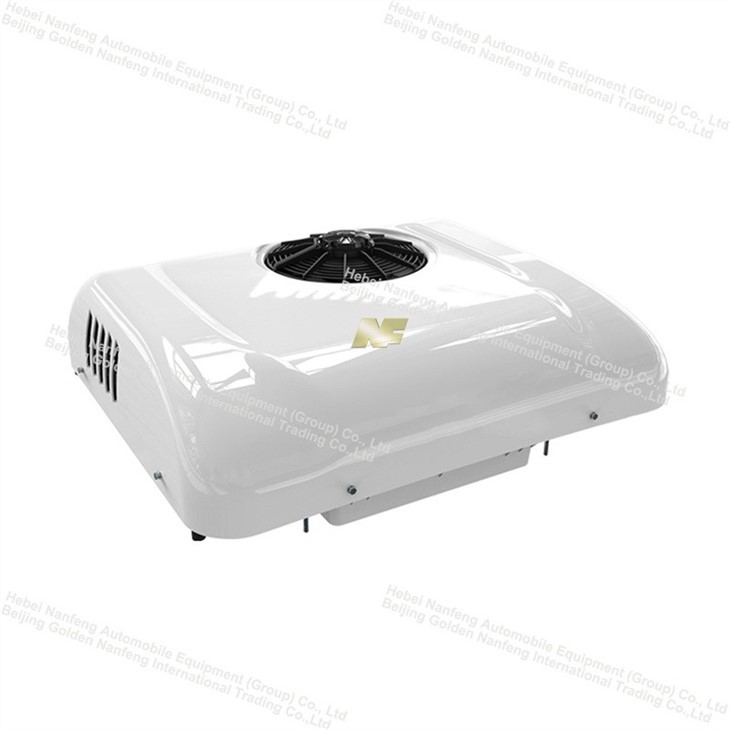

Roof Top Air Conditioner For Truck

Roof Top Air Conditioner for Truck

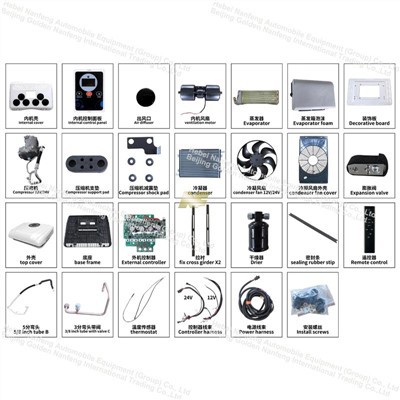

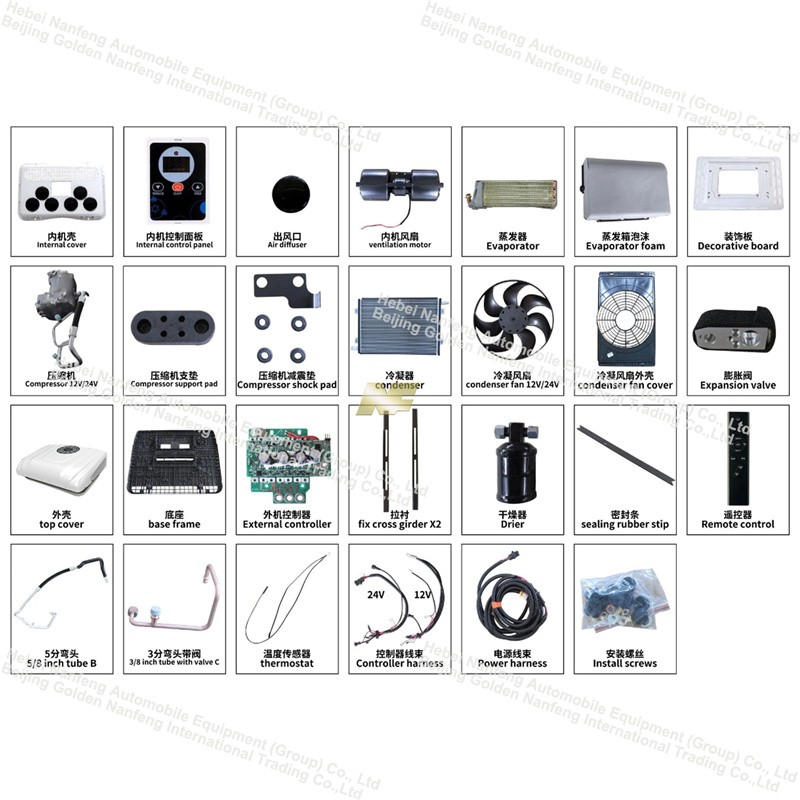

Truck air conditioning systems are mainly composed of five components, and temperature regulation is achieved through refrigerant circulation:

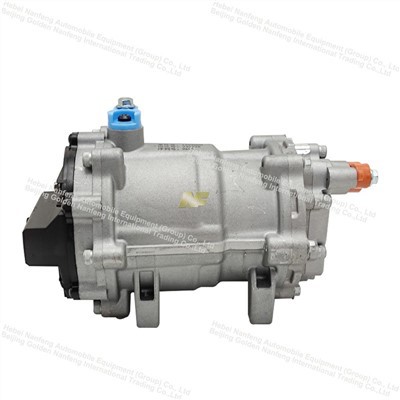

Compressor: Driven by the engine belt, it compresses low-temperature and low-pressure gaseous refrigerant into high-temperature and high-pressure gas (about 70–80℃, 1.5 MPa), and is the power core of the circulation system.



Condenser: Located on the front or roof of the vehicle, it condenses high-temperature refrigerant into medium-temperature liquid (about 40℃) through heat dissipation fins and fans, and its efficiency directly affects the cooling effect.



Liquid storage dryer: Filters refrigerant impurities and absorbs moisture to prevent system blockage and corrosion.



Expansion valve: Automatically adjusts the refrigerant flow rate according to the evaporator outlet temperature (monitored by the temperature sensor package) to achieve pressure reduction and temperature reduction.



Evaporator: Installed in the cab, the liquid refrigerant absorbs heat and vaporizes here (down to about 5℃), and delivers cold air to the cab through the blower.



product parameters Products Item NFEAC002.01 Rated cooling capacity 1000-3000W Voltage 12/24V Product Size (L*W*H) 500*336*114mm Rated Power 960W Refrigerant HFC134a Current 60A 42A Refrigerant filling amount  650±50g MOQ 1pc Color White  Working temperature 65dB Brand  0-60℃ Quality Good









While using the air conditioner, if the following codes are displayed on the screen, they may indicate relevant faults of the machine. Please make the following operations:

Stop the air conditioner and power off. After ten minutes, turn it on and start it. lf the code is still there, stop the machine and power it off, and then contact the repair center. (If the code disappears, you can continue to use it)

E01--Voltage is too low --- Please charge the battery

E02--Evaporation box fan is open--Please check the fan plug or replace the fan.
H22--The failure of the air inlet sensor indicates that the mode can be changed after returning to normal.

H23--The failure of our inlet sensor indicates that the mode can be changed after returning to normal.

E04--pipe temperature (outlet air) sensor

E05--Compressor overheating ---- After the compressor cools down, automatically resume working.

E06--Condensing fan open circuit --- Check if the circuit from the compressor to the condensing fan is open-circuited.

E07--Condensation fan short circuit ---Check if the circuit from the compressor to the condensing fan is short-circuited.

E09-The brushless control board of the condensing fan is faulty- please replace the control board of the condensing fan.

E10--Condensing fan failure … Please replace the condensing fan motor

E11-The condensing fan is out of contact. Please check the compressor control board and the condensing fan wiring for damage.

Note: If the number of flashes of the compressor fault indicator is not shown in the table above, please replace the compressor control panel.















Products Application

RV
Parking comfort: independent power supply (battery/solar/mains power) to ensure 24-hour constant temperature when camping.

Space optimization: do not occupy the living area in the car, and keep the kitchen and bed space.

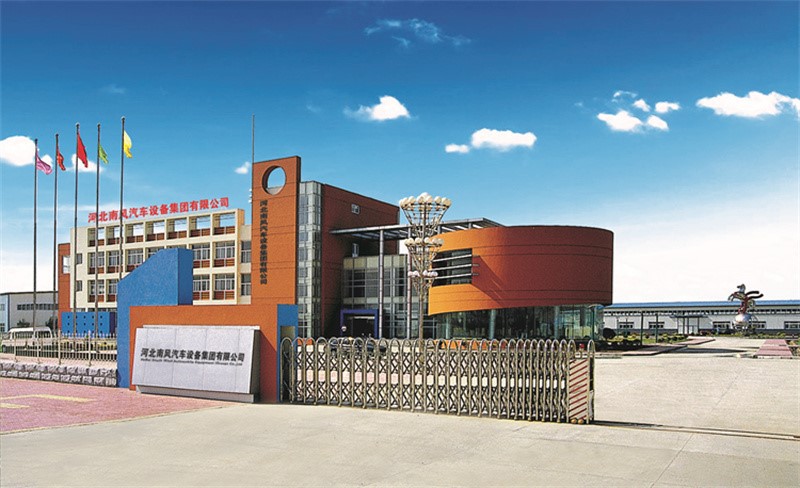

Hebei Nanfeng Automobile Equipment Group Co., Ltd. is a high-tech group company specializing in the production of automobile heating systems, electronic water pumps, metal stamping parts, electronic accessories, and other equipment and related parts. We have 5 factories and an export foreign trade company (Beijing Golden Nanfeng International Trade Co. Ltd .located in Beijing).

Our headquarters are located in Wumaying Industrial Zone, Nanpi County, Hebei Province, covering an area of 100.000 squaremeters and a construction area of 50.000 square meters.











If you're looking for the roof top air conditioner for truck, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
