Bottom Air Conditioner For RV

Name: Bottom Air Conditioner For RV
Brand: Nanfeng
SKU: 266096283

Hebei Nanfeng Group is the largest manufacturer of heating and cooling equipment in China and the designated supplier of military vehicles in China. Under beach caravan air conditioner has the advantages of not occupying space, and can design the air outlet according to your own needs.

Send Inquiry

Description

Bottom Air Conditioner for RV

Products Description

Model	NFHB9000
Rated Cooling Capacity	9000BTU
Rated Heat Pump Capacity	9500BTU
Extra electric heater	500W (but 115V/60Hz version has no heater)
Power Supply	220-240V/50Hz, 220V/60Hz, 115V/60Hz
Refrigerant	R410A
Compressor	vertical rotary type, Rechi or Samsung
System	one motor + 2 fans
Total frame material	One piece, EPP Metal base
Unit Sizes (LWH)	734398296 mm
Net Weight	27.8KG

rv air conditioner 5

This machine is designed and installed for vehicles (station wagons, recreational vehicles, and other special vehicles) to improve their internal temperature and provide a comfortable environment. It can cool when the interior is hot; it can heat when the interior is cold. Its temperature can be adjusted in both cases.

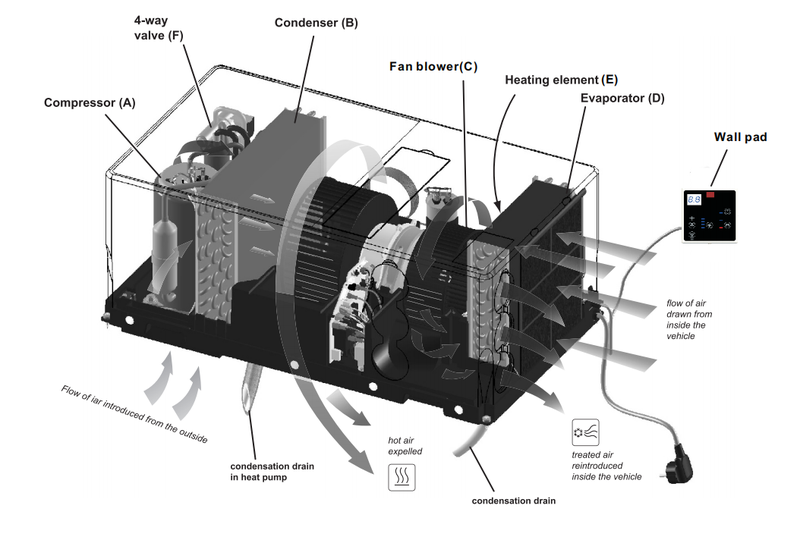

Cold air - Operation description (Figure 1)

The system of this machine consists of the following parts: compressor (A), condenser (B), evaporator (D), four-way valve (F), and refrigerant. Through the physical change of the refrigerant from liquid to gas, it heats or cools the parts it passes through.

The indoor fan (C) blows the cold air that has passed through the cooled evaporator into the room. After some time, the indoor air can be cooled and dehumidified.

Hot air - Operation description (Figure 1)

The heating cycle is reversed through the four-way valve (F) to generate heat. The system contains an electric heating tube (E) to improve the heating efficiency under low temperature conditions.

bottom air conditioner

(Figure 1)

Product Maintenance

rv air conditioner 9

1. Cleaning the body: Clean regularly. Only use a soft cotton cloth to gently wipe the air conditioner. If there is serious dirt, soak the cotton cloth in a neutral detergent solution, wring it out, and scrub it. After scrubbing, wipe the detergent with a dry cotton cloth. Do not use chemical solvents such as gasoline, volatile oil, and thinner!

2. Visual inspection: Check regularly to ensure the following two points:

- The drainage holes in the water tray are unobstructed to avoid water leakage.

- The openings in the floor are kept unobstructed to avoid water accumulation.

3. Cleaning of the filter: Clean regularly; clean the filter with a detergent and dry it, then reinstall it

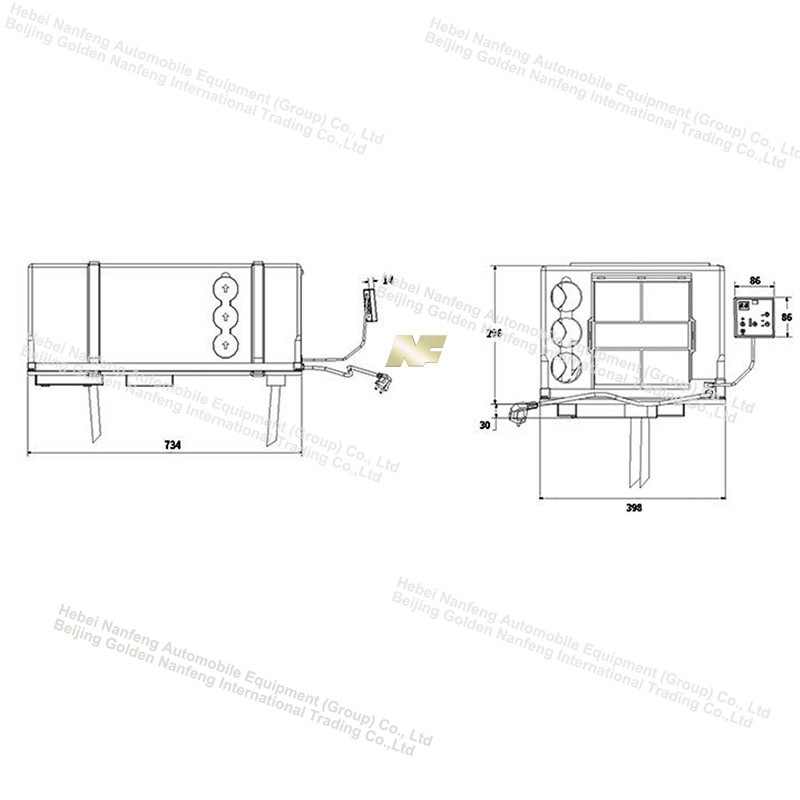

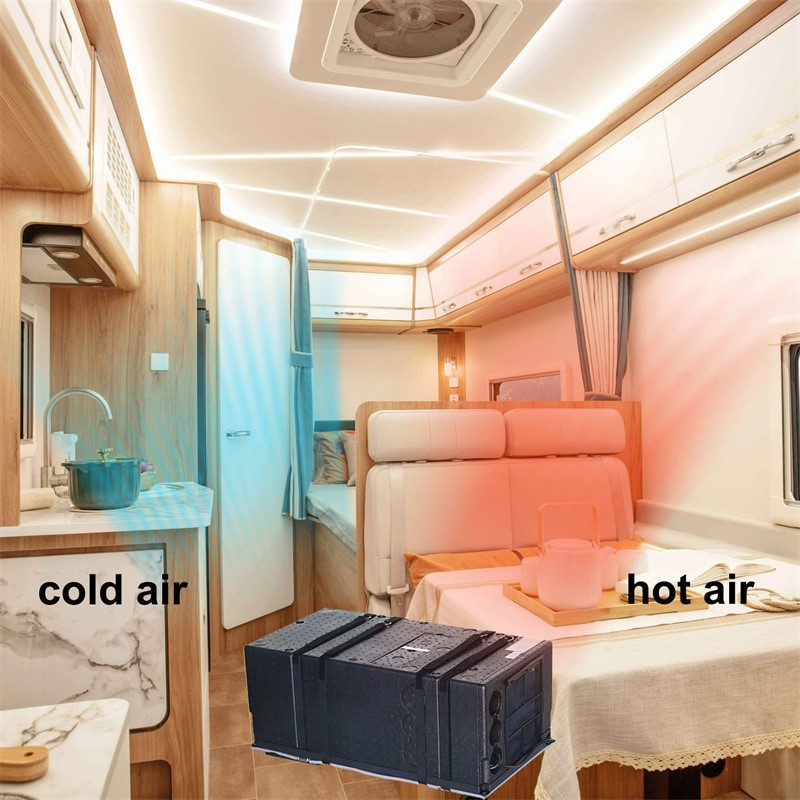

Product installation location

rv air conditioner 3

rv air conditioner 8

In order to reasonably control the in-car environment, the unit must be installed as concealed as possible in the middle of the car.

Select the installation location of the machine to ensure that it is convenient for later maintenance and repair.

Put the installation positioning paper into the reserved installation compartment and check the reserved opening space on the floor (if any) or make holes according to the installation positioning paper.

To minimize the noise and vibration of the machine during operation, keep the unit at least 30mm away from the surrounding partitions.

The machine must be installed on the floor.

To make it easier to replace the filter, keep a distance of 200mm between the front of the air conditioner and the partition.

If the machine is installed outside the car, the air to be treated must be taken from the passenger compartment.

Inhaling outside air will reduce the capacity of the entire system.

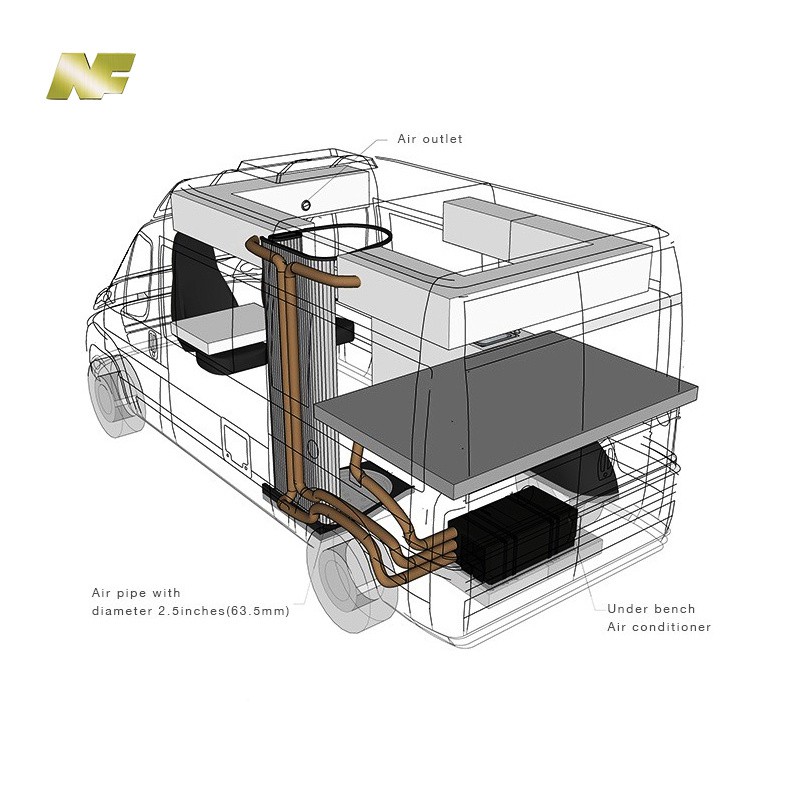

unber bunk air conditioner

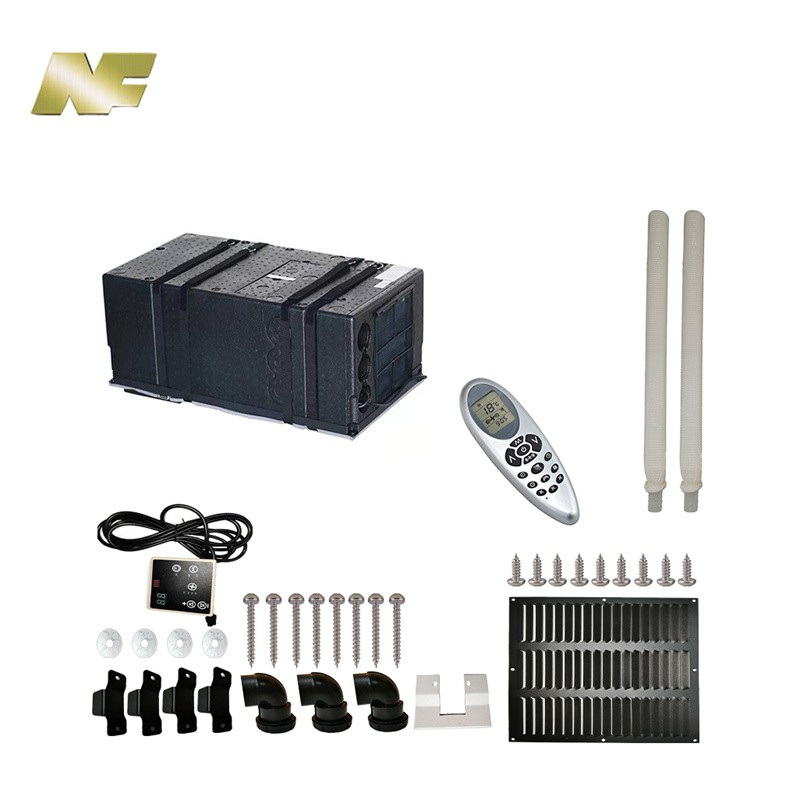

Products Detail Pictures

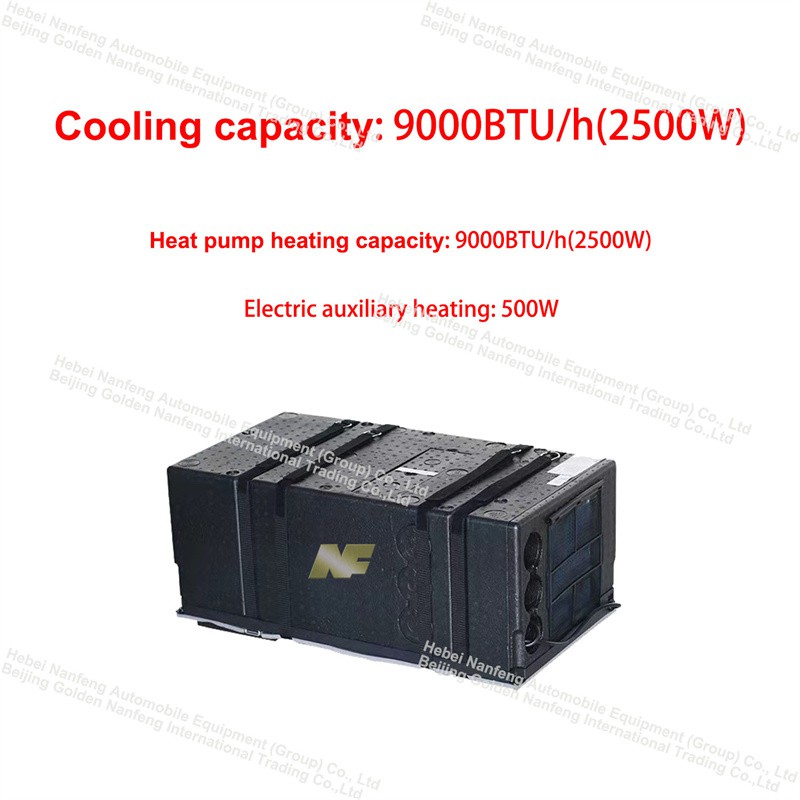

rv air conditioner 11

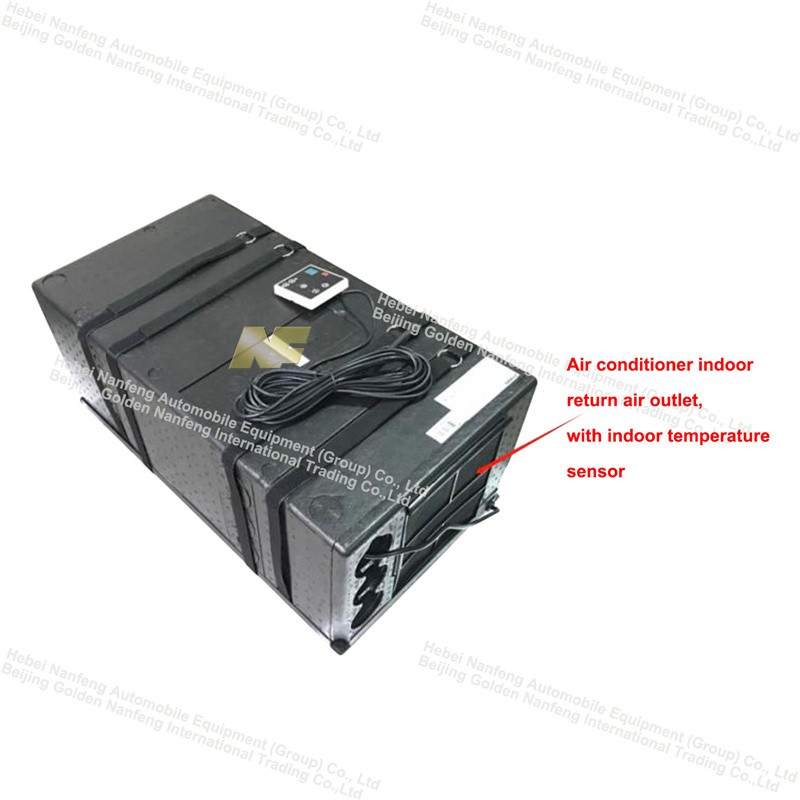

rv air conditioner 10

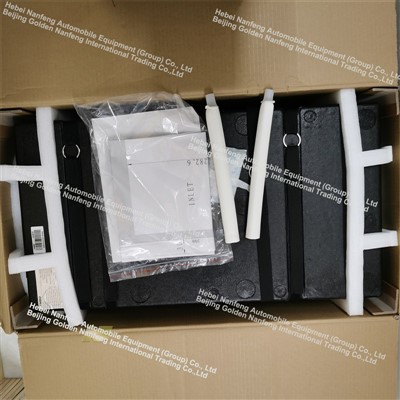

bottom air conditioner

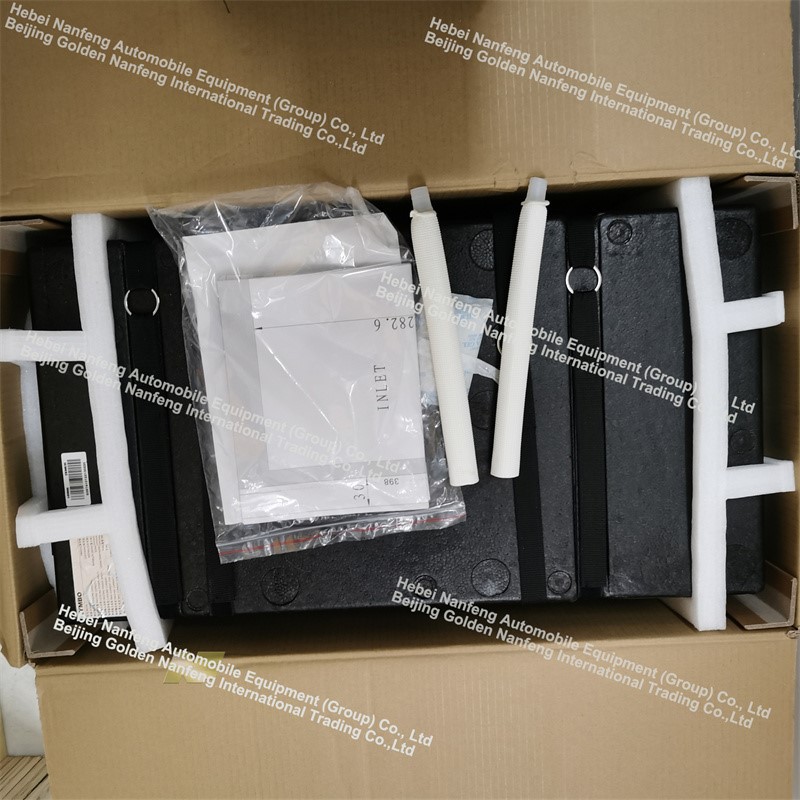

rv air conditioner 6

FAQ

Q: 1.Is a floor-mounted unit more efficient than a rooftop unit?

A: Yes, floor-mounted units often provide better cooling efficiency in smaller or mid-sized RVs because they blow cool air directly at occupant level. Unlike rooftop units that push cool air downward, floor-mounted models offer more immediate and even cooling, especially in seated or sleeping areas. They are also less affected by outside temperature fluctuations on the RV roof.

Q: 2.Will it save interior space or limit layout flexibility?

A: Floor-mounted ACs are designed to fit under furniture like beds, cabinets, or dinettes, making them a space-saving option. However, customers should consider the fixed installation area, which may limit furniture arrangements if not properly planned. Pre-installation layout planning is highly recommended.

Q: How loud is the unit during operation?

A: Noise is a major concern for RV users. Most modern floor-mounted ACs operate at low noise levels (typically below 50 dB). Many units come with multi-speed fans, insulated compressors, and night/silent modes to ensure quiet performance, especially important for sleeping areas.

Q: How easy is it to install and maintain?

A: Installation is straightforward when using pre-cut vents or ducting, especially in RVs designed with underfloor HVAC spaces. Units are accessible for service from inside the RV, making maintenance easier than rooftop models, which often require climbing. Many customers appreciate the indoor serviceability.

Q: Can it handle both cooling and heating?

A: Yes, many floor-mounted air conditioners offer reverse cycle heating or integrate with electric or diesel heaters, making them suitable for year-round comfort. This dual-functionality is a major selling point for RVers traveling across various climates.
