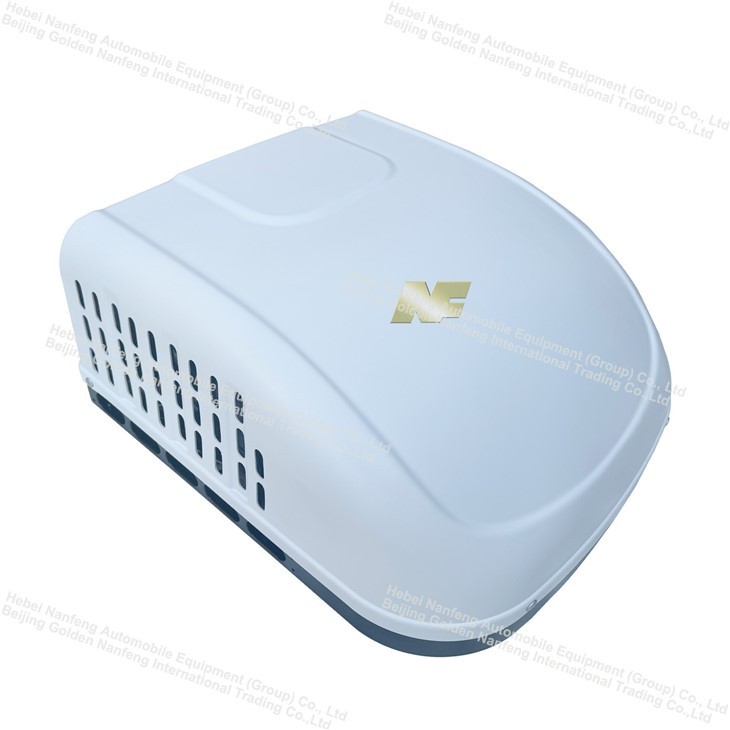

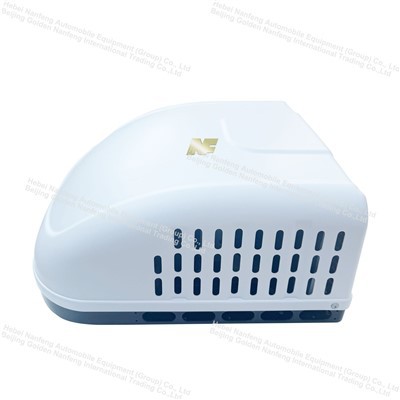

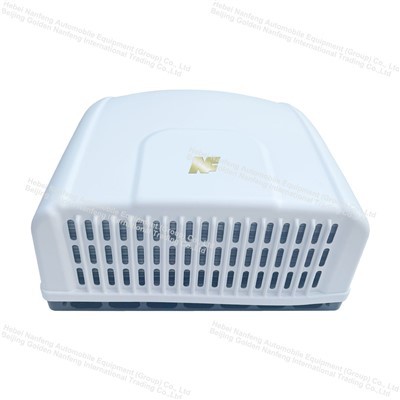

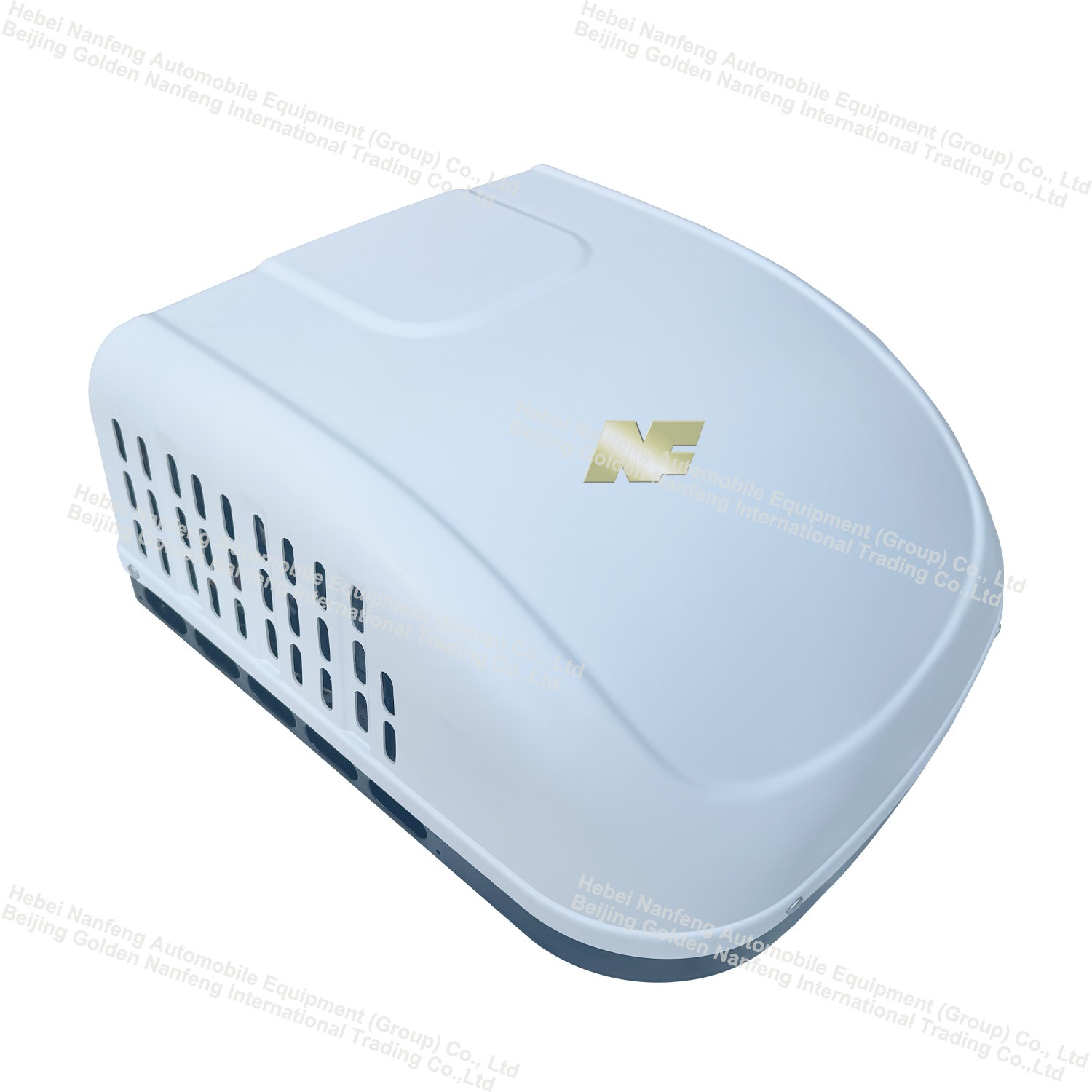

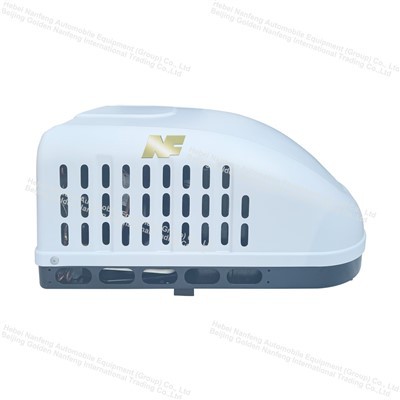

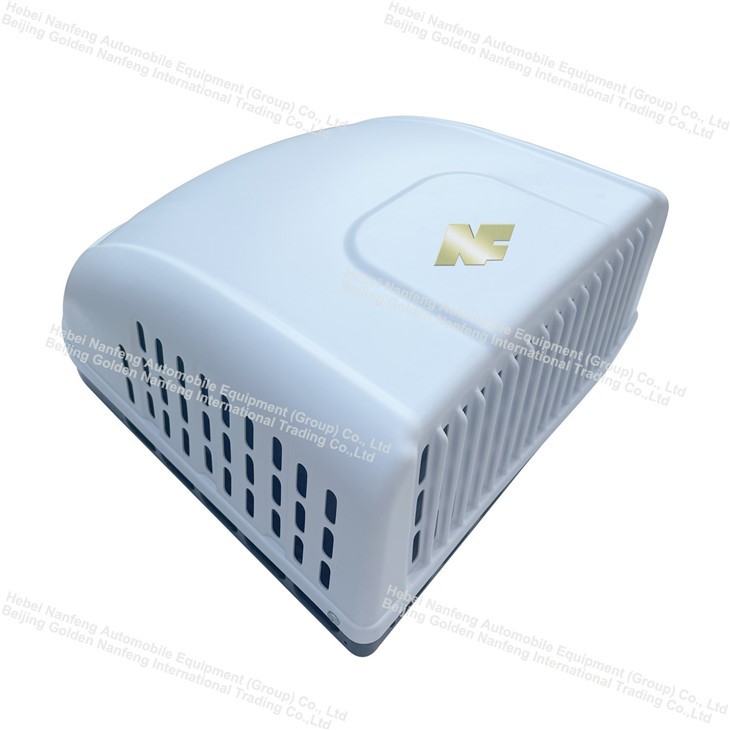

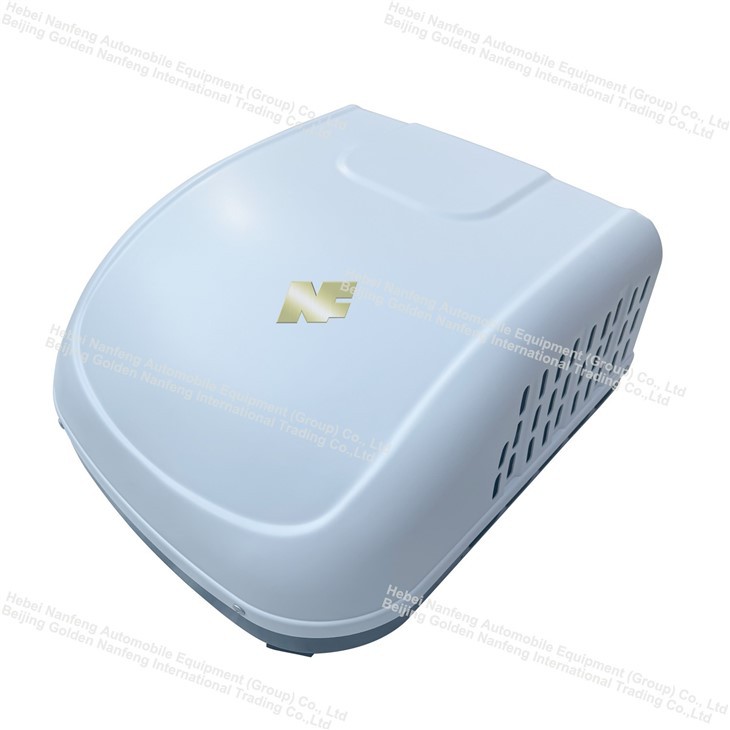

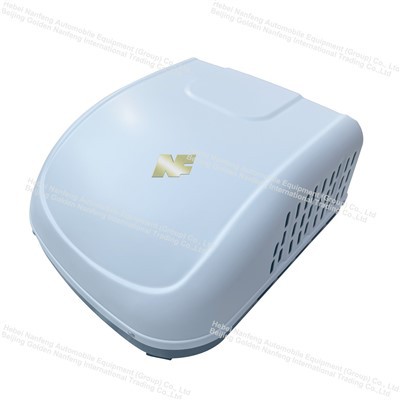

110V/220V RV Air Conditioner

110V/220V RV Air Conditioner

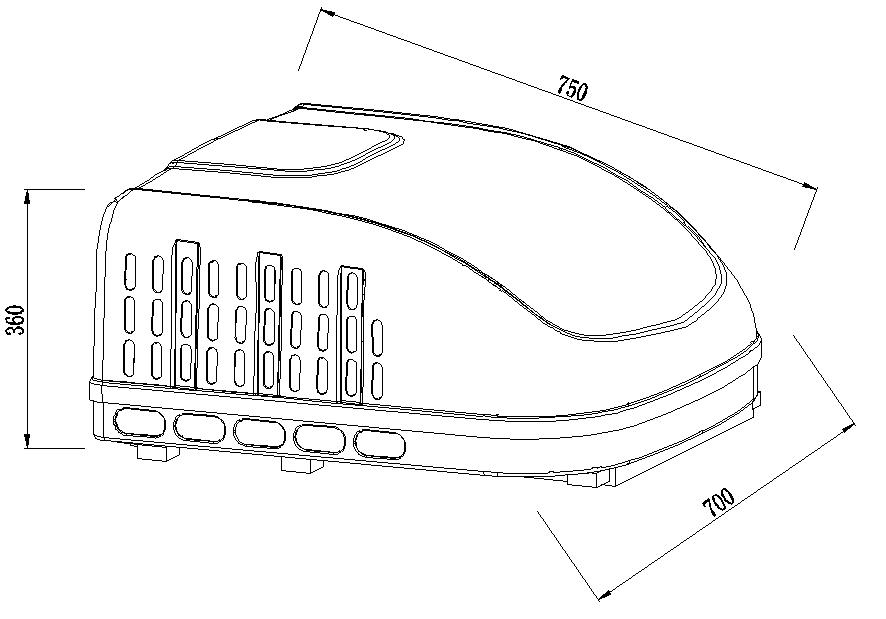

Advantages 1. High space utilization: integrated design, does not occupy the storage space in the car (such as under the bed or sofa. 2. Strong earthquake resistance: military-grade earthquake-proof design (such as titanium alloy bracket + hydraulic damper), passed 100,000 kilometers of bumpy road test. 3. Efficient and uniform cooling: central installation + multi-directional air outlet, 7.5㎡ spaces can be cooled in 10 minutes, and the cold air sinks quickly. 4. Easy installation: standardized opening (400×400mm), suitable for curved roof (radian <15°. 5. High safety: special refrigerant (R410a/A1 grade flame retardant) avoids flammable risks, and the household air conditioner R32 refrigerant is easy to leak and explode during bumps.     Products Item NFEAC002.07 R410a refrigerant loading 0.43KG Voltage 115V/220V Product Size (L*W*H) 750*700*360mm Rated Cooling Capacity 15000BTU Refrigerant R410A Cooling power input 1668W Rated current 20A Air flow 550m³/h MOQ 1pc Color White  Sound pressure 65dB Brand  NF  Quality Good

Does it meet the European RV height limit standard?   The ultra-thin model is only 22cm high (the industry average is 30cm), and the height of the whole vehicle after installation is less than 3m, which can pass through the common 3.2m height limit area in Europe (such as underground garages/ancient bridges)3. The curved roof needs to have an arc of less than 15° and a customized sealing gasket.   Is the roof load-bearing safe? The load-bearing beam needs to be reinforced (≥35kg), and titanium alloy shock-absorbing brackets are standard. The roof of the mainstream European B-type RV (such as Fiat Ducato) needs to be pre-buried with reinforcement ribs; otherwise, additional modifications are required.   Is it compatible with the European 220- 240V voltage? Supports 190- 250V wide voltage, adapted to the European camping power supply (230V/50Hz). A ≥1600W generator must be matched when starting to avoid tripping.   Products Application



European scenario applications

Family camping: Night silent mode (<45 dB) ensures sleep, suitable for parent-child camping scenarios.



Electric RV: Low-power models (such as Dometic B2200) are matched with lithium battery systems, and the battery life is increased by 30%.



Winter travel: Heat pump models (-10℃ effective heating) replace gas heating to avoid the ban on open flames in German camping sites.











Suggested installation steps

Remove the air conditioner from the carton

Please use the correct auxiliary tools when moving the air conditioner to the roof to avoid accidents. Failure to observe this precaution could result in injury. Put the device on the roof.

Do not slide the air conditioner; this may damage the gasket (at the bottom of the air conditioner)and may cause leakage. Lift and place the air conditioner over the prepared opening, referring to the gasket on the bottom of the air conditioner as a reference.

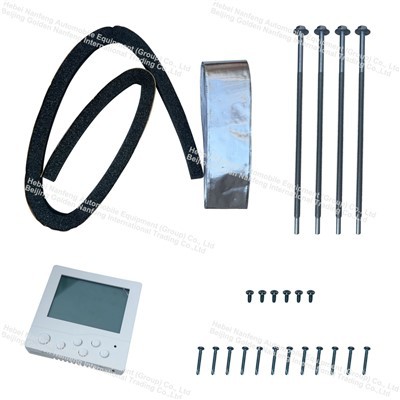

Place the ADB Kit on the RV. This box contains the mounting hardware for the unit and will be used during installation. Once the exterior of the RV roof is installed, fine-tuning can be made inside the RV if needed.

















If you're looking for the 110v/220v rv air conditioner, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
