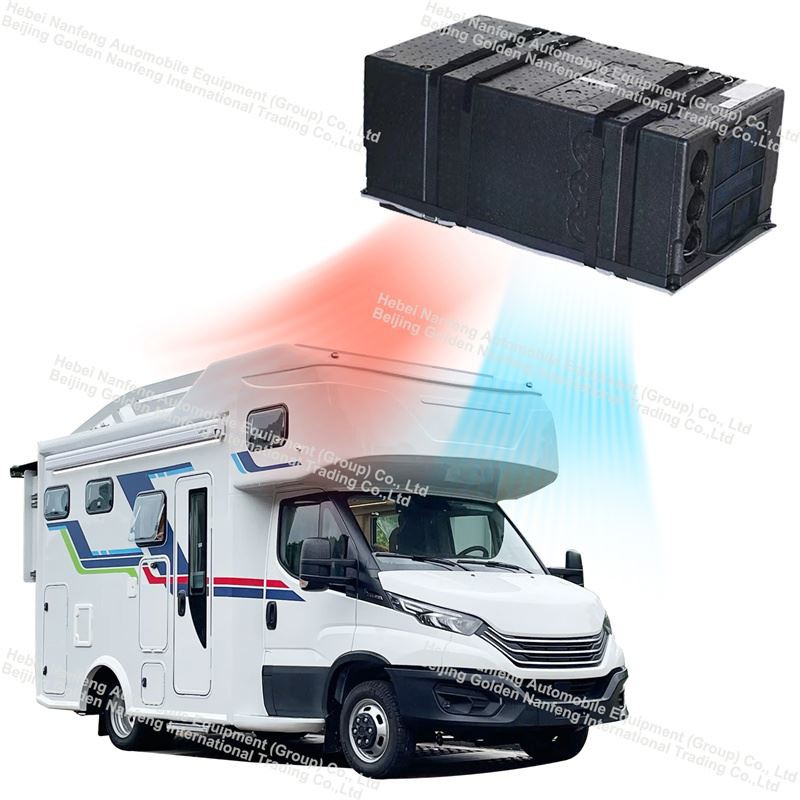

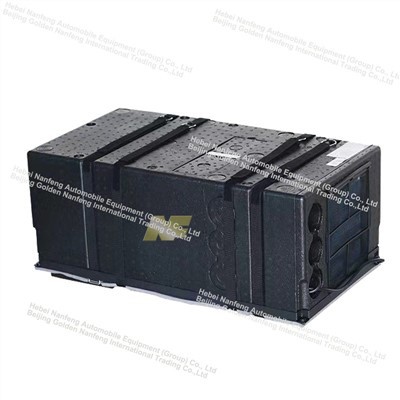

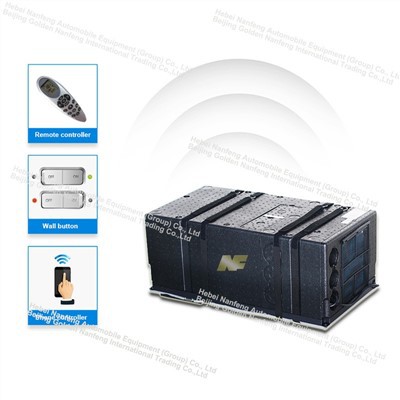

9000BTU 220V RV Bottom Air Conditioner
Hebei Nanfeng Group is the largest heating and cooling equipment manufacturer in China and the designated supplier of military vehicles in China. Under a beach caravan, the air conditioner has the advantage of not occupying space, and can design the air outlet according to your own needs.
Description
9000BTU 220V RV Bottom Air Conditioner
Products Description
The machine's performance can be improved by taking some precautions.
1. Improve the vehicle's heat insulation by eliminating openings and covering the glass surface with reflecting curtains.
2. Avoid frequently opening doors and windows when not necessary.
3. Select the appropriate temperature and fan speed. Direct the air vents suitably.
4. To avoid machine malfunctioning and risks of injury, take the following precautions:
5. Do not obstruct the ventilation air inlet and outlet with cloth, paper, or any other items;
a. do not put your hands or any other items into the openings;
b. do not spray water inside the machine;
c. keep flammable substances well away from the machine.
6. Clean the air filter periodically.

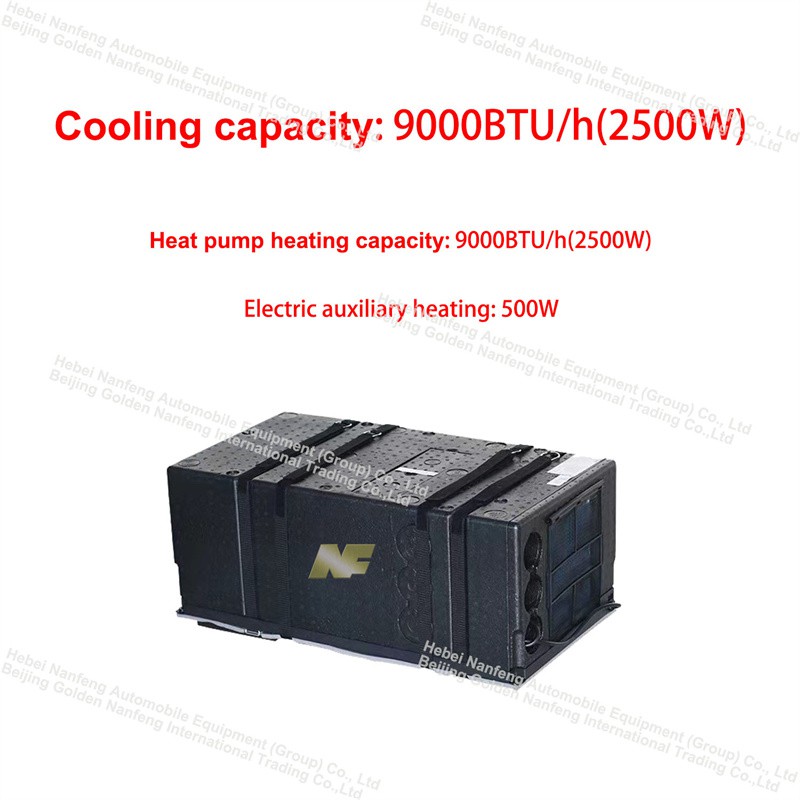

Products Parameter
| Type | RV under the beach air conditioner | Size | 734*398*296 mm |
| Warranty | 1 year | Brand Name | NF |
| Certification | CE | Car Model | Camper/caravan/motorhome/RV |
| Model | NFHB9000 | Refrigerant | Environmentally friendly R410A |
| Rated Cooling Capacity | 9000BTU(2500W) | Rated Heat Pump Capacity | 9500BTU(2500W) |
| Extra electric heater | 500W (but 115V/60Hz version has no heater) | Power(W) | cooling 900W/ heating 700W+500W (electric auxiliary heating) |
| Power Supply | 220-240V/50Hz,220V/60Hz, 115V/60Hz | Current | cooling 4.1A/ heating 5.7A |
| Total frame material | One-piece EPP Metal base | System | One motor + 2 fans |
1. Hidden installation in the seat, bed bottom, or cabinet, save space.
2. Layout of pipes to achieve the effect of uniform airflow throughout the house. Air dis istributed equably through 3 vents all over the room, which makes it more comfortable for users
3. Low noise &low vibration.
4. One-piece EPP frame with better sound/heat/vibration insulation, and so simple for faster installation and maintaince.

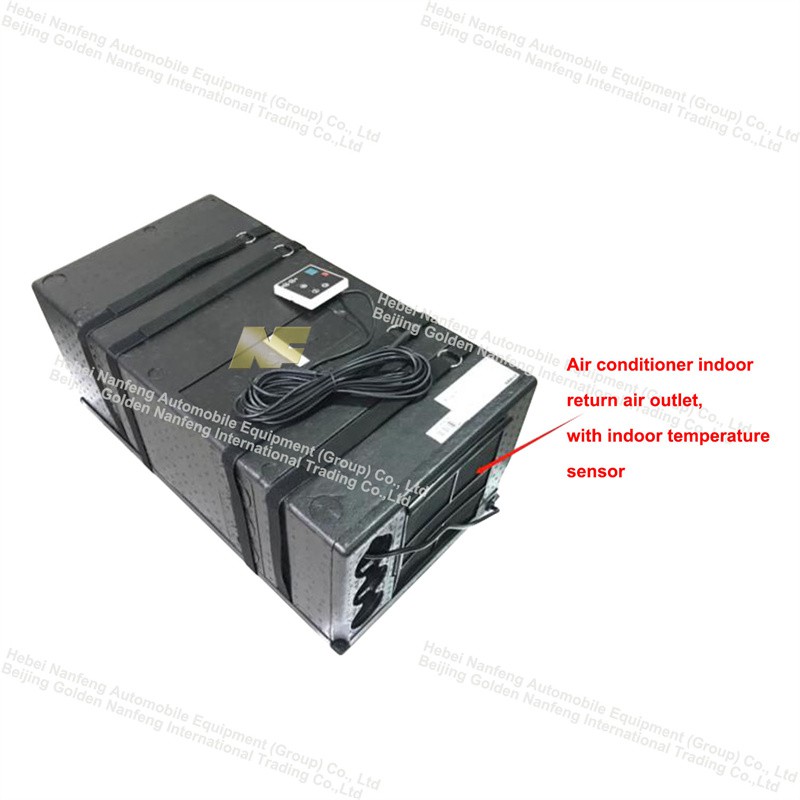

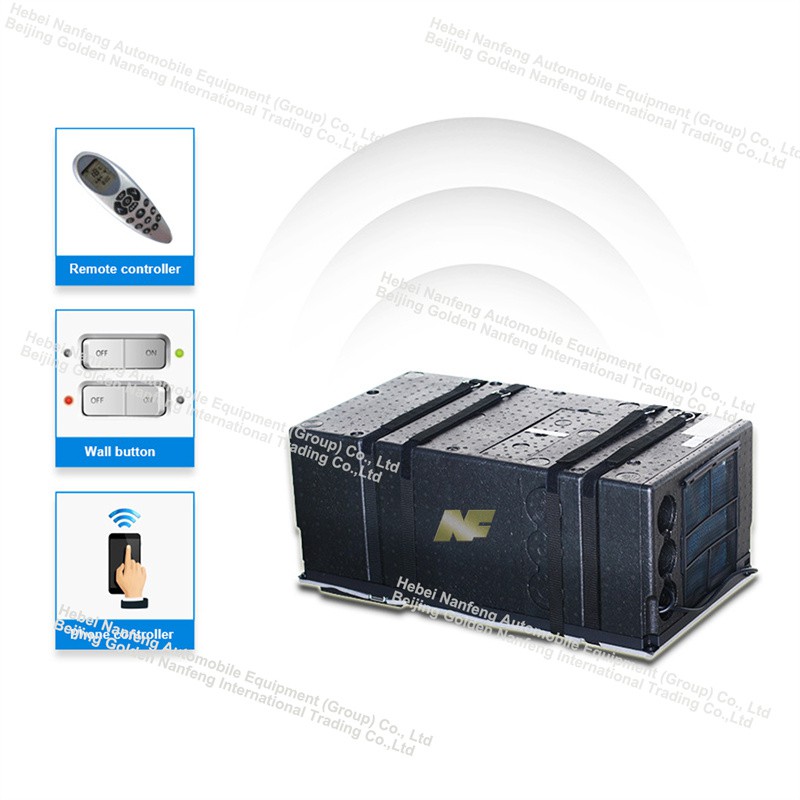

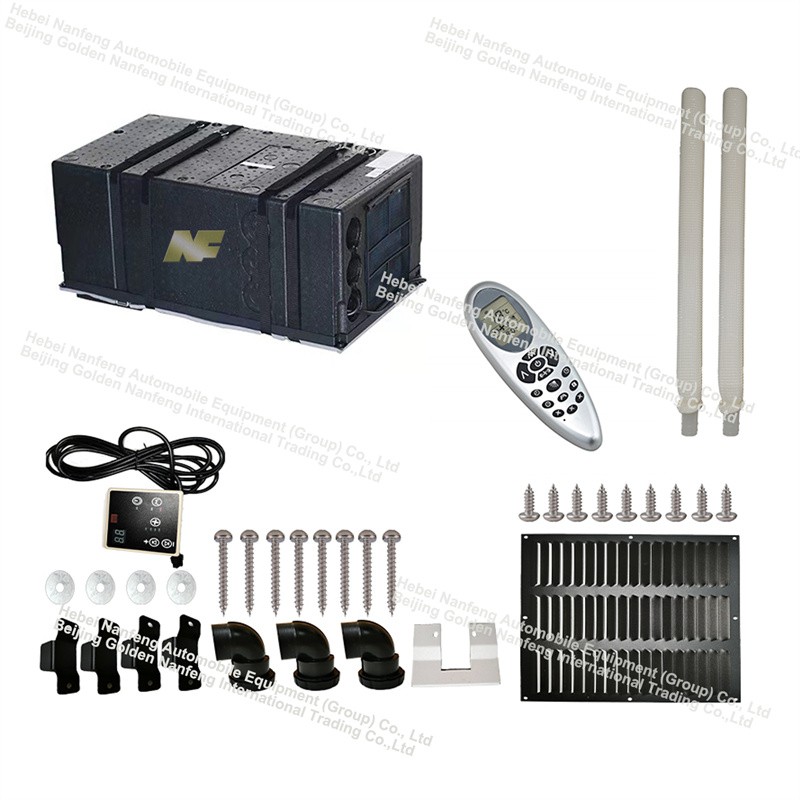

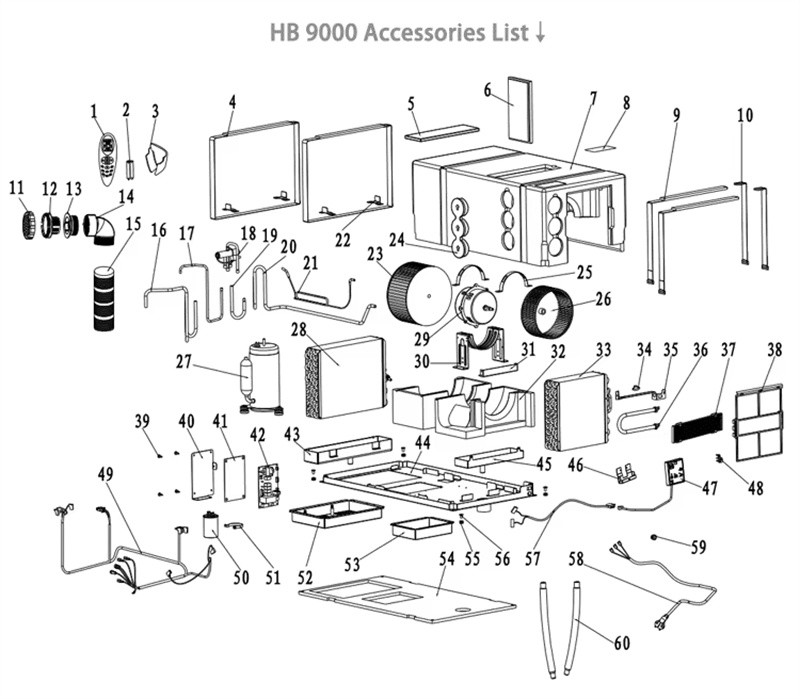

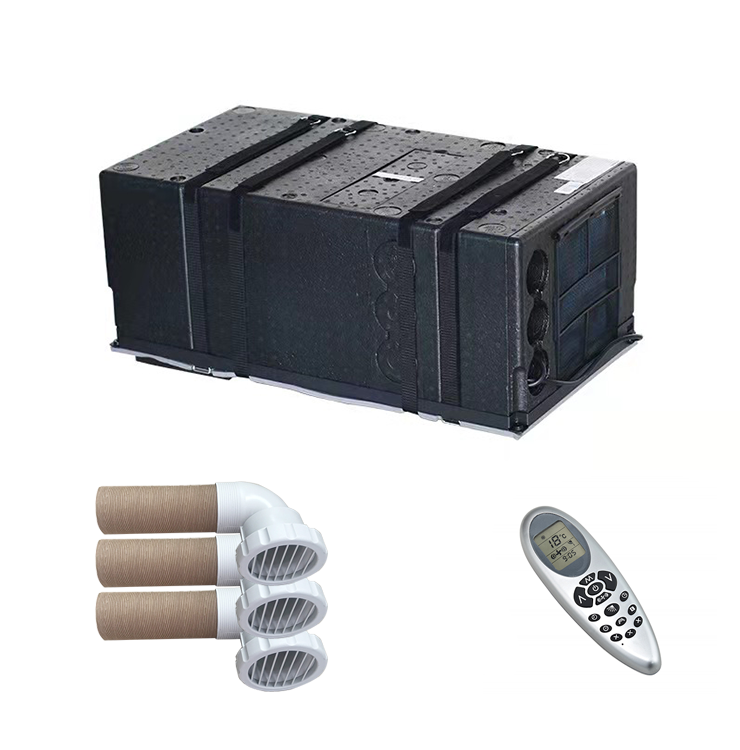

Products Details
Products Advantages
Advantages of Bottom Air Conditioner
Low center of gravity, stable driving
The bottom-mounted air conditioner can concentrate its weight on the bottom of the RV, lower the center of gravity of the vehicle, and make the center of gravity of the RV more stable, especially completely avoiding excess wind resistance during driving.
The layout of the bottom-mounted air conditioner outlet is more flexible.
The air outlet of the bottom-mounted air conditioner is led out by the air duct, so the location of the cold air outlet can be freely arranged during the design process of the RV. A reasonable air outlet layout can make the temperature control of the RV "more effective with less effort".
Bottom-mounted air conditioners are relatively easier to install.
Bottom-mounted air conditioners are an integrated design of indoor and outdoor units. There is no need to install refrigerant pipes. You only need to provide a ventilation port for the external circulation and plug it in for use.
The air from the bottom-mounted air conditioner is more gentle.
After the air from the bottom-mounted air conditioner passes through the air duct, the air will achieve a gentle cooling effect, rather than relying directly on "direct cold air" to achieve the cooling purpose, so that users can experience a comfortable and healthy cool environment.

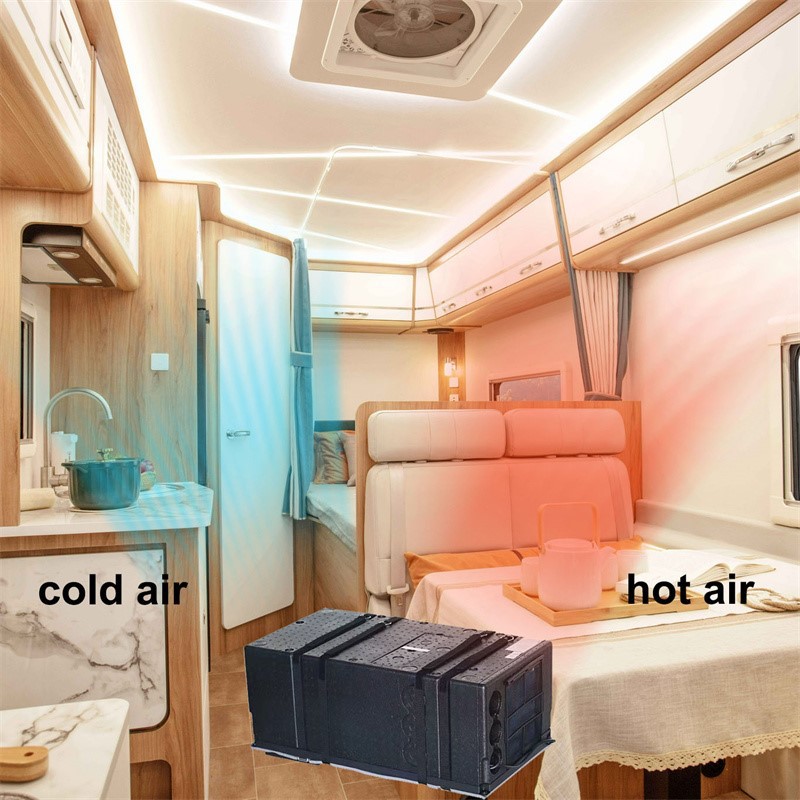

Products Application

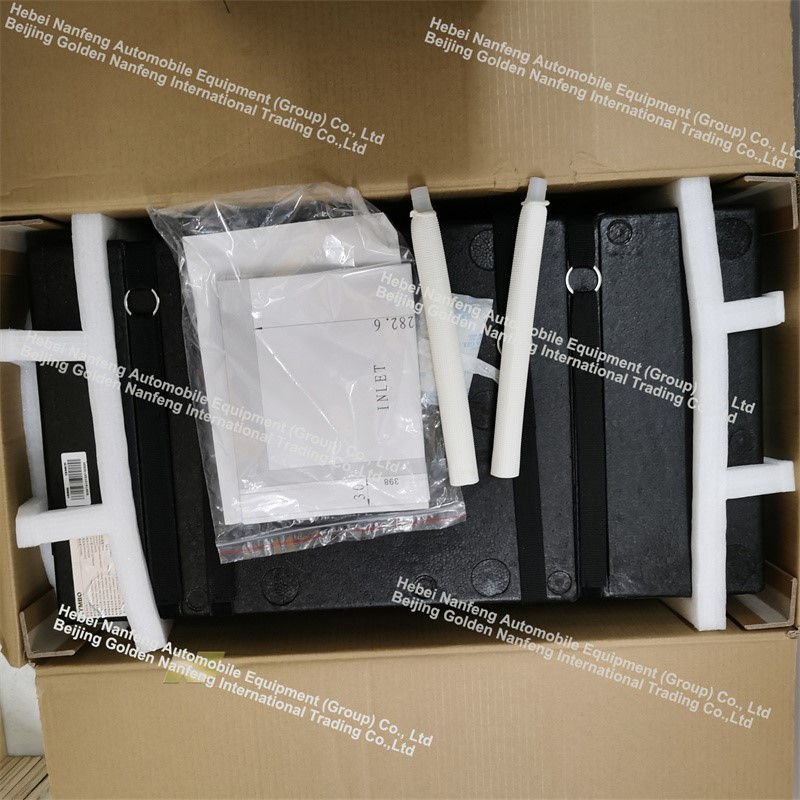

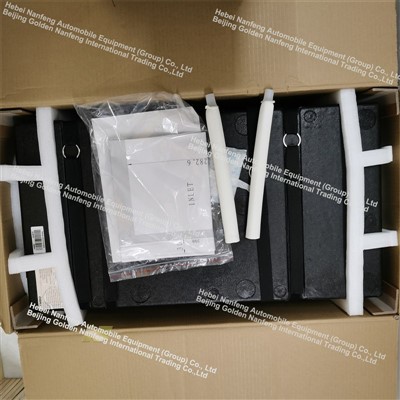

Products Package
Our Company
FAQ
Q1. What are your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What are your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive prices to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
