Ptc Battery Cabin Heater High Voltage Electric Liquid Heater
Hebei Nanfeng Group has been producing heaters for more than 30 years, and our company is the largest manufacturer of automobile heating and cooling equipment in China and the designated supplier of military vehicles in China.7KW HV coolant heater for electric vehicles is specially designed for electric vehicles and has the advantages of fast heating and environmental protection.
Description
PTC Battery Cabin Heater High Voltage Electric Liquid Heater
Products Description
| Item |
SR03-17 |
| Power |
10 KW (350VDC, 10L/min, 0℃)
|
| High voltage |
200~500VDC
|
| Low voltage | 9-16VDC |
| Communication method | CAN |
| IP grade | IP 6K9K & IP67 |
| Coolant | 50 ( water) +50 (ethylene glycol) |
|
Heating method
|
PTC positive temperature coefficient thermistor
|
PTC heater: PTC heater is a heating device designed by using the constant temperature heating PTC thermistor constant temperature heating characteristics.
Curie temperature: When it exceeds a certain temperature (Curie temperature), its resistance value increases stepwise with the increase of temperature. That is, under the condition of dry burning without controller intervention, the calorific value of the PTC stone decreases sharply after the temperature of the PTC stone exceeds the Curie temperature .
Inrush current: the maximum current when the PTC starts .

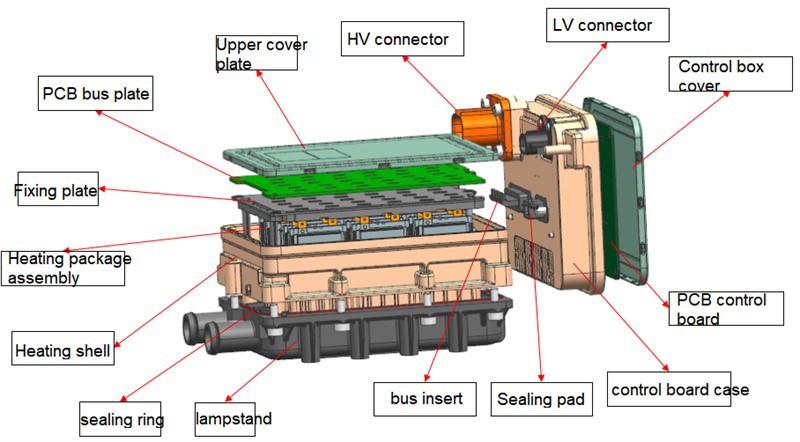

Product explosion diagram：
Installation method
PTC water heater has 8 installation points , which are fixed to the installation bracket by 8 ST6 self-tapping screws . The installation bracket can be customized according to the installation space of the vehicle.
Products Details
Products Application
Certification
If you're looking for the ptc battery cabin heater high voltage electric liquid heater, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
