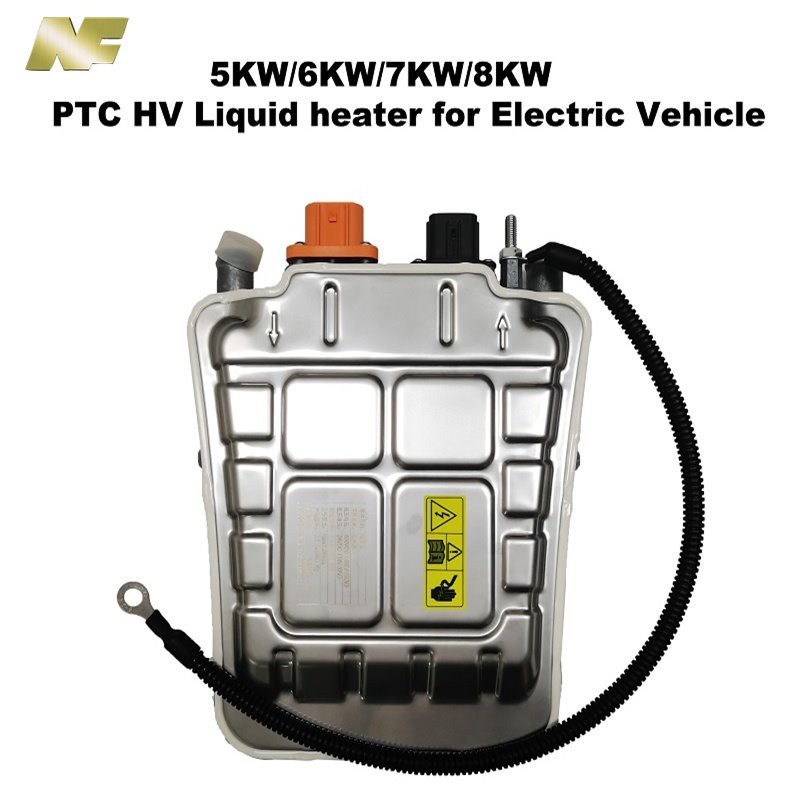

Hvc High Voltage Battery Coolant Heater

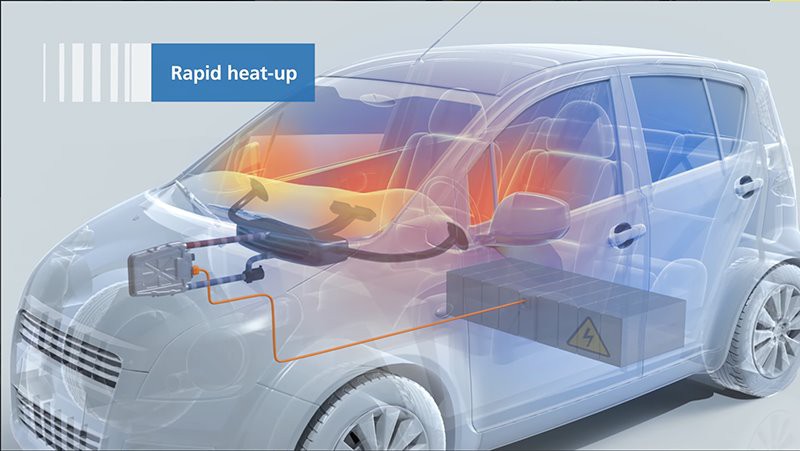

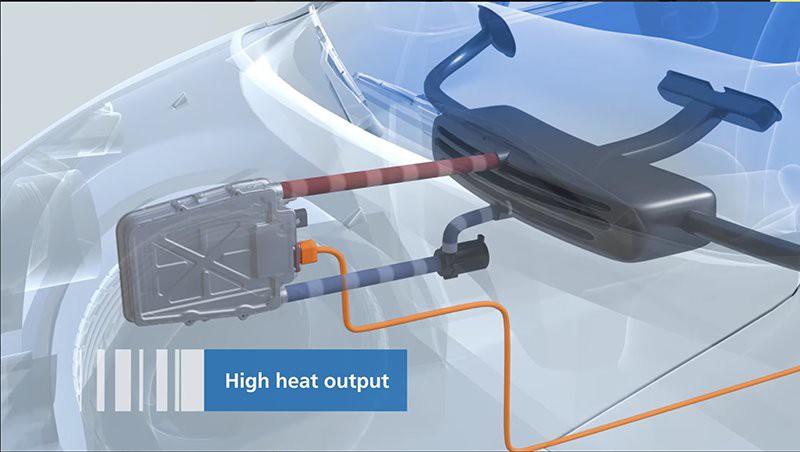

The high voltage coolant heater is mainly used for heating the passenger compartment ,defrosting and removing fog on the window,or preheating battery thermal management system battery ,to meet the corresponding regulations, functional requirements.

Send Inquiry

Description

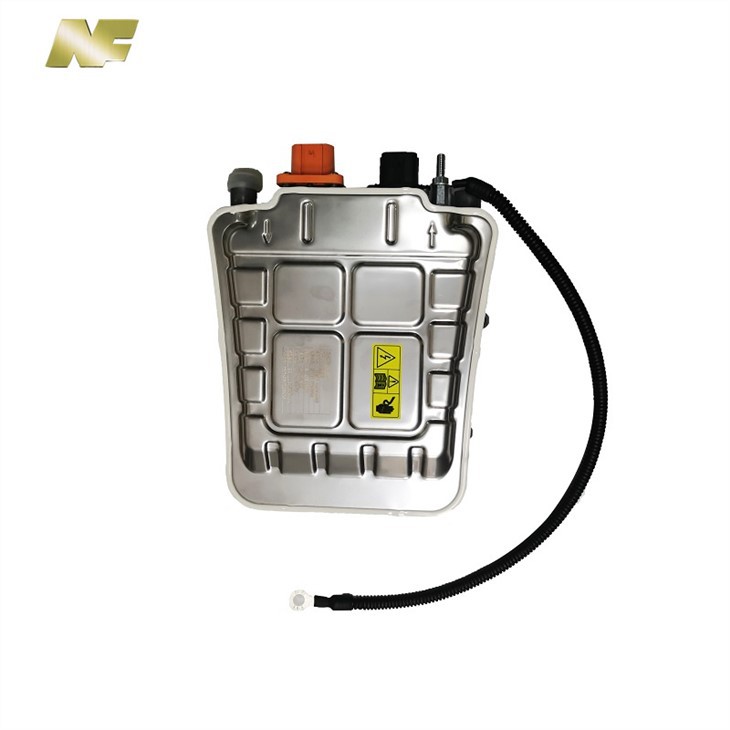

Hvc High Voltage Battery Coolant Heater

1、Product Introduction

The heater is mainly used for heating the passenger compartment ,defrosting and removing fog on the window,or preheating battery thermal management system battery ,to meet the corresponding regulations, functional requirements.

2、Product Parameter

Item	W09-1	W09-2
Rated voltage(VDC)	350	600
Working voltage(VDC)	250-450	450-750
Rated power(kW)	7(1±10%)@10L/min,T_in=60ºC,350V	7(1±10%)@10L/min,T_in=60ºC,600V
Impulse current(A)	≤40@450V	≤25@750V
Controller low voltage(VDC)	9-16 or 16-32	9-16 or 16-32
Control signal	CAN2.0B,LIN2.1	CAN2.0B,LIN2.1
Control model	Gear (5th gear) or PWM	Gear (5th gear) or PWM

3、Necessary conditions for heater:

(1) The heater is controlled by CAN communication

(2) High voltage power supply

(3) Low voltage power supply (BATT) or Kl15 (ignition switch voltage), Kl31 (GND)

(4) The heater needs to set a high voltage interlock circuit

(5) The vehicle must be equipped with an insulation monitoring device to monitor:

Over (under) voltage protection

Short circuit protection (current-limiting fuse in distribution box)

Leakage protection

Interlock response

(6) High voltage electric heater must be equipped with 30A current-limiting fuse

(7) It must be ensured that the high voltage power supply has no reverse polarity

(8) The vehicle needs to be powered off when overvoltage occurs

(9) High voltage input should be precharged

(10) The high voltage input should be equipped with a relay, when a serious fault occurs, the high voltage can be cut off without affecting the safety of the whole vehicle.

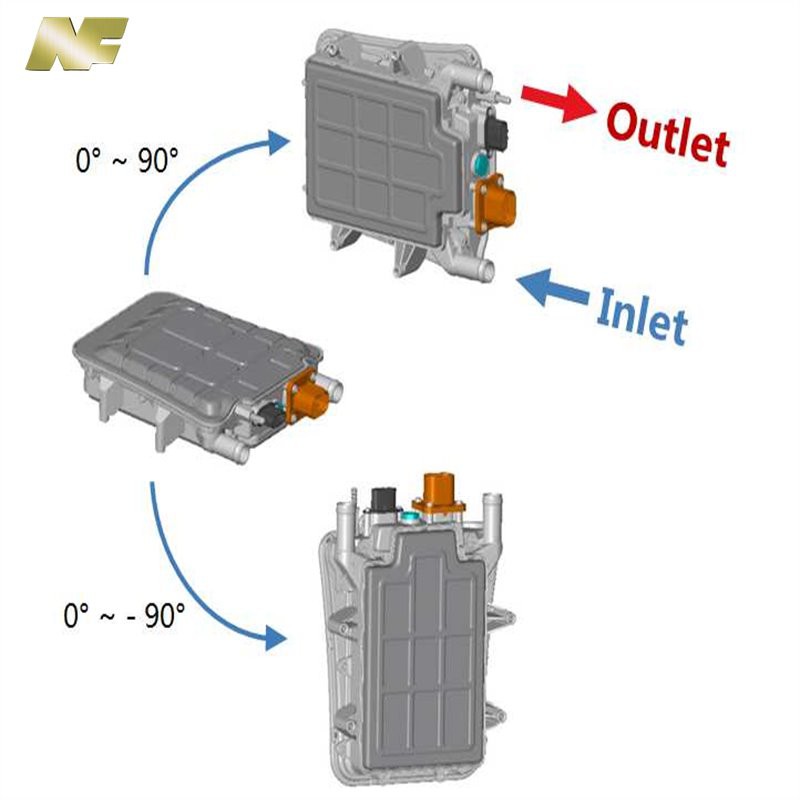

4、Product Installation

The PTC electric heater module consists of PTC heating components, controllers and internal pipelines. The heating component is installed in the aluminum die casting, the aluminum die casting and the plastic casing form a closed circulation pipeline, and the cooling liquid flows through the heating body in a meander structure.

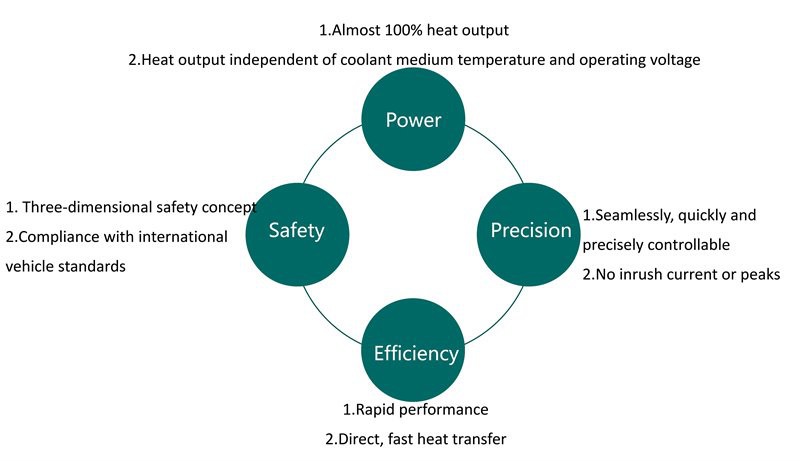

5、Product Advantage
