8KW PTC Technology Heater
Hebei Nanfeng Group has been producing heaters for more than 30 years, and our company is the largest manufacturer of automobile heating and cooling equipment in China and the designated supplier of military vehicles in China.8KW PTC technology heater is specially designed for electric vehicles and has the advantages of fast heating and environmental protection.
Description
8KW PTC Technology Heater
Products Description
Necessary conditions for heater:
- The heater is controlled by CAN communication
- High voltage power supply
- Low voltage power supply (BATT) or Kl15 (ignition switch voltage), Kl31 (GND)
- The heater needs to set a high voltage interlock circuit
- The whole vehicle must have an insulation monitoring device to monitor:
o Over (under) voltage protection
o Short circuit protection (fuse in the distribution box)
o Leakage protection
o Interlock response
- The high voltage electric heater must be equipped with a 40A fuse
- It must be ensured that the high voltage power supply has no reverse polarity
- The whole vehicle needs to be powered off when overvoltage occurs
- The high voltage input should be pre-charged
- The high voltage input should be equipped with a relay. When a serious fault occurs, the high voltage can be cut off without affecting the safety of the whole vehicle
Products Parameter
| Power | 8KW±10%(600VDC, T_In=60℃±5℃, flow=10L/min±0.5L/min) |
| Flow resistance | 4.6 ( Refrigerant T = 25 ℃, flow rate = 10L/min) KPa |
| Burst pressure | 0.6 MPa |
| Storage temperature | -40~105 ℃ |
| Use ambient temperature | -40~105 ℃ |
| Voltage range (high voltage) | 600V (450~750V) / 350V (250~450V) optional |
| Voltage range (low voltage) | 12V(9~16V) / 24V (16~32V) optional |
| Relative humidity | 5~95% |
| Supply current | 0~14.5 A |
| Inrush current | ≤25 A |
| Dark current | ≤0.1 mA |
| Insulation withstand voltage | 3500VDC/5mA/60s, no breakdown, flashover and other phenomena |
| Insulation resistance | 1000VDC/200MΩ/5s |
| Weight | ≤3.3 Kg |
| Discharge time | 5s (60V) |
| IP protection (PTC assembly) | IP67 |
| Heater air tightness Applied voltage | 0.4MPa, test 3min, leakage less than 500Par |
| Communication | CAN2.0 / Lin2.1 |
Power-on check
Only high voltage can be operated without limiting the performance of the heater.
After turning on or resetting the heater, the heater waits for a power request on the CAN bus. Once a valid power request is received, the power-on check starts.
First, the total current is checked when all heating circuits of the heater are not activated. If it exceeds a predetermined value, the heater is not working at this time, so this fault indicates a short circuit, leakage current or open circuit fault.

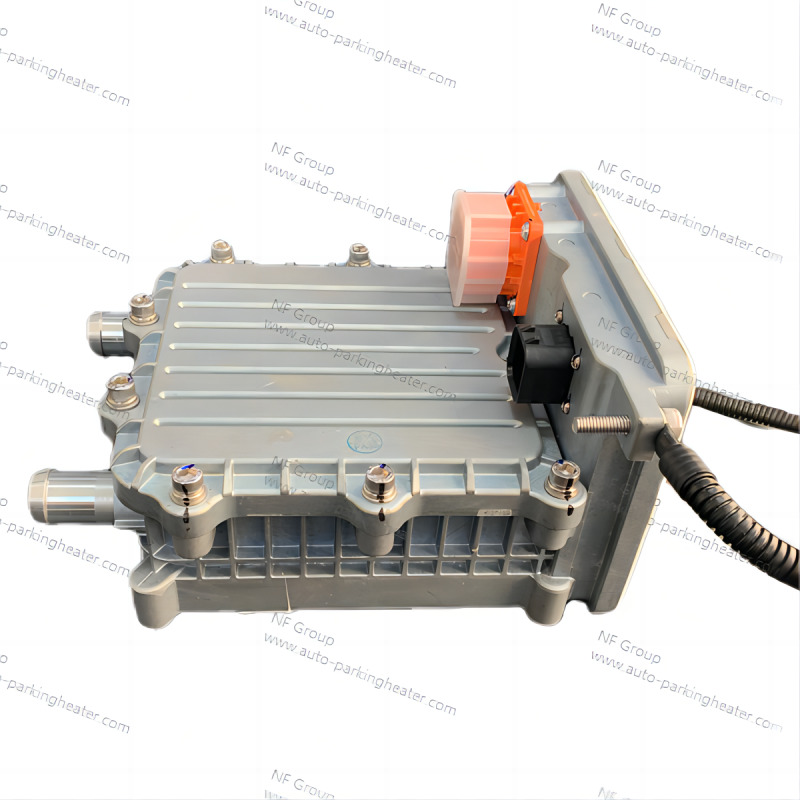

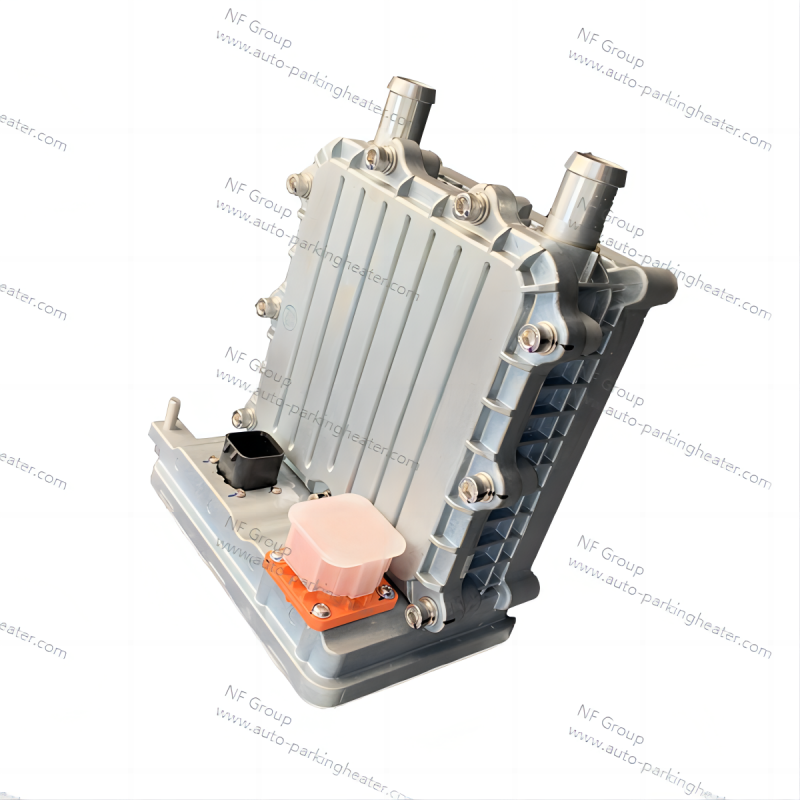

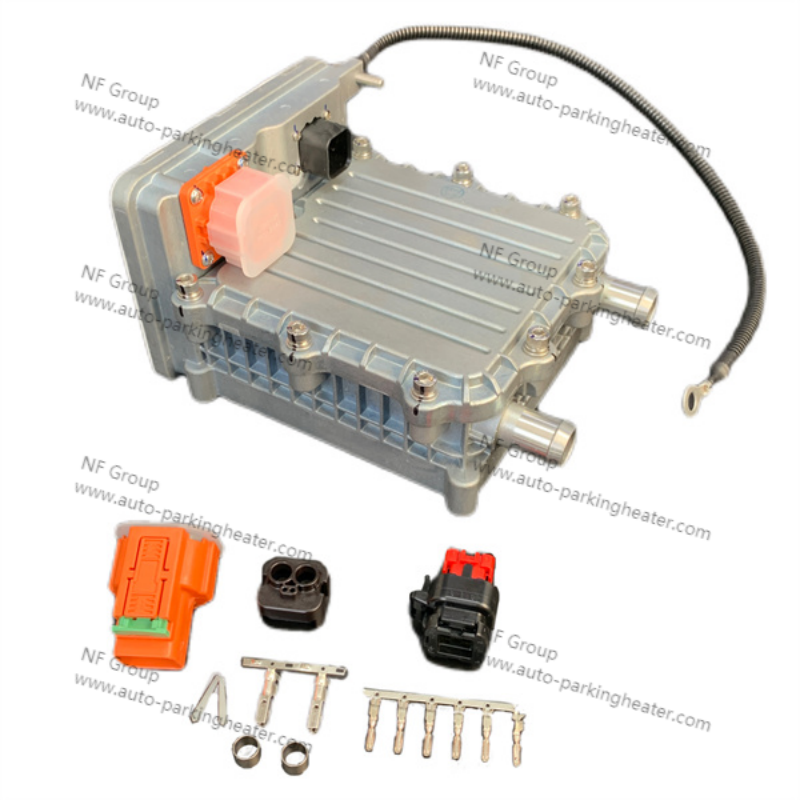

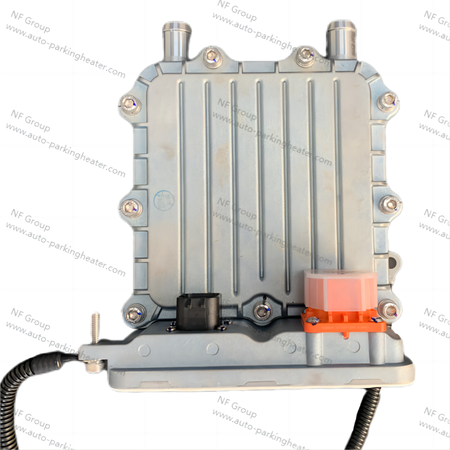

Products Details

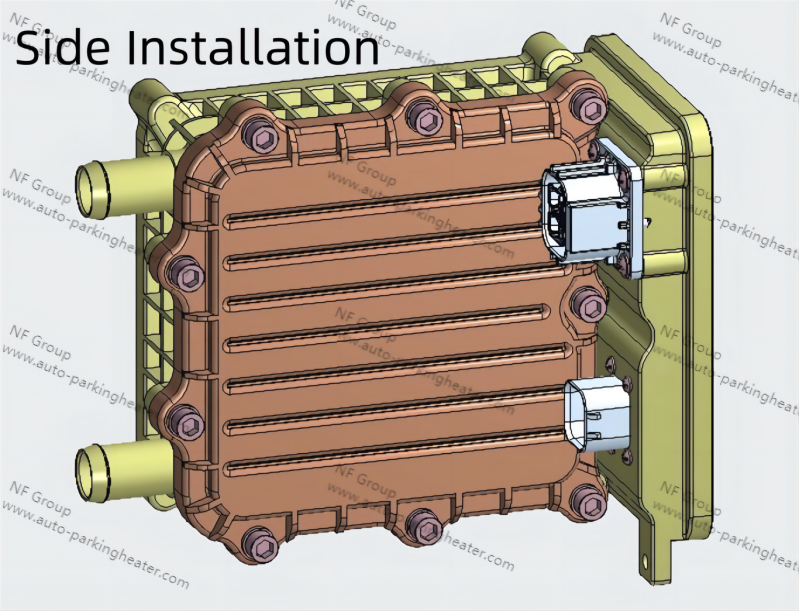

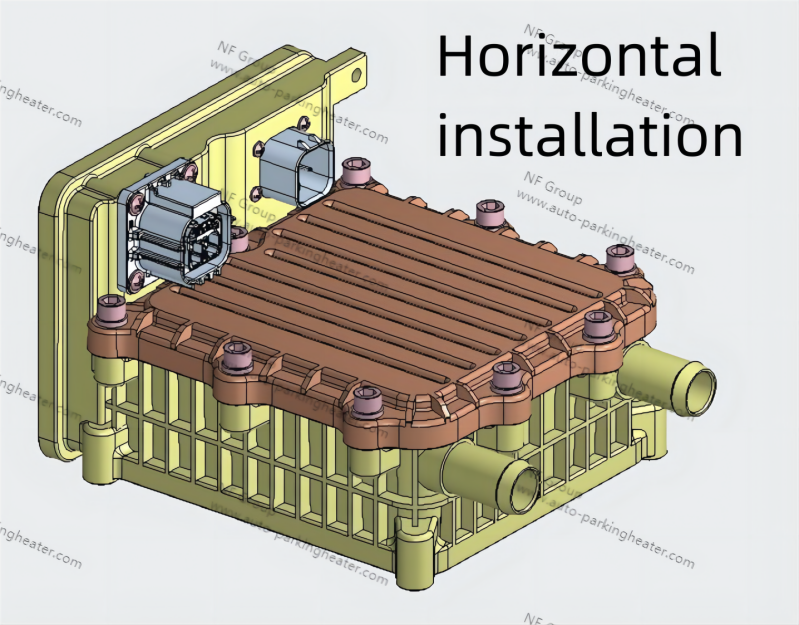

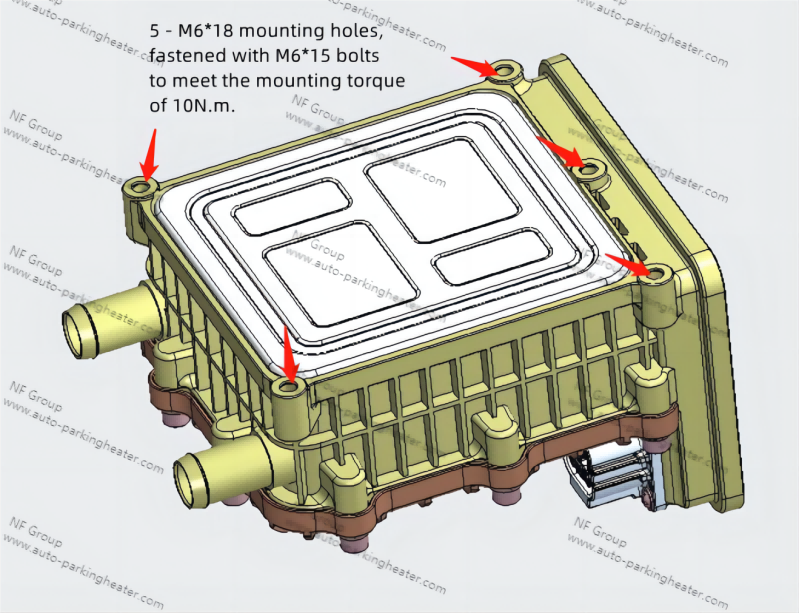

Products Installation

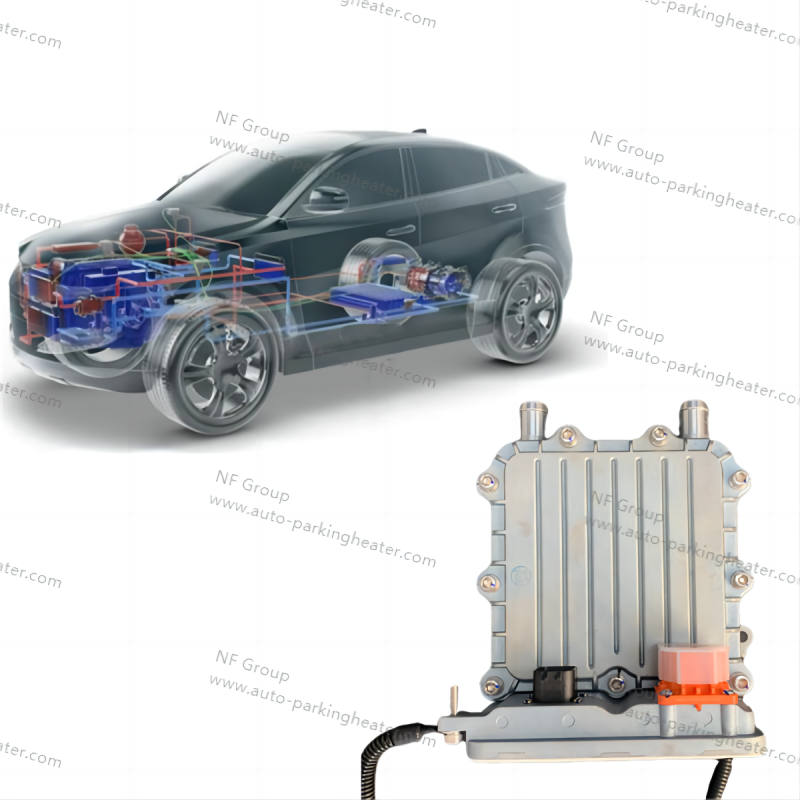

Products Application

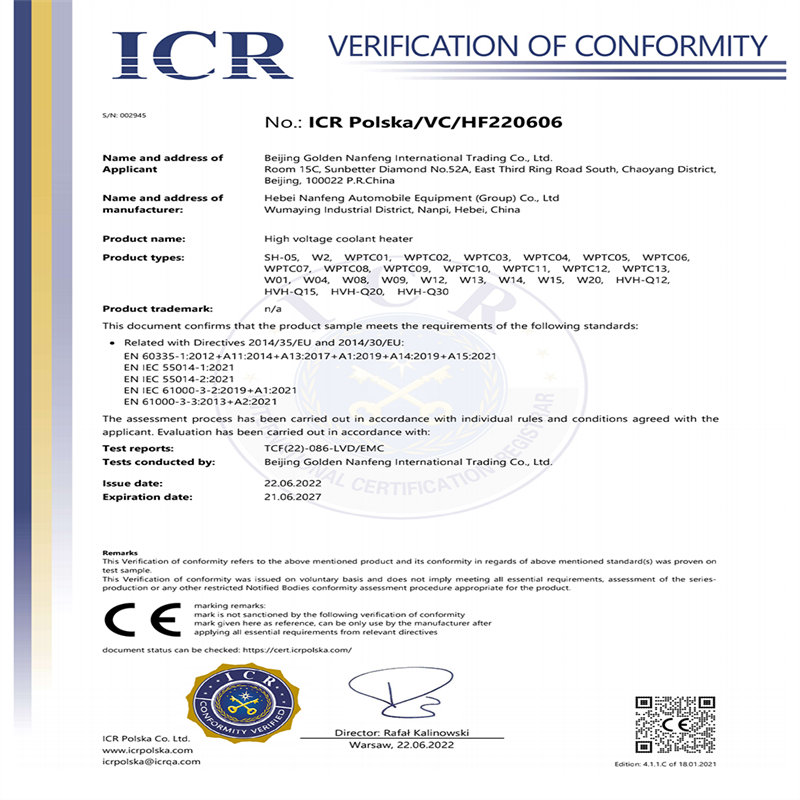

Products Certification
Our Company
Our Advantage
why choose us
only designated supplier of Chinese military vehicles
Our company has been producing heaters for more than 30 years, and is the only designated supplier of Chinese military vehicles.
One-stop Solution
We provide the best service according to your needs;We have a professional sales team to provide you quick and warm service throughout the whole process.
MOQ
Small quantity is acceptable.
high quality
Our products are of high quality at a cheap price and delivered on time.
