6kw Automotive High Voltage Coolant Heater

6kw Automotive High Voltage Coolant Heater



1、Product Introduction

The modern PTC heater for electric vehicles can provide heat to the cabin of new power units, fulfilling the principle of safety and ventilation. It also provides heat to other vehicle components that require temperature management, such as the battery.



Basic knowledge of PTC

PTC: Positive temperature coefficient (PTC for short); the PTC effect is the phenomenon that the resistance increases with the increase of temperature.
NTC: The opposite of the PTC effect is the NTC (Negative Temperature Coefficient negative temperature coefficient) effect.
Ceramic PTC resistor: a ceramic thermistor semiconductor resistor with PTC effect, the main material is PbxBa(1-x)TiO3.
PTC heater: Refers to all types of heaters that use ceramic PTC resistors as heating elements, including constant temperature PTC heaters, air-heated PTC heaters, water-heated PTC heaters, etc.



2、Product parameter

Item	W04-1	W04-2(Without controller)	W04-3
Heating output	5kw, 6kw, 7kw, 8kw @10L/min，T_in 40℃
Rated voltage(VDC)	600V	600V	350V
Working voltage(VDC)	450-750	450-750	250-450
Impulse current(A)	≤30@750V	≤30@750V	≤45@450V
Controller low voltage	9-16 or 16-32V	--	9-16 or 16-32V
Control signal	CAN2.0B	NTC + temperature control switch	CAN2.0B
Control model	Gear (3th gear)  or PWM	--	Gear (3th gear)  or PWM
Heater dimension	310*144*107.5mm
Installation dimension	144*128*119
Joint dimension	D20*22 (waterproof ring) mm
Heater weight	＜2.1kg
High voltage connector	JonHon  C10514N1-02-3-1
Low voltage connectors	320Q60A1-LVC-4 (Haichen A02-ECC)

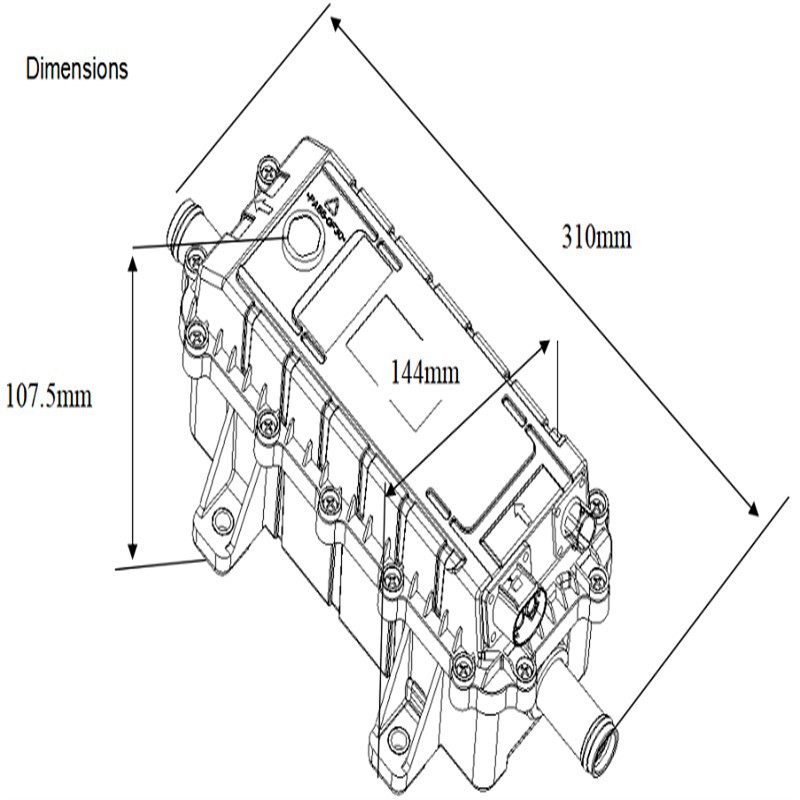

Product size



3、Power-on inspection

Only high voltage runs without limiting heater performance.
After turning on or resetting the heater, the heater waits for a power request on the CAN bus, and once a valid power request is received, the power-on check starts.
First, check the total current with all the heating circuits of the heater inactive. If it exceeds the predetermined value, the heater is not working at this time, so this fault indicates a short circuit, leakage current or open circuit fault.



4、Temperature setting

Temperature setting: PTC temperature setting, the precision is 1, and the offset is 0.
When the heating outlet temperature is < the set temperature Temperature setting, it will be heated according to the set power PTC power ratio; when the heating temperature is ≥ the set temperature, the power output will be automatically reduced to achieve constant temperature control.
Temperature setting: The data range is 0-80°C. When the setting exceeds 80°C, it will work according to the set temperature of 80°C.

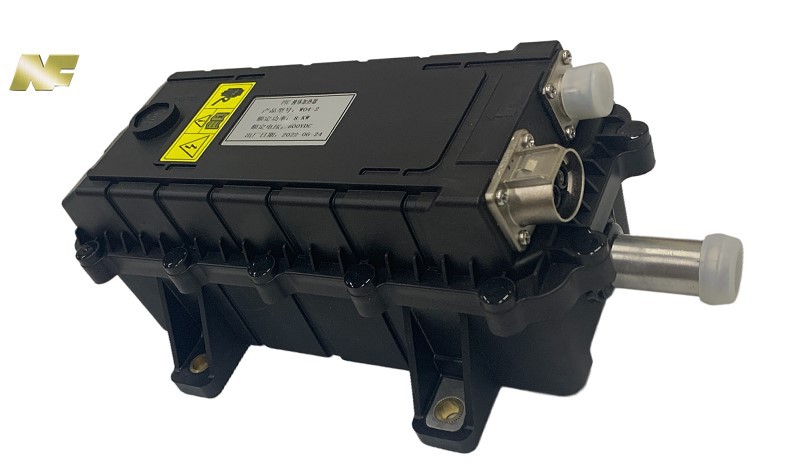

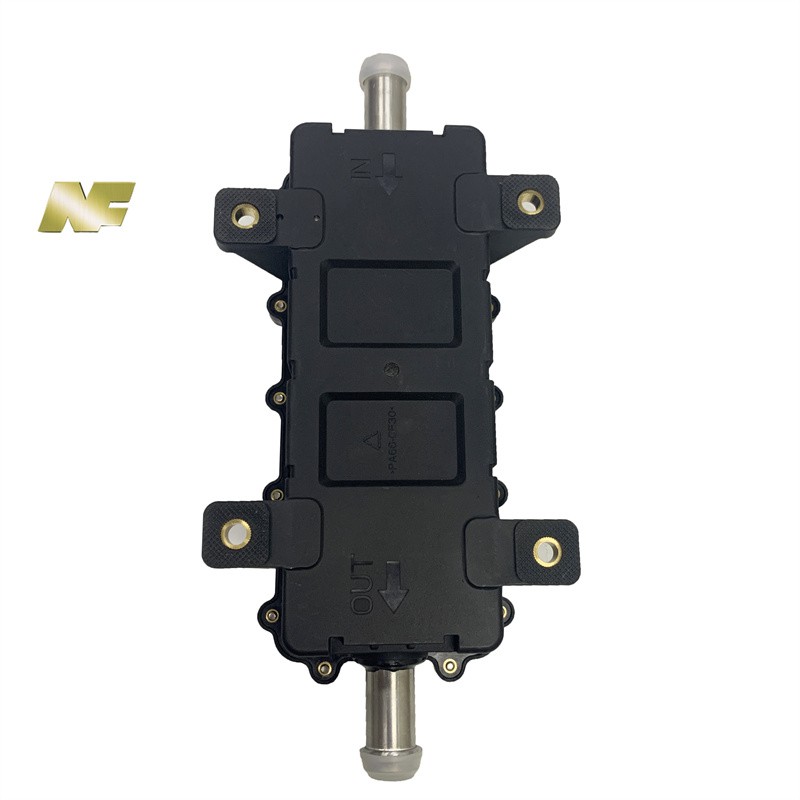

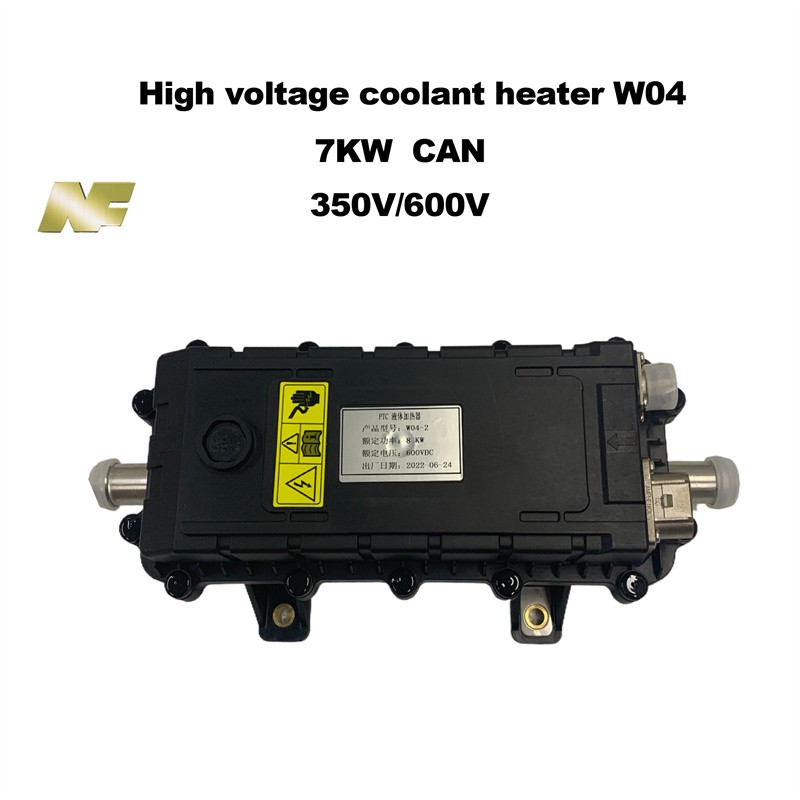

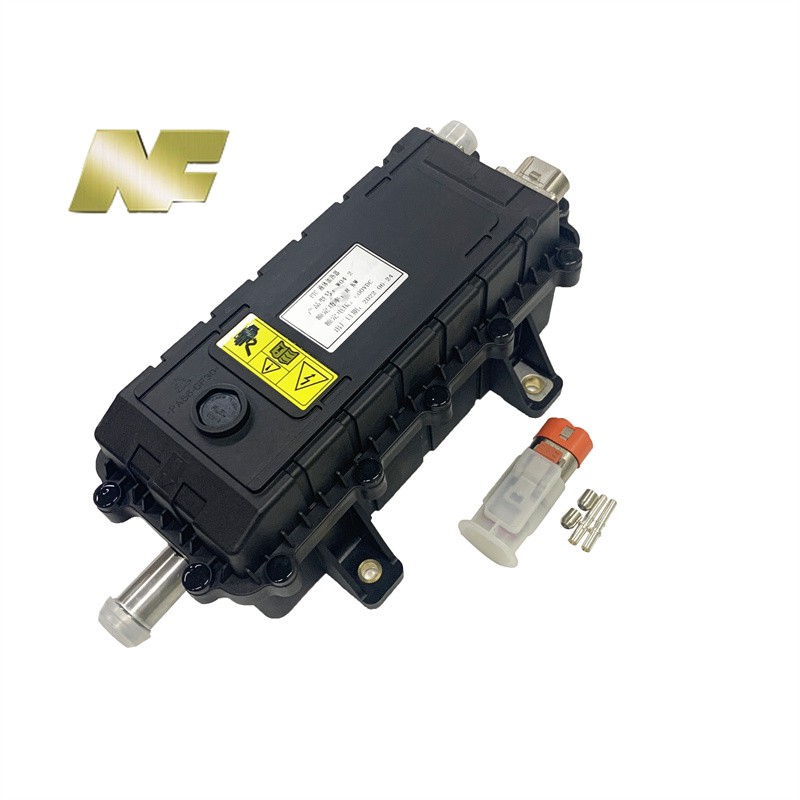

5、Product detail

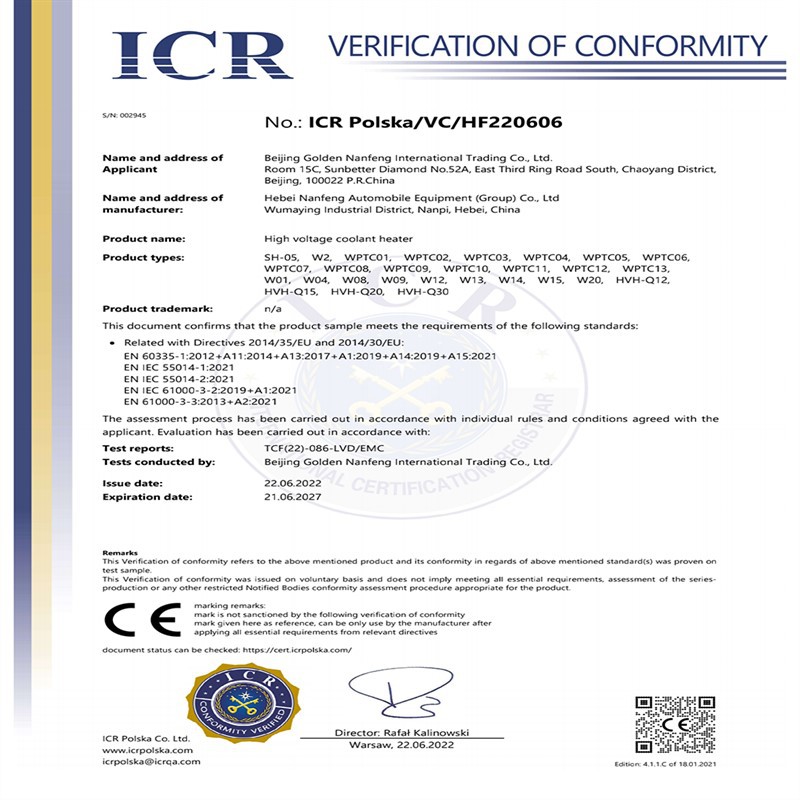

6、Product certification



7、Product application

8、FAQ

1、Q:Are you a manufacturer, trading company or a third party?
A:We are a manufacturer, and our company has been established for over 30 years.
2、Q:Where is your factory located?
A:It lies in the industrial area of Wumaying of Nanpi county of province Hebei, covers an area of 80,000㎡.
3、Q:What is the delivery time of your product?
A: Generally, the product delivery time is within 30 days after payment, but special circumstances are not excluded.
4、Q:How can i trust your company?
A:Our company has been producing heaters for more than 30 years, and has five factories, and is also the only designated supplier of Chinese military vehicles. You can completely trust us.
5、Q:What type of your product?
A:Our products include air parking heater、water parking heater、caravan air and water combi heater、electric vehicle parts、heater parts and parking air conditioner.
