8KW PTC High Voltage Coolant Heater video

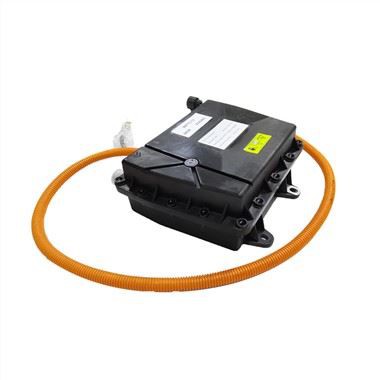

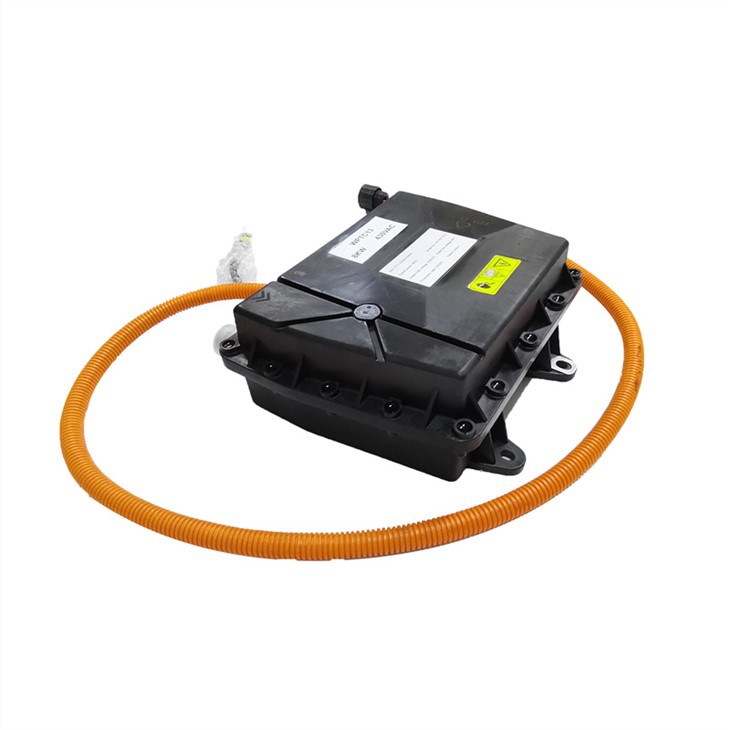

8KW PTC High Voltage Coolant Heater

PTC Water Heater can provide heat for the cockpit of new energy vehicles and meet the standard of safe defrosting and defogging. At the same time, it provides heat to other parts of the vehicle that require temperature regulation.

Description

8KW PTC High Voltage Coolant Heater


Product Description

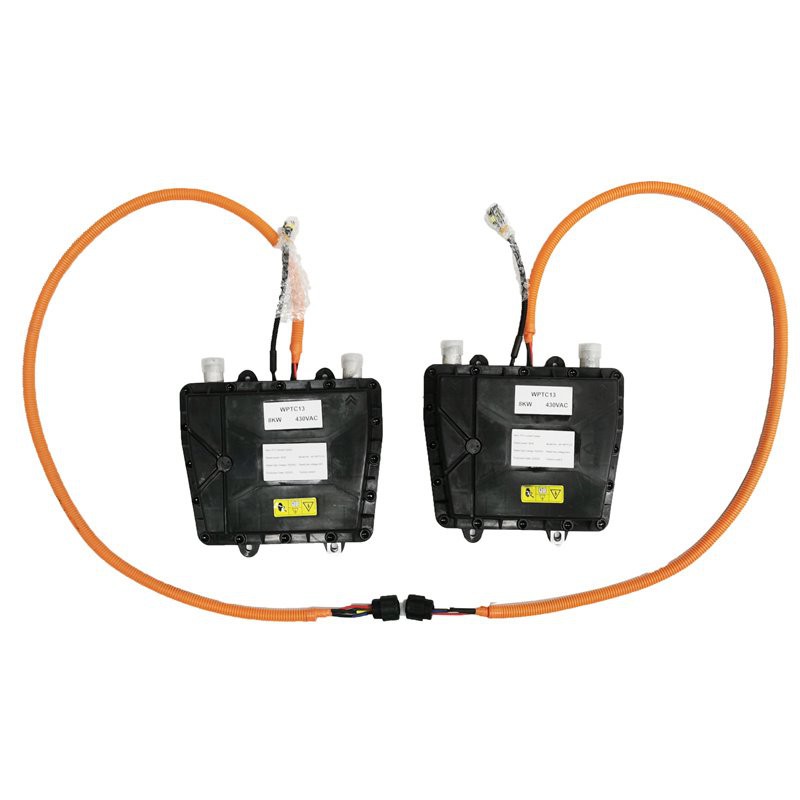

heater

Features

• use electric heating antifreeze to heat the interior of the vehicle through the heater core.

• Installed in a water-cooled circulating system.

• The heater is gentle and temperature-controlled The power of IGBT is regulated by PWM.

• It has a short-term heat storage function.

• Cycle the vehicle to support battery heat management.

• Environmental Protection.



Product Parameters

Item
WPTC-13
Rated voltage(VAC)
430VAC (323-552VAC/50Hz&60Hz, three-phase four-wire power supply), inrush current I≤30A;
Ambient temperature:
-40~105℃
Ambient humidity:
 5%~90%RH
Medium:
50% water/50% ethylene glycol
 Heater protection grade:
IP67
Heater weight:
3.7±0.1Kg
 Heater air tightness:
apply pressure 0.6MPa, test for 3min, the leakage is less than 500Pa


coolant heater details (2).jpg

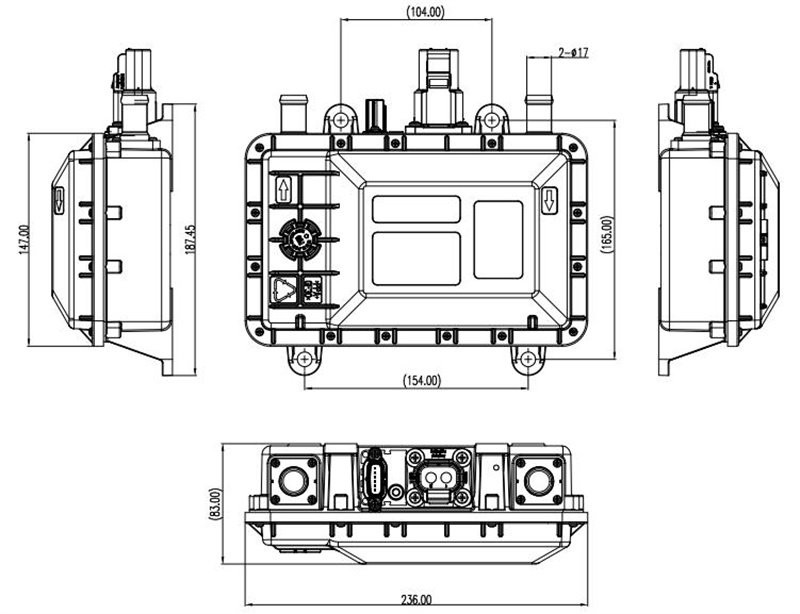

PTC coolant heaters

Installation Advice

coolant heater installation.jpg

To ensure maximum energy efficiency of the plumbing PTC, the following points should be noted during installation:

  • The PTC shall be at its highest point below the expansion tank.

  • Pump no higher than PTC.

  • PTC should be installed after the pump and before the heater core.

  • Pay attention to the direction of PTC entering and leaving the water.

  • PTC before the first work, or after the maintenance of pipeline components should make the pump first operation, and confirm that the exhaust, and then to PTC power.


Product Details

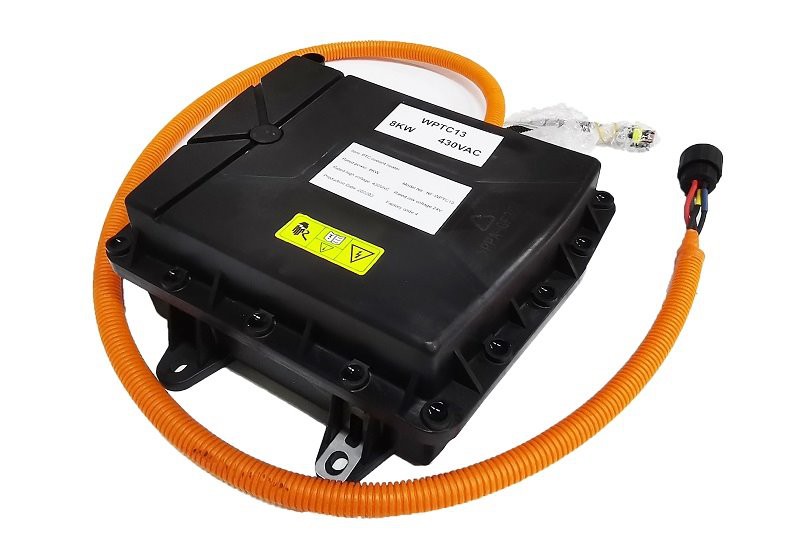

coolant heater.jpg

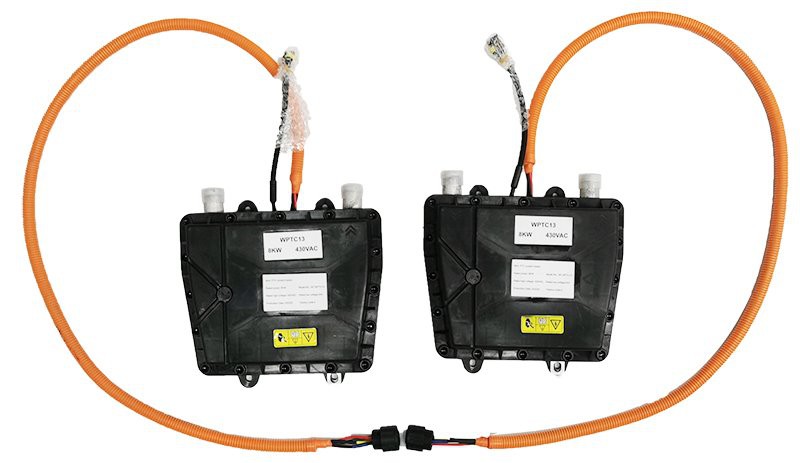

high voltage heater.jpg




Certification


Certificate_800

Shipping and Application


heater for EV.jpg


coolant heater application.jpg



shipping picture04


If you're looking for the 8kw ptc high voltage coolant heater, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
