8kw Battery Coolant Heater For EV

8kw Battery Coolant Heater For EV

1、Product Introduction



PTC water heaters can heat the cab of new energy vehicles and meet safe defrosting and demisting standards. At the same time, it provides heat to other vehicles that need temperature control (such as the battery).



2、Product Feature

(1)Electricity is used to heat the antifreeze, and a heating element is used to heat the interior of the car. It is installed in the water cooling system.

(2)Warm air and temperature control.

(3)Using a PWM controller to control the power supply to the IGBT, with short-term heat storage function.

(4)Complete the vehicle cycle, support battery temperature management and environmental protection.



3、Product Parameter

Model	WPTC07-1
Rated power (kw)	8KW±10%@10L/min，Tin=0℃
OEM Power(kw)	6KW/7KW/8KW/9KW/10KW
Rated Voltage(VDC)	350v
Working Voltage	250~450v
Controller low voltage (V)	9-16 or 18-32
Communication protocol	CAN
Power adjust method	Gear Control
Connector IP ratng	IP67
Medium type	Water: ethylene glycol /50：50
Overall dimension (L*W*H)	236*147*83mm
Installation dimension	154 (104)*165mm
Joint dimension	φ20mm
High voltage connector model	HVC2P28MV102, HVC2P28MV104 (Amphenol)
Low voltage connector model	A02-ECC320Q60A1-LVC-4(A) (Sumitomo adaptive drive module)

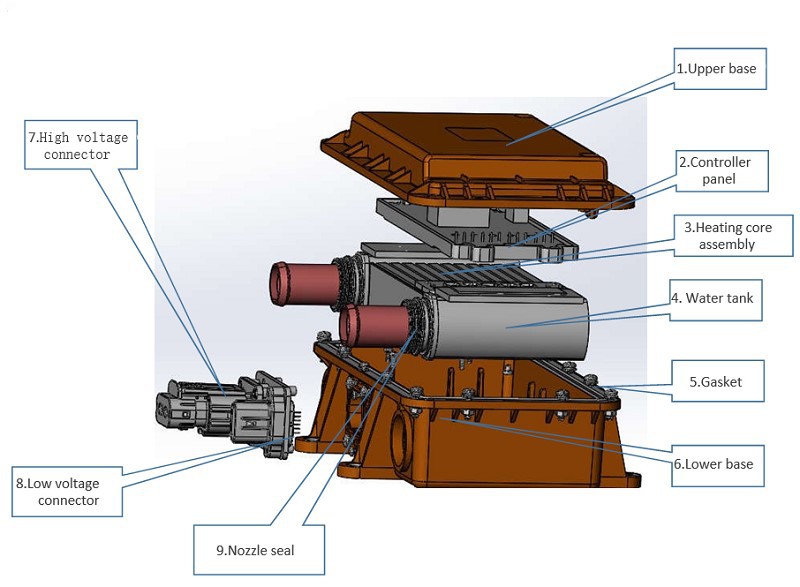

4、Product Structure





5、Product Details





6、Product Application



7、Our Advantage

1.easy to installation
2.Smooth operating with no noise
3.Strict quality management system
4.Superior equipment
5.Professional services
6.OEM/ODM services
7.Offer sample
8.High quality products
1) Variety types for selection
2) Competitive price
3) Prompt delivery





If you're looking for the 8kw battery coolant heater for ev, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
