3KW Electric Vehicle PTC Coolant Heater
Hebei Nanfeng Group has been producing heaters for more than 30 years, and our company is the largest manufacturer of automobile heating and cooling equipment in China and the designated supplier of military vehicles in China. Key markets targeted include electric vehicles. battery thermal management and HVAC refrigeration units. At the same time, we also cooperate with Bosch, and our product quality and production line have been highly recoanized by Bosch.
Description

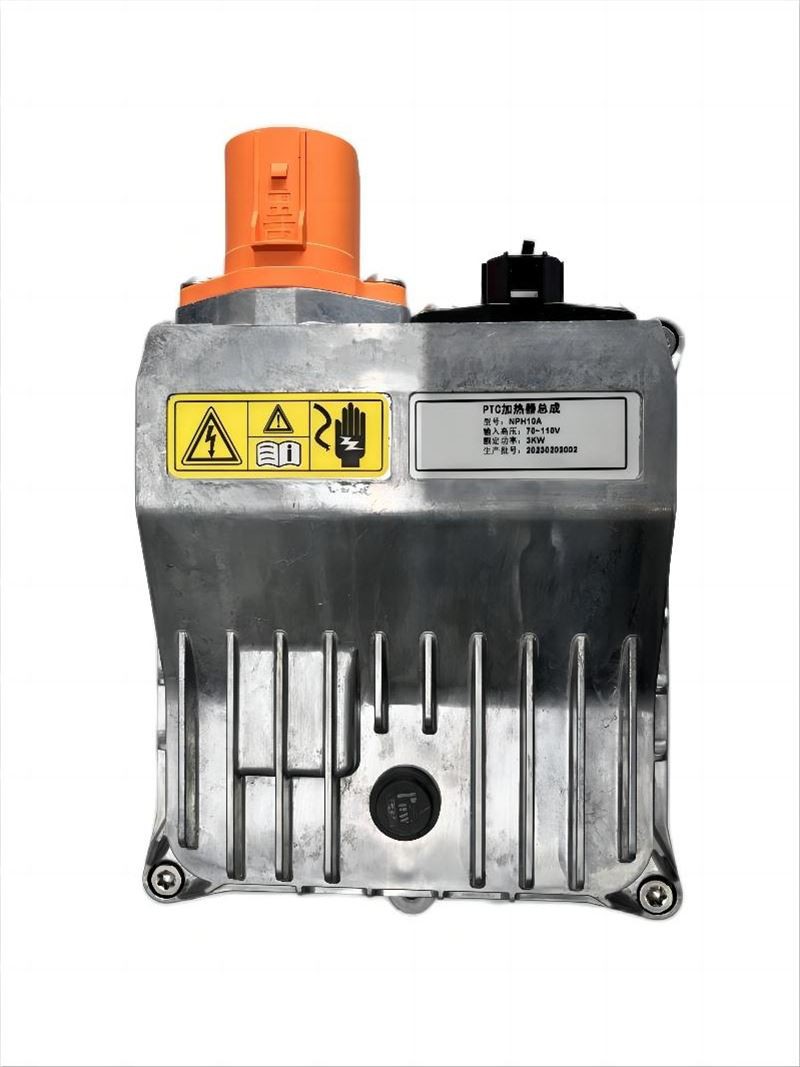

3KW Electric Vehicle PTC Coolant Heater
Products Description
Electric vehicles are gaining popularity due to their eco-friendly nature and cost-effectiveness. However, during cold weather conditions, electric vehicles may have lower range capacity, making it challenging for drivers, especially those living in areas with a harsh climate. To address this issue, PTC electric heaters have been developed for electric vehicles, providing an efficient, reliable, and safe heating solution.
The 3kW PTC electric heater for electric vehicles is a compact and energy-efficient device that can quickly heat the passenger compartment. The PTC technology (Positive Temperature Coefficient) used in this heater involves ceramic heating elements with self-regulation heating properties that ensure uniform heating without any hotspots. These heating elements are highly efficient and draw less power, providing higher heat output with minimal energy consumption.
Applications:
The 3kW PTC electric heater is designed for use in electric vehicles and is suitable for a range of applications, including:
1. Passenger Compartment Heating: The heater can be installed in the cabin of the electric vehicle and quickly heat the entire passenger compartment, ensuring a comfortable driving experience.
2. Battery Heating: The heater can also be used to heat the battery compartment, which is essential in cold weather conditions, as it helps to improve battery performance and extend its life.
3. Pre-Heating: The heater can be used to pre-heat the cabin and battery compartment before starting the vehicle, reducing power consumption and improving range capacity.
Products Parameter
| Low voltage range | 9-36V |
| Rated power | 3KW |
| High voltage range | 70-110V |
| Insulation resistance | voltage 500VDC,test for 60s,insulation resistance 100MQ |
| Nsulation withstand voltage |
voltage 1220VAC,50Hz,no damage to the insulation layerafter testing,for 60s,leakage current 10mA |
| Working temperature | -40 ~+85℃ |
| Storage temperature | -40 ~+105℃ |
| Coolant temperature | 40 ~+90℃ |
| Protection level | IP67 |
| Product weight | 2.1KG±5% |

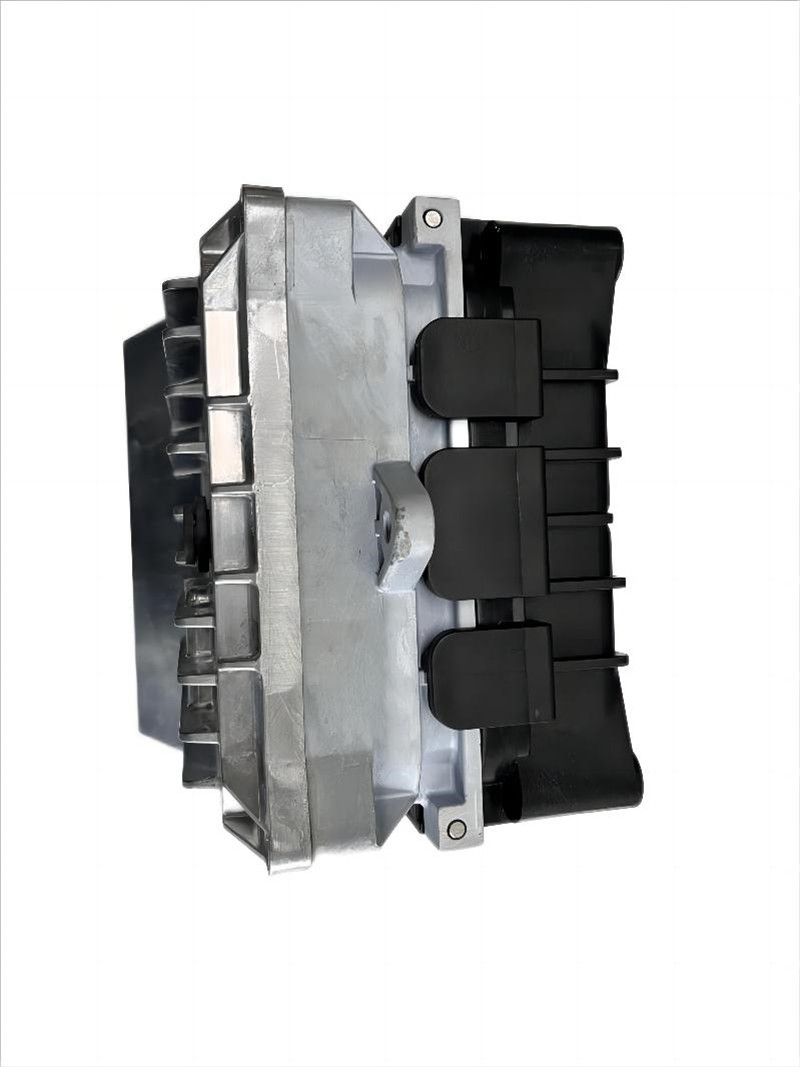

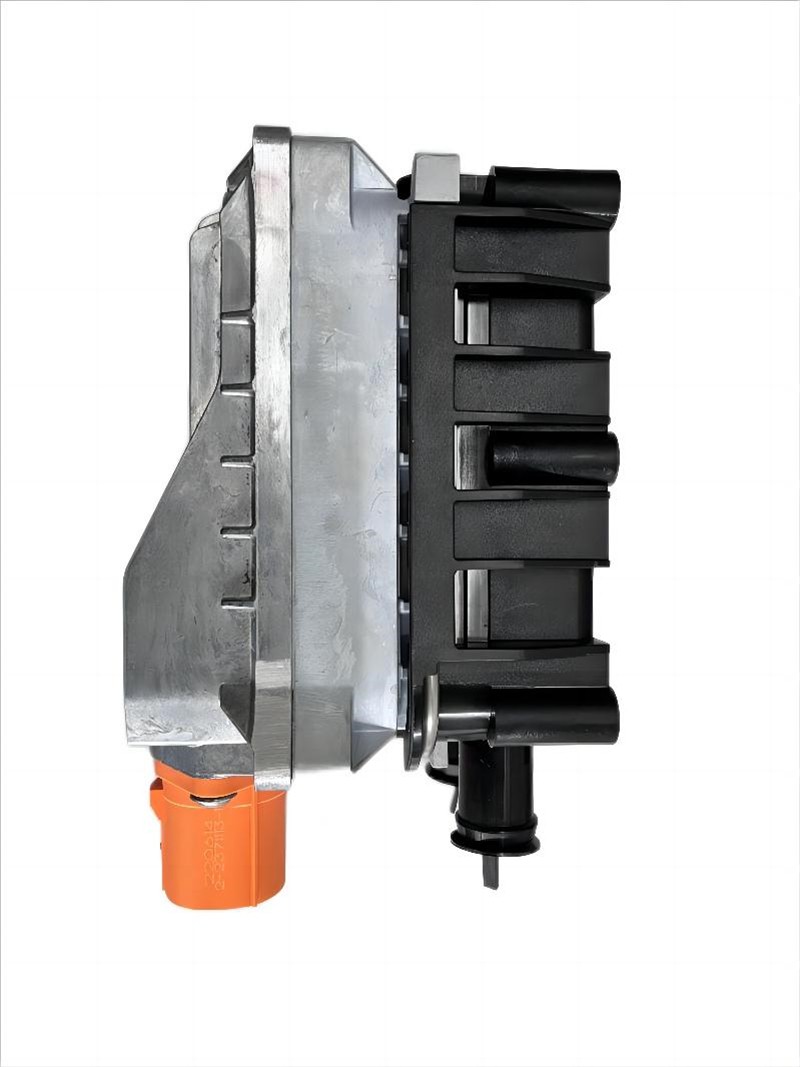

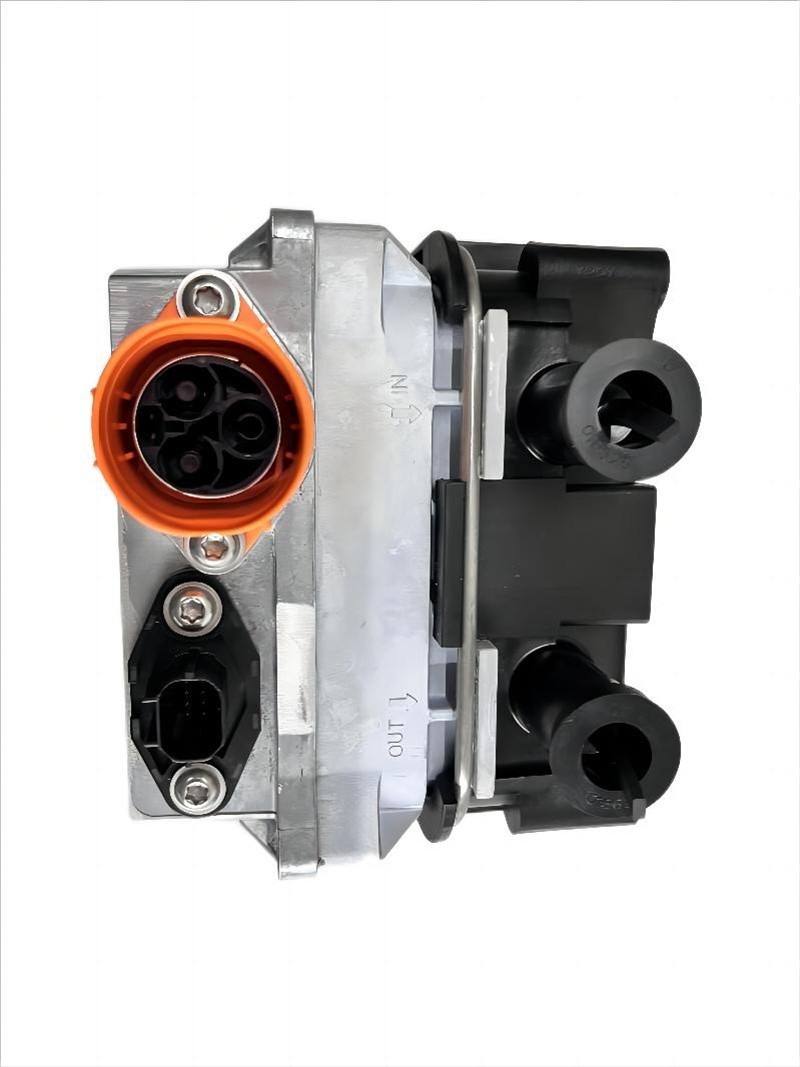

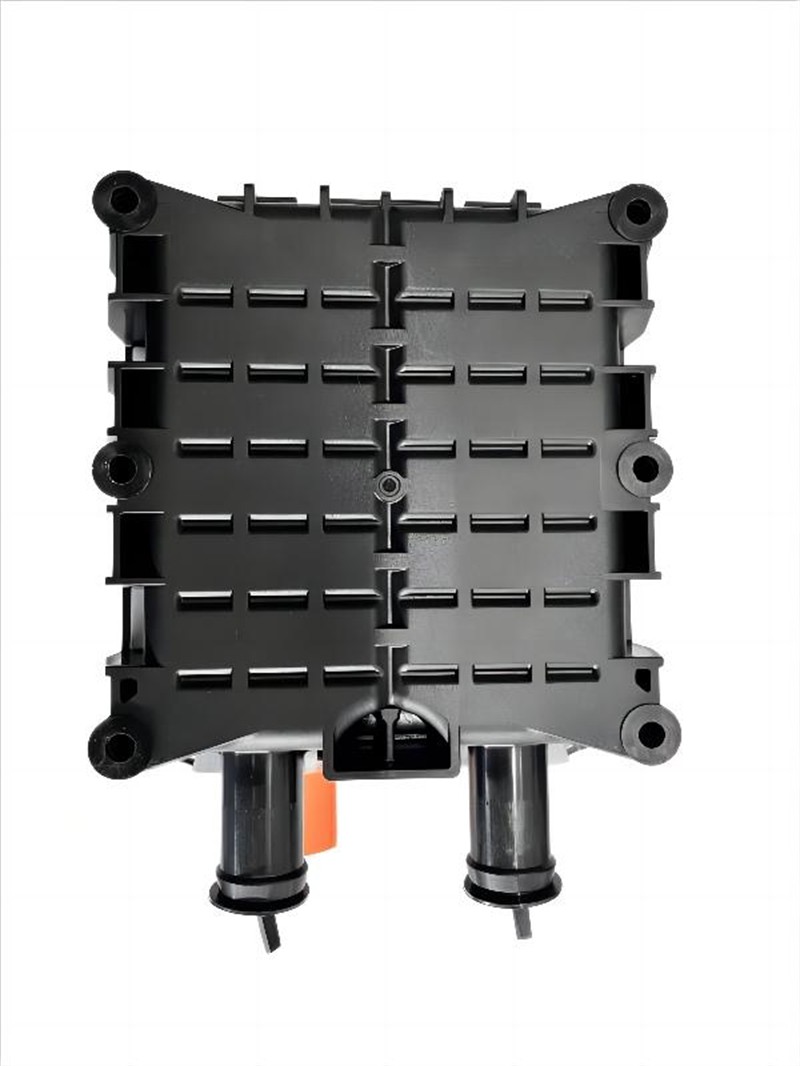

Products Details
Products Application
Products Advantages
The 3kw PTC electric heater for electric vehicles comes with several advantages, including:
1. Efficiency: The heater uses PTC technology that is highly efficient and consumes minimal power.
2. Safety: The heater has a robust and reliable design, ensuring safe and secure operation.
3. Easy Installation: The compact design of the heater makes it easy to install in electric vehicles.
4. Improved Range Performance: The use of the heater helps to improve battery performance, reducing the impact of cold weather on the electric vehicle's range capacity.
USP: Unique Selling Point
Fully independent research and development, sufficient chip supply, and controllable delivery time;
More than 90% of parts are self-made, with strong vertical integration capabilities;
Professional CAE analysis team;
CNAS certified laboratory;
Products in the full power range, complete series.
UTP: Unique Technical point
The heating shell of the product is integrally formed by die-casting. The product has high reliability, high thermal efficiency and high cleanliness;
The heating shell adopts low ion precipitation material and unique surface treatment technology, so the product ion precipitation rate is low;
Double flow channel design, low flow resistance;
Plastic shell, flow channel and shell insulation design, good insulation;
Compact shape and small size, easy for system layout;
Comply with functional safety design.

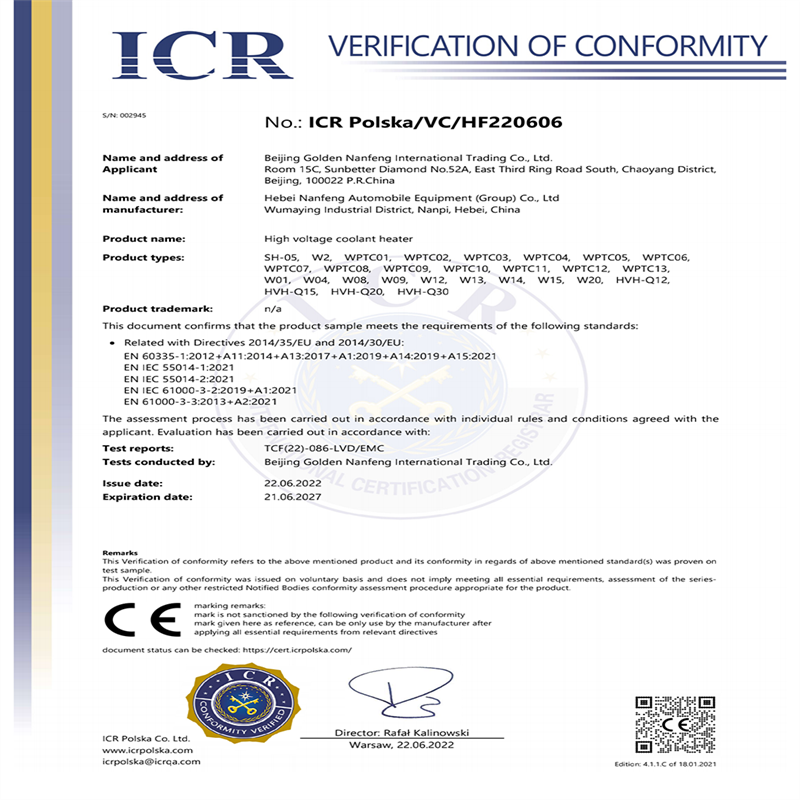

Products Certification
