24KW High Voltage Coolant Heater For Ev Car

Name: 24KW High Voltage Coolant Heater For Ev Car
Brand: Nanfeng
SKU: 243043137

Hebei Nanfeng Group has been producing heaters for more than 30 years, and our company is the largest manufacturer of automobile heating and cooling equipment in China and the designated supplier of military vehicles in China. Key markets targeted include electric vehicles. battery thermal management and HVAC refrigeration units. At the same time, we also cooperate with Bosch, and our product quality and production line have been highly recoanized by Bosch.

Send Inquiry

Description

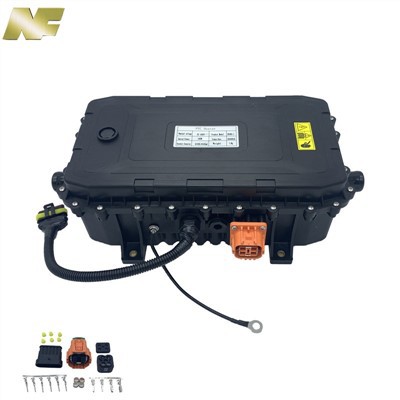

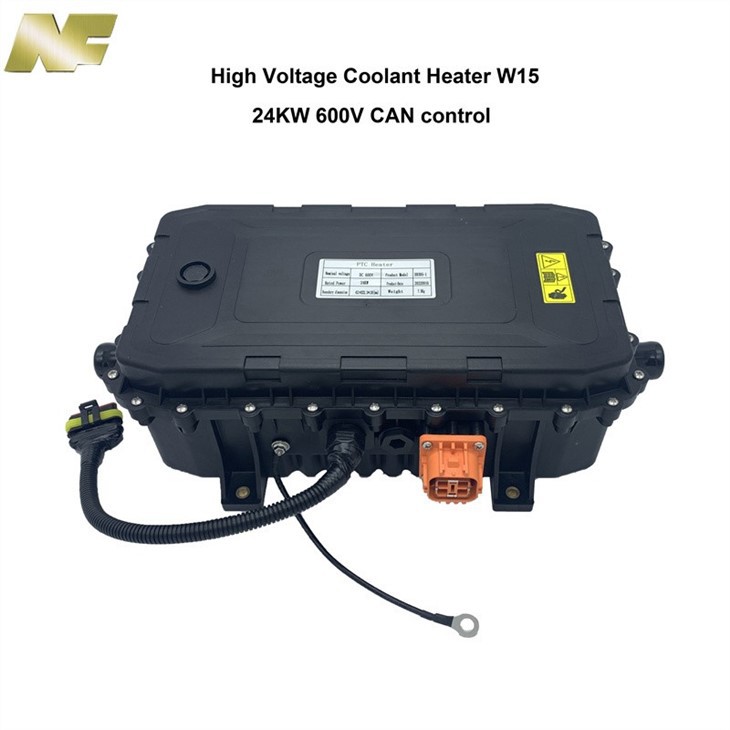

24KW High Voltage Coolant Heater For Ev Car

our Product

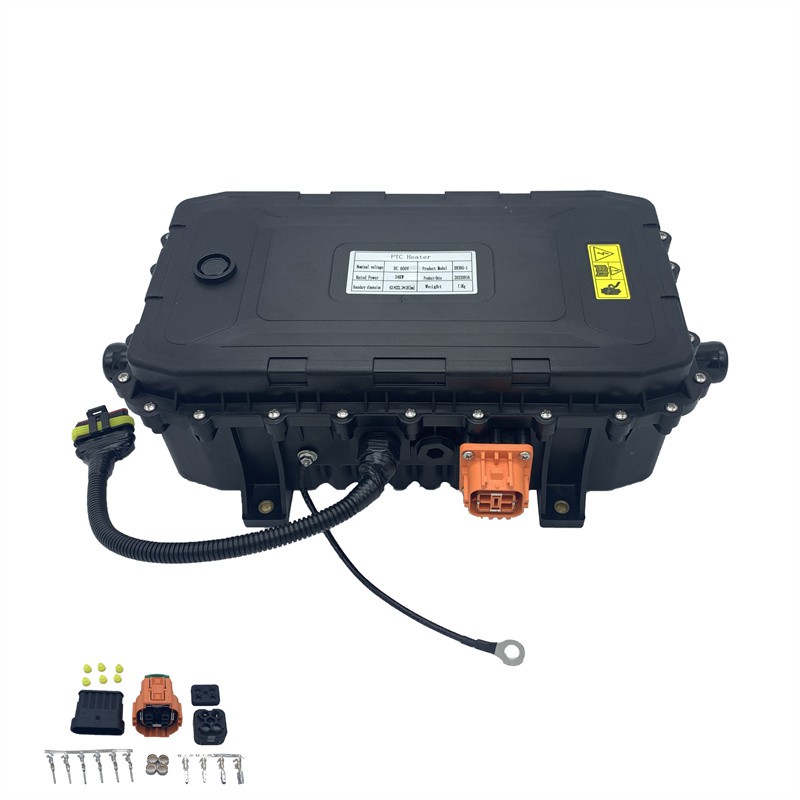

PTC HEATER

Product Description

The heater is mainly used to heat the passenger compartment, defrost and defog the windows, or preheat the battery of the battery thermal management system to meet the corresponding regulations and functional requirements.

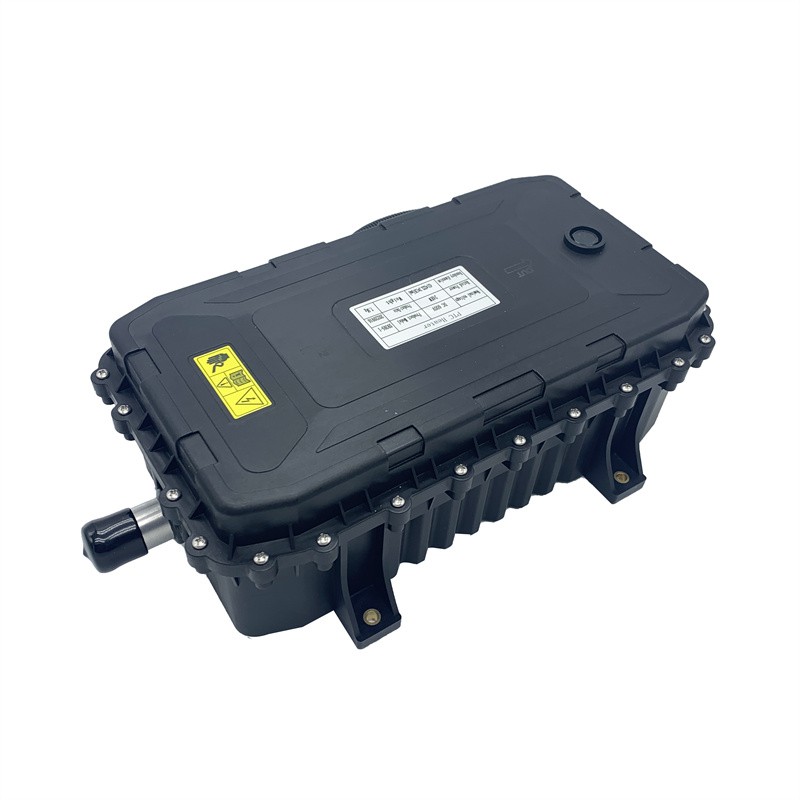

HVAC HEATER

Product Function

The main functions of the integrated circuit water heating electric heater are:
-Control function: The heater control mode is power control and temperature control;
-Heating function: electrical energy is converted into thermal energy;

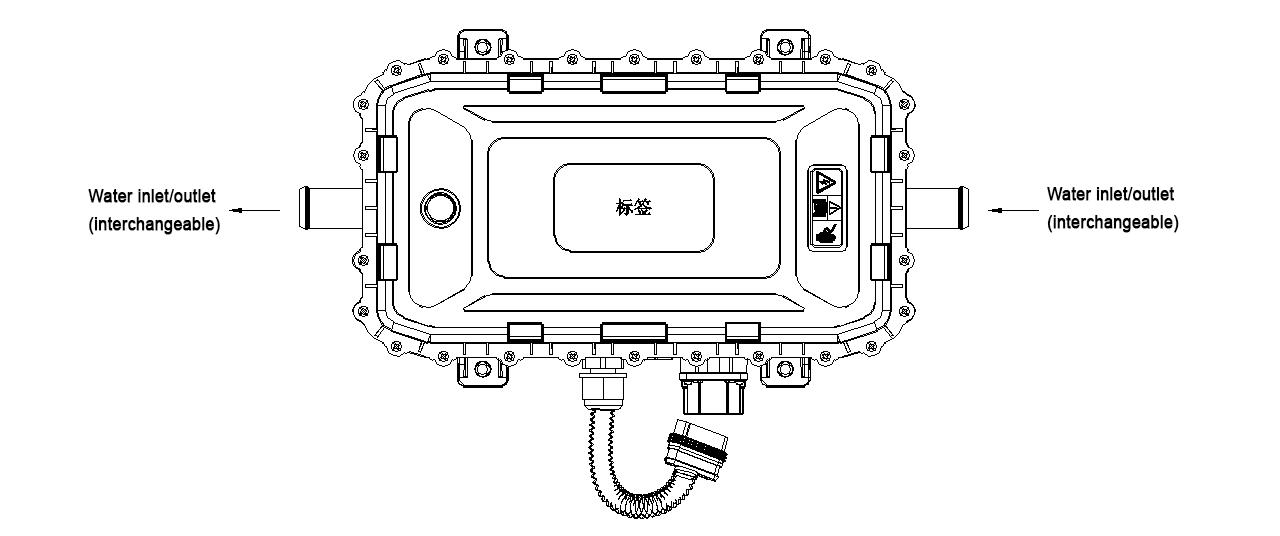

-Interface function: heating module and control module energy input, signal module input, grounding, water inlet, and outlet.

Basic feature

Low voltage range	9-32V
Rated power	24KW
High voltage range	400-750V
Insulation resistance	voltage 500VDC,test for 60s,insulation resistance 100MQ
Nsulation withstand voltage	voltage 1220VAC,50Hz,no damage to the insulation layerafter testing,for 60s,leakage current 10mA
Working temperature	-40 ~+110℃
Storage temperature	-40 ~+120℃
Coolant temperature	40 ~+85℃
Product weight	7.5KG±5%

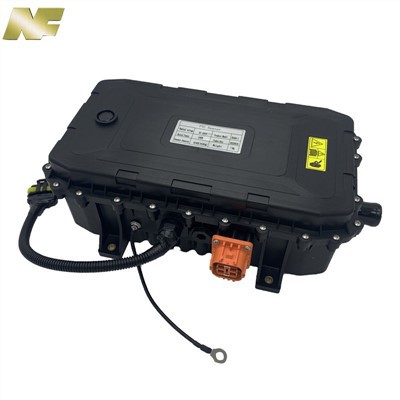

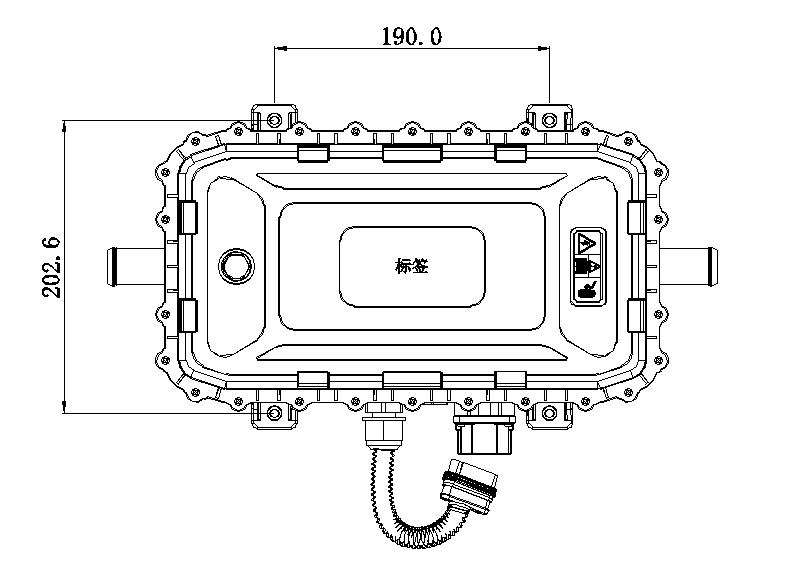

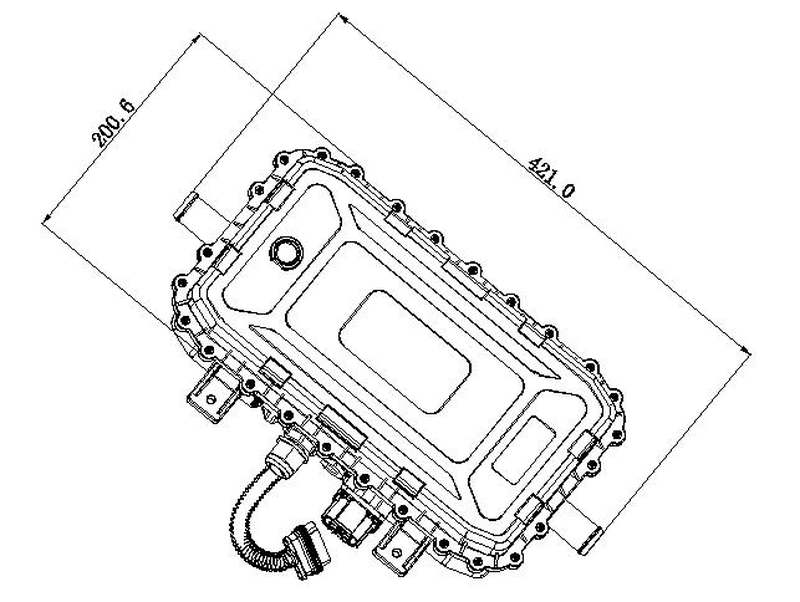

Detail image

why choose us?

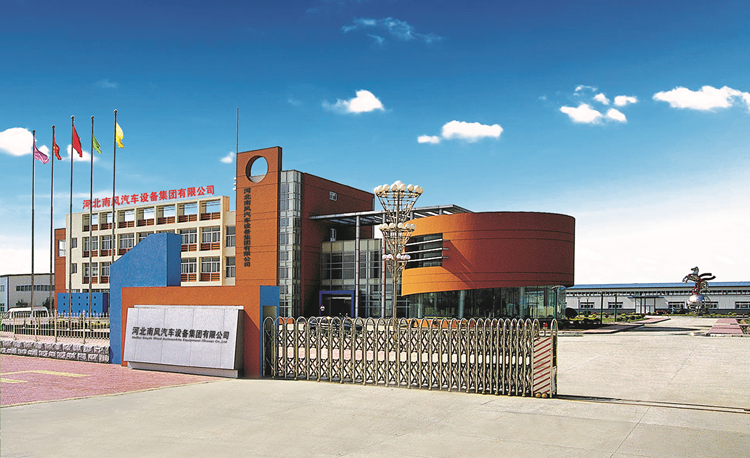

Hebei Nanfeng Automobile Equipment Group Co., Ltd. is a leading supplier in the manufacturing of EV parts in China. We specialize in the production of high-voltage coolant heaters, PTC air heaters, electronic water pumps, electronic defrosters, and heat exchangers.
