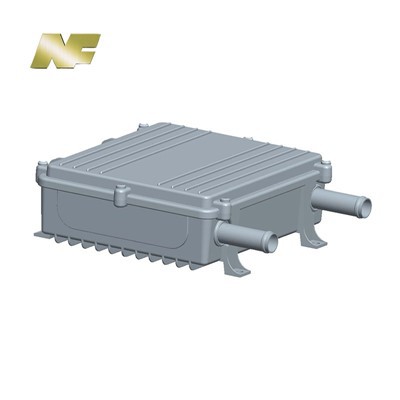

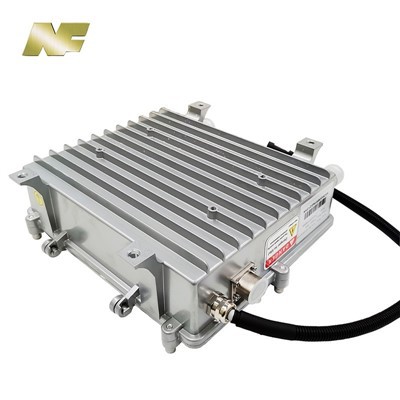

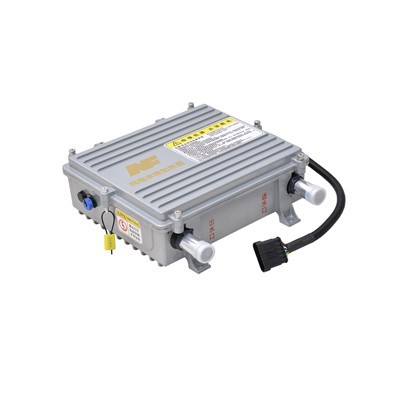

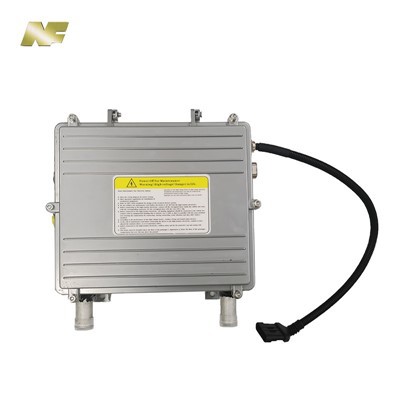

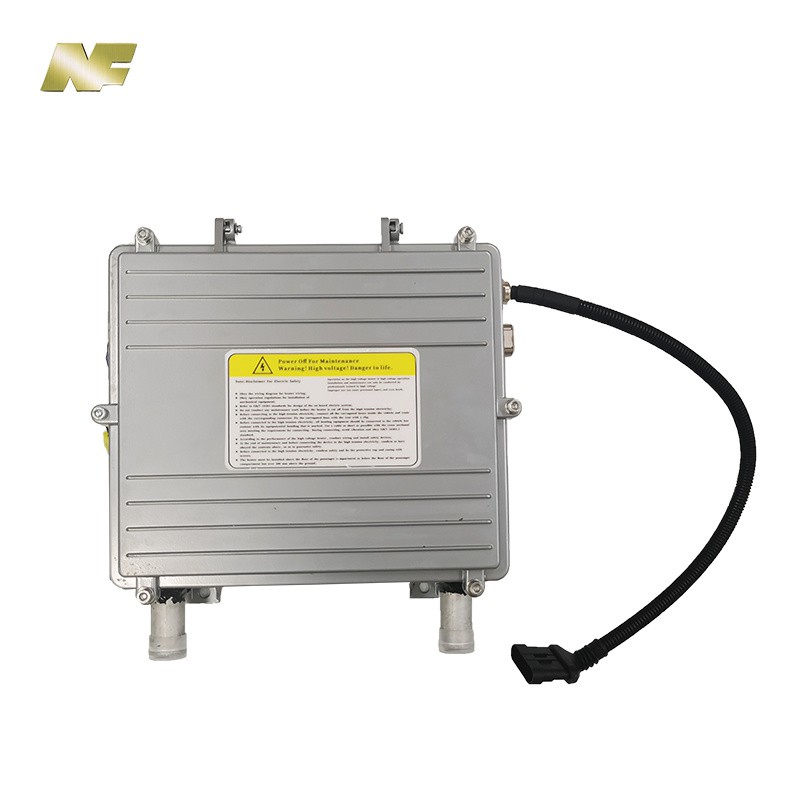

20kw Electric Bus PTC High Voltage Heater
20KW HV coolant heater for new energy vehicles is suitable for electric / hybrid / fuel cell vehicles and is mainly used as the main heat source for temperature regulation in the vehicle. The PTC electric heater is applicable to both vehicle driving mode and parking mode. In the heating process, electric energy is effectively converted into heat energy by PTC components.
Description

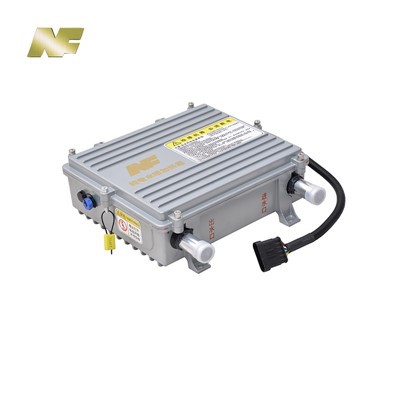

20kw Electric Bus PTC High Voltage Heater
Products Description
Advantages of PTC heaters
High security: PTC material has the characteristics of self-regulating temperature, which can prevent overheating, reduce fire risks and improve safety.
high efficiency: PTC heaters can heat up quickly, provide instant heat output, and are highly efficient.
Strong reliability: Due to the robust properties of PTC materials and simple structural design, PTC heaters have a long service life and low maintenance costs.
Energy saving and environmental protection: The PTC heater automatically adjusts the power output according to actual needs, avoiding energy waste and achieving significant energy saving effects.
PTC Liquid Heaters
Description: These heaters are used to heat liquids such as water, oil, or coolants.
Applications: Automotive cooling systems, water heaters, industrial fluid heating.
Features:
Efficient heat transfer to liquids.
Safe operation due to self-limiting properties.
Corrosion-resistant materials for durability.

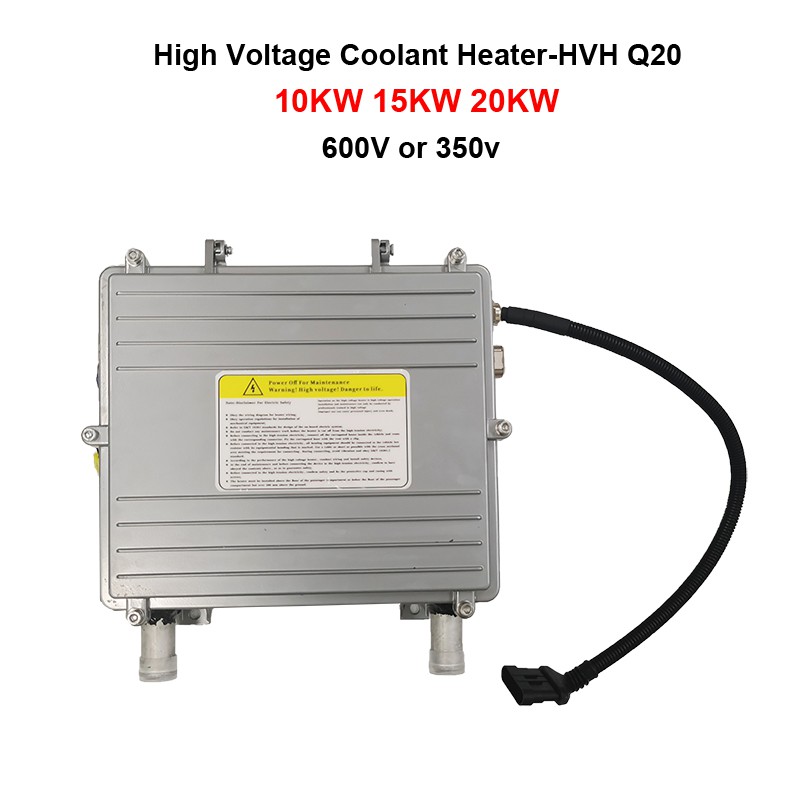

| Power (KW) | 10KW | 15KW | 20KW |
| Rated voltage(V) | 600V | 600V | 600V |
| Supply voltage (V) | 450-750V | 450-750V | 450-750V |
| Current consumption (A) | ≈17A | ≈25A | ≈33A |
| Flow (L/h) | ＞1800 | ＞1800 | ＞1800 |
| Weight (kg) | 8kg | 9kg | 10kg |
| Installation size | 179x273 | 179x273 | 179x273 |
| Control signal | Rocker switch hardwire control | Rocker switch hardwire control | Rocker switch hardwire control |

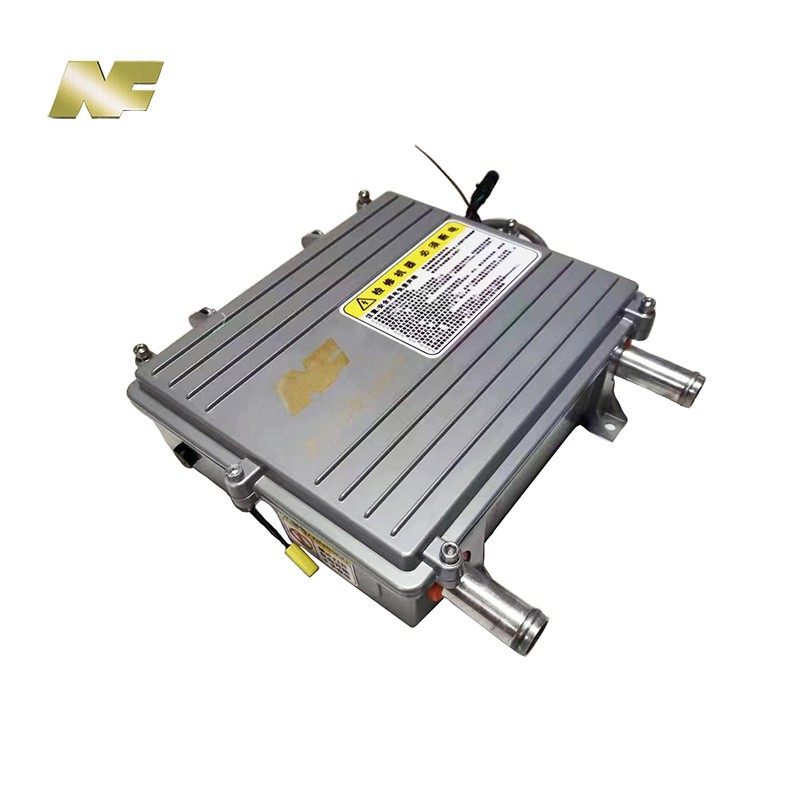

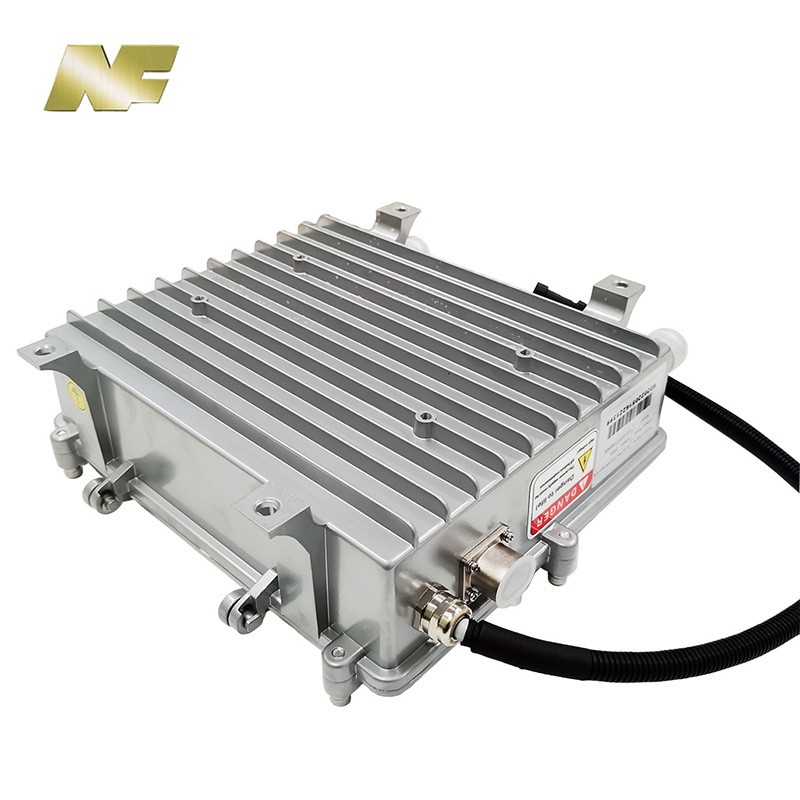

Products Details
Products Application
