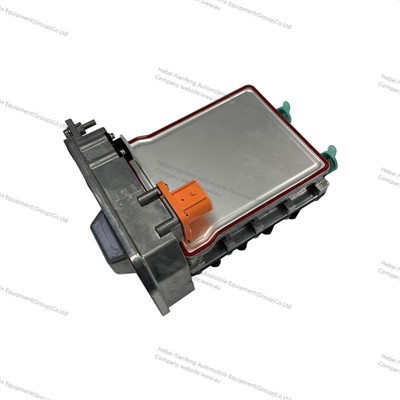

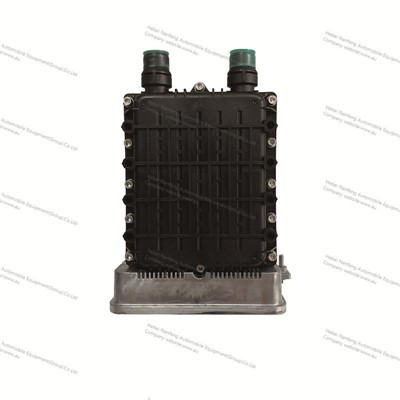

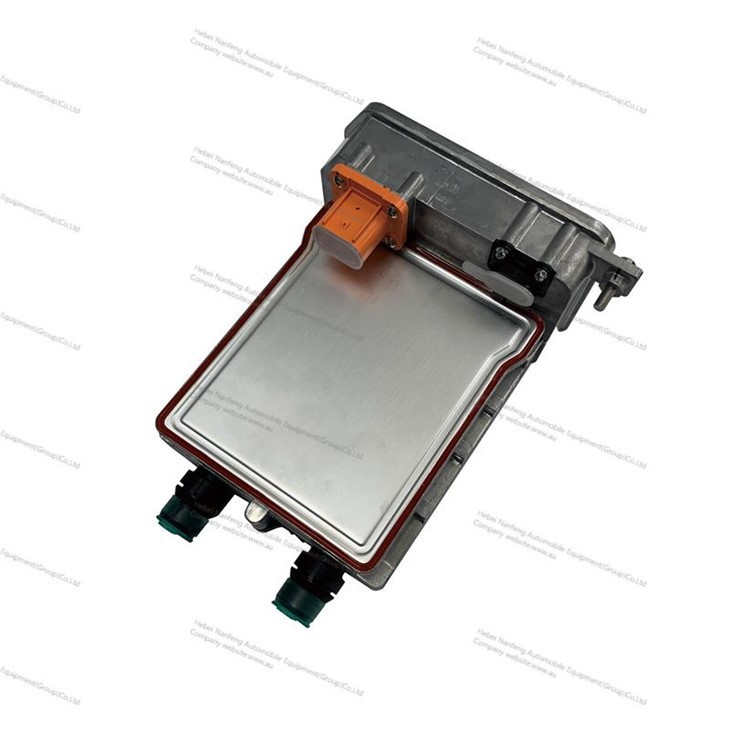

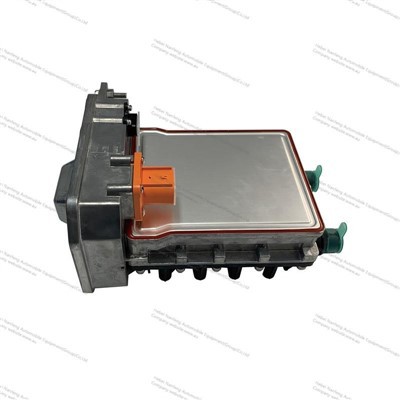

10KW HVC High Voltage Coolant Heater
Hebei Nanfeng Group has been producing heaters for more than 30 years, and our company is the largest manufacturer of automobile heating and cooling equipment in China and the designated supplier of military vehicles in China. Key markets targeted include electric vehicles. battery thermal management and HVAC refrigeration units. At the same time, we also cooperate with Bosch, and our product quality and production line have been highly recoanized by Bosch.
Description
10KW HVC High Voltage Coolant Heater
Products Description
The PTC coolant heater adopts PTC technology to meet the safety requirements of passenger cars for high voltage. In addition, it can also meet the relevant environmental requirements of components in the engine compartment. The purpose of PTC coolant heater in application is to replace the engine block as the main source of heat source. By supplying power to the PTC heating group, the PTC heating component is heated, and the medium in the circulating pipeline of the heating system is heated through heat exchange.
Products Parameter
| Item | SR10-4 |
|
Power |
10KW ±10% (650VDC, 20 L/min, 20 ℃) |
|
High voltage |
550V~850V |
|
Low voltage |
20 ~32V |
|
Electric shock |
≤ 35A |
|
Heating method |
PTC positive temperature coefficient thermistor |
|
Communication method |
PWM control |
|
Electric strength |
2150VDC , no discharge breakdown phenomenon |
|
Insulation resistance |
1000VDC, ≥ 100MΩ |
|
IP grade |
IP 6K9K & IP67 |
|
Storage temperature |
- 40~125℃ |
|
Use temperature |
- 40~125℃ |
|
Coolant temperature |
-40~90℃ |
|
Coolant |
50 ( water) +50 (ethylene glycol)% |
|
Weight |
≤ 3.1Kg |

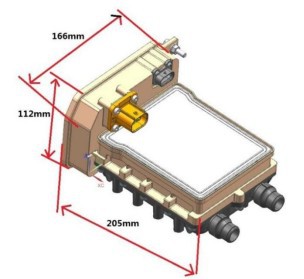

Product Structure:

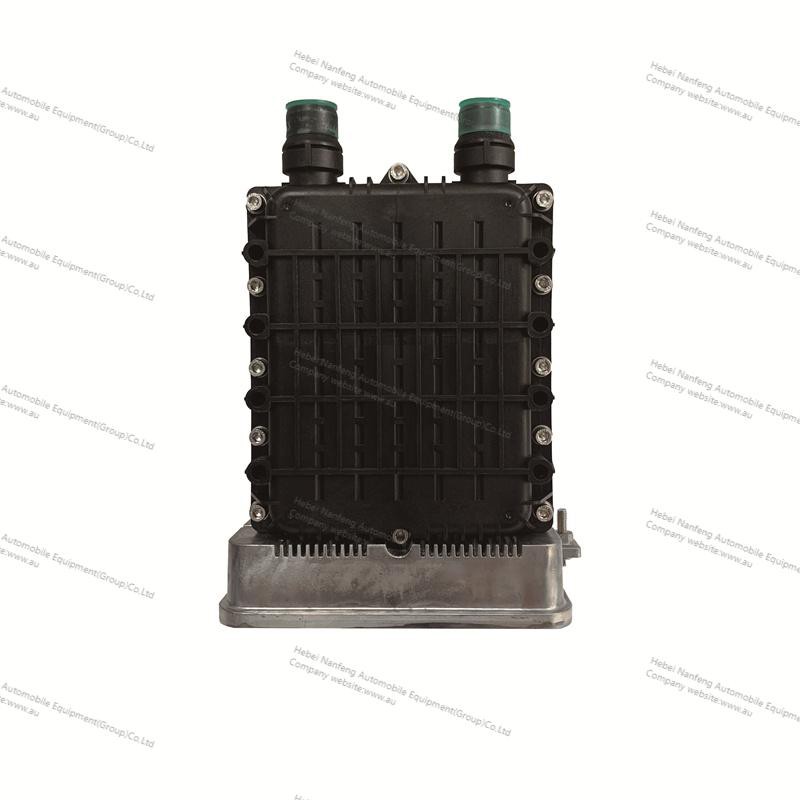

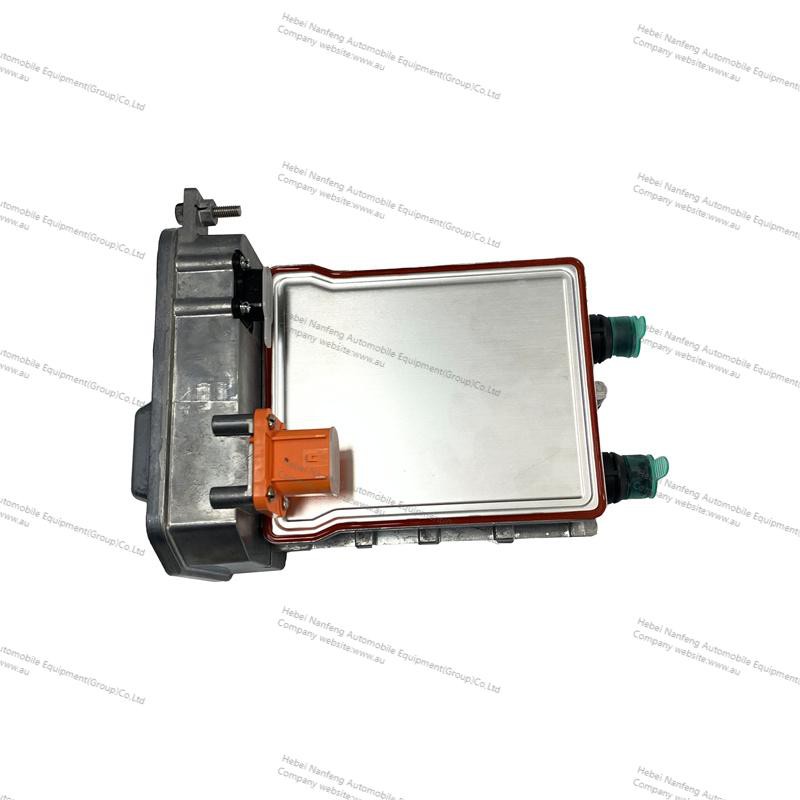

Products Details

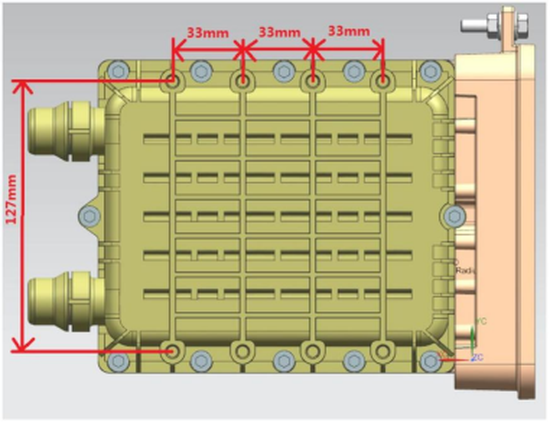

Products Installation Method
The base of the PTC water heating heater has 8 installation points, which are fixed to the installation bracket by 8 ST6 self-tapping screws. The installation bracket can be customized according to the installation space of the vehicle.
Products Application

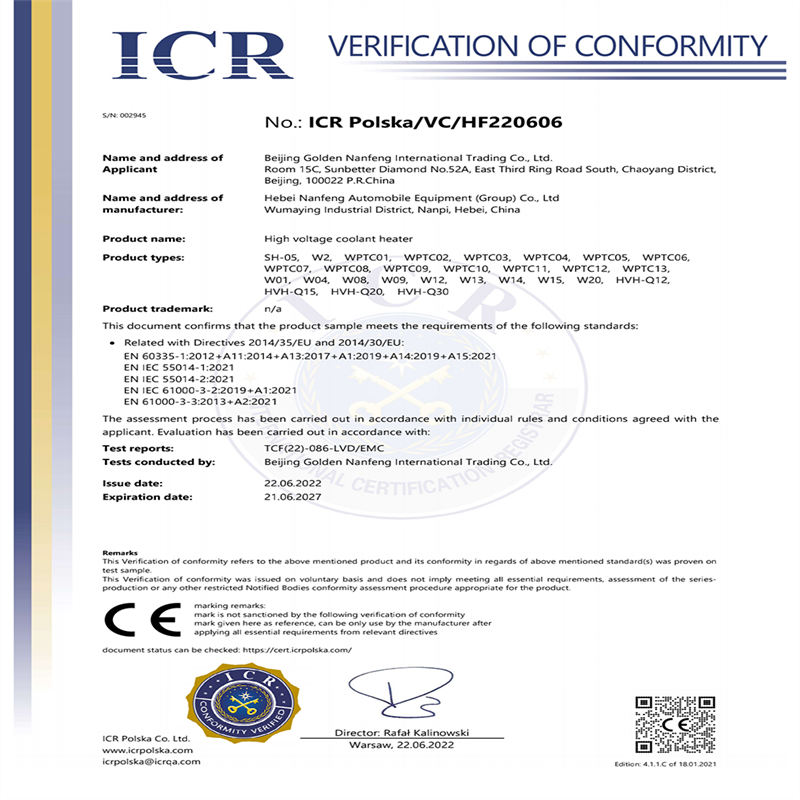

Products Certification
