20kw High Voltage Coolant Heater
This PTC electric heater is suitable for electric / hybrid / fuel cell vehicles and is mainly used as the main heat source for temperature regulation in the vehicle. The PTC electric heater is applicable to both vehicle driving mode and parking mode. In the heating process, electric energy is effectively converted into heat energy by PTC components.
Description

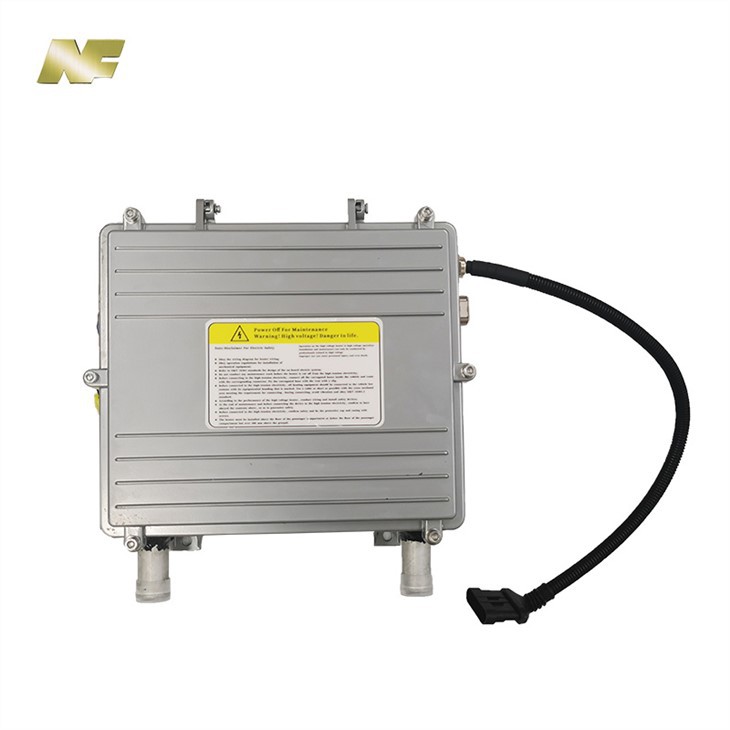

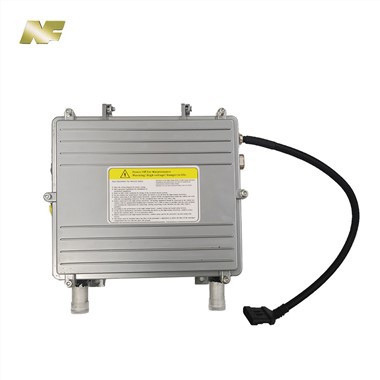

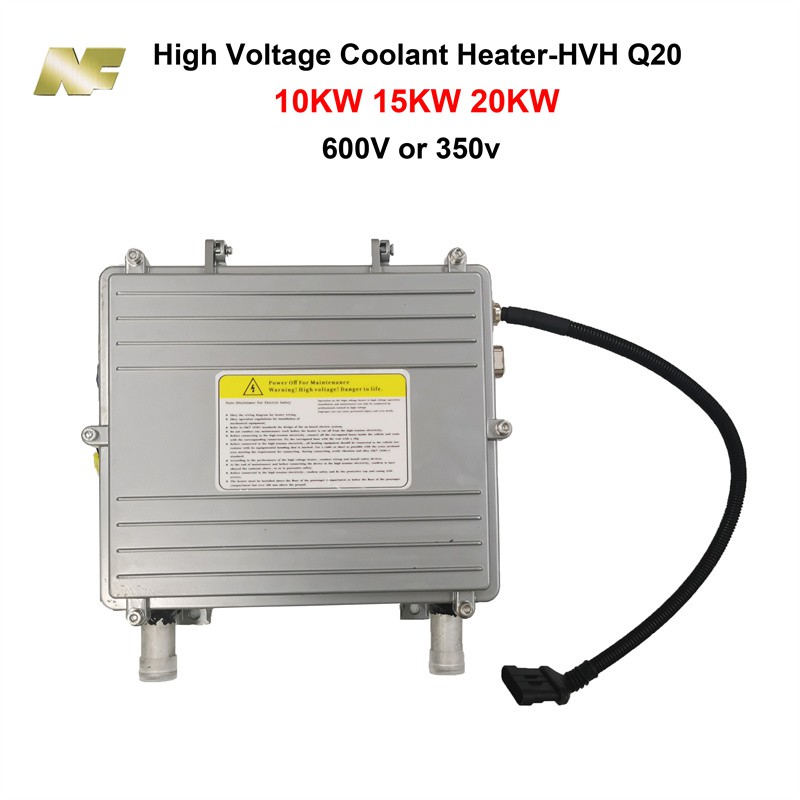

20kw High Voltage Coolant Heater
1、Product Introduction
This PTC electric heater is suitable for electric / hybrid / fuel cell vehicles and is mainly used as the main heat source for temperature regulation in the vehicle. The PTC electric heater is applicable to both vehicle driving mode and parking mode. In the heating process, electric energy is effectively converted into heat energy by PTC components.
2、Product Parameter
| Power (KW) | 10KW | 15KW | 20KW |
| Rated voltage（V） |
600V |
600V | 600V |
| Supply voltage (V) | 450-750V | 450-750V | 450-750V |
| Current consumption (A) |
≈17A |
≈25A | ≈33A |
| Flow (L/h) | ＞1800 | ＞1800 | ＞1800 |
| Weight (kg) | 8kg | 9kg | 10kg |
| Installation size | 179x273 | 179x273 |
179x273 |
| Control signal | Rocker switch hardwire control | Rocker switch hardwire control | Rocker switch hardwire control |
3、Product Advantage
Energy saving and comfort
Intelligent temperature control
Closed-loop control
Stepless speed regulation
Heating quickly

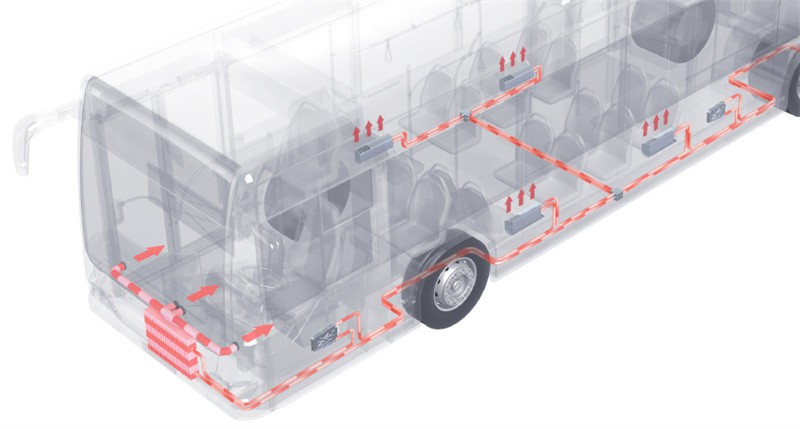

4、Application

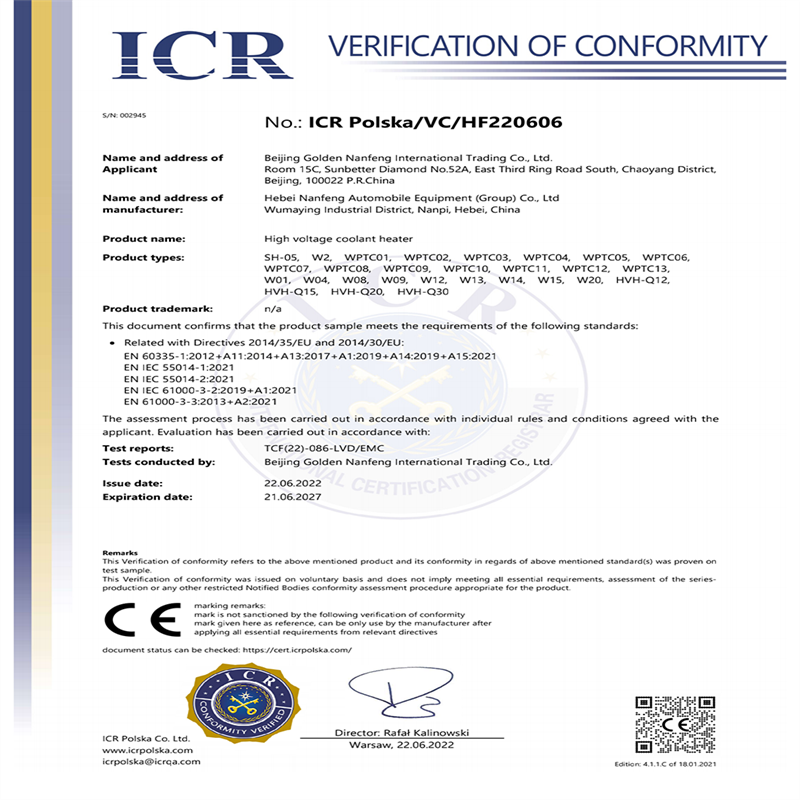

5、Certification
6、Our Service
1、Provide the technical design and solutions;
2、Tele-technical consulting and services;
3、Competitive Price (Factory direct price) with our good service.
4、Different designs are available according to customer requests.
5、Excellent quality testing equipment, 100% inspection on critical .
