High Voltage PTC Heater
2.5KW WPTC-10 PTC plumbing heaters are capable of providing heat to the cockpit for safe defrosting and defogging, or to other mechanisms that require temperature regulation.Nanfeng Group has a keen sense of smell for the development of new energy vehicles, and launched WPTC-01 series of coolant heater of high voltage to escort your electric vehicles.
Description
High Voltage PTC Heater WPTC-10
Product Description

High Voltage PTC heater, also known as PTC heating element, is a heating device designed with constant temperature heating PTC thermistor constant temperature heating characteristics. PTC heaters have the advantages of small thermal resistance, high heat exchange efficiency, high safety, automatic constant temperature, power saving, etc.
With the above advantages, PTC heaters are more and more popular in the market. PTC heaters have a wide range of applications, and downstream applications involve electric vehicles, air conditioners, dryers, clothes dryers and other fields.
Features
Electric heating antifreeze
Installed in water cooling circulation system
With short-term heat storage function
Environmental friendly
Product Parameters
| Item | WPTC-10 |
| Heating output | 2500±10%@25L/min, Tin=40℃ |
| Rated voltage(VDC) | 220V |
| Working voltage(VDC) | 175-276V |
| Controller low voltage | 9-16 or 18-32V |
| Control signal | Relay control |
| Heater dimension | 209.6*123.4*80.7mm |
| Installation dimension | 189.6*70mm |
| Joint dimension | φ20mm |
| High voltage connector | ATP06-2S-NFK |
| Low voltage connectors | 282080-1 (TE) |
| Heater weight | 1.95±0.1kg |


For the voltage requirements of 170~275V, the PTC sheet adopts 2.4mm thickness, Tc245℃, to ensure good withstand voltage and durability, and the internal heating core group of the product is integrated into one group.

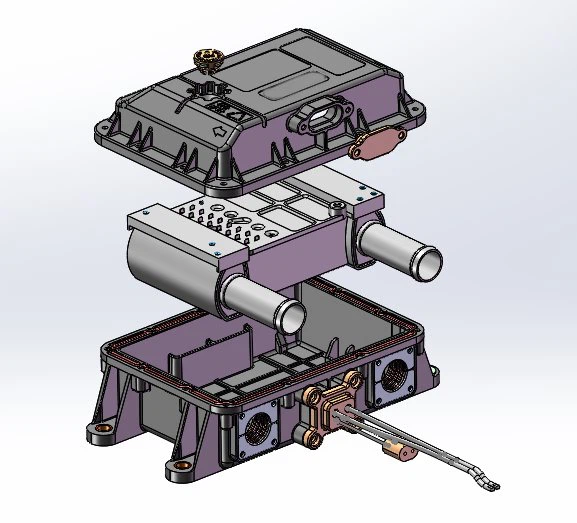

In order to ensure the product's protection grade IP67, insert the heating core component of the product into the lower base obliquely, cover the nozzle sealing ring, press the rear exterior with a pressure plate, and then seal it with potting glue in the lower base, and potting it to the D type upper surface of the tube.
After assembling other parts, use a gasket to press and seal between the upper and lower bases to ensure good waterproof performance of the product.
Product details


Advantage

Certification

Application


FAQ
Q: What’s your tem of the delivery?
A: Our ordinary delivery term is FOB Beijing. We also accept EXW, CFR, CIF, DDP, DDU etc. We’ll offer you the shipping charges and you can choose the one which is the most convenient and effective for you.
Q: What is your term of payment?
A: 100% T/T payment before shipping.
Q: Can we use our own logo?
A: Yes, we can print your private logo according to your request.
Q.How your quality guarantee?
A.We have 100% quality guarantee to customers. We will be responsible for any quality problem. The redundant sealing design can improve system reliability.
