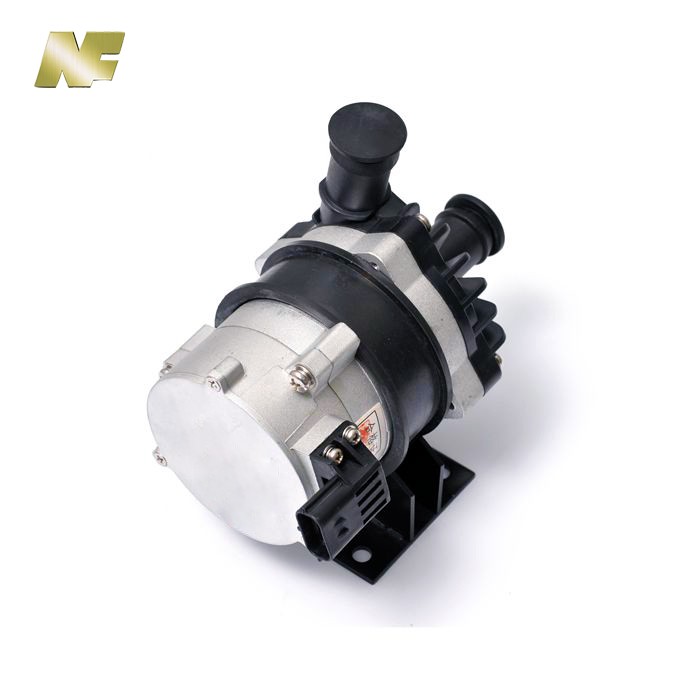

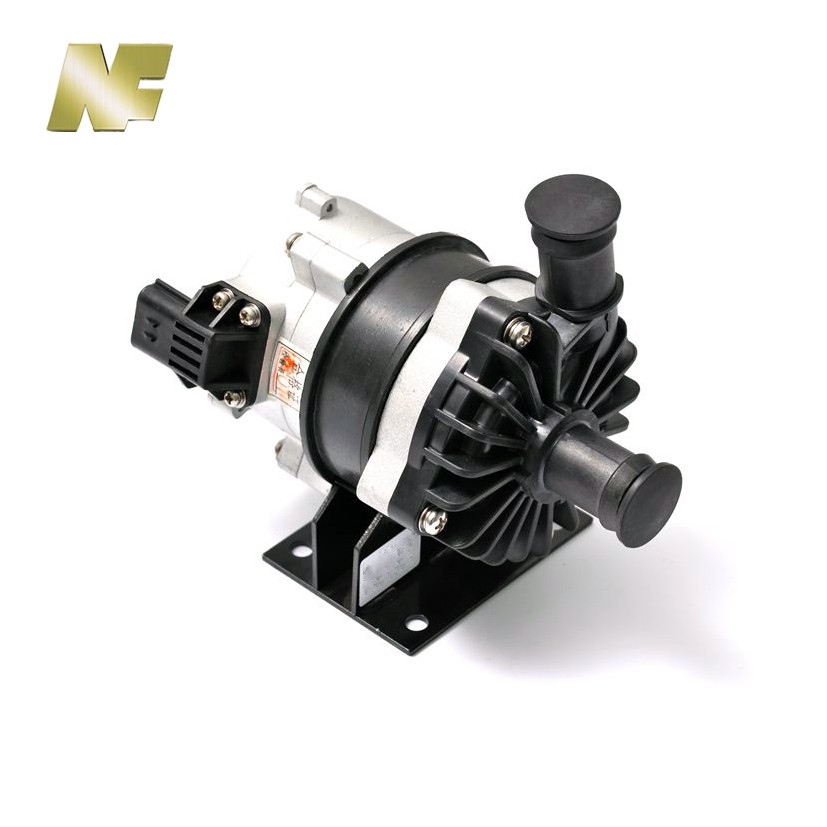

12V Electronic Water Pump For Electric Car

12V Electronic Water Pump For Electric Car



Automotive electronic water pumps, many new energy vehicles, RVs and other special vehicles are often used in micro water pumps as water circulation, cooling or vehicle water supply systems. This type of micro self-priming water pumps are collectively called automotive water pumps. The circular motion of the motor causes the diaphragm inside the water pump to reciprocate through the mechanical device, thereby compressing and stretching the air in the pump chamber (fixed volume). Under the action of the one-way valve, a positive pressure is formed at the drain outlet (actual output The size of the pressure is related to the boost received by the pump drain port and the characteristics of the pump); a vacuum is formed at the water suction port, thereby creating a pressure difference with the outside atmospheric pressure. Under the action of the pressure difference, water is forced into the water inlet and then discharged from the drain outlet. Under the action of the kinetic energy transmitted by the motor, water is continuously inhaled and discharged, forming a relatively stable flow rate.





Model Number	HS- 030-201A
Ambient Temperature	-40ºC~+100ºC
Medium Temp	≤90ºC
Rated Voltage	12V
Voltage Range	DC9V~DC16V
Waterproofing Grade	IP67
Service life	≥6000h
Noise	≤50dB
Load Power	85W(when the head is 5m)

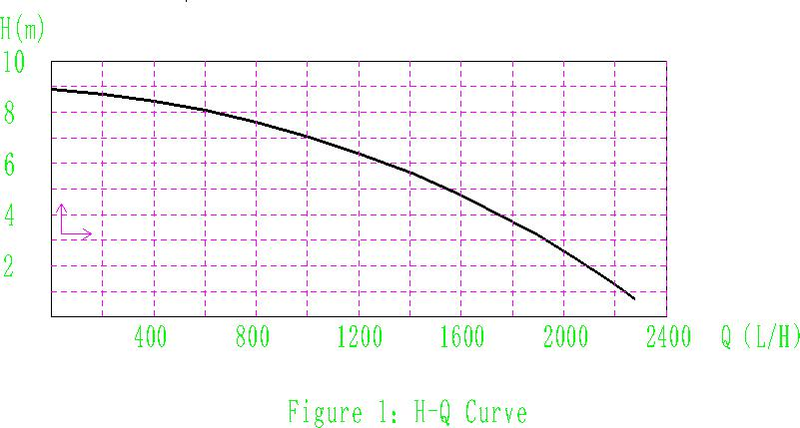

Flowing	Q=1500L/H ( when the head is 5m)

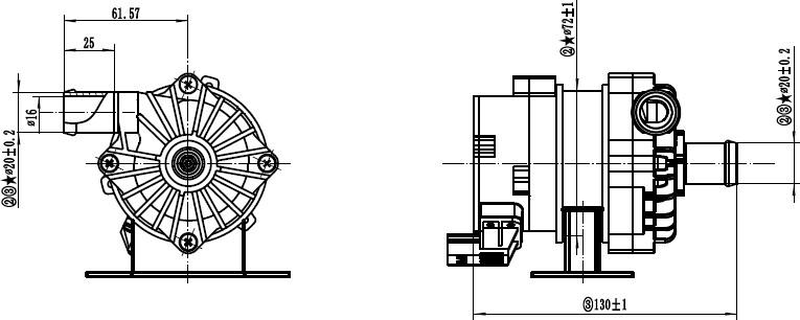

Electronic Water Pump Structure:







Hebei Nanfeng Automobile Equipment (Group) Co., Ltd is a group company with 5 factories, that specially produce parking heaters, heater parts, air conditioner and electric vehicle parts for more than 30 years. We are the leading auto parts manufacturers in China.



Our factory's production units are equipped with high tech machineries, strict quality,control testing devices and a team of professional technicians and engineers endorsing the quality and authenticity of our products.



In 2006, our company has passed ISO/TS16949:2002 quality management system certification. We also bagged the CE certificate and Emark certificate making us among the only few companies in the world acquiring such high level certifications.

Currently being the largest stakeholders in China, we hold a domestic market share of 40% and then we export them around the globe particularly in Asia, Europe and Americas.



Meeting the standards and demands of our customers have always been our top priority. It always encourages our experts to continuously brain storm, innovate, design and manufacture new products, impeccably suitable for the Chinese market and our customers from every nook of the world.

If you're looking for the 12v electronic water pump for electric car, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
