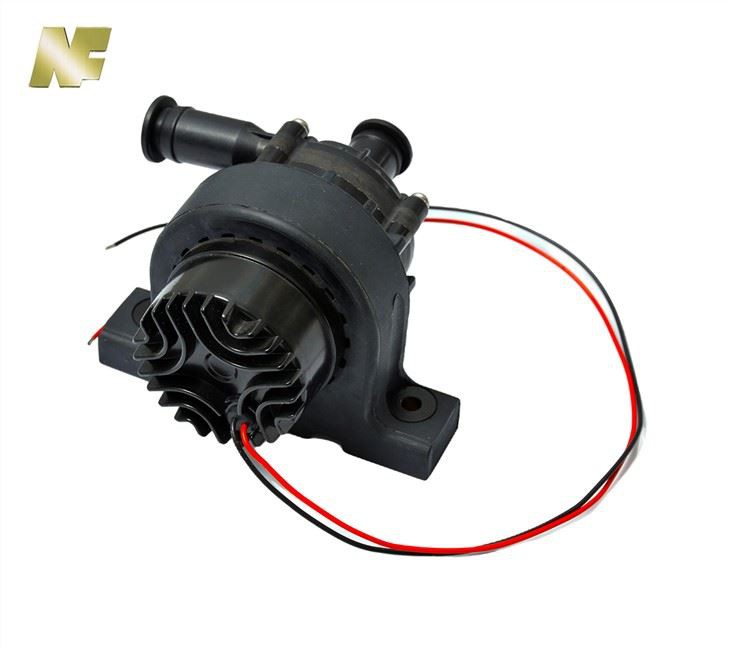

New Engrgy Bus Electric Water Pump
NF electronic water pump is mainly used for the cooling, and dissipation of heat of electric motors, controllers, batteries and other electrical appliances in new energy (hybrid and pure electric vehicles).
Description
New engrgy bus electric water pump is mainly used for the cooling, and dissipation of heat of electric motors, controllers, batteries and other electrical appliances in new energy (hybrid and pure electric vehicles).
NF New Energy Electric Water Pumps consist of the pump head, impeller, and the brushless motor, and the structure is tight, the weight is light.
Technical data

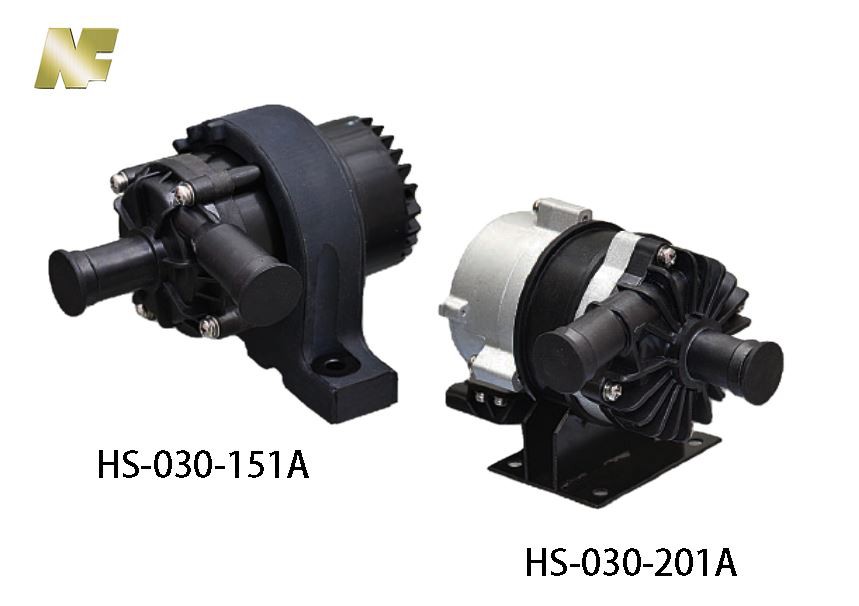

OE NO. | HS-030-151A |
Product Name | Electric Water Pump |
Application | New energy hybrid and pure electric vehicles |
Motor Type | Brushless motor |
Rated power | 30W/50W/80W |
Protection level | IP68 |
Ambient Temperature | -40℃～+100℃ |
Medium Temp | ≤90℃ |
Rated Voltage | 12V |
Noise | ≤50dB |
Service life | ≥15000h |
Waterproofing Grade | IP67 |
Voltage Range | DC9V～DC16V |
Application
