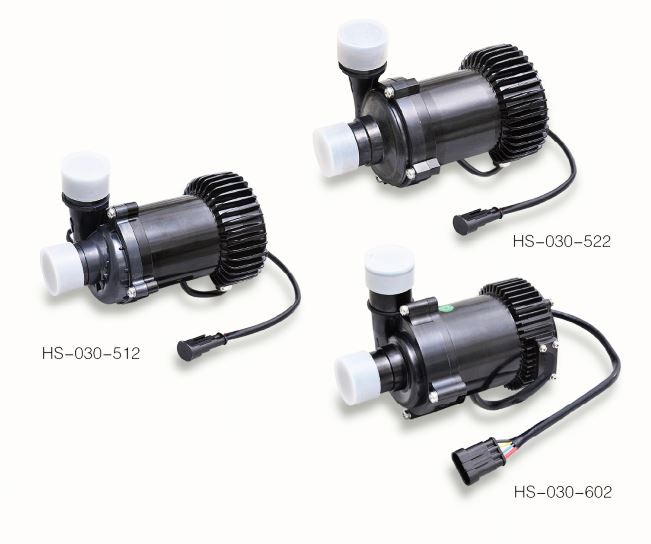

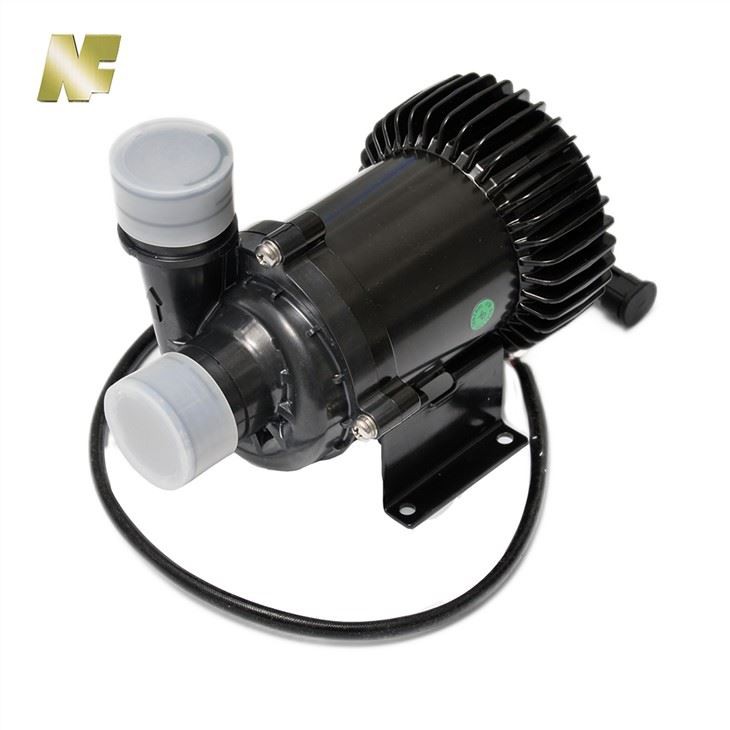

Auto Electric Water Pump For Bus
NF Electric Water Pump for New Energy Vehicles is mainly used for the cooling, and dissipation of heat of electric motors, controllers, batteries and other electrical appliances in new energy (hybrid and pure electric vehicles).
Description
NF Auto Electric Water Pump for Bus 24 Volt DC mainly consists of several parts, such as pump cover, impeller rotor assembly, stator bushing component, casing stator component, motor driving plate and heat sink back cover, which are compact in structure and light in weight. Its working principle is that the impeller and rotor assembly are integrated, the rotor and stator are separated by shielding sleeve, and the heat generated by the rotor in the medium can be exported through the cooling medium. So, its high working environment adaptability, can adapt to 40 ℃ ~ 95 ℃ environment temperature. The pump is of high strength and abrasion resistant material with a service life of more than 35 000 hours.
Auto Electric Water Pump for Bus Parameters
Ambient temperature | -40℃～+95℃ |
| Mode | HS-030-512A |
Medium (antifreeze) Temp | ≤105℃ |
Color | Black |
Rated Voltage | 24V |
Voltage Range | DC18V～DC30V |
Current | ≤11.5A (when the head is 6m) |
Flowing | Q≥6000L/H (when the head is 6m) |
Noise | ≤60dB |
| Waterproofing Grade | IP67 |
Service lif | ≥35000h |

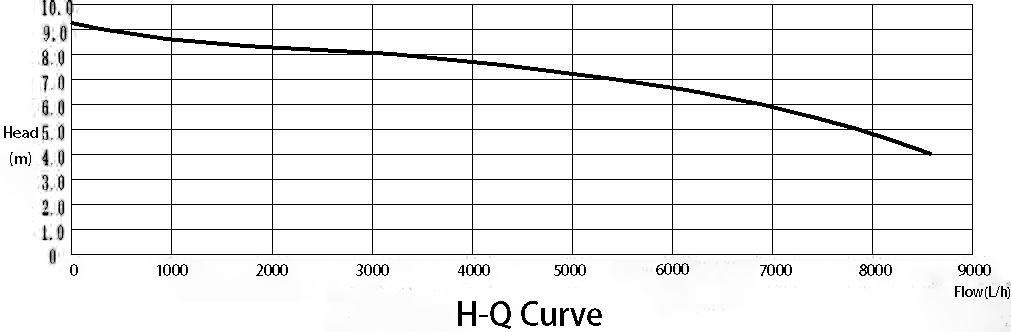

Auto Electric Water Pump for Bus curve
Application
