8kw PTC Water Heater for ev vehicle
PTC Water Heater can provide heat for the cockpit of new energy vehicles and meet the standard of safe defrosting and defogging. At the same time, it provides heat to other parts of the vehicle that require temperature regulation.
Description
8KW PTC Water Heater for EV Vehicle
Products Description
The heater is mainly used to heat the passenger compartment, defrost and demist the windows, or preheat the power battery thermal management battery and meet the corresponding regulations and functional requirements.
The main functions of the high-voltage coolant PTC heater are:
-Control function: the heater control mode is power control and temperature control;
-Heating function: convert electric energy into heat energy;
-Interface functions: energy input of heating module and control module, signal module input, grounding, water inlet and outlet.
Products Parameters
| Item | WPTC-13 |
| Rated voltage(VAC) | 430VAC (323-552VAC/50Hz&60Hz, three-phase four-wire power supply), inrush current I≤30A; |
| Ambient temperature: | -40~105℃ |
| Ambient humidity: | 5%~90%RH |
| Medium: | 50% water/50% ethylene glycol |
| Heater protection grade: | IP67 |
| Heater weight: | 3.7±0.1Kg |
| Heater air tightness: | apply pressure 0.6MPa, test for 3min, the leakage is less than 500Pa |
The product is designed for a voltage requirement of 430V, with a PTC chip thickness of 3.0mm and Tc210 ℃, ensuring good voltage resistance and durability. The internal heating core components of the product are divided into 12 groups.
To ensure the product's protection level of IP67, the heating core component of the product is tilted and inserted into the lower base. The sealing ring of the pipe mouth (No. 9) is installed, and the outer part is compressed with a pressure plate. Then, the lower base (No. 6) is sealed with potting glue and potted onto the upper surface of the D-shaped pipe. After assembling other components, a sealing gasket (No. 5) is used to compress and seal between the upper and lower bases to ensure good waterproof performance of the product.
Products Characteristics
-Using electric heating antifreeze to provide heat to the interior of the car through the heating core body
-Installed in the water cooling circulation system
-Warm and gentle air with controllable temperature
-With short-term heat storage function
-Whole vehicle cycle, supporting battery thermal management
-environment protection

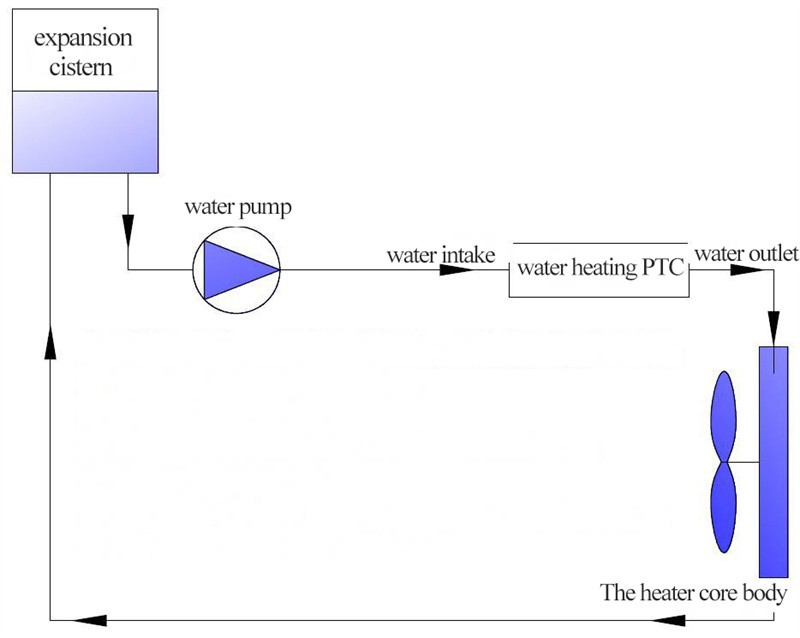

Products Installation Advice
To ensure maximum energy efficiency of the water heating PTC, the following precautions should be taken during installation:
1. The highest point of pTc shall be lower than the expansion tank,
2. The water pump should not be higher than PTC;
3. The PTC should be installed after the water pump and before the heating core;
4. Pay attention to the direction of the PTC inlet and outlet water.
5. Before the first operation of PTC or after maintenance of pipeline components, the water pump should be run first, and it should be confirmed that the exhaust has been discharged before powering on PTC.

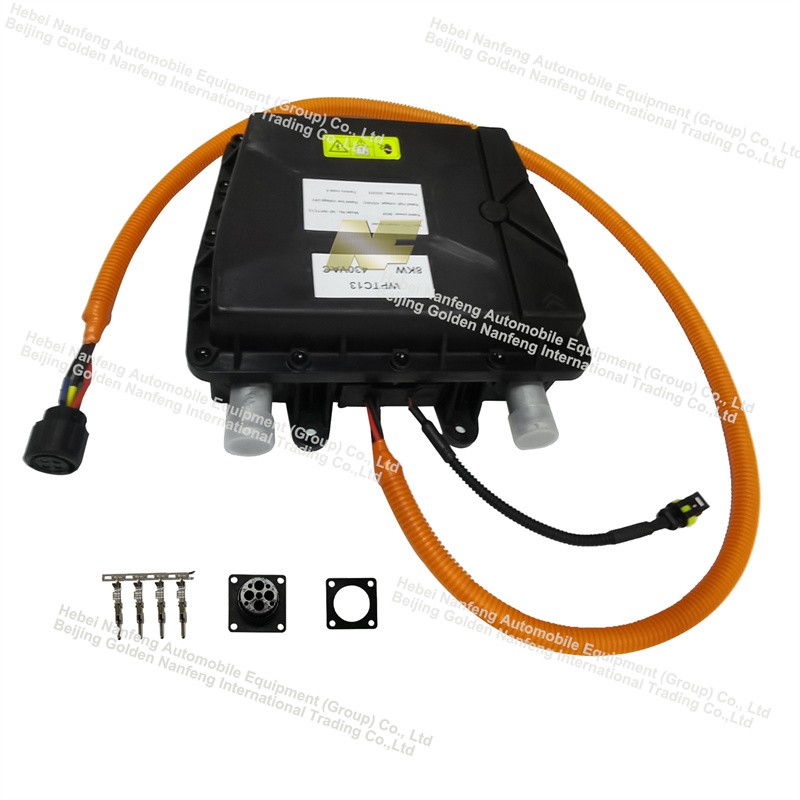

Products Details

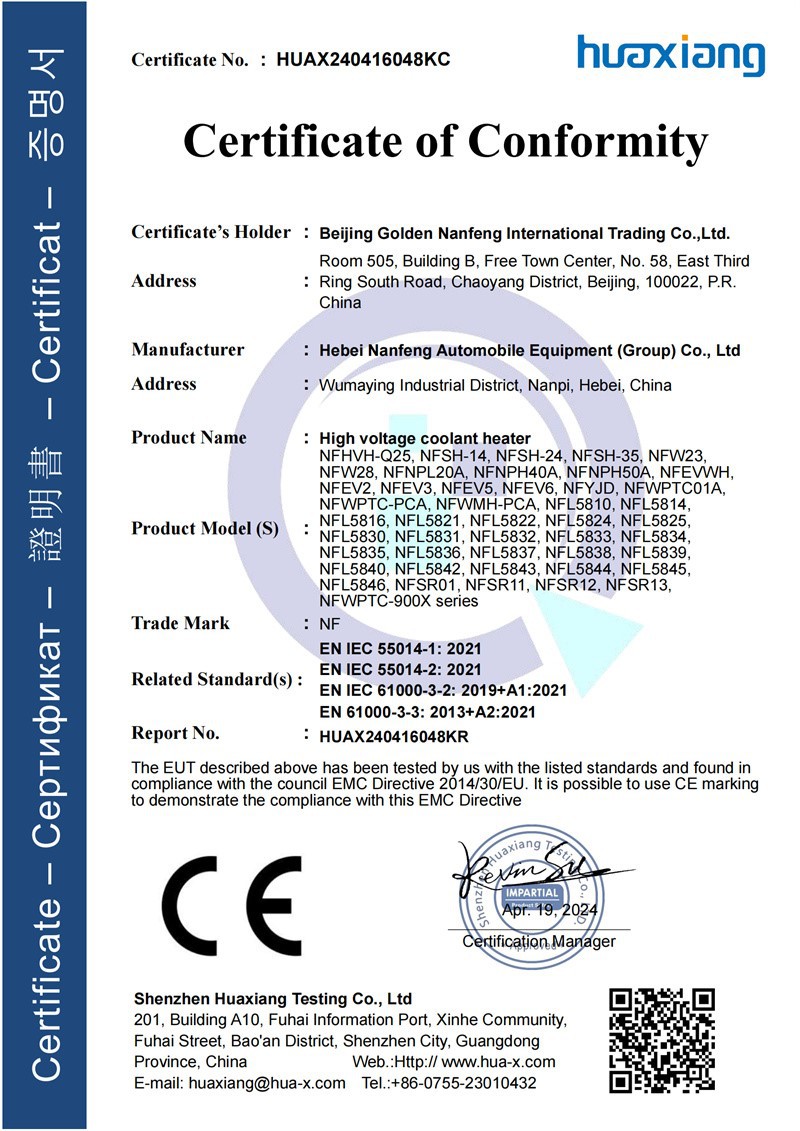

Products Certification
Products Application and Shipping
Products FAQ
FAQ
Q: What is a PTC electric water heater, and how does it work?
A: Answer:
A PTC electric water heater uses PTC ceramic heating elements to heat water efficiently and safely. The self-regulating properties ensure stable water temperature without external thermostats.
Q: 12. When should you choose a PTC electric water heater?
A: Answer:
✔ In electric vehicles – Heating for cooling loops and passenger comfort.
✔ For RVs and boats – Reliable hot water on the go.
✔ For household water heating – Instant hot water supply.
✔ In industrial applications – Efficient water heating for production processes.
Q: 13. What are the advantages of PTC electric water heaters?
A: Answer:
✔ Energy-efficient – Uses only the needed power.
✔ Fast heating – Quick response time.
✔ Long lifespan – Durable ceramic elements.
✔ Self-regulating – Prevents overheating.
✔ Safe operation – No risk of electrical shocks or burns.
