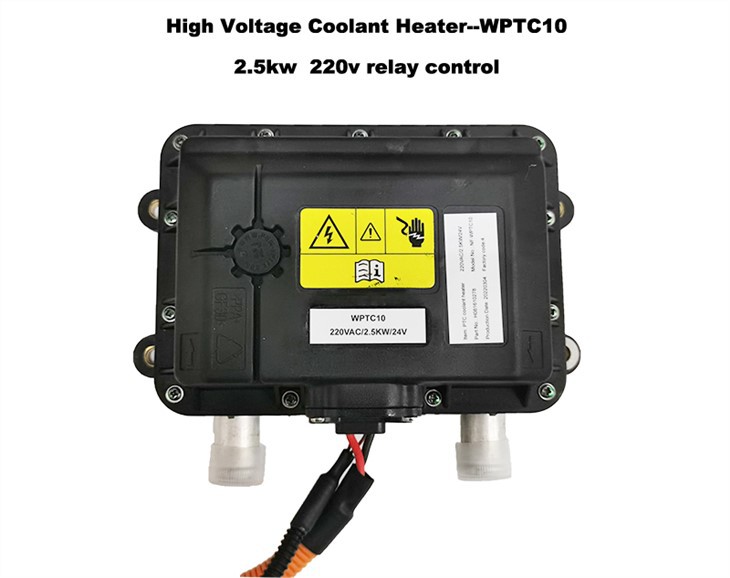

PTC Electric Heater For EV

PTC Electric Heater for EV



Product Description







Function
PTC coolant heaters provide heat to the cockpit, and meet the standard of safe defrosting and defogging, or provide heat for other institutions that require temperature regulation.

Features
Electric heating antifreeze
Installed in water cooling circulation system
With short-term heat storage function
Environmental friendly





Product Parameters

Item	WPTC-10
Heating output	2500±10%@25L/min, Tin=40℃
Rated voltage(VDC)	220V
Working voltage(VDC)	175-276V
Controller low voltage	9-16 or 18-32V
Control signal	Relay control
Heater dimension	209.6*123.4*80.7mm
Installation dimension	189.6*70mm
Joint dimension	φ20mm
High voltage connector	ATP06-2S-NFK
Low voltage connectors	282080-1 (TE)
Overall protection level	IP67
Heater weight	1.95±0.1kg



1. Rated parameters: ambient temperature is 25℃, voltage is AC220(170~275)V, coolant inlet temperature is 40(-2~0)℃, flow rate is 25L/min, power is 2.5KW±10%;
2. Under normal conditions, the insulation resistance is ≥ 200MΩ/1000VDC/10s, the withstand voltage is AC1500V/1min, and the leakage current ≤ 5mA;
3. The maximum starting current ≤ 20A;
4. The thermostat protection temperature is 85℃;
5. The weight of the heater is about: 1.95±0.1kg;
6. Other unmarked requirements shall be implemented according to Q/321191 AAM007;



Product details





Installation Precautions







Certification



Application



Shipping

If you're looking for the ptc electric heater for ev, welcome to wholesale the product from our factory. As one of the leading manufacturers and suppliers in China, we will offer you the best service and fast delivery. Now, check the quotation with our seller.
