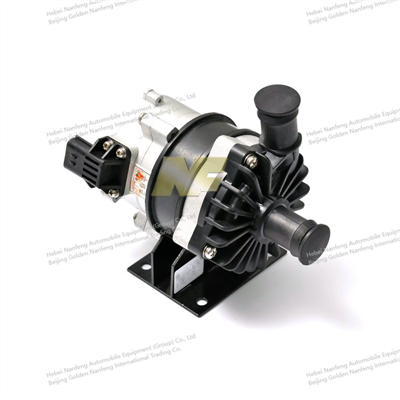

Electronic Water Pump For Vehicles
The NF new energy electric water pump is primarily used for cooling and dissipating heat from electric motors, controllers, batteries, and other electrical components in new energy vehicles (hybrid and pure electric vehicles).
Description
Electronic Water Pump For Vehicles
Products Description
Three core reasons for the popularity of new energy vehicle electronic water pumps:
1. Intelligent demand explodes
(1) The electrification platform requires precise fluid control, and the electronic water pump can achieve stepless speed regulation of 0-100%.
(2) Linked with the BMS/thermal management system, the response speed is 10 times faster than that of the mechanical pump.
2. Energy efficiency revolution drive
(1) The power consumption is reduced by 40% compared with the mechanical pump, and the battery life is increased by about 2% (NEDC operating conditions).
(2) The intelligent start-stop function can save about 50 kWh of electricity every year (annual average calculation of 20,000 kilometers)
3. System integration dividends
(1) Reduce volume by 60% and reduce weight by 50%.
(2) Integrated CAN bus communication and support OTA remote upgrade.
(3) Maintenance-free design, life span of 8 years/150,000 kilometers (two times that of mechanical pumps).
Products Parameter
| Model Number | HS- 030-201A |
| Ambient Temperature | -40ºC~+100ºC |
| Medium Temp | ≤90ºC |
| Rated Voltage | 12V |
| Voltage Range | DC9V~DC16V |
| Waterproofing Grade | IP67 |
| Service life | ≥6000h |
| Noise | ≤50dB |

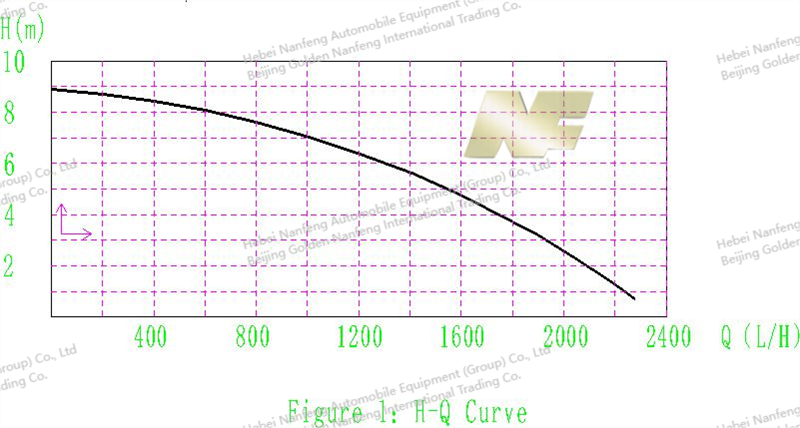

| Load Power | 85W(when the head is 5m) |
| Flowing | Q=1500L/H ( when the head is 5m) |

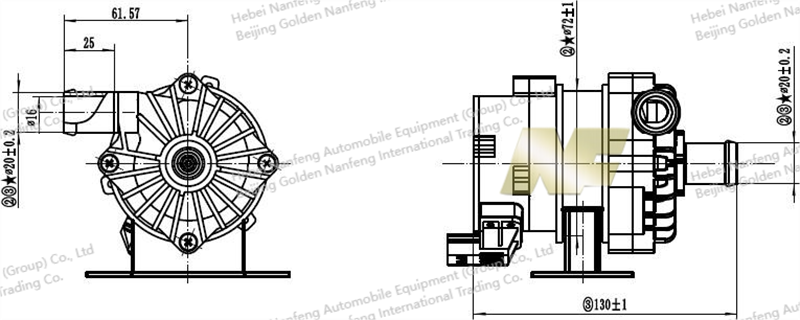

Electronic water pump size:

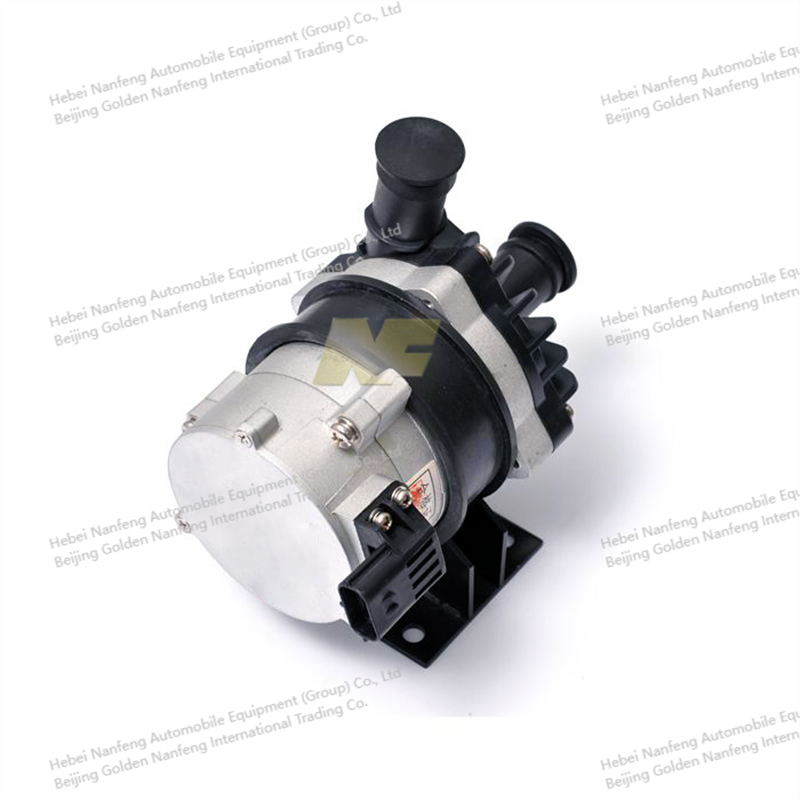

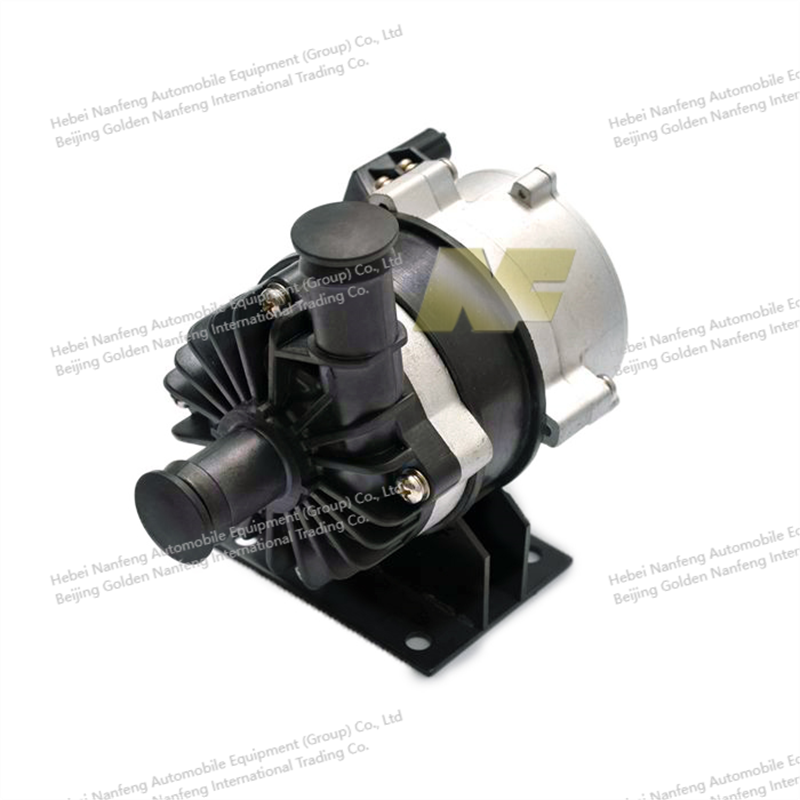

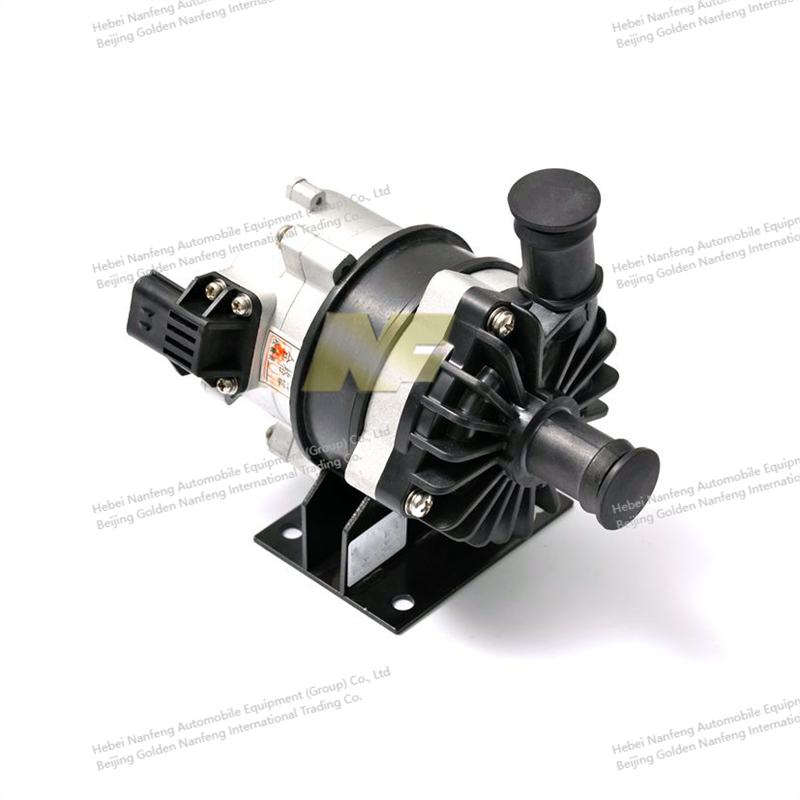

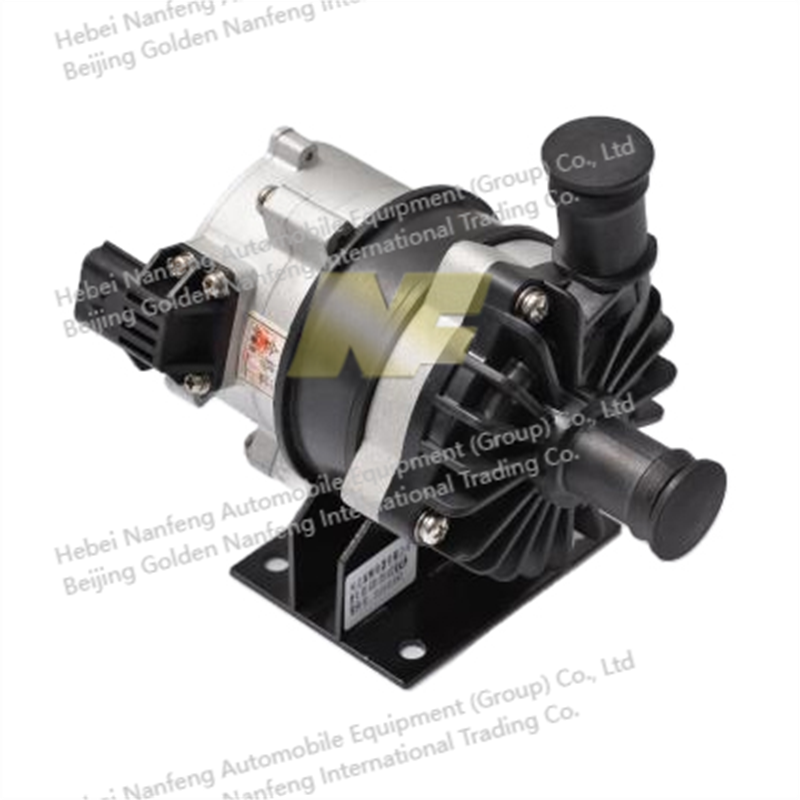

Products Details
Products Application
Products Certification

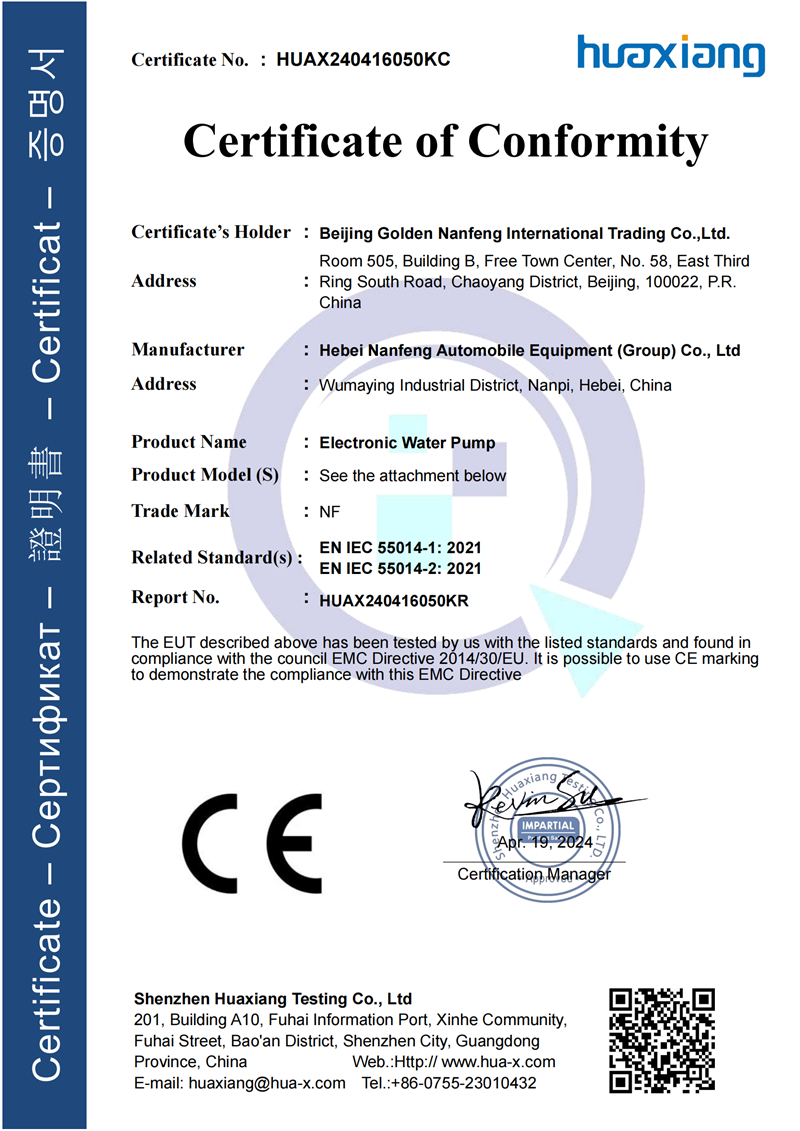

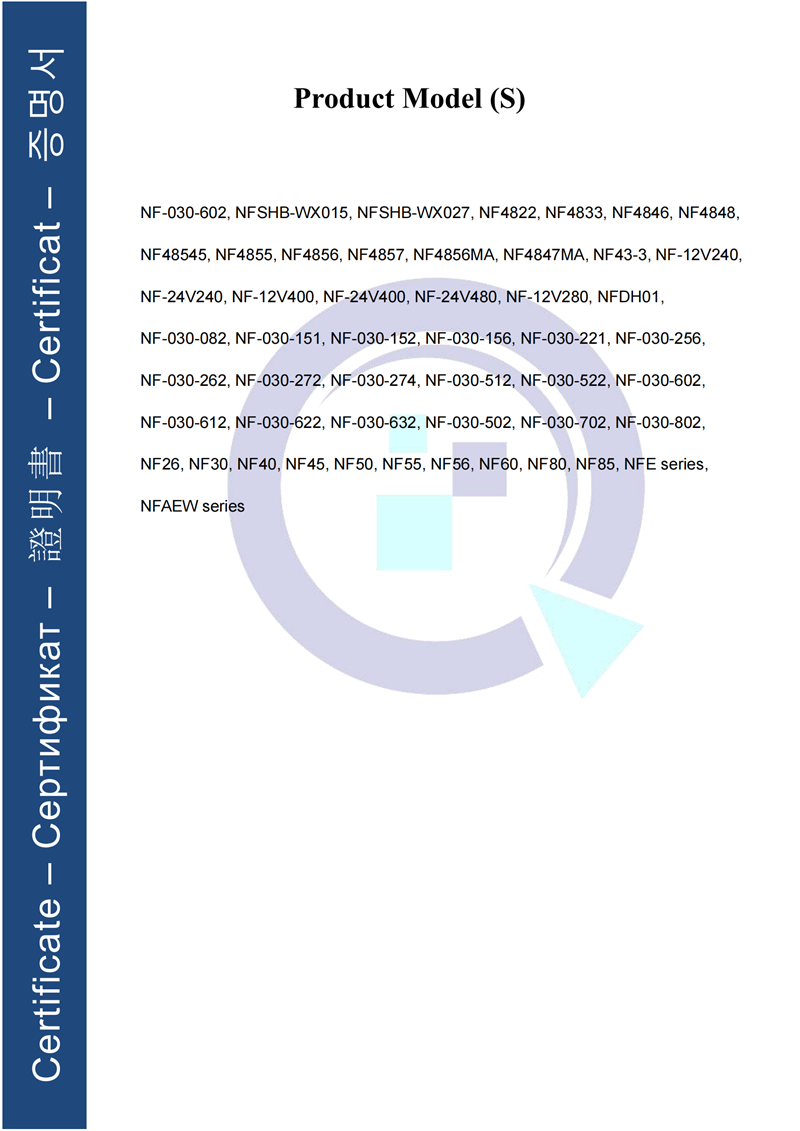

Our electronic water pumps have passed professional CE certification. Please review the CE certification certificate in the picture below, which lists a variety of electronic water pump models. Different models correspond to products with different power, voltage, head, flow rate, etc.
Our Company
FAQ
1. Q: If I want to buy an electronic water pump, what information do I need to tell you?
A: You need to tell me the power, voltage, flow, head, and control method, and I will recommend the corresponding products for you.
2. Q: What quality assurance does your electronic water pump have?
A: We have passed professional CE certification and related testing experiments, and we can provide you with a test report. The warranty period is one year.
3. Q: Are your electronic water pumps mass-produced?
A: Most of our electronic water pumps have been mass-produced, and have been for many years. We cooperate with BYD and supply BYD.
4. Q: In addition to electronic water pumps, can you provide other supporting products?
A: Of course, we can also provide PTC electric heaters, defrosters, compressors, plate heat exchangers, and other supporting new energy products, providing one-stop product services.
5. Q: What are the control methods of electronic water pumps?
A: Including PWM control, CAN, and ON gear control.
6. Q: Is there any difference in the selection of electronic water pumps for commercial vehicles and passenger vehicles?
A: There is no difference. It mainly depends on the flow rate, head, power, and other detailed technical parameters you need.
7. Q: What vehicles can your electronic water pumps be used on?
A: We have a different series of electronic water pumps. According to your needs, they can be applied to micro trucks, medium trucks, heavy trucks, passenger cars, buses, construction machinery, and other vehicles.
